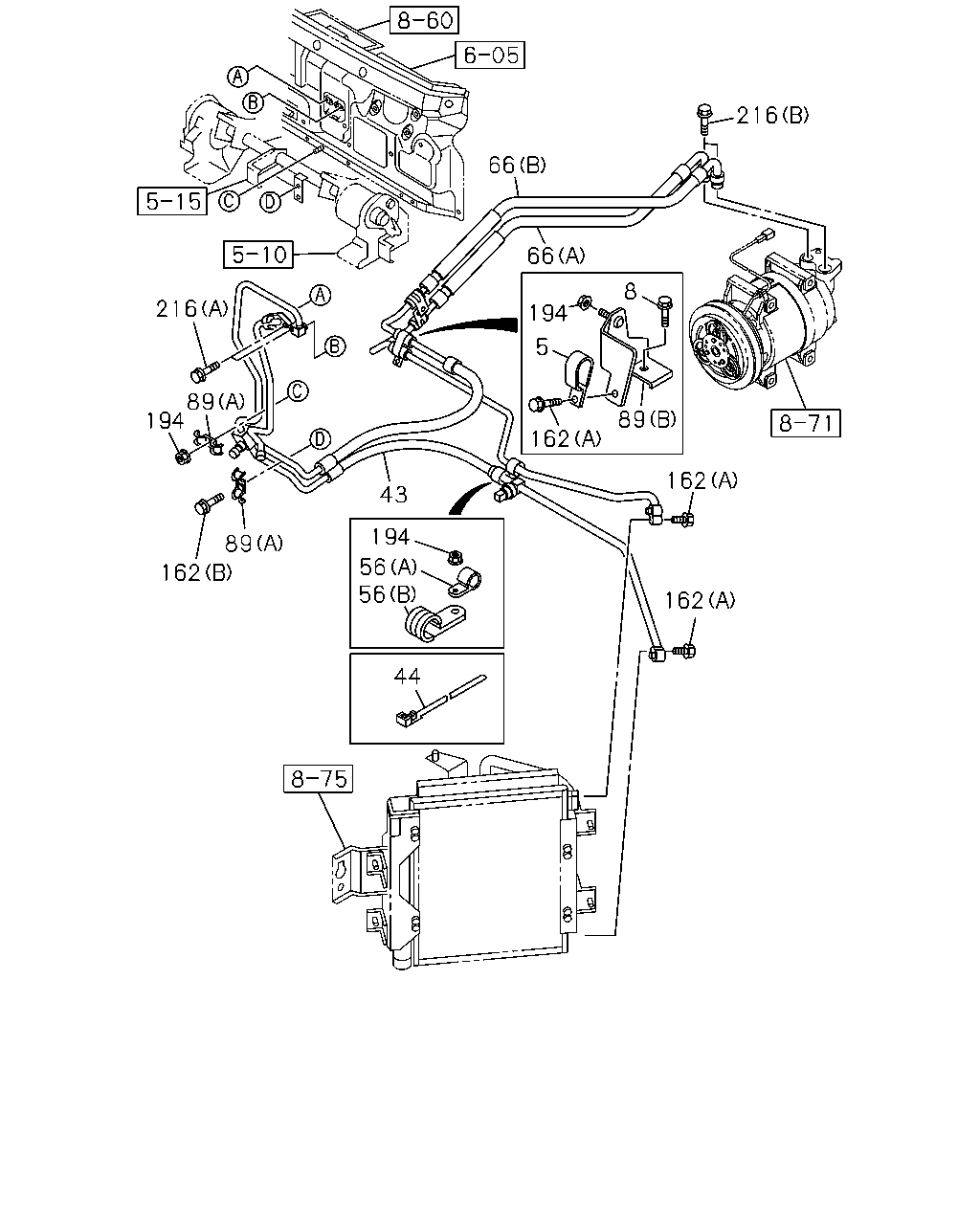

8-52 — PIPING; AIR CONDITIONING (#125235) — 29 parça

43 66 66 67 148 147 67 67 67 50 202 50 148 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) HIGH PRESSURE	8-98179-006-0	01	1	1306-
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) ID=7.5	1-83539-316-0	02	1	1306-
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98100-100-1	01	1	1306-
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98159-630-2	01	1	1306-
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) ID=11.7	8-97095-907-0	02	1	1306-
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) ID=14.5	8-97095-908-0	01	1	1306-
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) ID=17.6	8-98036-895-0	01	1	1306-
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) CAP MARK L	1-83539-331-0	01	1	1306-
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) CAP MARK H	8-97095-911-0	01	1	1306-
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-97095-909-0	01	1	1306-
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98031-629-0	01	1	1306-
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	1-83564-392-1	01	1	1306-

216 89 194 162 66 216 66 194 5 43 194 56 56 44 162 162 89 162 89 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98052-857-0	01	1	1306-
8	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M8X25 FLANGE MAL	0-28650-825-0	01	1	1306-
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) HIGH PRESSURE	8-98179-006-0	01	1	1306-
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=250	5-09707-030-1	01	1	1306-
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=250	5-09707-030-1	01	1	1306-
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) ID=13 L=20	0-95235-232-0	01	1	1306-
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98032-641-0	01	1	1306-
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98100-100-1	01	1	1306-
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98159-630-2	01	1	1306-
89	BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98002-365-2	01	1	1306-
89	BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98151-264-0	02	1	1306-
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) M6X20 FLANGE MAL	0-28650-620-0	01	1	1306-
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) M6X25 FLANGE MAL	0-28650-625-0	01	1	1306-
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) M6X25 FLANGE MAL	0-28650-625-0	02	1	1306-
194	NUT; HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6 FLANGE MAL	0-91180-106-0	03	1	1306-
216	BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) M6X30 FLANGE	0-28650-630-0	02	1	1306-
216	BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1306-
