◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51500 - NPS(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#125234) — 41 parça

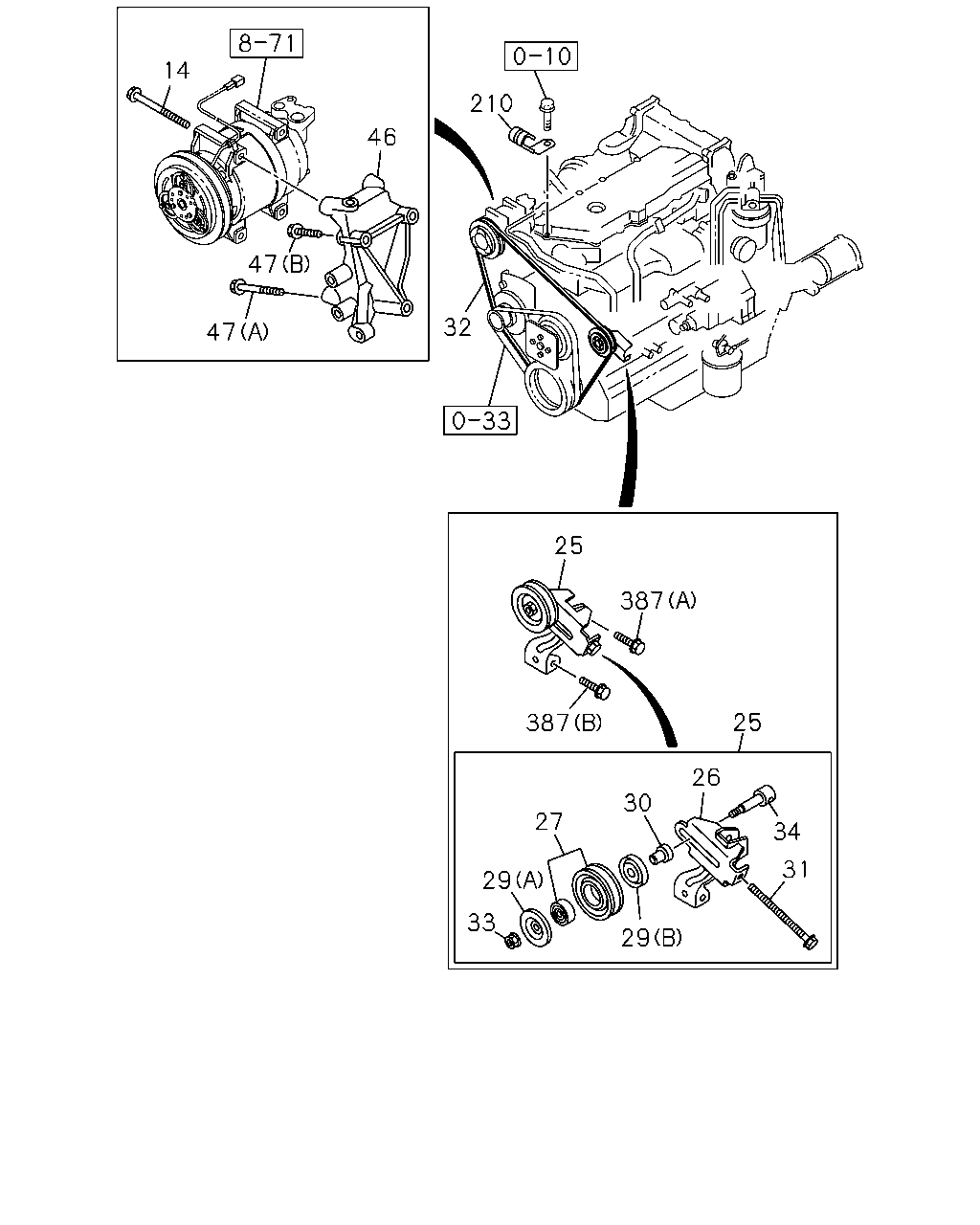

çizim 365501
33 29 31 34 26 30 27 29 25 387 387 25 32 47 47 46 210 14
BalonParca AdiParca NoAdetTipApplied Date
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60) M8X90 FLANGE 		0-28050-890-0 04 1 1306-1307
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M8X90 FLANGE 		0-28050-890-0 04 1 1308-
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-97161-198-1 01 1 1306-1307
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 1-GROOVE 		8-97161-198-1 01 1 1308-
26 BRACKET; IDLE PULLEY,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97161-031-1 01 1 1306-1307
26 BRACKET; IDLE PULLEY,A/C
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97161-031-1 01 1 1308-
27 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97386-869-0 01 1 1306-1307
27 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97386-869-0 01 1 1308-
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97384-114-0 01 1 1306-1307
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 		8-97384-114-0 01 1 1308-
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-115-0 01 1 1306-1307
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-97384-115-0 01 1 1308-
30 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-97384-117-0 01 1 1306-1307
30 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97384-117-0 01 1 1308-
31 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-97384-113-0 01 1 1306-1307
31 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97384-113-0 01 1 1308-
32 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-3 01 1 1306-1307
32 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=1569 		8-97180-183-3 01 1 1308-
32 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS 		5-87610-097-0 01 1 1306-1307
32 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) BEST VALUE PARTS 		5-87610-097-0 01 1 1308-
33 NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-97384-118-0 01 1 1306-1307
33 NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97384-118-0 01 1 1308-
34 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60) 		8-97384-116-0 01 1 1306-1307
34 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97384-116-0 01 1 1308-
46 BRACKET; CMPR
AIR CONDITIONER MANUAL CONT(C60) 		8-97305-489-0 01 1 1306-1307
46 BRACKET; CMPR
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97305-489-0 01 1 1308-
47 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60) (A) M10X110 FLANGE 		0-28156-011-0 01 1 1306-1307
47 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) M10X110 FLANGE 		0-28156-011-0 01 1 1308-
47 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60) (B) M10X55 FLANGE 		8-97365-449-0 02 1 1306-1307
47 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) M10X55 FLANGE 		8-97365-449-0 02 1 1308-
210 CLIP; HARNESS
ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1306-
387 BOLT; TENSIONER FIX
AIR CONDITIONER MANUAL CONT(C60) (A) M8X50 FLANGE 		0-28050-850-0 01 1 1306-1307
387 BOLT; TENSIONER FIX
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) M8X50 FLANGE 		0-28050-850-0 01 1 1308-
387 BOLT; TENSIONER FIX
AIR CONDITIONER MANUAL CONT(C60) (B) M10X65 FLANGE 		8-94344-540-1 01 1 1306-1307
387 BOLT; TENSIONER FIX
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) M10X65 FLANGE 		8-94344-540-1 01 1 1308-

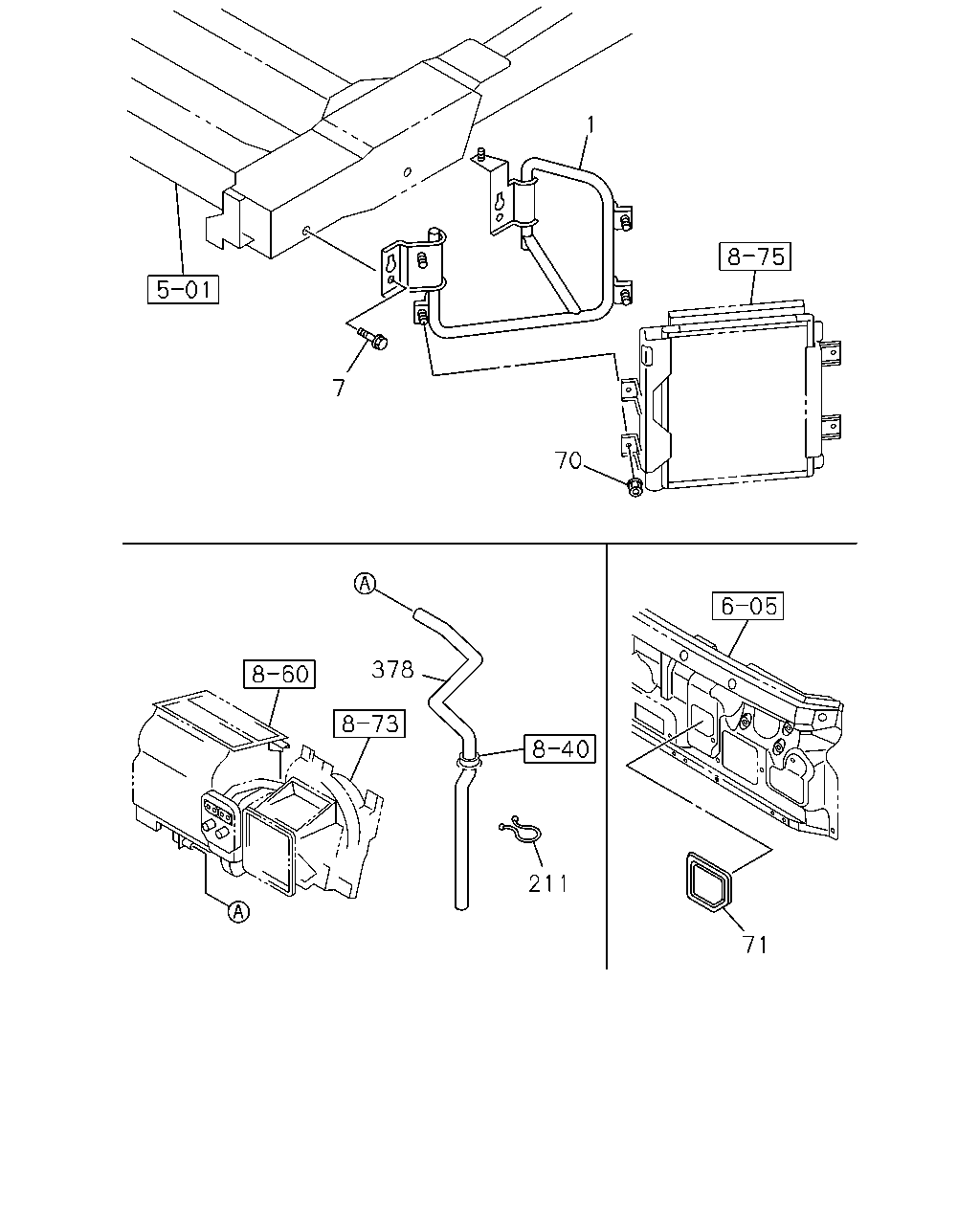

çizim 367083
211 71 378 70 1 7
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; A/C
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98214-411-0 01 1 1306-
7 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M12X30 FLANGE 		0-28651-230-0 04 1 1306-
70 NUT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M8 FLANGE MAL 		0-91180-108-0 04 1 1306-
71 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60),COOLER WO/HEATER(C65) 		8-98017-234-1 01 1 1306-
211 CLIP; HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=44 		8-94463-508-0 01 1 1306-
378 HOSE; DRAIN,EVAPORATOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97387-174-2 01 1 1306-
