Isuzu WW
▶
TRUCKS
▶
NPS
▶
51500 - NPS(MALAYSIA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶

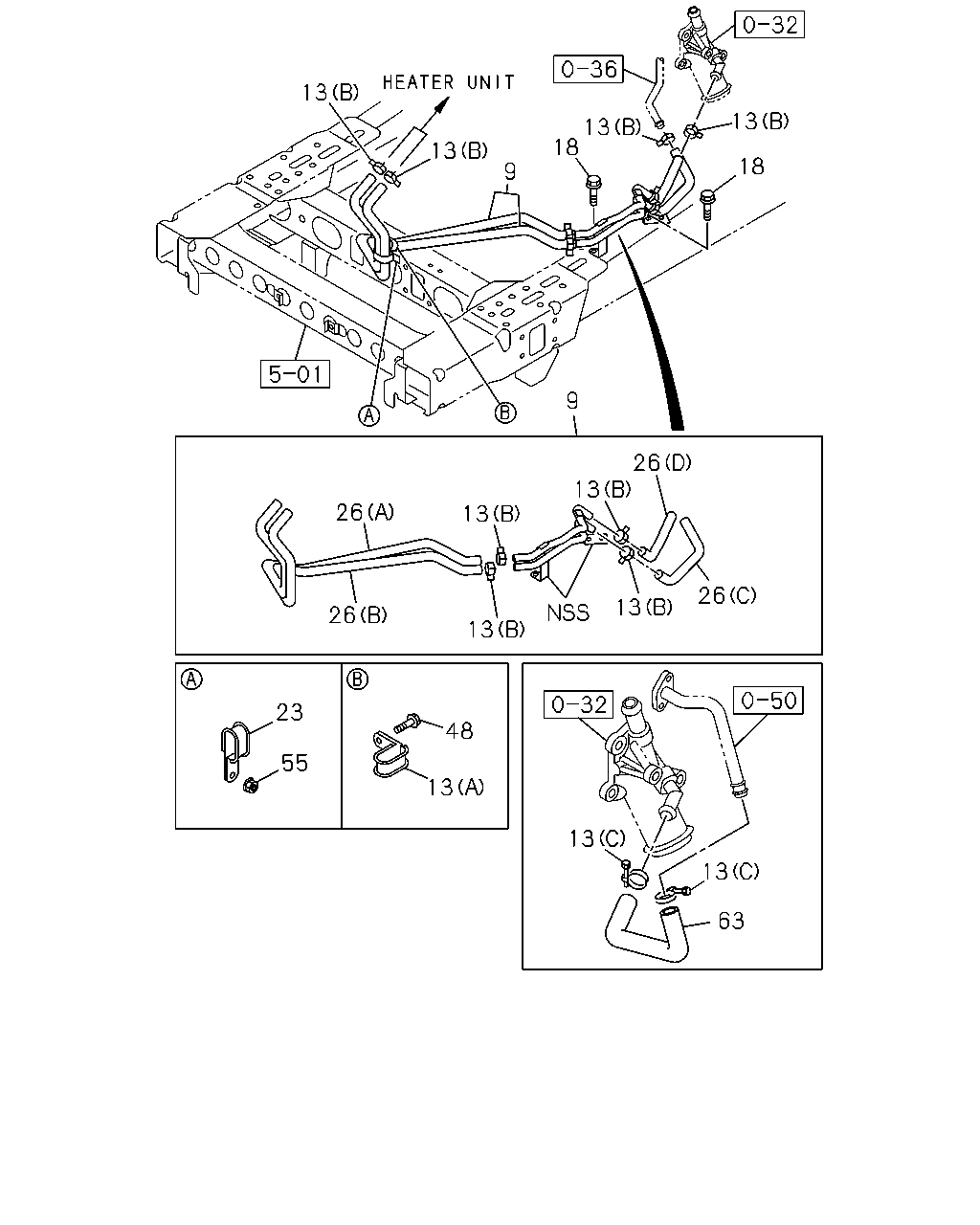

8-45 — HEATER PIPING
(#125233) — 14 parça
63
13
13
48
13
23
55
26
26
13
13
13
26
13
26
9
13
13
9
18
13
13
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
PIPE; HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)
8-98064-107-1
01
1
1306-
13
CLIP; HTR HOSE
COOLER WO/HEATER(C65) (C) ID=25
8-94233-115-0
02
1
1306-
13
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=14
8-98029-678-0
01
1
1306-
13
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22
8-97359-141-0
04
1
1306-
13
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22
8-97359-141-0
04
1
1306-
18
BOLT; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE MAL
0-28650-825-0
02
1
1306-
23
CLIP; WATER HOSE,DASH LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18
8-98166-023-0
01
1
1306-
26
HOSE; HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)
8-98050-293-0
01
1
1306-
26
HOSE; HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)
8-98050-294-0
01
1
1306-
26
HOSE; HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)
8-98050-295-0
01
1
1306-
26
HOSE; HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)
8-98050-296-0
01
1
1306-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE MAL
0-28050-612-0
01
1
1306-
55
NUT; CLAMP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE MAL
0-91180-106-0
01
1
1306-
63
HOSE; WATER
COOLER WO/HEATER(C65)
8-94134-250-1
01
1
1306-
