8-40 — HEATER SYSTEM (#125232) — 59 parça

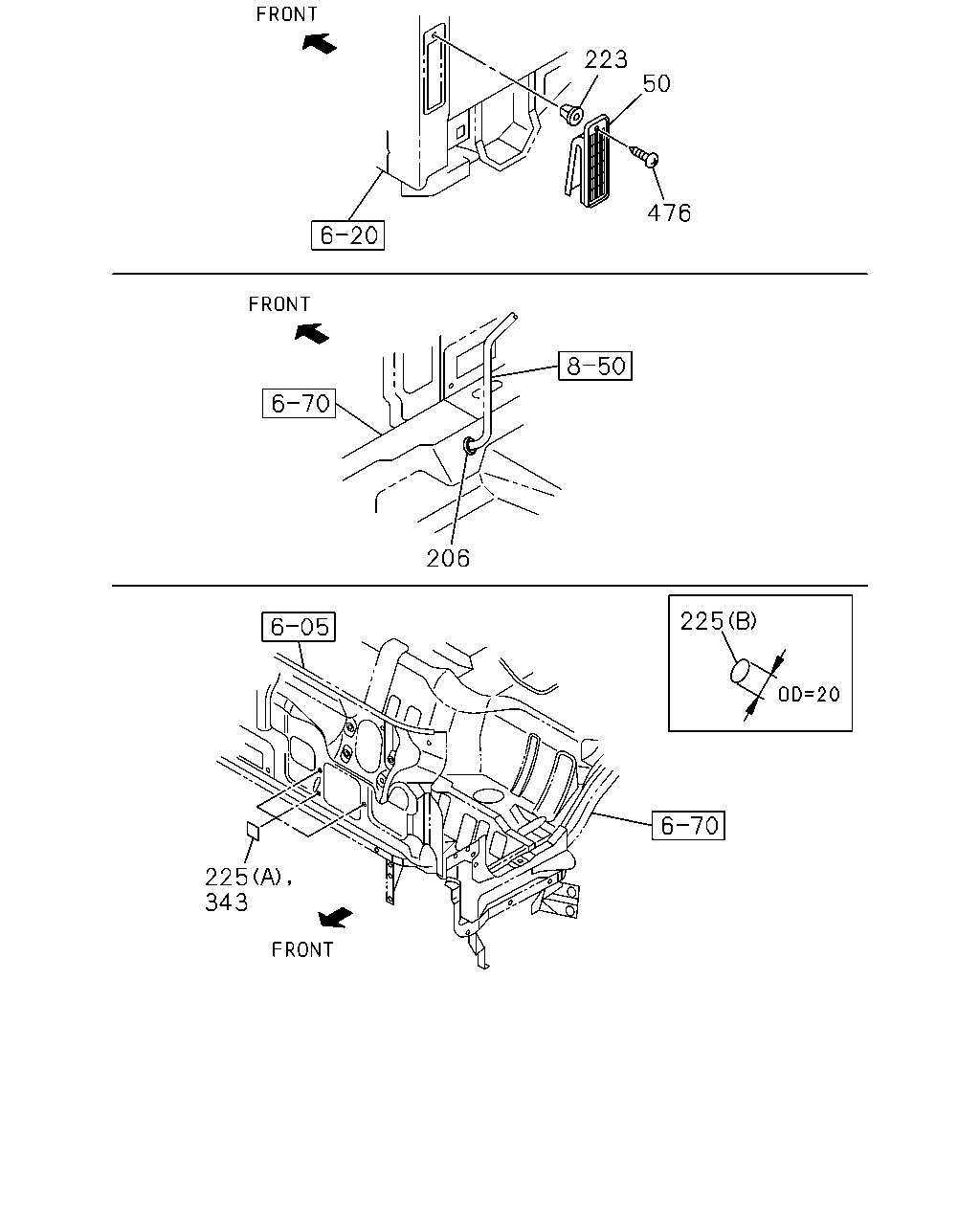

çizim 363700
225 206 225 343 223 476 50
BalonParca AdiParca NoAdetTipApplied Date
50 VALVE ASM; HTR 8-98080-998-1 01 1 1306-
206 GROMMET; A/C PIPE TO BLOWER UNIT
MAL 		8-98019-649-0 01 1 1306-
223 GROMMET; SCREW
D=7.9X7.9 L=20 M5 		8-94441-539-0 01 1 1306-
225 SEAL; WATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MAL 		8-97856-616-0 02 1 1306-
225 SEAL; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MAL 		8-97856-616-0 01 1 1306-
225 SEAL; WATER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60),COOLER WO/HEATER(C65) (B) OD=20 T=0.05 BLACK MAL 		5-76777-036-0 01 1 1306-
343 SEAL; AIR DUCT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-97856-616-0 02 1 1306-
476 SCREW; VALVE
M5X16 TAPPING HEXALOBULAR 		8-98062-675-0 01 1 1306-

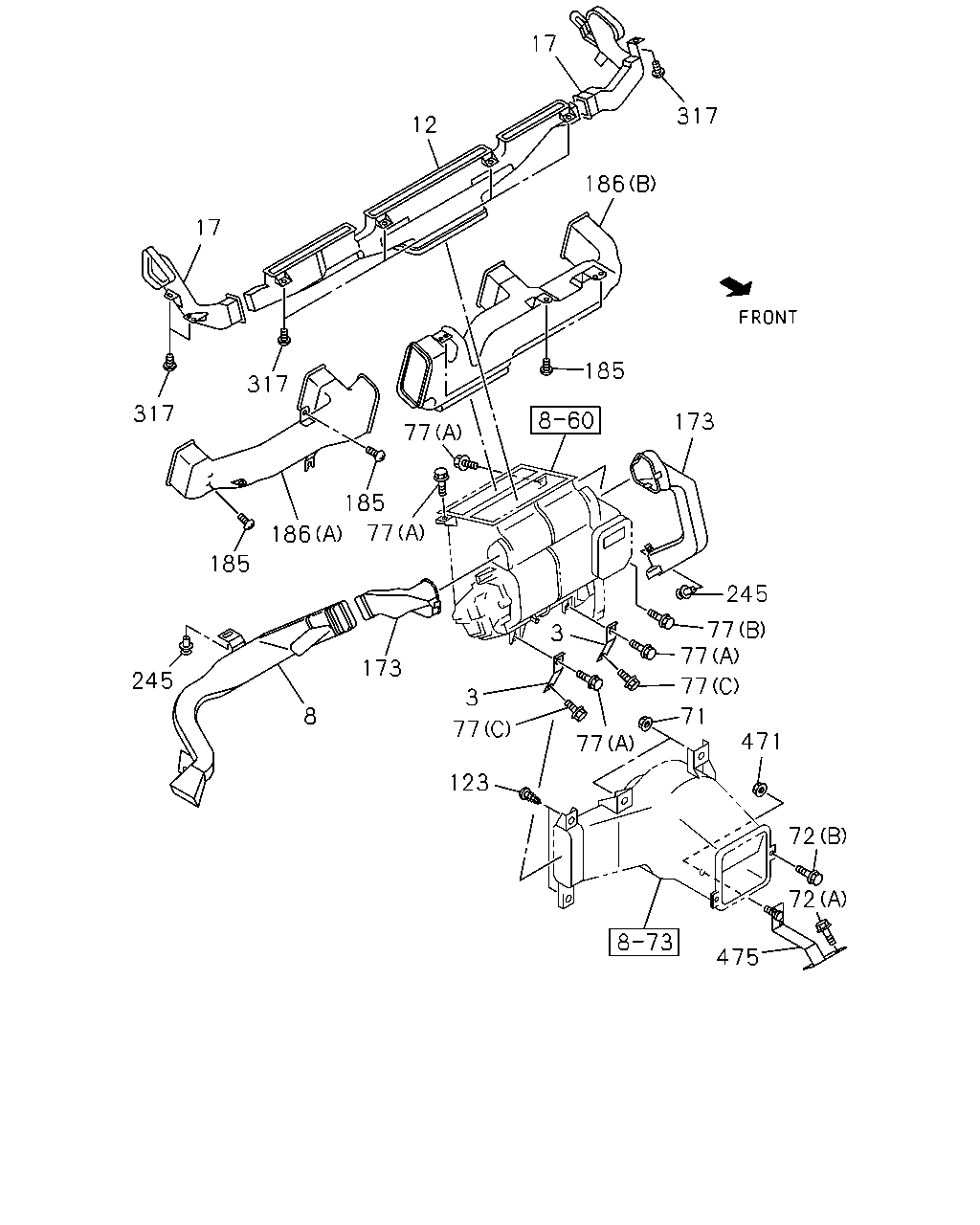

çizim 364059
317 17 12 17 317 317 185 245 8 173 186 77 185 77 77 185 173 186 3 123 77 71 471 77 77 77 245 72 72 475 3
BalonParca AdiParca NoAdetTipApplied Date
3 BRACKET; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98082-473-1 02 1 1306-
8 DUCT; HTR AIR,DRIVER FOOT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98084-146-0 01 1 1306-
12 NOZZLE; DEFROSTER 8-97585-480-4 01 1 1306-
17 NOZZLE; DEFROSTER,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97585-469-1 01 1 1306-
17 NOZZLE; DEFROSTER,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97585-475-5 01 1 1306-
71 NUT; BLOWER UNIT TO DASH
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6 FLANGE MAL 		0-91180-106-0 02 1 1306-
72 BOLT; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) M8X20 W/LK&PL WASHER MAL 		8-97359-709-0 01 1 1306-
72 BOLT; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) M6X20 W/LK&PL WASHER MAL 		8-98081-030-0 02 1 1306-
77 BOLT; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) M6X16 FLANGE MAL 		0-28650-616-0 04 1 1306-
77 BOLT; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) M6X20 W/LK&PL WASHER MAL 		8-98081-175-0 02 1 1306-
77 BOLT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) M6X20 W/LK&PL WASHER MAL 		8-98081-030-0 01 1 1306-
123 SCREW; DUCT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 02 1 1306-
173 DUCT; FOOT,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97585-504-3 01 1 1306-
173 DUCT; FOOT,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98084-145-0 01 1 1306-1411
173 DUCT; FOOT,HTR 8-98246-555-0 01 1 1412-
185 SCREW; VENT DUCT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 04 1 1306-
186 DUCT; VENTILATOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 		8-97585-466-7 01 1 1306-1410
186 DUCT; VENTILATOR
(A) 		8-98285-582-0 01 1 1411-
186 DUCT; VENTILATOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-97585-486-6 01 1 1306-1410
186 DUCT; VENTILATOR
(B) 		8-98285-585-0 01 1 1411-
186 DUCT; VENTILATOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) 		8-98054-363-0 01 1 1306-
186 DUCT; VENTILATOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (E) 		8-98054-371-0 01 1 1306-
186 DUCT; VENTILATOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (D) 		8-98054-379-2 01 1 1306-
245 CLIP; FOOT DUCT
MAL 		1-09987-144-0 02 1 1306-
317 SCREW; DEFROSTER NOZZLE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 02 1 1306-
317 SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 04 1 1306-
471 NUT; BLOWER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6 FLANGE MAL 		0-91180-106-0 01 1 1306-
475 BRACKET; BLOWER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97387-092-2 01 1 1306-

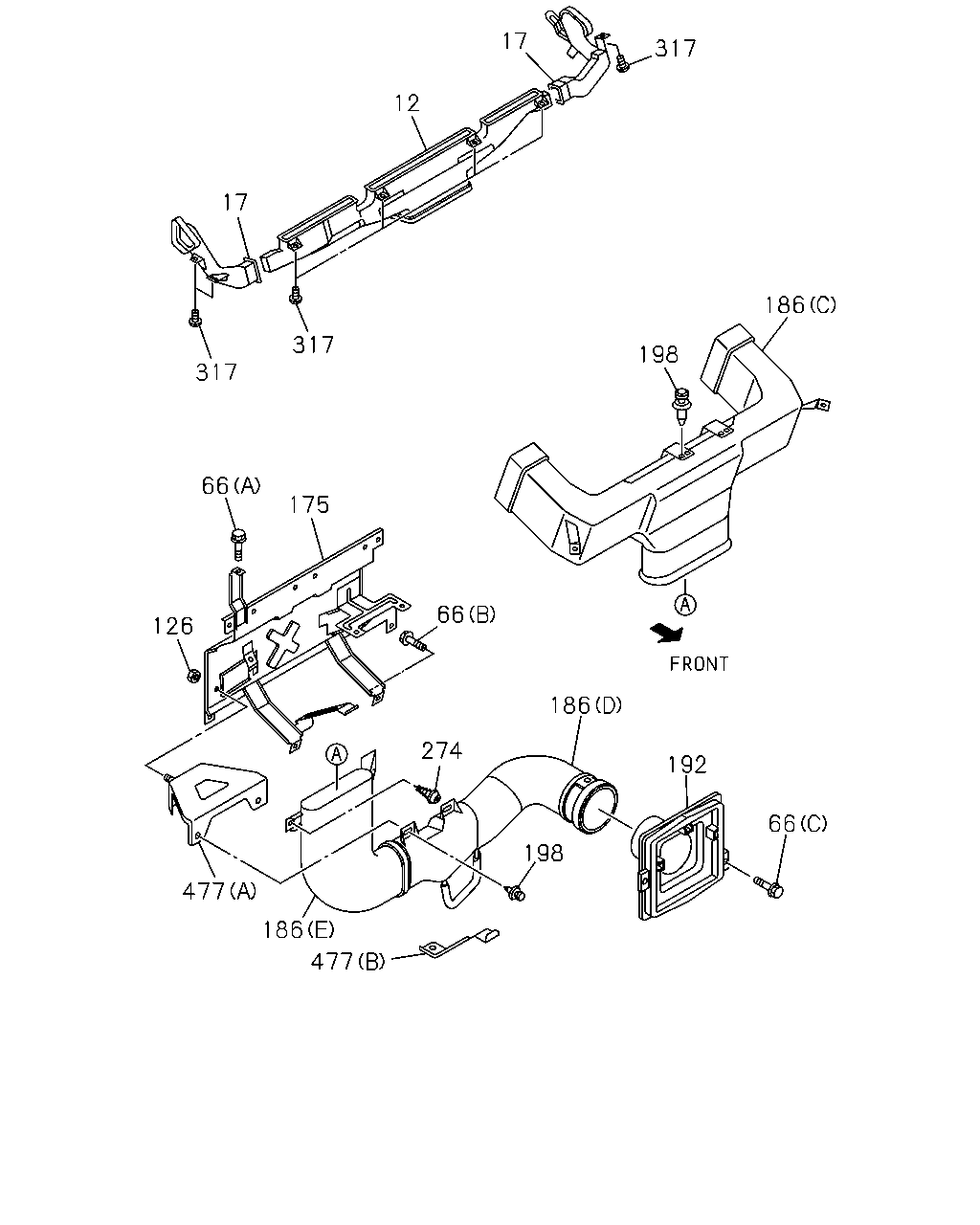

çizim 365438
186 198 192 66 186 274 198 186 477 477 126 66 175 66 317 317 17 12 17 317
BalonParca AdiParca NoAdetTipApplied Date
12 NOZZLE; DEFROSTER 8-97585-480-4 01 1 1306-
17 NOZZLE; DEFROSTER,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97585-469-1 01 1 1306-
17 NOZZLE; DEFROSTER,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97585-475-5 01 1 1306-
66 BOLT; DUCT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) M6X16 FLANGE MAL 		0-28650-616-0 02 1 1306-
66 BOLT; DUCT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) M6X20 W/LK&PL WASHER MAL 		8-98081-030-0 02 1 1306-
66 BOLT; DUCT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) M6X20 W/LK&PL WASHER MAL 		8-98081-175-0 02 1 1306-
126 NUT; BRKT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6 FLANGE MAL 		0-91180-106-0 01 1 1306-
126 NUT; BRKT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),KD PREPARATORY PACK VAR.4<7TV> M6 FLANGE MAL 		0-91180-106-0 01 1 1306-
175 BRACKET; HTR DUCT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98184-165-0 01 1 1306-
186 DUCT; VENTILATOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 		8-97585-466-7 01 1 1306-1410
186 DUCT; VENTILATOR
(A) 		8-98285-582-0 01 1 1411-
186 DUCT; VENTILATOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-97585-486-6 01 1 1306-1410
186 DUCT; VENTILATOR
(B) 		8-98285-585-0 01 1 1411-
186 DUCT; VENTILATOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) 		8-98054-363-0 01 1 1306-
186 DUCT; VENTILATOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (E) 		8-98054-371-0 01 1 1306-
186 DUCT; VENTILATOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (D) 		8-98054-379-2 01 1 1306-
192 DUCT; RAM AIR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98054-386-4 01 1 1306-
198 CLIP; DUCT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		1-09987-144-0 05 1 1306-
274 SCREW; VENT DUCT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 02 1 1306-
317 SCREW; DEFROSTER NOZZLE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 02 1 1306-
317 SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 04 1 1306-
477 BRACKET; DUCT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 		8-98091-304-0 01 1 1306-
477 BRACKET; DUCT
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98164-455-0 01 1 1306-
