◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51500 - NPS(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#125230) — 14 parça
çizim 363829
68 67 67 69
BalonParca AdiParca NoAdetTipApplied Date
67 BRACKET; CONT UNIT
(A) 		8-98022-170-1 01 1 1306-
67 BRACKET; CONT UNIT
(B) 		8-98232-506-0 01 1 1306-
68 BOLT; BRKT
M6X12 FLANGE 		0-28450-612-0 01 1 1306-
69 NUT; BRKT
M6 FLANGE MAL 		0-91180-106-0 02 1 1306-

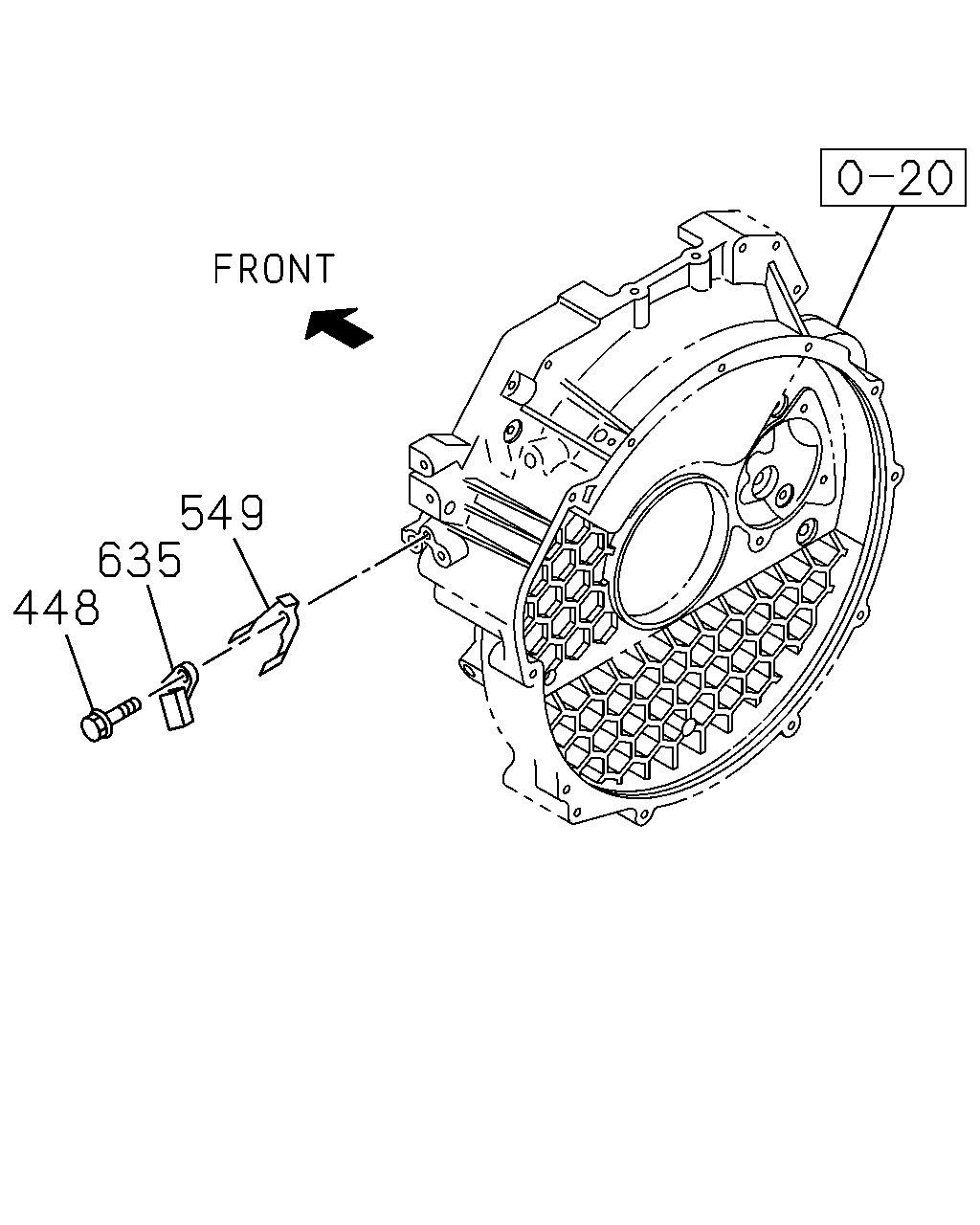

çizim 363953
549 635 448
BalonParca AdiParca NoAdetTipApplied Date
448 BOLT; SENSOR
M6X16 FLANGE MAL 		0-28050-616-0 01 1 1306-
549 SHEET 8-97161-633-2 01 1 1306-
635 SENSOR; TACHOMETER
YAZAKI 		8-97214-325-0 01 1 1306-

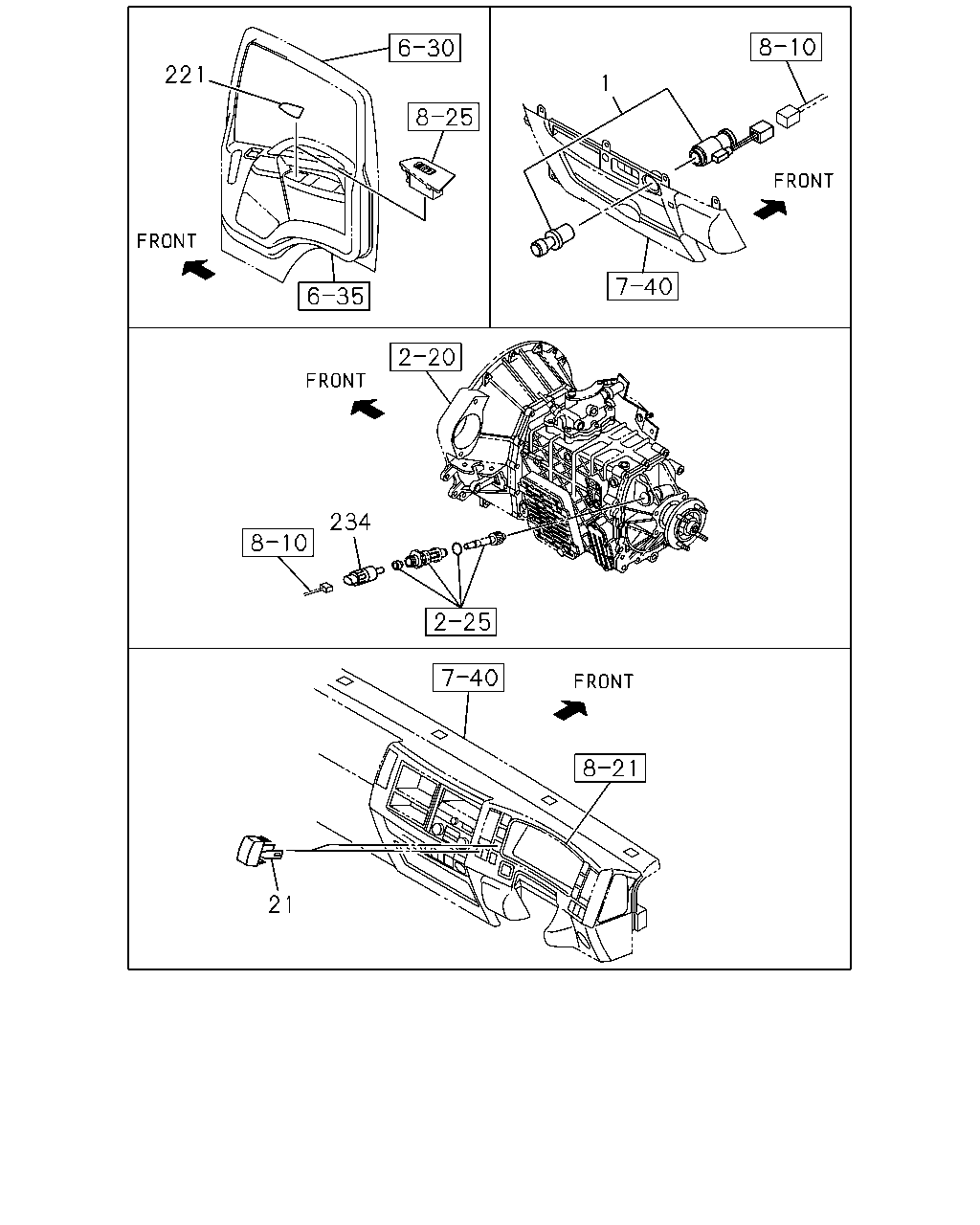

çizim 365572
221 234 21 1
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1306-
21 COVER; HOLE 8-98025-954-1 02 1 1306-1511
21 COVER; HOLE 8-98025-954-1 01 1 1512-
21 COVER; HOLE 8-98025-954-1 01 1 1512-
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 1306-
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 1306-
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1306-
