Sayfa 3-55 - Isuzu EPC

3-55 — BRAKE PIPING; OIL,REAR (#12523) — 196 parça

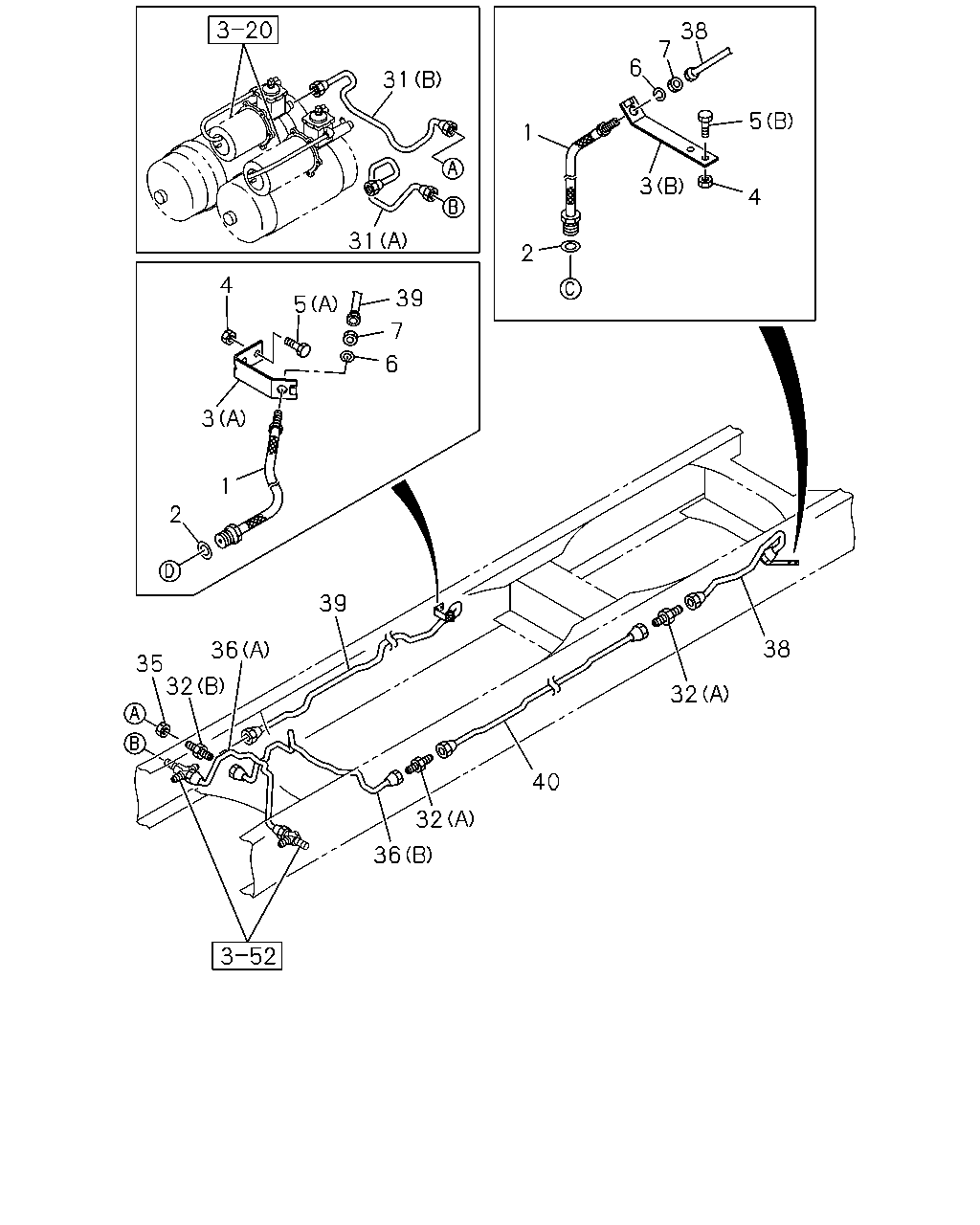

4 5 38 7 6 1 2 31 31 39 7 6 5 4 3 1 2 39 36 32 35 38 32 33 32 40 32 36 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,RR BRK WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> L=500	1-09364-190-0	01	1	0105-	●
1	HOSE; FLEX,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=450	1-09364-188-0	01	1	0105-	●	●
1	HOSE; FLEX,RR BRK WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> L=450	1-09364-188-0	01	1	0105-	●
1	HOSE; FLEX,RR BRK WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=450	1-09364-188-0	01	1	0105-	●
1	HOSE; FLEX,RR BRK WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=450	1-09364-188-0	01	1	0105-		●
2	GASKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=9 OD=17	9-09920-472-0	02	1	0105-	●	●
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B)	1-47476-570-1	01	1	0105-	●
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47475-357-2	01	1	0105-	●	●
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W), WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47476-573-1	01	1	0105-	●	●
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B)	1-47476-573-1	01	1	0105-	●
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X35 FLANGE	0-28680-835-0	02	1	0105-0512	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X35 FLANGE	0-28650-835-0	02	1	0601-	●
5	BOLT; BRKT,FLEX HOSE,RR BRK WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●
5	BOLT; BRKT,FLEX HOSE,RR BRK WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
5	BOLT; BRKT,FLEX HOSE,RR BRK WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W), WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X40 FLANGE	0-28080-840-0	02	1	0105-0512	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) M8X40 FLANGE	0-28080-840-0	02	1	0105-0512	●
5	BOLT; BRKT,FLEX HOSE,RR BRK WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W), WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X40 FLANGE	0-28050-840-0	02	1	0601-	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) M8X40 FLANGE	0-28050-840-0	02	1	0601-	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X40 FLANGE	0-28680-840-0	02	1	0105-0512		●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X40 FLANGE	0-28650-840-0	02	1	0601-		●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	9-09150-512-0	02	1	0105-	●	●
7	NUT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	02	1	0105-	●	●
31	PIPE; OIL,AIR MASTER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (B) L=656	1-47429-259-0	01	1	0105-0111	●	●
31	PIPE; OIL,AIR MASTER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) L=656	1-47429-259-0	01	1	0112-	●	●
31	PIPE; OIL,AIR MASTER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (B) L=656	1-47429-259-0	01	1	0112-	●	●
31	PIPE; OIL,AIR MASTER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (A)	1-49165-311-0	01	1	0105-0111	●	●
31	PIPE; OIL,AIR MASTER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PE-SERIES ENG<1A0> (A)	1-49165-311-0	01	1	0112-	●	●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 L=40	9-09223-006-1	01	1	0105-	●	●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 L=40	9-09223-006-1	01	1	0105-		●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 L=40	9-09223-006-1	01	1	0105-		●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12 L=66.5	9-09223-306-1	01	1	0105-	●	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1338 SERVICED BY L=1370	1-47426-354-0	01	1	0105-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1818 SERVICED BY L=2000	1-47426-359-0	01	1	0105-		●
35	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	01	1	0105-	●	●
36	PIPE; OIL,UNION TO UNION WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A)	1-49165-994-0	01	1	0105-0105	●
36	PIPE; OIL,UNION TO UNION WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A) L=1296 SERVICED BY L=1400	1-47426-389-0	01	1	0106-0111	●
36	PIPE; OIL,UNION TO UNION WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A)	1-49166-420-0	01	1	0112-0304	●
36	PIPE; OIL,UNION TO UNION WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A) L=1298 SERVICED BY L=1400	1-47426-389-0	01	1	0305-	●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (A) L=1271 SERVICED BY L=1370	1-47426-354-0	01	1	0105-	●	●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (B) L=767	1-49165-312-0	01	1	0105-	●	●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (B) L=1769	1-49165-226-0	01	1	0105-0107		●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (B)	1-49166-303-0	01	1	0108-		●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A)	1-49165-995-0	01	1	0105-0105		●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A)	1-49166-196-0	01	1	0106-0111		●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A)	1-49166-421-0	01	1	0112-		●
38	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> L=903	1-47429-644-0	01	1	0105-	●
38	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> L=903	1-47429-644-0	01	1	0105-	●
38	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> L=1284	1-49165-062-0	01	1	0105-	●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR1<F03>	1-49166-133-0	01	1	0105-		●
38	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> L=2597	1-49164-965-0	01	1	0105-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> L=2044 SERVICED BY L=2200	1-47426-360-0	01	1	0105-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> L=2067 SERVICED BY L=2200	1-47426-360-0	01	1	0105-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> L=1992 SERVICED BY L=2000	1-47426-359-0	01	1	0105-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> L=1920 SERVICED BY L=2000	1-47426-359-0	01	1	0105-		●
40	PIPE; BRK,UNION TO UNION WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> L=2623	1-47429-736-0	01	1	0105-0105	●
40	PIPE; BRK,UNION TO UNION WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2>	1-49166-193-0	01	1	0106-	●
40	PIPE; BRK,UNION TO UNION WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0>	1-49166-137-0	01	1	0105-	●
40	PIPE; BRK,UNION TO UNION WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49165-224-0	01	1	0105-		●
40	PIPE; BRK,UNION TO UNION WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49165-225-0	01	1	0105-		●

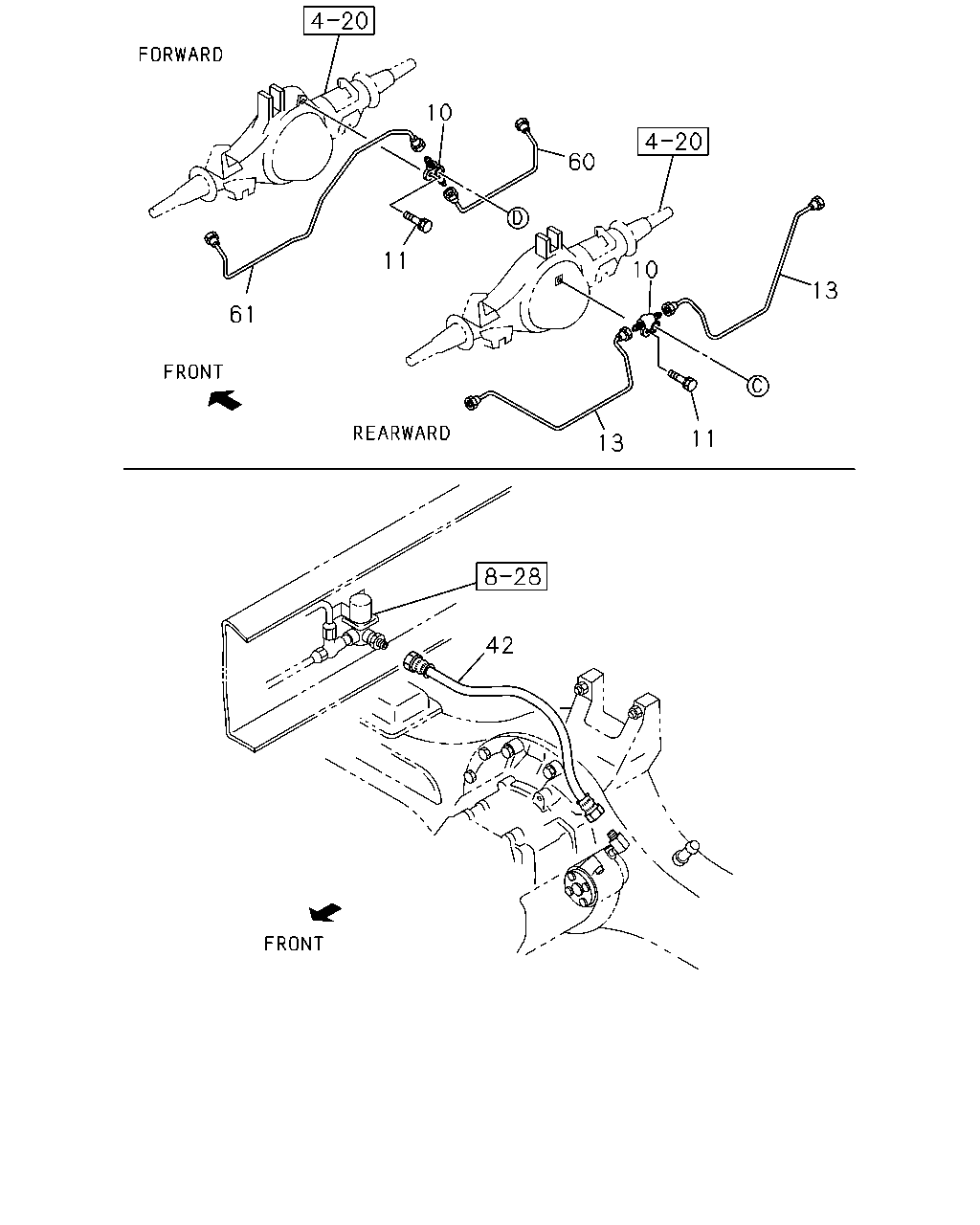

13 11 13 10 60 10 11 61 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	NIPPLE; RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09903-668-3	01	1	0105-	●	●
10	NIPPLE; RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09903-668-3	01	1	0105-	●	●
11	BOLT; NIPPLE,RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 W/LK WASHER	0-50041-025-0	01	1	0105-0512	●	●
11	BOLT; NIPPLE,RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 W/LK WASHER	0-50041-025-0	01	1	0105-0512	●	●
11	BOLT; NIPPLE,RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 W/LK WASHER	0-50541-025-0	01	1	0601-	●	●
11	BOLT; NIPPLE,RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 W/LK WASHER	0-50541-025-0	01	1	0601-	●	●
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY VAR1(J55) EXC. REAR AXLE RT260<C2B> L=988	1-47426-901-0	01	1	0105-	●
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY VAR1(J55) EXC. REAR AXLE RT260<C2B> L=857	1-47426-902-0	01	1	0105-	●
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR AXLE RT260<C2B>,BRAKE SYSTEM HEAVY DUTY VAR1(J55) L=1002	1-47426-906-0	01	1	0105-	●
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR AXLE RT260<C2B> L=1002	1-47426-906-0	01	1	0105-	●
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1002	1-47426-906-0	01	1	0105-		●
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR AXLE RT260<C2B>,BRAKE SYSTEM HEAVY DUTY VAR1(J55) L=871	1-47426-907-0	01	1	0105-	●
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR AXLE RT260<C2B> L=871	1-47426-907-0	01	1	0105-	●
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=871	1-47426-907-0	01	1	0105-		●
42	HOSE; FLEX,DIFF LOCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=580	1-09363-641-0	01	1	0105-	●	●
60	PIPE ASM; BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY VAR1(J55) EXC. REAR AXLE RT260<C2B> L=779	1-47427-915-0	01	1	0105-	●
60	PIPE ASM; BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY VAR1(J55) L=793	1-47427-916-0	01	1	0105-0401	●	●
60	PIPE ASM; BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CHINA GB VAR2<JAY>,BRAKE SYSTEM HEAVY DUTY VAR1(J55) L=793	1-47427-916-0	01	1	0402-	●	●
61	PIPE ASM; BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY VAR1(J55) EXC. REAR AXLE RT260<C2B> L=1193	1-47426-899-0	01	1	0105-	●
61	PIPE ASM; BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY VAR1(J55) L=1207	1-47426-905-0	01	1	0105-0401	●	●
61	PIPE ASM; BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CHINA GB VAR2<JAY>,BRAKE SYSTEM HEAVY DUTY VAR1(J55) L=1207	1-47426-905-0	01	1	0402-	●	●

106 106

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	106	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-	●	●
	106	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0105-	●	●

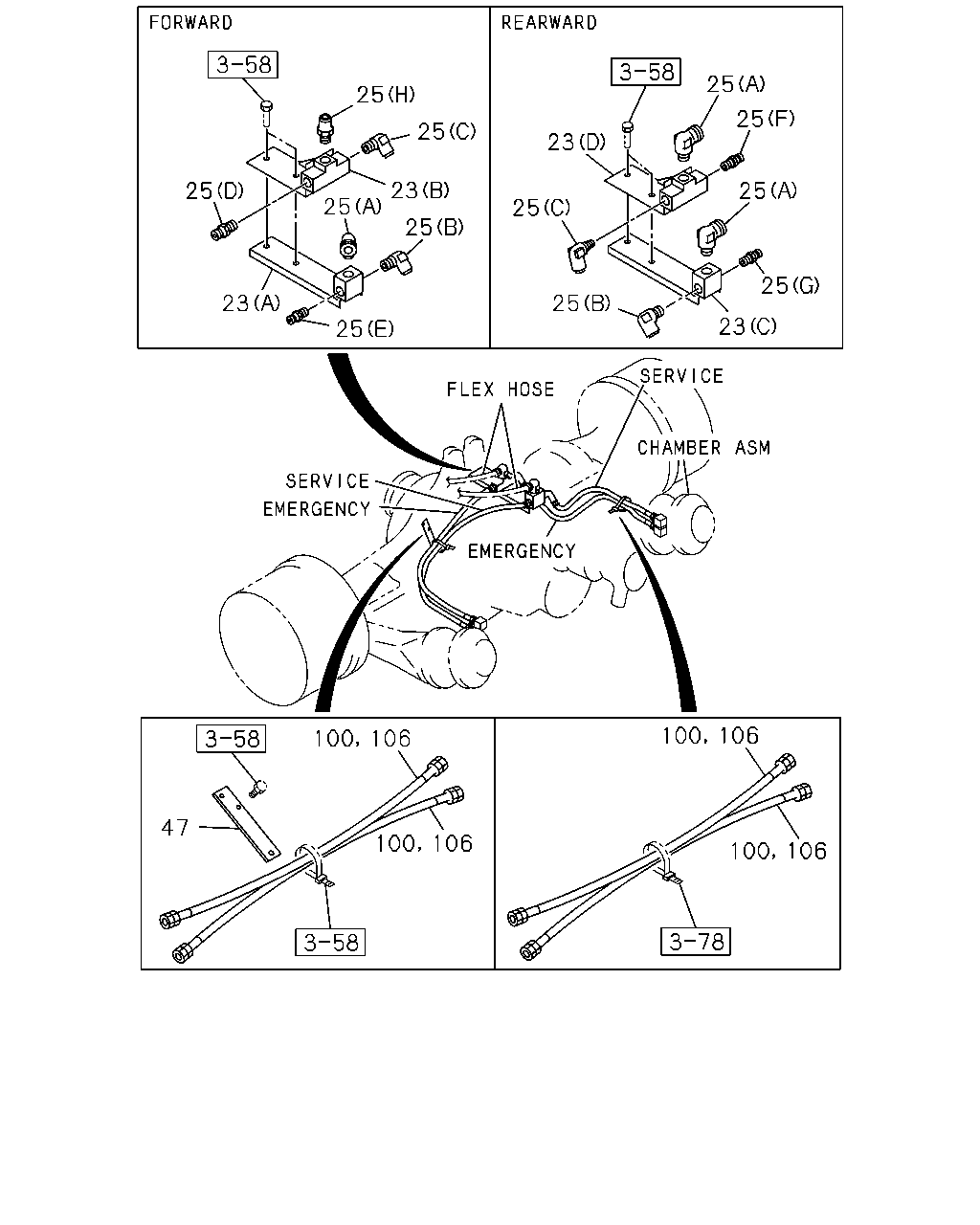

25 23 25 25 25 23 25 25 25 23 25 25 25 25 25 23 100 106 100 106 47 100 106 106 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	NIPPLE; W/BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A)	1-47470-373-1	01	1	0105-	●	●
23	NIPPLE; W/BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ> (B)	1-47475-536-1	01	1	0105-0105	●	●
23	NIPPLE; W/BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B)	1-47475-536-1	01	1	0106-0206	●	●
23	NIPPLE; W/BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (B)	1-47475-536-1	01	1	0207-0211	●	●
23	NIPPLE; W/BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (B)	1-47475-536-1	01	1	0212-0401	●	●
23	NIPPLE; W/BRKT POWER CHAMBER BRAKE UPPERWARD<C1T> CHINA GB VAR1<JAC> (B)	1-47475-536-1	01	1	0212-0401	●	●
23	NIPPLE; W/BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (B)	1-47475-536-1	01	1	0402-	●	●
23	NIPPLE; W/BRKT POWER CHAMBER BRAKE UPPERWARD<C1T> CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (B)	1-47475-536-1	01	1	0402-	●	●
23	NIPPLE; W/BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (C)	1-47470-500-0	01	1	0105-	●	●
23	NIPPLE; W/BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (D)	1-47477-703-1	01	1	0105-0402	●	●
23	NIPPLE; W/BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (D)	1-47479-966-0	01	1	0403-	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (H) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0105-	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ> (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0105-0105	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0106-0206	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0207-0211	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0212-0401	●	●
25	CONNECTOR POWER CHAMBER BRAKE UPPERWARD<C1T> CHINA GB VAR1<JAC> (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0212-0401	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0402-	●	●
25	CONNECTOR POWER CHAMBER BRAKE UPPERWARD<C1T> CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0402-	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0105-0105	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0106-0206	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0207-0211	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0212-0401	●	●
25	CONNECTOR POWER CHAMBER BRAKE UPPERWARD<C1T> CHINA GB VAR1<JAC> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0212-0401	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0402-	●	●
25	CONNECTOR POWER CHAMBER BRAKE UPPERWARD<C1T> CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0402-	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (F) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	0105-	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (G) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0105-	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	0105-	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	0105-	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-0105	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-0105	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-0206	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-0206	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0207-0211	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0207-0211	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0212-0401	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0212-0401	●	●
25	CONNECTOR POWER CHAMBER BRAKE UPPERWARD<C1T> CHINA GB VAR1<JAC> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0212-0401	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0402-	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0402-	●	●
25	CONNECTOR POWER CHAMBER BRAKE UPPERWARD<C1T> CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0402-	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-	●	●
47	BRACKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-42119-065-0	01	1	0105-	●	●
47	BRACKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-42119-123-0	01	1	0105-		●
100	TUBE ASM; NYLON,RWD AXLE L=580 SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0207-	●	●
106	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-	●	●
106	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0105-	●	●

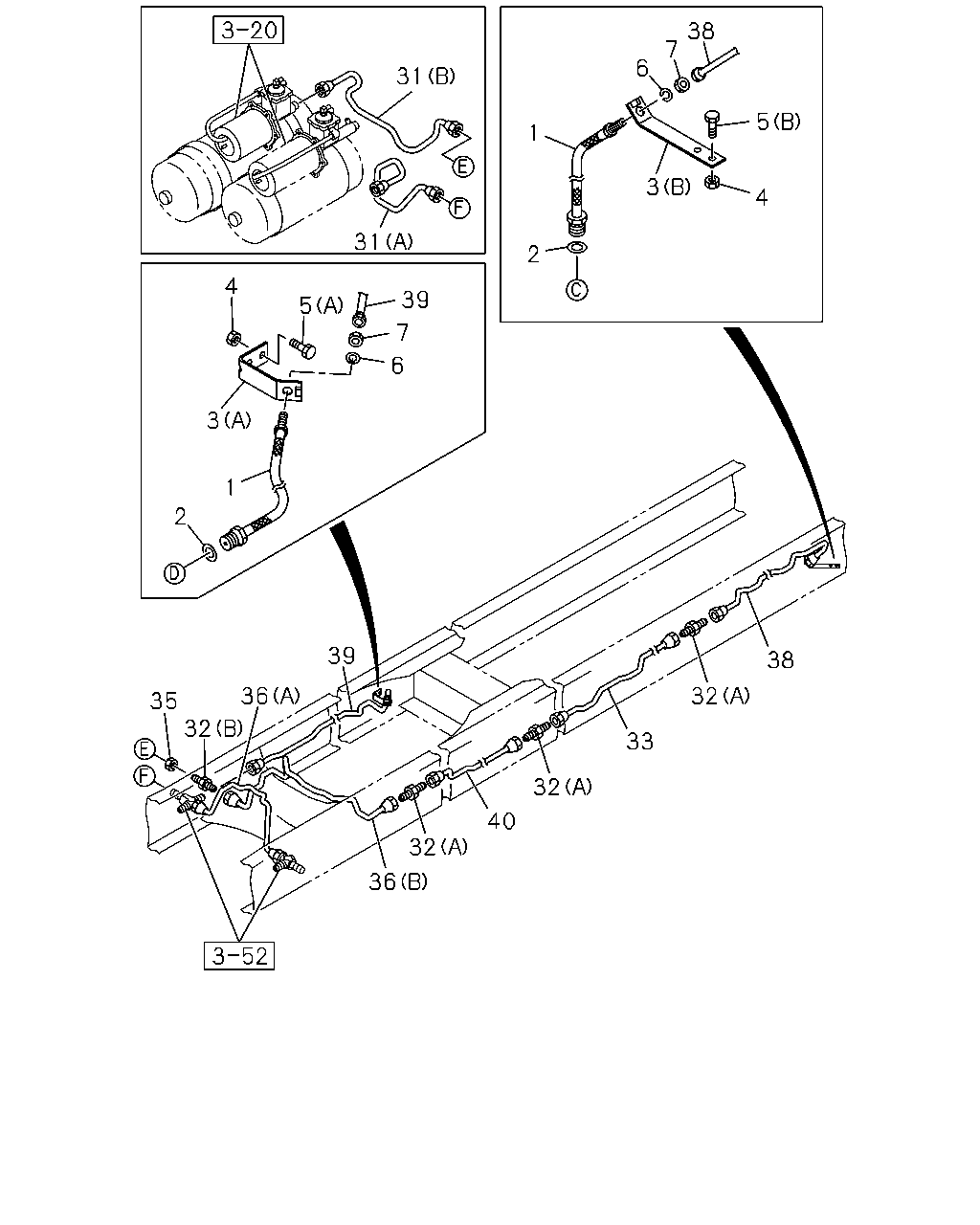

4 3 5 6 7 38 1 2 38 32 40 32 36 39 36 32 35 2 1 3 5 4 7 6 39 31 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,RR BRK WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> L=500	1-09364-190-0	01	1	0105-	●
1	HOSE; FLEX,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=450	1-09364-188-0	01	1	0105-	●	●
1	HOSE; FLEX,RR BRK WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> L=450	1-09364-188-0	01	1	0105-	●
1	HOSE; FLEX,RR BRK WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=450	1-09364-188-0	01	1	0105-	●
1	HOSE; FLEX,RR BRK WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=450	1-09364-188-0	01	1	0105-		●
2	GASKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=9 OD=17	9-09920-472-0	02	1	0105-	●	●
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B)	1-47476-570-1	01	1	0105-	●
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47475-357-2	01	1	0105-	●	●
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W), WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47476-573-1	01	1	0105-	●	●
3	BRACKET; FLEX HOSE,RR BRK WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B)	1-47476-573-1	01	1	0105-	●
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X35 FLANGE	0-28680-835-0	02	1	0105-0512	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X35 FLANGE	0-28650-835-0	02	1	0601-	●
5	BOLT; BRKT,FLEX HOSE,RR BRK WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●
5	BOLT; BRKT,FLEX HOSE,RR BRK WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
5	BOLT; BRKT,FLEX HOSE,RR BRK WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W), WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X40 FLANGE	0-28080-840-0	02	1	0105-0512	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) M8X40 FLANGE	0-28080-840-0	02	1	0105-0512	●
5	BOLT; BRKT,FLEX HOSE,RR BRK WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W), WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X40 FLANGE	0-28050-840-0	02	1	0601-	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) M8X40 FLANGE	0-28050-840-0	02	1	0601-	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X40 FLANGE	0-28680-840-0	02	1	0105-0512		●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X40 FLANGE	0-28650-840-0	02	1	0601-		●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	9-09150-512-0	02	1	0105-	●	●
7	NUT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	02	1	0105-	●	●
31	PIPE; OIL,AIR MASTER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (B) L=656	1-47429-259-0	01	1	0105-0111	●	●
31	PIPE; OIL,AIR MASTER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) L=656	1-47429-259-0	01	1	0112-	●	●
31	PIPE; OIL,AIR MASTER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (B) L=656	1-47429-259-0	01	1	0112-	●	●
31	PIPE; OIL,AIR MASTER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (A)	1-49165-311-0	01	1	0105-0111	●	●
31	PIPE; OIL,AIR MASTER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) PE-SERIES ENG<1A0> (A)	1-49165-311-0	01	1	0112-	●	●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 L=40	9-09223-006-1	01	1	0105-	●	●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 L=40	9-09223-006-1	01	1	0105-		●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 L=40	9-09223-006-1	01	1	0105-		●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12 L=66.5	9-09223-306-1	01	1	0105-	●	●
35	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	01	1	0105-	●	●
36	PIPE; OIL,UNION TO UNION WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A)	1-49165-994-0	01	1	0105-0105	●
36	PIPE; OIL,UNION TO UNION WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A) L=1296 SERVICED BY L=1400	1-47426-389-0	01	1	0106-0111	●
36	PIPE; OIL,UNION TO UNION WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A)	1-49166-420-0	01	1	0112-0304	●
36	PIPE; OIL,UNION TO UNION WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A) L=1298 SERVICED BY L=1400	1-47426-389-0	01	1	0305-	●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (A) L=1271 SERVICED BY L=1370	1-47426-354-0	01	1	0105-	●	●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (B) L=767	1-49165-312-0	01	1	0105-	●	●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (B) L=1769	1-49165-226-0	01	1	0105-0107		●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (B)	1-49166-303-0	01	1	0108-		●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A)	1-49165-995-0	01	1	0105-0105		●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A)	1-49166-196-0	01	1	0106-0111		●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A)	1-49166-421-0	01	1	0112-		●
38	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> L=903	1-47429-644-0	01	1	0105-	●
38	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> L=903	1-47429-644-0	01	1	0105-	●
38	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> L=1284	1-49165-062-0	01	1	0105-	●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR1<F03>	1-49166-133-0	01	1	0105-		●
38	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> L=2597	1-49164-965-0	01	1	0105-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> L=2044 SERVICED BY L=2200	1-47426-360-0	01	1	0105-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> L=2067 SERVICED BY L=2200	1-47426-360-0	01	1	0105-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> L=1992 SERVICED BY L=2000	1-47426-359-0	01	1	0105-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> L=1920 SERVICED BY L=2000	1-47426-359-0	01	1	0105-		●
40	PIPE; BRK,UNION TO UNION WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> L=2623	1-47429-736-0	01	1	0105-0105	●
40	PIPE; BRK,UNION TO UNION WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2>	1-49166-193-0	01	1	0106-	●
40	PIPE; BRK,UNION TO UNION WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0>	1-49166-137-0	01	1	0105-	●
40	PIPE; BRK,UNION TO UNION WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49165-224-0	01	1	0105-		●
40	PIPE; BRK,UNION TO UNION WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49165-225-0	01	1	0105-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
