◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51500 - NPS(MALAYSIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#125222) — 18 parça

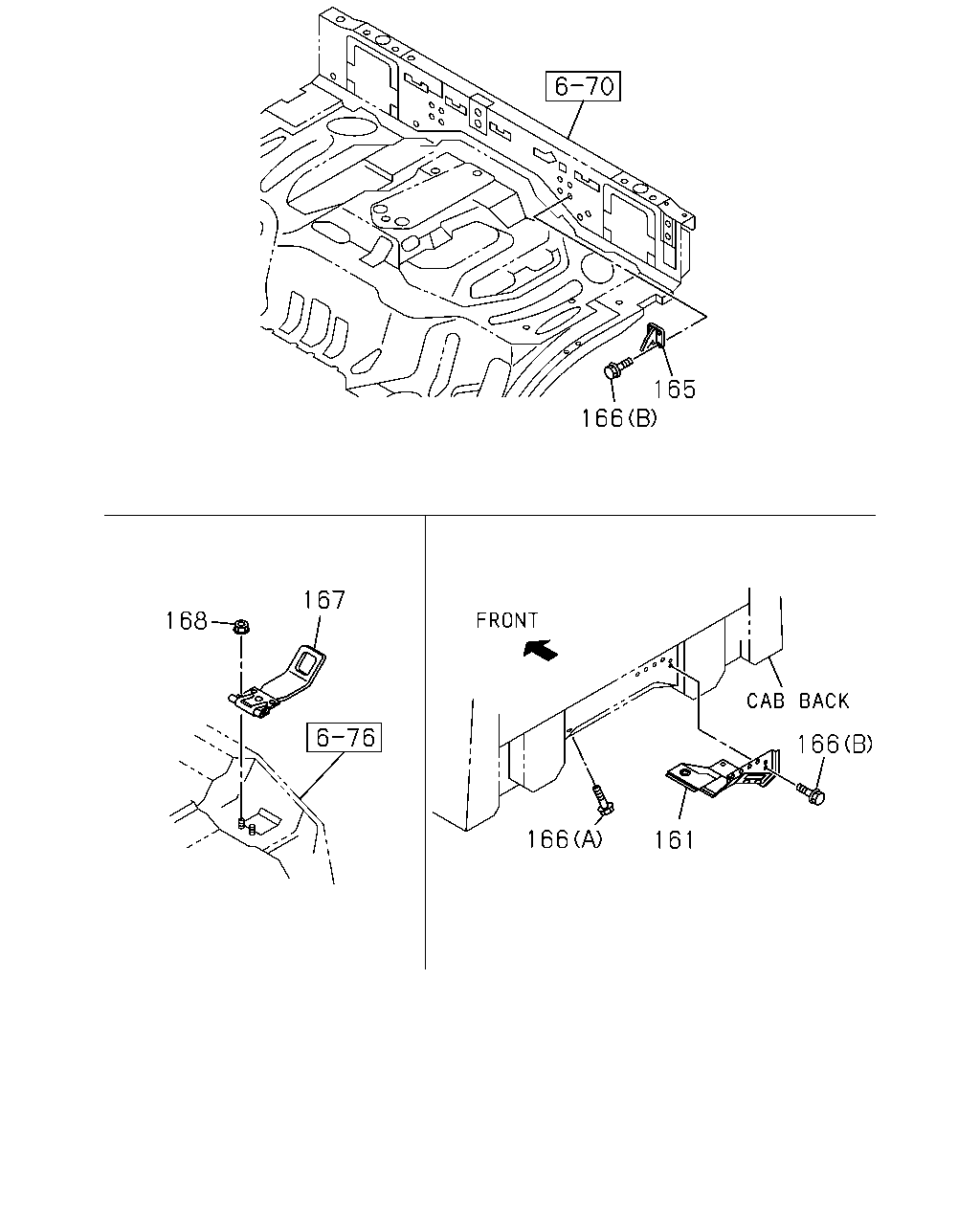

çizim 363969
165 166 166 161 166 168 167
BalonParca AdiParca NoAdetTipApplied Date
161 REINFORCEMENT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-98015-216-2 01 1 1306-
165 HOOK; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-98040-143-0 01 1 1306-
166 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> (B) M8X25 FLANGE MAL 		0-28650-825-0 04 1 1306-
166 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> (B) M8X25 FLANGE MAL 		0-28650-825-0 05 1 1306-
166 BOLT; SEAT BELT ANCHOR
EXC. INSPECTION ENGINE COVER<8GA> (A) M8X20 FLANGE MAL 		0-28050-820-0 02 1 1306-
167 PLATE; ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-97589-140-0 01 1 1306-
168 NUT; ANCHOR PLATE
INSPECTION ENGINE COVER<8GA> M8 FLANGE MAL 		0-91180-108-0 02 1 1306-

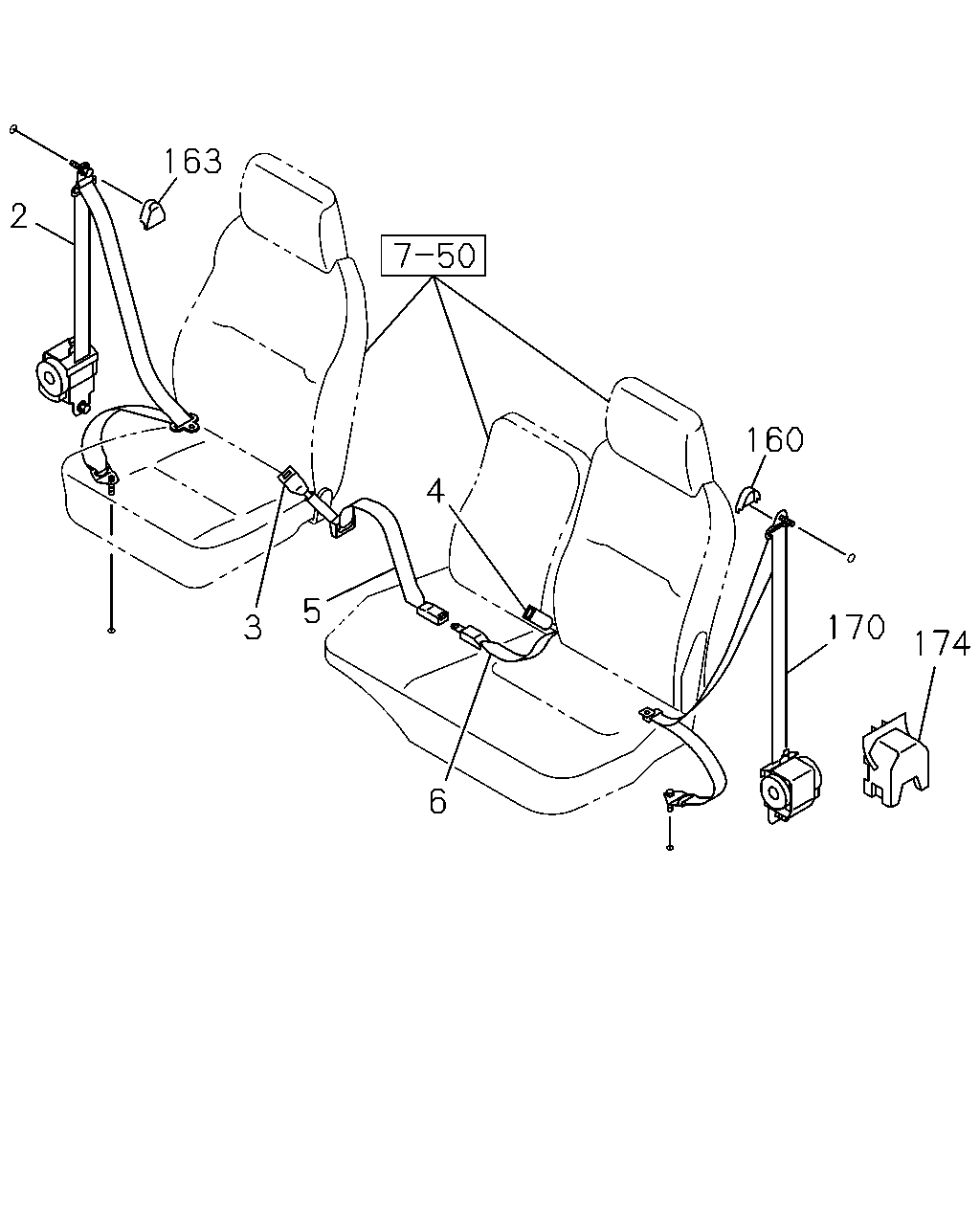

çizim 366555
2 3 6 5 4 170 174 160 163
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97405-180-7 01 1 1306-1406
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97428-457-1 01 1 1407-
3 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97405-175-2 01 1 1306-
4 BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY 		8-97405-178-0 01 1 1306-
5 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97405-182-1 01 1 1306-
6 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97411-507-2 01 1 1306-
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1306-
163 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 1306-
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97405-180-7 01 1 1306-1406
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97428-457-1 01 1 1407-
174 COVER; RETRACTOR,SEAT BELT 8-98039-376-1 01 1 1306-
