7-50 — FRONT SEAT (#125221) — 59 parça

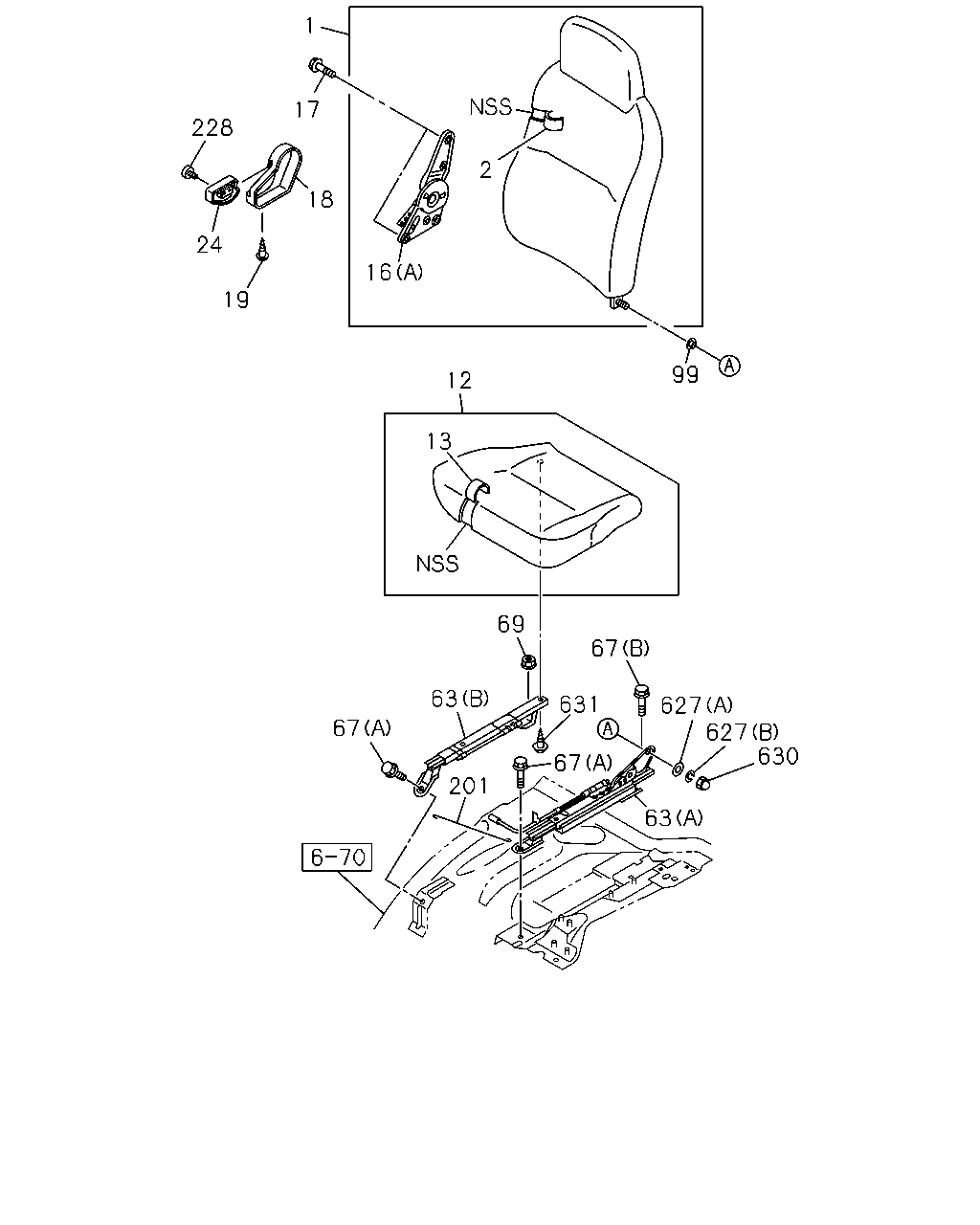

1 17 18 19 24 228 2 16 99 12 13 69 67 627 627 630 63 67 631 201 63 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-142-7	01	1	1306-
1	BACK ASM; SEAT VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY MAL	8-97409-312-7	01	1	1306-
1	BACK ASM; SEAT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-235-1	01	1	1306-
1	BACK ASM; SEAT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY MAL	8-97421-234-1	01	1	1306-
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97411-910-2	01	1	1306-
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY MAL	8-97409-318-2	01	1	1306-
2	COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-254-0	01	1	1306-
2	COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY MAL	8-97421-253-0	01	1	1306-
12	CUSHION; SEAT,FRT VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-143-4	01	1	1306-
12	CUSHION; SEAT,FRT VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY MAL	8-97409-322-4	01	1	1306-
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-241-1	01	1	1306-
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY MAL	8-97421-240-1	01	1	1306-
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-144-2	01	1	1306-
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY MAL	8-97409-328-2	01	1	1306-
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-260-1	01	1	1306-
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY MAL	8-97421-259-1	01	1	1306-
16	ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (B) BLACK W/KNOB MAL	8-97859-273-3	01	1	1306-
16	ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (C) BLACK W/KNOB MAL	8-97859-274-3	01	1	1306-
16	ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (A) MAL	8-98003-087-1	01	1	1306-
17	BOLT; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> M10X20 MAL	8-98062-661-0	04	1	1306-
18	COVER; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> GRAY MAL	8-97409-332-0	01	1	1306-
19	SCREW; COVER VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> M5 MAL	8-98062-663-0	01	1	1306-
24	KNOB; RECLINING,FRT,SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> GRAY MAL	8-97409-333-0	01	1	1306-
63	ADJUSTER; SEAT SLIDE VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (A) MAL	8-97382-800-2	01	1	1306-
63	ADJUSTER; SEAT SLIDE VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (B) MAL	8-97382-801-1	01	1	1306-
67	BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	1306-
67	BOLT; FRT SEAT TO BODY (B) M10X30 FLANGE	8-98055-942-0	01	1	1306-
69	NUT; FRT SEAT M10 FLANGE	8-98055-961-0	01	1	1306-
99	BUSHING; SEAT BACK VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> MAL	8-98112-751-0	01	1	1306-
201	CABLE; ADJ VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> MAL	8-98003-086-1	01	1	1306-
228	SCREW; KNOB VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> M4 MAL	8-98062-662-0	01	1	1306-
627	WASHER; FRT SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (A) MAL	8-98063-223-0	01	1	1306-
627	WASHER; FRT SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (B) MAL	8-98063-224-0	01	1	1306-
630	NUT; CAP VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> M8 MAL	8-98063-225-0	01	1	1306-
631	BOLT; ADJ,SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> OUTER M8X25 W/LK WASHER MAL	8-98062-658-0	02	1	1306-
631	BOLT; ADJ,SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> INNER M8X32 W/LK WASHER MAL	8-98062-659-0	02	1	1306-

460 160 161 141 126 139 478 139 368 361 16 139 460 114 126 16 361 368 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (B) BLACK W/KNOB MAL	8-97859-273-3	01	1	1306-
16	ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (C) BLACK W/KNOB MAL	8-97859-274-3	01	1	1306-
16	ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (A) MAL	8-98003-087-1	01	1	1306-
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY MAL	8-97418-720-0	01	1	1306-
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY MAL	8-97421-292-0	01	1	1306-
126	BUSHING; HINGE,RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> MAL	8-98069-558-0	02	1	1306-
139	BOLT; PASSENGER SEAT M8X20 W/PL WASHER	8-98031-841-0	04	1	1306-
141	COVER; TRIM,BENCH SEAT,BACK VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY MAL	8-97418-726-0	01	1	1306-
141	COVER; TRIM,BENCH SEAT,BACK SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY MAL	8-97421-306-0	01	1	1306-
160	CONSOLE; UPR,BACK CENTER VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> GRAY MAL	8-97405-361-1	01	1	1306-
161	SCREW; CONSOLE VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> M4X12 MAL	8-94279-351-0	04	1	1306-
361	BOLT; ADJ,RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> M8X18 MAL	8-94279-109-1	04	1	1306-
368	BOLT; SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> M8X24.5 W/LK&PL WASHER MAL	8-94279-217-0	02	1	1306-
460	BACK ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY MAL	8-97418-691-0	01	1	1306-
460	BACK ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY MAL	8-97418-697-2	01	1	1306-
460	BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY MAL	8-97421-279-0	01	1	1306-
460	BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY MAL	8-97421-300-1	01	1	1306-
478	BRACKET ASM; HINGE,PASSENGER SEAT	8-98002-092-0	01	1	1306-

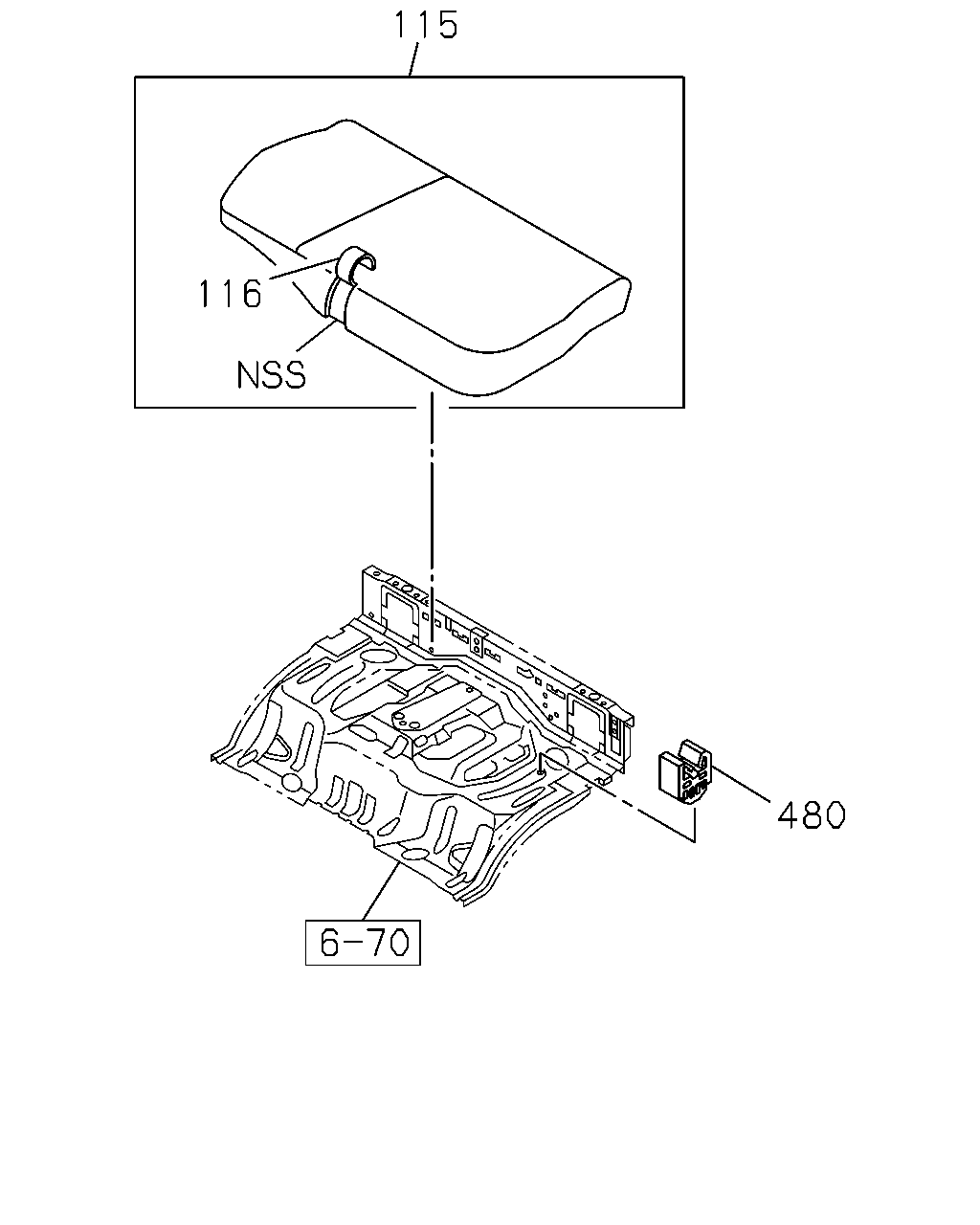

115 116 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY MAL	8-97418-705-2	01	1	1306-
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY MAL	8-97421-320-2	01	1	1306-
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY MAL	8-97418-734-1	01	1	1306-
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY MAL	8-97421-340-1	01	1	1306-
480	CLIP; CUSHION MAL	8-94279-977-0	05	1	1306-
