◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51500 - NPS(MALAYSIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#125217) — 120 parça

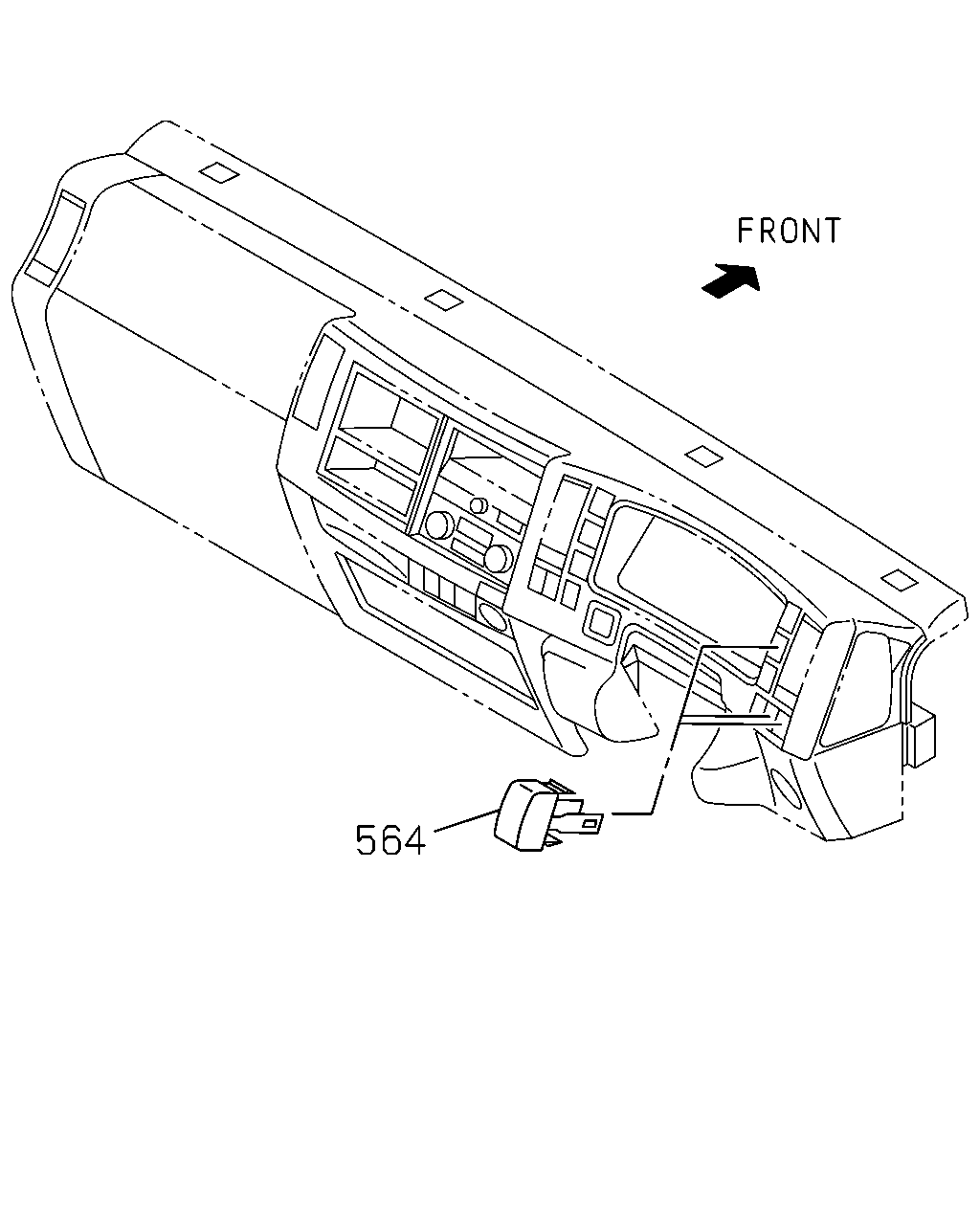

çizim 363424
564
BalonParca AdiParca NoAdetTipApplied Date
564 COVER; SW 8-98025-954-1 03 1 1306-

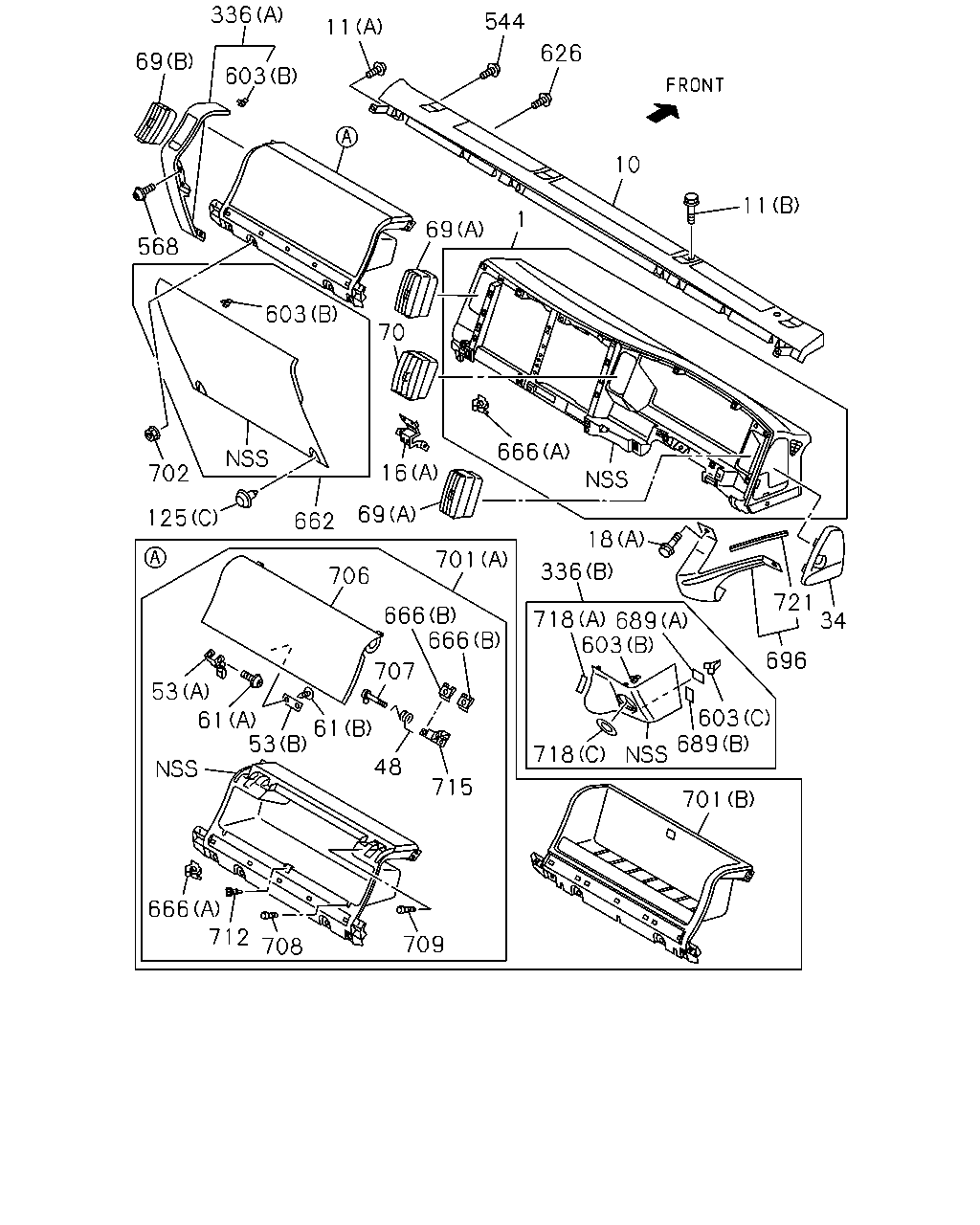

çizim 365930
336 11 603 69 544 10 11 666 16 69 662 125 702 666 706 666 603 718 336 69 70 1 603 568 626 18 721 34 696 603 689 701 689 715 48 61 53 61 53 666 708 712 709 718 701 707
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97405-253-8 01 1 1306-
10 PANEL ASM; GARNISH
GRAY 		8-97419-683-5 01 1 1306-
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 08 1 1306-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1306-
16 BRACKET; INST PNL
(B) 		8-97585-532-0 01 1 1306-
16 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 1306-
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1306-
18 BOLT; BRKT
(B) M8X16 FLANGE MAL 		0-28050-816-0 04 1 1306-
18 BOLT; BRKT
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1306-
18 BOLT; BRKT
EXC. CUP HOLDER<7KZ> (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1306-
34 LID; OIL TANK
GRAY 		8-97405-260-1 01 1 1306-
48 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-986-0 01 1 1306-1311
48 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-410-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98270-763-0 01 1 1406-
48 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-987-0 01 1 1306-1311
48 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-411-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98270-764-0 01 1 1406-
53 STRIKER; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) 		8-98108-913-0 01 1 1306-1405
53 STRIKER; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) 		8-98270-765-0 01 1 1406-
61 SCREW; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) 		8-98108-915-0 01 1 1306-1405
61 SCREW; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) M4X85 		8-97926-404-0 02 1 1406-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1306-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1306-
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1306-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 1306-
125 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 1306-
125 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1306-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97405-259-4 01 1 1306-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97414-961-4 01 1 1306-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 03 1 1306-
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 01 1 1306-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1306-
603 CLIP; COVER
(B) 		8-98021-271-0 02 1 1306-
603 CLIP; COVER
(C) 		8-98021-271-0 03 1 1306-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1306-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1306-
662 COVER; LWR,INST PANEL
GRAY 		8-97405-258-2 01 1 1306-
666 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) 		8-98037-629-0 02 1 1306-
666 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) 		8-98038-450-0 04 1 1306-1311
666 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) M5 		8-97926-400-0 04 1 1312-
666 INSERT; INST PANEL
(A) 		8-98037-629-0 15 1 1306-
689 SEAL; INST
(A) 7X31 		8-98061-777-0 01 1 1306-
689 SEAL; INST
(B) 18X170 		8-98061-778-1 01 1 1306-
696 BRACKET; KNEE 8-98199-366-0 01 1 1306-
701 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) GRAY 		8-97415-542-6 01 1 1306-1405
701 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) GRAY 		8-97429-702-1 01 1 1406-
701 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITHOUT LID<JDP> (B) GRAY 		8-97422-091-1 01 1 1306-
702 NUT; TRAY
M6 FLANGE MAL 		0-91180-106-0 02 1 1306-
706 LID; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> GRAY 		8-97415-541-0 01 1 1306-1405
706 LID; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> GRAY 		8-97429-992-0 01 1 1406-
707 SHAFT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98035-730-1 02 1 1306-1311
707 SHAFT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-393-0 02 1 1312-
708 STOPPER; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98010-867-1 02 1 1306-
709 SCREW; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> M5X16 TAPPING 		0-71040-516-0 04 1 1306-
712 LOCK; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1306-
715 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-928-0 01 1 1306-1311
715 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-396-0 01 1 1312-
715 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-929-0 01 1 1306-1311
715 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-397-0 01 1 1312-
718 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 1306-
718 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1306-
718 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1306-
718 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1306-
718 SEAL; COVER
(C) 		8-98218-319-0 01 1 1306-
721 FINISHER; BRKT,KNEE
L=75 		8-98176-240-0 01 1 1306-

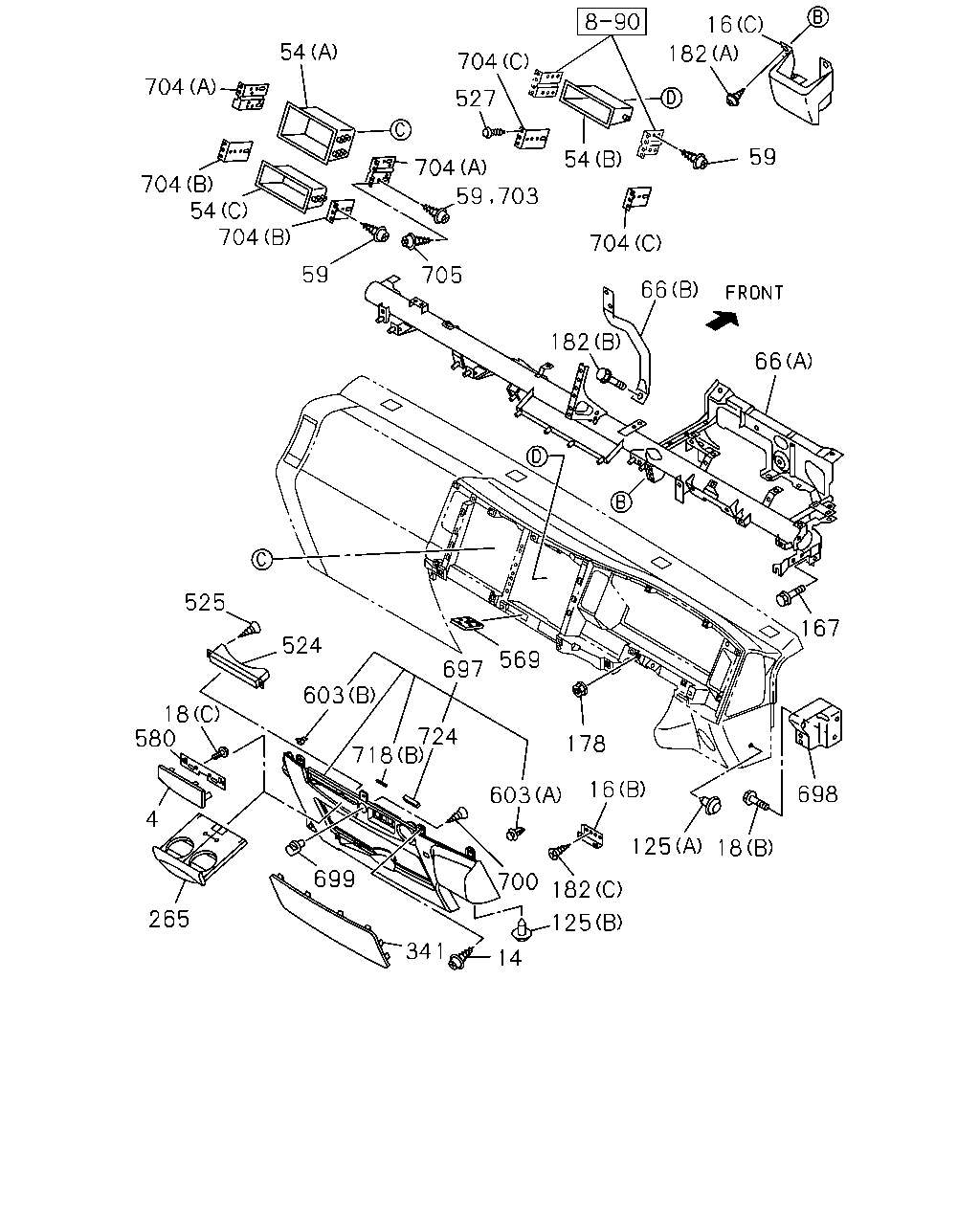

çizim 367105
704 704 54 704 59 54 704 527 704 59 703 54 16 182 59 704 66 705 182 66 167 525 524 18 580 265 4 603 718 699 724 697 569 603 700 182 125 125 18 698 16 178 341 14
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 1306-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 04 1 1306-
16 BRACKET; INST PNL
(B) 		8-97585-532-0 01 1 1306-
16 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 1306-
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1306-
18 BOLT; BRKT
(B) M8X16 FLANGE MAL 		0-28050-816-0 04 1 1306-
18 BOLT; BRKT
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1306-
18 BOLT; BRKT
EXC. CUP HOLDER<7KZ> (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1306-
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1306-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1306-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1306-
54 POCKET; CENTER CLUSTER
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1306-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1306-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1306-
59 SCREW; CLUSTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1306-
66 REINFORCEMENT; INST PANEL
(A) 		8-98199-358-1 01 1 1306-
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-578-1 01 1 1306-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 1306-
125 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 1306-
125 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1306-
167 BOLT; REINF TO INST
M8X23 FLANGE MAL 		8-97264-766-0 04 1 1306-
178 NUT; INST PANEL
M6 FLANGE MAL 		0-91180-106-0 03 1 1306-
182 BOLT; BRKT,INST PANEL
(C) SCREW M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 02 1 1306-
182 BOLT; BRKT,INST PANEL
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1306-
182 BOLT; BRKT,INST PANEL
(B) M8X20 W/LK&PL WASHER MAL 		8-97359-709-0 01 1 1306-
265 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 1306-
341 LID; FUSE BOX
GRAY 		8-97423-658-0 01 1 1306-
524 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 1306-
525 SCREW; CUP STAND
CUP HOLDER<7KZ> M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 03 1 1306-
527 CLIP; INST CLUSTER
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) DARK GRAY MAL 		8-97098-326-0 01 1 1306-
569 HOLDER; CARD 8-97410-276-1 01 1 1306-
580 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 1306-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1306-
603 CLIP; COVER
(B) 		8-98021-271-0 02 1 1306-
603 CLIP; COVER
(C) 		8-98021-271-0 03 1 1306-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1306-
697 PANEL; INST CENTER
GRAY 		8-97423-656-1 01 1 1306-
698 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 1306-
698 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 1306-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1306-
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 01 1 1306-
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1306-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1306-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1306-
704 BRACKET; CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) 		8-98107-549-0 02 1 1306-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR MAL 		0-72180-520-0 04 1 1306-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR MAL 		0-72180-520-0 04 1 1306-
705 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X20 TAPPING HEXALOBULAR MAL 		0-72180-520-0 01 1 1306-
718 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 1306-
718 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1306-
718 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1306-
718 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1306-
718 SEAL; COVER
(C) 		8-98218-319-0 01 1 1306-
724 INSULATOR; INST PANEL 8-98200-042-0 01 1 1306-
