Sayfa 7-30 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51500 - NPS(MALAYSIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶

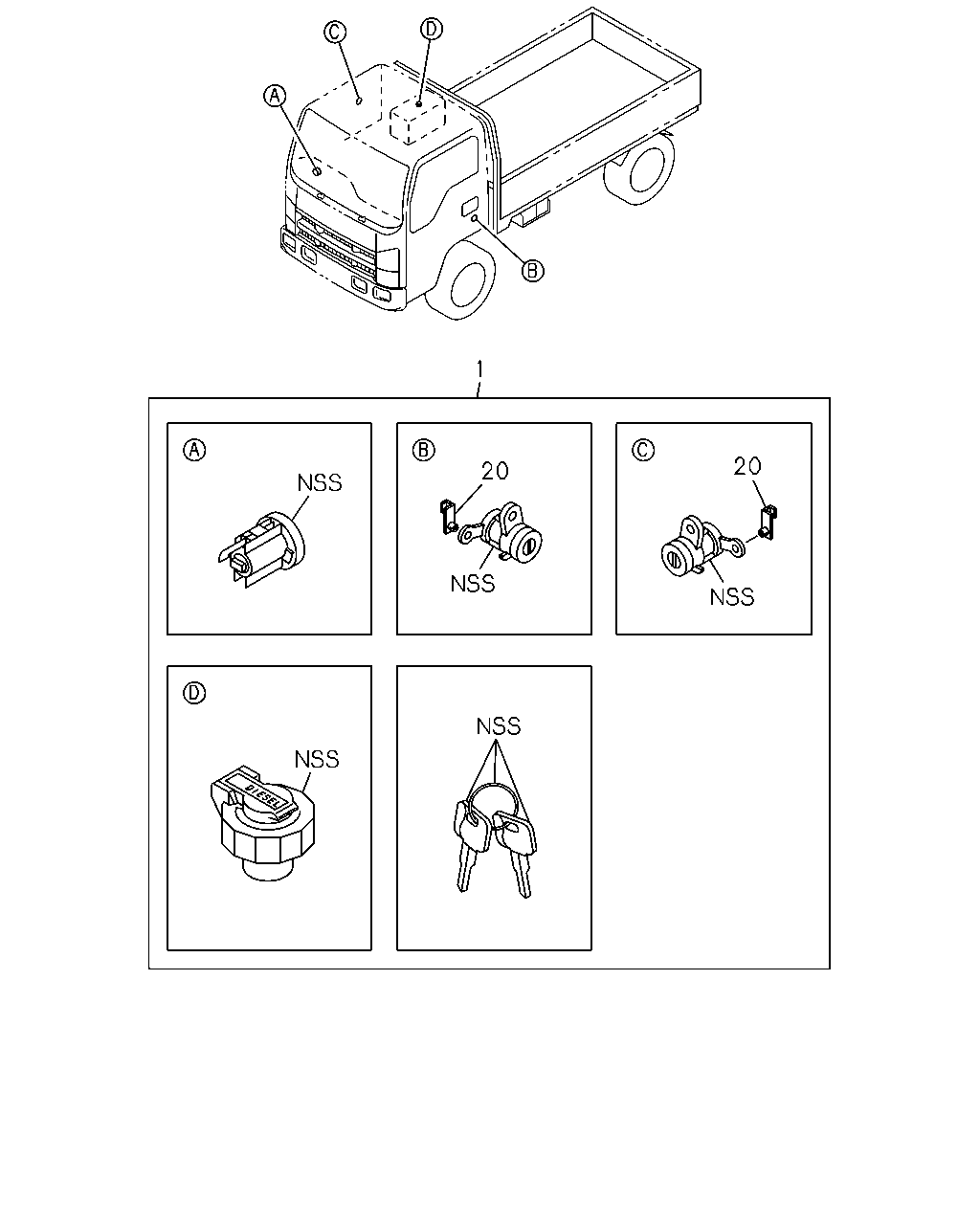

7-30 — LOCK CYLINDER SET (#125216) — 19 parça

20 20 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> GM BRAND<X61>	8-98201-230-0	01	1	1306-
1	CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL>	8-98201-216-0	01	1	1306-
1	CYLINDER SET; CAR LOCK GM BRAND<X61> EXC. FUEL TANK CAP W/LOCK<N05>	8-98201-158-0	01	1	1306-
1	CYLINDER SET; CAR LOCK ISUZU BRAND<7WL> EXC. FUEL TANK CAP W/LOCK<N05>	8-98201-161-0	01	1	1306-
20	SNAP; DOOR LOCK CYL GM BRAND<X61>,ISUZU BRAND<7WL>	8-98055-181-0	01	1	1306-
20	SNAP; DOOR LOCK CYL GM BRAND<X61>,ISUZU BRAND<7WL>	8-98055-182-0	01	1	1306-

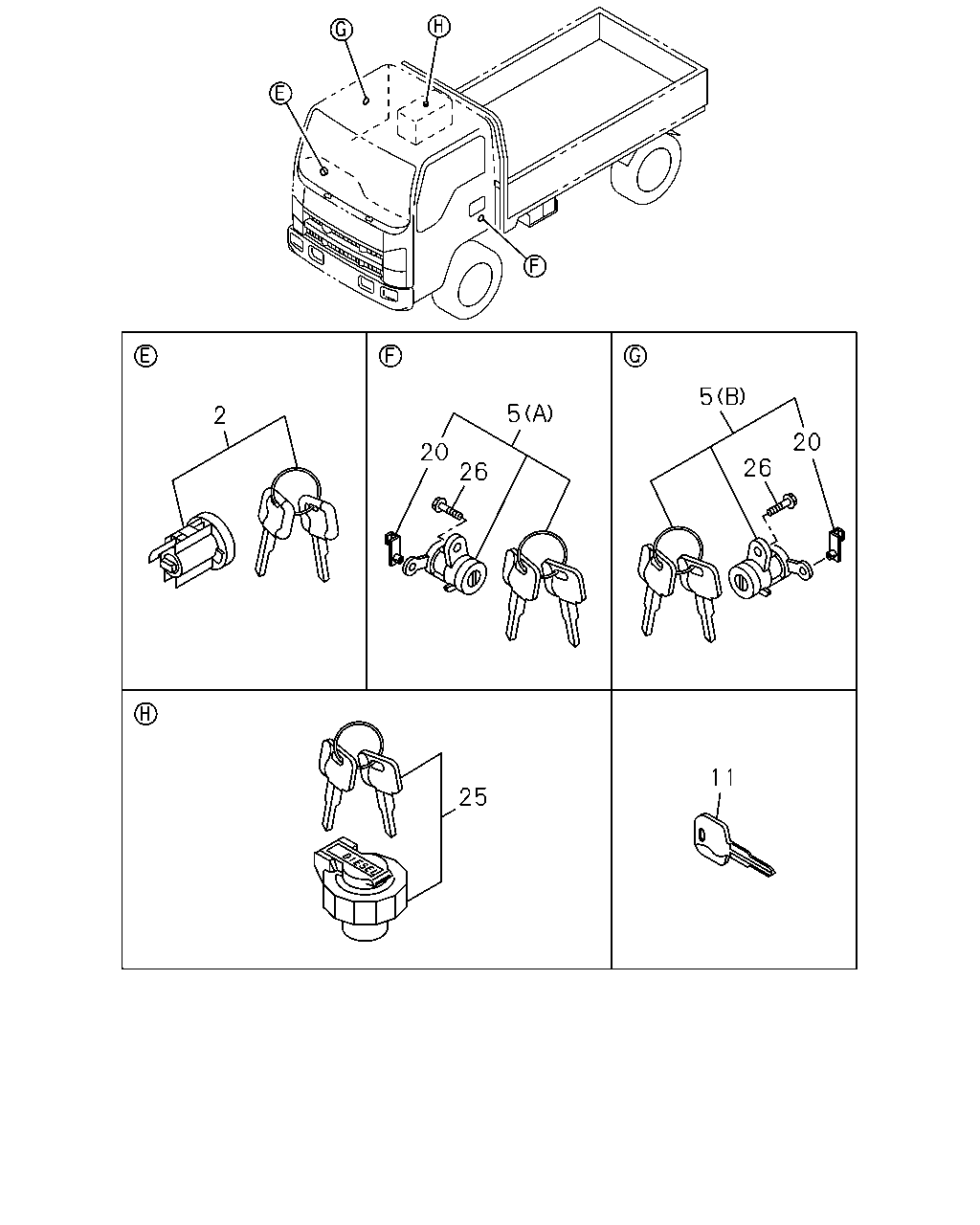

2 5 20 26 5 20 26 25 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BARREL ASM; W/KEY,STRG LOCK GM BRAND<X61>	8-98201-352-0	01	1	1306-
2	BARREL ASM; W/KEY,STRG LOCK ISUZU BRAND<7WL>	8-98201-342-0	01	1	1306-
5	CYLINDER ASM; DOOR LOCK GM BRAND<X61> (B)	8-98055-161-0	01	1	1306-
5	CYLINDER ASM; DOOR LOCK GM BRAND<X61> (A)	8-98055-162-0	01	1	1306-
5	CYLINDER ASM; DOOR LOCK ISUZU BRAND<7WL> (B)	8-98055-149-0	01	1	1306-
5	CYLINDER ASM; DOOR LOCK ISUZU BRAND<7WL> (A)	8-98055-150-0	01	1	1306-
11	KEY; BLANK GM BRAND<X61>	8-98055-171-0	AR	1	1306-
11	KEY; BLANK ISUZU BRAND<7WL>	8-98055-170-0	AR	1	1306-
20	SNAP; DOOR LOCK CYL GM BRAND<X61>,ISUZU BRAND<7WL>	8-98055-181-0	01	1	1306-
20	SNAP; DOOR LOCK CYL GM BRAND<X61>,ISUZU BRAND<7WL>	8-98055-182-0	01	1	1306-
25	CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05> GM BRAND<X61>	8-98146-014-0	01	1	1306-
25	CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL>	8-98146-010-0	01	1	1306-
26	BOLT; KEY CYL,DOOR M6X8 FLANGE	8-98031-839-0	02	1	1306-
