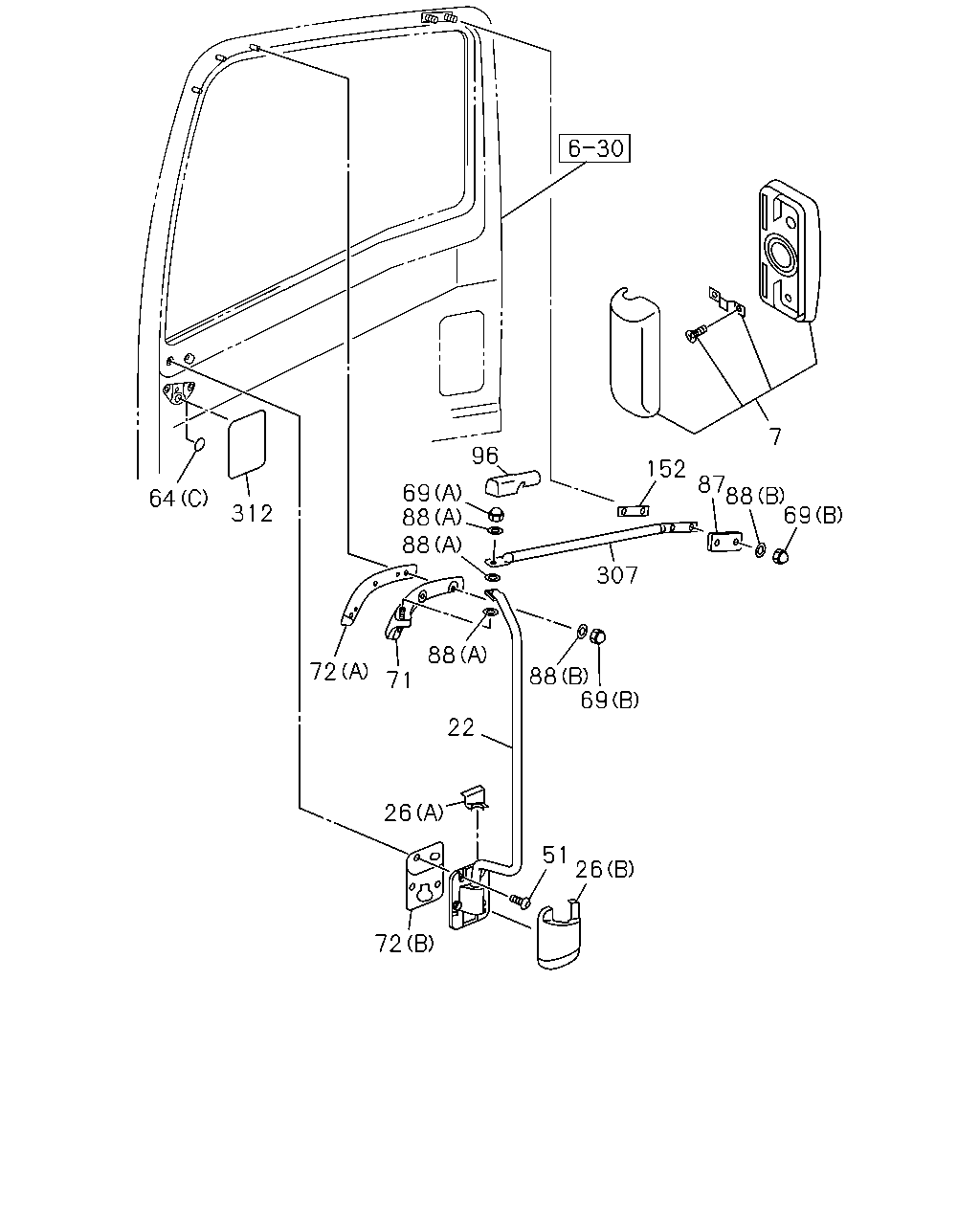

7 |
MIRROR ASM; DOOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
|
8-98055-991-1 |
01 |
1 |
1306- |
| |
7 |
MIRROR ASM; DOOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
|
8-98055-992-1 |
01 |
1 |
1306- |
| |
22 |
STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>
|
8-98166-180-0 |
01 |
1 |
1306- |
| |
22 |
STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>
|
8-98166-181-0 |
01 |
1 |
1306- |
| |
22 |
STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE>
|
8-98158-846-0 |
01 |
1 |
1306- |
| |
22 |
STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE>
|
8-98158-847-0 |
01 |
1 |
1306- |
| |
22 |
STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
|
8-98158-848-0 |
01 |
1 |
1306- |
| |
22 |
STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
|
8-98158-849-0 |
01 |
1 |
1306- |
| |
26 |
COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(B)
|
8-98031-802-2 |
01 |
1 |
1306- |
| |
26 |
COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(B)
|
8-98031-803-2 |
01 |
1 |
1306- |
| |
26 |
COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(A)
|
8-98031-805-0 |
01 |
1 |
1306- |
| |
26 |
COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(A)
|
8-98031-806-0 |
01 |
1 |
1306- |
| |
51 |
SCREW; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
M8X23
|
8-97310-216-1 |
08 |
1 |
1306- |
| |
64 |
SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(B)
OD=25 BLACK
MAL
|
1-76798-019-0 |
02 |
1 |
1306- |
| |
64 |
SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(C)
OD=52 BLACK
|
1-76798-041-0 |
02 |
1 |
1306- |
| |
64 |
SEAL; MIRROR
BODY COLOR ARC WHITE(729)
EXC. WINDOW RR<8LF>
(A)
OD=20 T=0.05 WHITE
MAL
|
8-98059-421-0 |
02 |
1 |
1306- |
| |
64 |
SEAL; MIRROR
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK
SILVERMET(998),BODY COLOR TRANS BLUE(999)
EXC. WINDOW RR<8LF>
(A)
OD=20 T=0.05 BLACK
MAL
|
5-76777-036-0 |
02 |
1 |
1306- |
| |
69 |
NUT; CAP
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(A)
M10 CAP NUT
|
8-98059-913-0 |
02 |
1 |
1306-1404 |
| |
69 |
NUT; CAP
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(A)
M10 CAP NUT
MAL
|
1-09984-134-0 |
02 |
1 |
1405- |
| |
69 |
NUT; CAP
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(B)
M8 CAP NUT
|
8-98059-914-0 |
10 |
1 |
1306- |
| |
71 |
BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
|
8-98031-793-2 |
01 |
1 |
1306- |
| |
71 |
BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
|
8-98031-794-2 |
01 |
1 |
1306- |
| |
72 |
SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(A)
|
8-98031-796-0 |
01 |
1 |
1306- |
| |
72 |
SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(A)
|
8-98031-797-0 |
01 |
1 |
1306- |
| |
72 |
SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(B)
|
8-98080-418-0 |
02 |
1 |
1306- |
| |
87 |
SPACER
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
|
8-98063-789-0 |
02 |
1 |
1306- |
| |
88 |
WASHER; PL,SUPPORT STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(B)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
10 |
1 |
1306- |
| |
88 |
WASHER; PL,SUPPORT STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(A)
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
06 |
1 |
1306- |
| |
96 |
CAP; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
|
8-98080-173-0 |
02 |
1 |
1306- |
| |
152 |
SHEET; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
|
8-98063-786-0 |
02 |
1 |
1306- |
| |
307 |
STAY; MIRROR SUPPORT
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
|
8-98063-784-2 |
01 |
1 |
1306- |
| |
307 |
STAY; MIRROR SUPPORT
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
|
8-98063-785-2 |
01 |
1 |
1306- |
| |
312 |
TAPE
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR
MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
|
8-98164-812-0 |
02 |
1 |
1306- |
