◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51500 - NPS(MALAYSIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#125205) — 37 parça

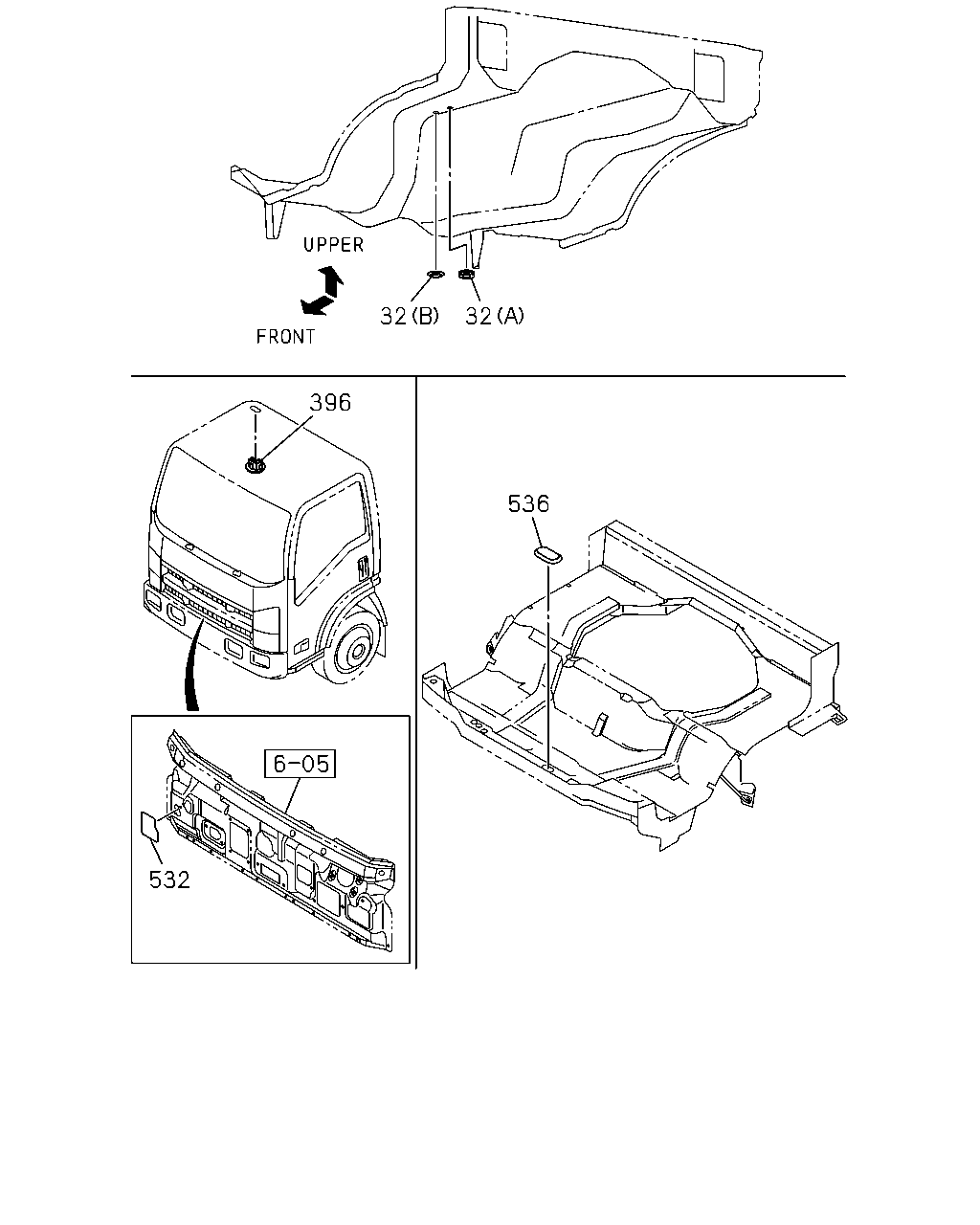

çizim 363443
32 32 396 536 532
BalonParca AdiParca NoAdetTipApplied Date
32 GROMMET; FLOOR PANEL,LOCATION HOLE
(A) OD=15.0 MAL 		8-94279-040-0 02 1 1306-
32 GROMMET; FLOOR PANEL,LOCATION HOLE
(B) OD=12.1 MAL 		8-97898-423-0 02 1 1306-
396 GROMMET; LOCATION HOLE 8-98054-990-0 02 1 1306-
532 SEAL; CABLE 8-98042-432-1 01 1 1306-
536 PLUG; CABLE,PTO 8-98029-219-1 01 1 1306-

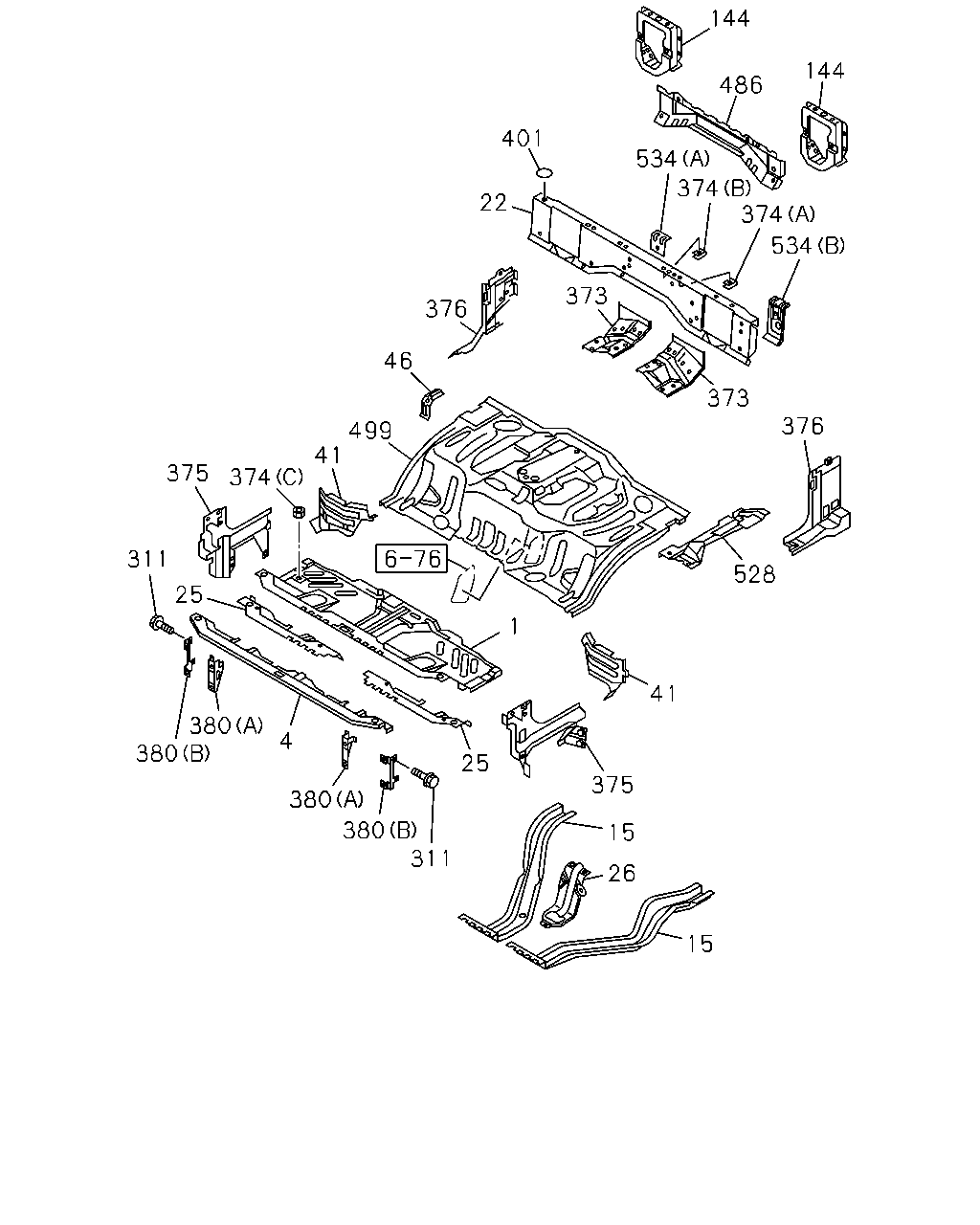

çizim 365593
144 144 486 534 374 374 534 373 528 41 375 1 25 380 311 380 380 380 4 25 311 375 374 41 499 46 376 22 401 373 376 15 26 15
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98112-870-0 01 1 1306-
4 FRAME; FLOOR,FRT
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> MAL 		8-98107-595-0 01 1 1306-
15 FRAME; UNDER
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> MAL 		8-98059-498-1 01 1 1306-
15 FRAME; UNDER
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> MAL 		8-98088-004-0 01 1 1306-
22 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-848-4 01 1 1306-
25 REINFORCEMENT; FRAME FLOOR,FRT
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-823-0 01 1 1306-
25 REINFORCEMENT; FRAME FLOOR,FRT
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98107-587-0 01 1 1306-
26 PANEL; GEAR CONT REINF
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-382-1 01 1 1306-
41 SUPPORT; STEP,RR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-880-1 01 1 1306-
41 SUPPORT; STEP,RR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-881-1 01 1 1306-
46 BRACKET; FRT SEAT,RR OUTER
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-834-0 01 1 1306-
144 BRACKET; MTG,RR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-544-3 02 1 1306-
311 BOLT; BRKT
M6X16 FLANGE MAL 		0-28650-616-0 04 1 1306-
373 REINFORCEMENT; SEAT BELT
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-523-2 01 1 1306-
373 REINFORCEMENT; SEAT BELT
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-524-2 01 1 1306-
374 NUT; FLOOR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (B) M6 MAL 		1-09984-110-0 02 1 1306-
374 NUT; FLOOR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) M8 		1-09984-111-0 01 1 1306-
374 NUT; FLOOR
(C) M8 		9-09114-068-0 04 1 1306-
375 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98080-727-2 01 1 1306-
375 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98080-728-1 01 1 1306-
376 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-888-2 01 1 1306-
376 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97584-618-2 01 1 1306-
380 BRACKET; HEAD LAMP
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) MAL 		8-97589-384-4 01 1 1306-
380 BRACKET; HEAD LAMP
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) MAL 		8-97589-385-3 01 1 1306-
380 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 1306-
380 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 1306-
401 GROMMET; HOLE
OD=24.5 T=7.5 MAL 		8-97224-683-0 01 1 1306-
486 REINFORCEMENT; FRAME FLOOR,REAR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98030-613-2 01 1 1306-
499 PANEL; FLOOR,RR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98206-873-0 01 1 1306-
528 REINFORCEMENT; PARKING BRAKE
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97584-619-4 01 1 1306-
534 REINFORCEMENT; SEAT BACK
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (B) 		8-97583-851-3 01 1 1306-
534 REINFORCEMENT; SEAT BACK
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-98019-181-2 01 1 1306-
