Sayfa 3-33 - Isuzu EPC

3-33 — AIR MASTER (#1252) — 181 parça

1 29 58 23 21 16 25 22 96 34 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; AIR MASTER (C), 1 YEAR ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	1-87520-204-0	01	1	-
1	REPAIR KIT; AIR MASTER (D), 2 YEAR ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	1-87520-205-0	01	1	-
1	REPAIR KIT; AIR MASTER (A), 1 YEAR ASM PART: A = 1-47800-382-1, B = 1-47800-397-1	1-87520-206-0	01	1	-
1	REPAIR KIT; AIR MASTER (B), 2 YEAR ASM PART: A = 1-47800-382-1, B = 1-47800-397-1	1-87520-207-0	01	1	-
16	VALVE ASM ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47842-009-0	01	1	-
21	GASKET; CUP ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47821-009-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47829-011-0	01	1	-
23	RING; RET ASM PART: A = 1-47800-382-1, B = 1-47800-397-1	1-46366-111-0	01	1	-
23	RING; RET ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	9-83315-102-0	01	1	-
25	SEAL; VALVE ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47821-024-0	01	1	-
29	RING; RET,VLV,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47829-057-0	01	1	-
34	GASKET ASM PART: A = 1-47800-382-1, B = 1-47800-397-1	5-44529-005-0	01	1	-
34	GASKET ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	9-09561-111-0	01	1	-
58	RETAINER; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47829-056-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47829-032-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47829-053-0	01	1	-

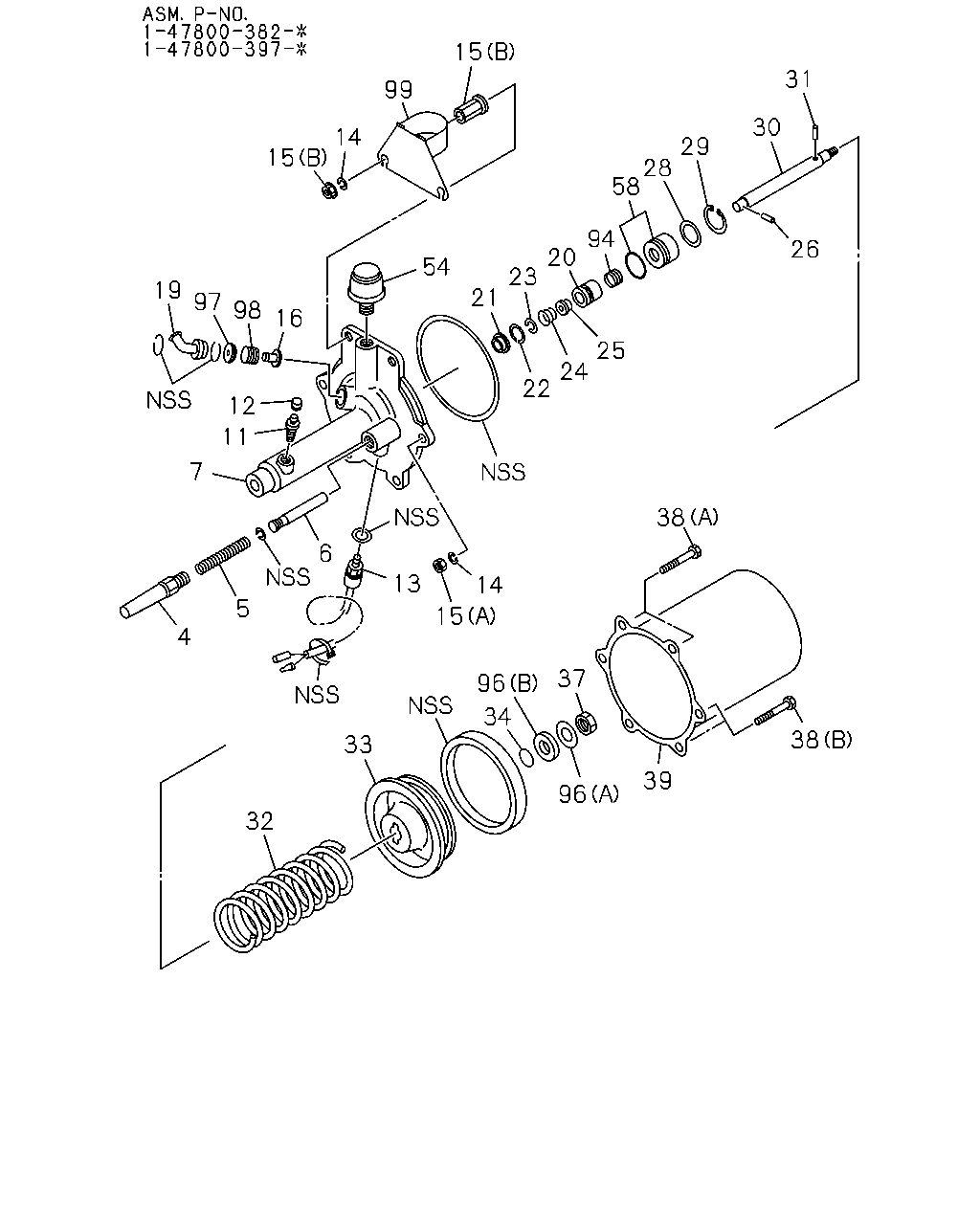

15 31 99 30 14 15 29 28 58 94 26 20 54 23 19 21 97 98 16 25 24 22 12 11 7 38 6 13 14 5 15 4 37 96 34 38 33 39 96 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	RETAINER; PUSH ROD,WARNING SW,AIR MAST ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47829-052-0	01	1	-
5	SPRING; PUSH ROD,WARNING SW,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1	1-47824-021-0	01	1	-
5	SPRING; PUSH ROD,WARNING SW,AIR MASTER ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	1-47824-026-0	01	1	-
6	ROD; PUSH,WARNING SW,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47829-048-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: A = 1-47800-382-1	1-47811-109-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: B = 1-47800-397-1	1-47811-110-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: C = 1-47800-412-1	1-47813-053-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: D = 1-47800-510-1	1-47813-055-0	01	1	-
11	PLUG; CAP,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	9-83331-704-0	01	1	-
12	PROTECTOR; CAP,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	9-83335-044-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: C = 1-47800-412-1	1-47819-127-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, D = 1-47800-510-1	1-47819-151-0	01	1	-
14	WASHER; END PLATE TO SHELL,AIR MASTER ID=10.2 ASM PART: A = 1-47800-382-1, B = 1-47800-397-1	9-09150-510-0	06	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47819-134-0	02	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	1-47819-182-0	06	1	-
16	VALVE ASM ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47842-009-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: C = 1-47800-412-1	1-47819-156-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: D = 1-47800-510-1	1-47819-162-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1	1-47849-032-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47821-021-0	01	1	-
21	GASKET; CUP ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47821-009-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47829-011-0	01	1	-
23	RING; RET ASM PART: A = 1-47800-382-1, B = 1-47800-397-1	1-46366-111-0	01	1	-
23	RING; RET ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	9-83315-102-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47824-017-0	01	1	-
25	SEAL; VALVE ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47821-024-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	1-47829-039-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1	1-47829-058-0	01	1	-
28	WASHER; OIL SEAL,HYD PISTON,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1	1-47819-164-0	01	1	-
28	WASHER; OIL SEAL,HYD PISTON,AIR MASTER ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	1-47819-183-0	01	1	-
29	RING; RET,VLV,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47829-057-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47825-022-0	01	1	-
31	PIN; STRAIGHT ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47829-054-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47824-020-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47822-006-0	01	1	-
34	GASKET ASM PART: A = 1-47800-382-1, B = 1-47800-397-1	5-44529-005-0	01	1	-
34	GASKET ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	9-09561-111-0	01	1	-
37	NUT; PUSH ROD,SHELL,AIR MASTER M12 ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	9-99111-412-0	01	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47819-154-0	02	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	9-83315-078-0	04	1	-
39	SHELL; CYL,AIR MASTER ASM PART: C = 1-47800-412-1	1-47811-099-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: D = 1-47800-510-1	1-47811-101-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1	1-47811-107-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1	1-47819-039-0	01	1	-
58	RETAINER; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47829-056-0	01	1	-
94	SPRING; PISTON ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47829-059-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47829-032-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47829-053-0	01	1	-
97	RETAINER; VALVE ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47824-023-0	01	1	-
98	SPRING; VALVE ASM PART: A = 1-47800-382-1, B = 1-47800-397-1	1-47824-024-0	01	1	-
98	SPRING; VALVE ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	1-47843-006-0	01	1	-
99	BRACKET; AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1	1-47819-128-0	01	1	-

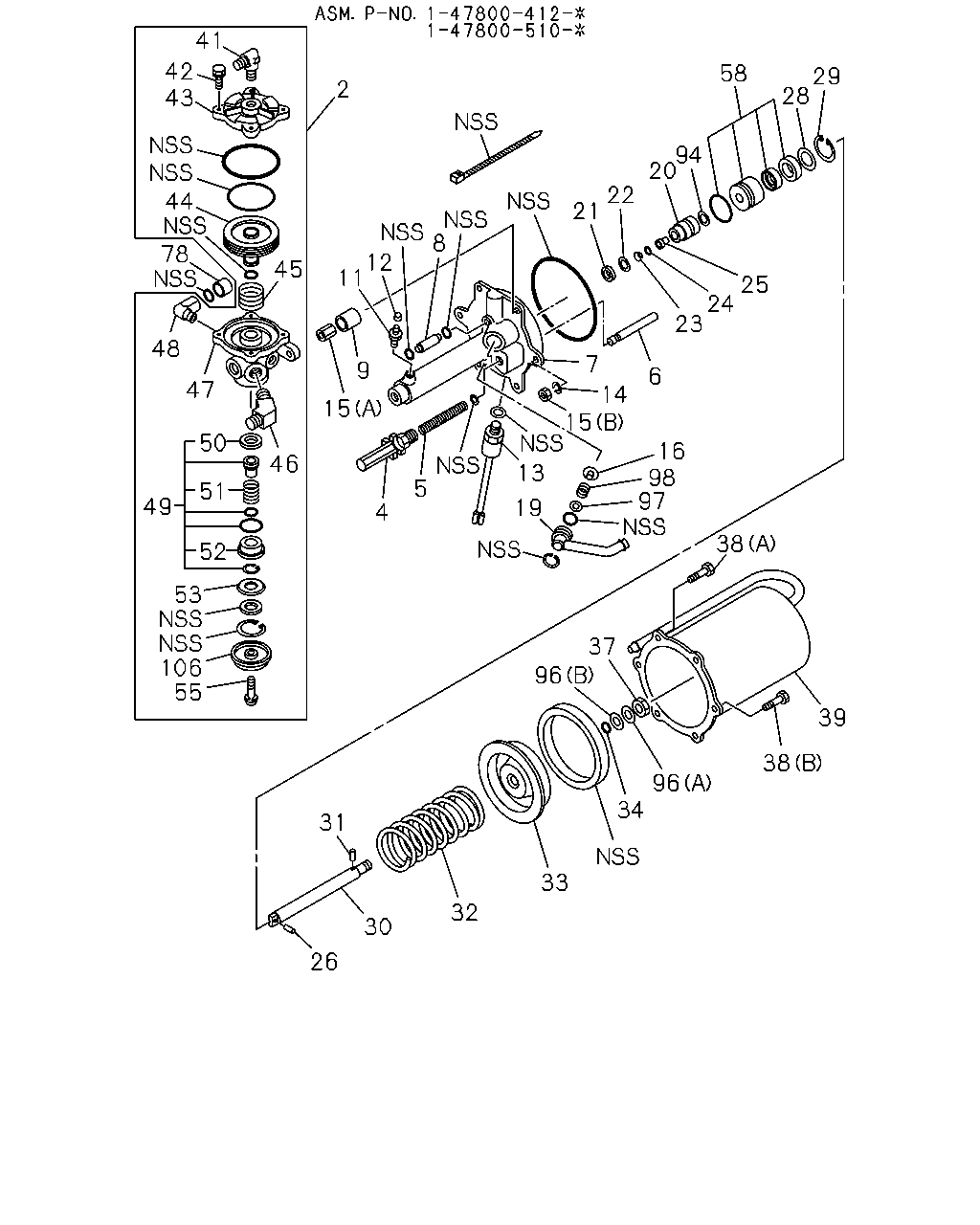

41 42 43 58 29 28 2 44 78 94 20 22 21 8 12 11 45 25 24 23 48 7 9 6 47 14 15 15 50 16 98 97 46 5 13 51 49 19 4 38 52 53 106 55 37 96 39 38 96 34 31 33 32 30 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY,AIR MASTER ASM PART: D = 1-47800-510-1	1-47841-056-0	01	1	-
2	VALVE; RELAY,AIR MASTER ASM PART: C = 1-47800-412-1	1-47841-058-0	01	1	-
4	RETAINER; PUSH ROD,WARNING SW,AIR MAST ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47829-052-0	01	1	-
5	SPRING; PUSH ROD,WARNING SW,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1	1-47824-021-0	01	1	-
5	SPRING; PUSH ROD,WARNING SW,AIR MASTER ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	1-47824-026-0	01	1	-
6	ROD; PUSH,WARNING SW,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47829-048-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: A = 1-47800-382-1	1-47811-109-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: B = 1-47800-397-1	1-47811-110-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: C = 1-47800-412-1	1-47813-053-0	01	1	-
7	PLATE; END,AIR MASTER ASM PART: D = 1-47800-510-1	1-47813-055-0	01	1	-
8	PIPE; END PLATE,AIR MASTER ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	1-47819-153-0	01	1	-
9	PROTECTOR; END PLATE,AIR MASTER ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	1-44569-165-0	01	1	-
11	PLUG; CAP,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	9-83331-704-0	01	1	-
12	PROTECTOR; CAP,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	9-83335-044-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: C = 1-47800-412-1	1-47819-127-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, D = 1-47800-510-1	1-47819-151-0	01	1	-
14	WASHER; END PLATE TO SHELL,AIR MASTER ID=10.2 ASM PART: A = 1-47800-382-1, B = 1-47800-397-1	9-09150-510-0	06	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47819-134-0	02	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	1-47819-182-0	06	1	-
16	VALVE ASM ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47842-009-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: C = 1-47800-412-1	1-47819-156-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: D = 1-47800-510-1	1-47819-162-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1	1-47849-032-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47821-021-0	01	1	-
21	GASKET; CUP ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47821-009-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47829-011-0	01	1	-
23	RING; RET ASM PART: A = 1-47800-382-1, B = 1-47800-397-1	1-46366-111-0	01	1	-
23	RING; RET ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	9-83315-102-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47824-017-0	01	1	-
25	SEAL; VALVE ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47821-024-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	1-47829-039-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1	1-47829-058-0	01	1	-
28	WASHER; OIL SEAL,HYD PISTON,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1	1-47819-164-0	01	1	-
28	WASHER; OIL SEAL,HYD PISTON,AIR MASTER ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	1-47819-183-0	01	1	-
29	RING; RET,VLV,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47829-057-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47825-022-0	01	1	-
31	PIN; STRAIGHT ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47829-054-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47824-020-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47822-006-0	01	1	-
34	GASKET ASM PART: A = 1-47800-382-1, B = 1-47800-397-1	5-44529-005-0	01	1	-
34	GASKET ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	9-09561-111-0	01	1	-
37	NUT; PUSH ROD,SHELL,AIR MASTER M12 ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	9-99111-412-0	01	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (A) ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47819-154-0	02	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER (B) ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	9-83315-078-0	04	1	-
39	SHELL; CYL,AIR MASTER ASM PART: C = 1-47800-412-1	1-47811-099-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: D = 1-47800-510-1	1-47811-101-0	01	1	-
39	SHELL; CYL,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1	1-47811-107-0	01	1	-
41	CONNECTOR; ELBOW,RELAY VLV,AIR MASTER ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	1-47815-021-1	01	1	-
42	SCREW; RELAY VLV COVER,AIR MASTER ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	1-47849-015-0	04	1	-
43	COVER; RELAY VLV,AIR MASTER ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	1-48219-070-0	01	1	-
44	PISTON; RELAY VLV,AIR MASTER ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	1-48219-071-0	01	1	-
45	SPRING; PISTON,RELAY VLV,AIR MASTER ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	1-47819-090-0	01	1	-
46	CONNECTOR; RELAY VLV,AIR MASTER ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	1-47815-022-1	01	1	-
47	BODY; RELAY VLV,AIR MASTER ASM PART: D = 1-47800-510-1	1-47841-066-0	01	1	-
47	BODY; RELAY VLV,AIR MASTER ASM PART: C = 1-47800-412-1	1-47841-067-0	01	1	-
48	CONNECTOR; VLV TO SHELL ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	1-47815-026-0	01	1	-
49	VALVE; INL,AIR MASTER ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	1-47842-010-0	01	1	-
50	RETAINER; VALVE,INL,AIR MASTER ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	1-48213-002-0	01	1	-
51	SPRING; INL VLV,AIR MASTER ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	1-47819-089-0	01	1	-
52	VALVE; GUIDE,INL,AIR MASTER ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	1-48129-014-0	01	1	-
53	SEAT; GUIDE VALVE,AIR MASTER ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	1-47819-133-0	01	1	-
55	SCREW; EXH COVER FIX ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	1-47819-131-0	01	1	-
58	RETAINER; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47829-056-0	01	1	-
78	COLLAR; AIR MASTER ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	1-47829-051-0	01	1	-
94	SPRING; PISTON ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47829-059-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47829-032-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47829-053-0	01	1	-
97	RETAINER; VALVE ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47824-023-0	01	1	-
98	SPRING; VALVE ASM PART: A = 1-47800-382-1, B = 1-47800-397-1	1-47824-024-0	01	1	-
98	SPRING; VALVE ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	1-47843-006-0	01	1	-
106	COVER; RELAY VLV,AIR MASTER ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	1-47819-130-0	01	1	-

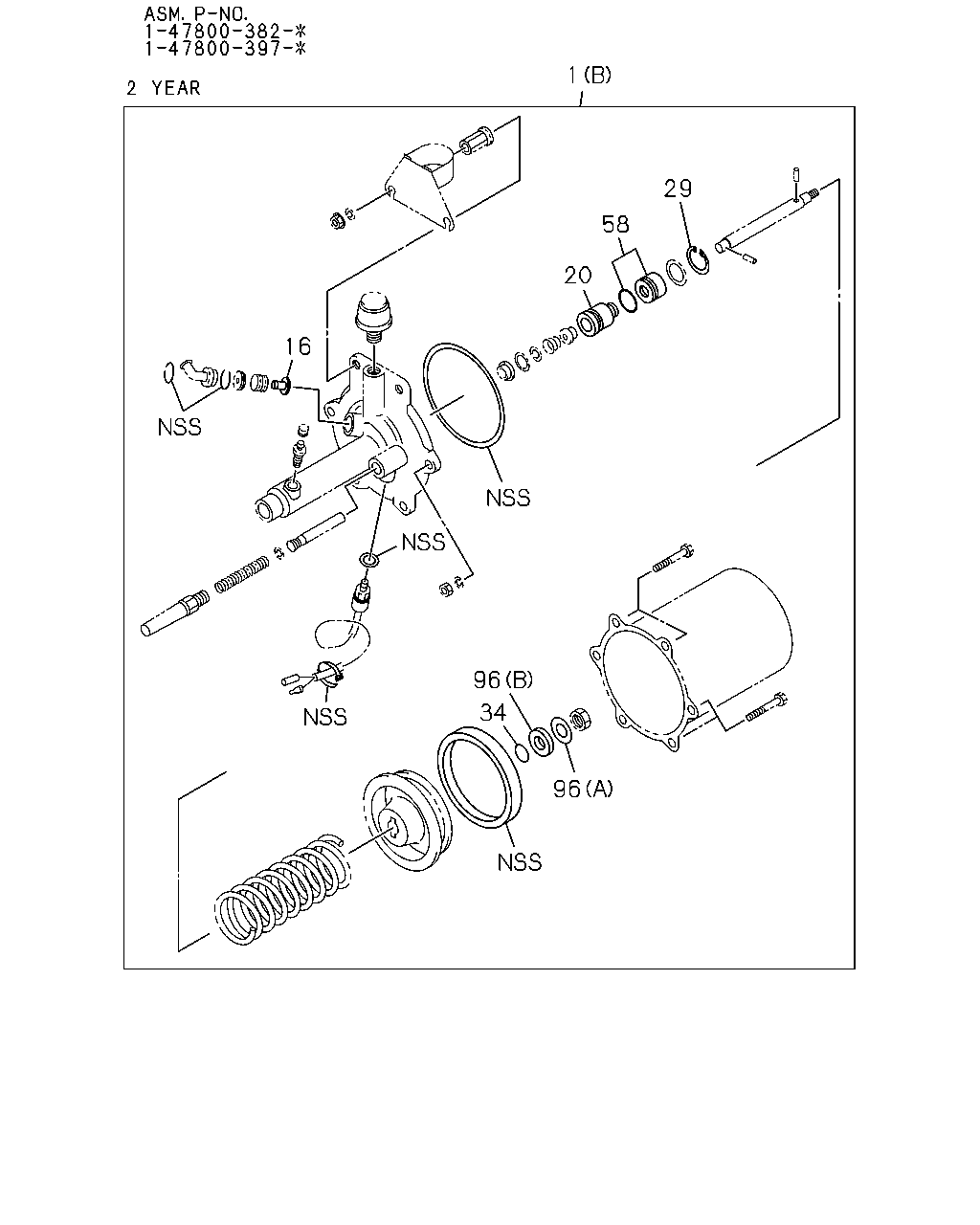

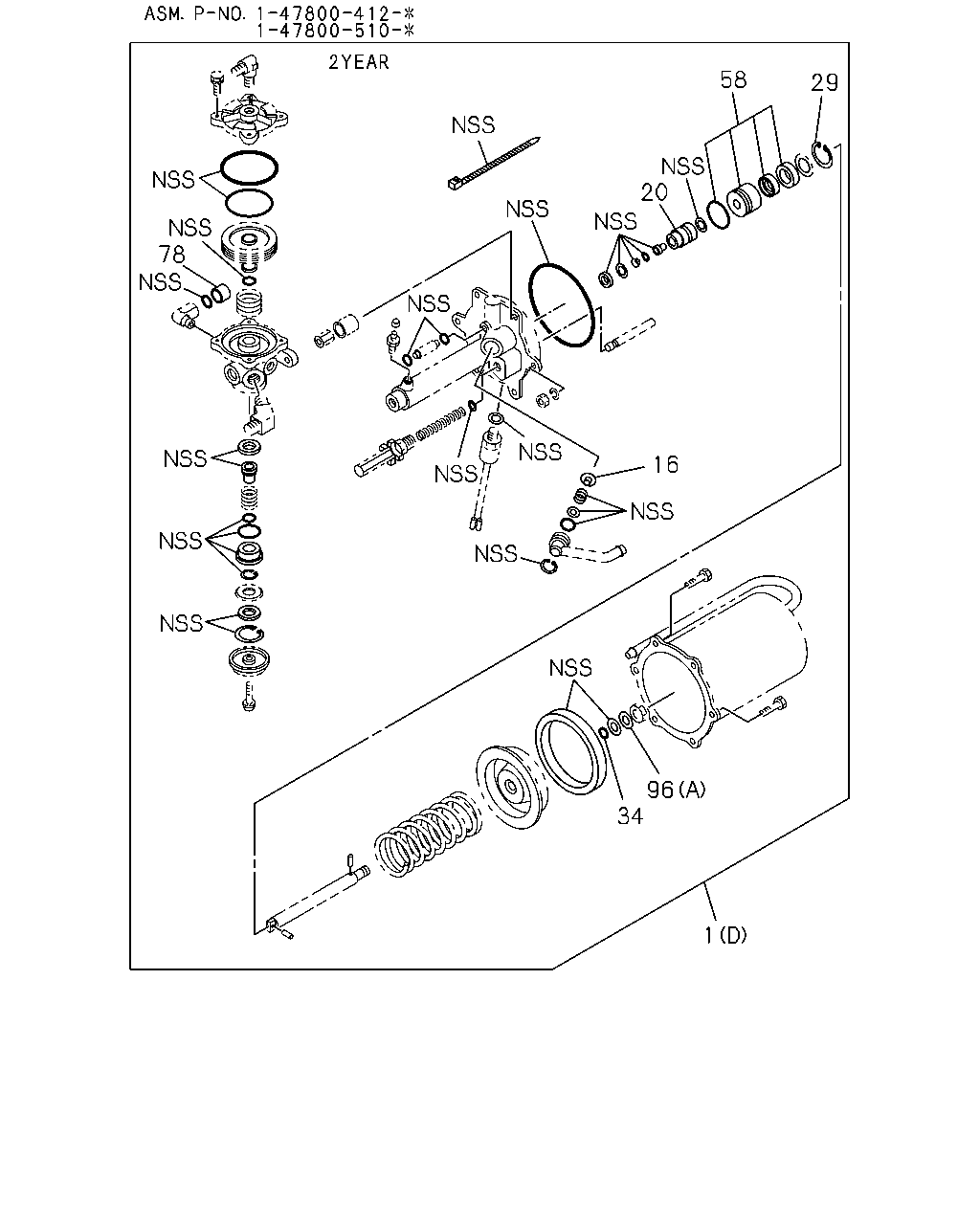

58 29 20 78 16 96 34 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; AIR MASTER (C), 1 YEAR ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	1-87520-204-0	01	1	-
1	REPAIR KIT; AIR MASTER (D), 2 YEAR ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	1-87520-205-0	01	1	-
1	REPAIR KIT; AIR MASTER (A), 1 YEAR ASM PART: A = 1-47800-382-1, B = 1-47800-397-1	1-87520-206-0	01	1	-
1	REPAIR KIT; AIR MASTER (B), 2 YEAR ASM PART: A = 1-47800-382-1, B = 1-47800-397-1	1-87520-207-0	01	1	-
16	VALVE ASM ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47842-009-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47821-021-0	01	1	-
29	RING; RET,VLV,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47829-057-0	01	1	-
34	GASKET ASM PART: A = 1-47800-382-1, B = 1-47800-397-1	5-44529-005-0	01	1	-
34	GASKET ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	9-09561-111-0	01	1	-
58	RETAINER; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47829-056-0	01	1	-
78	COLLAR; AIR MASTER ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	1-47829-051-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47829-032-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47829-053-0	01	1	-

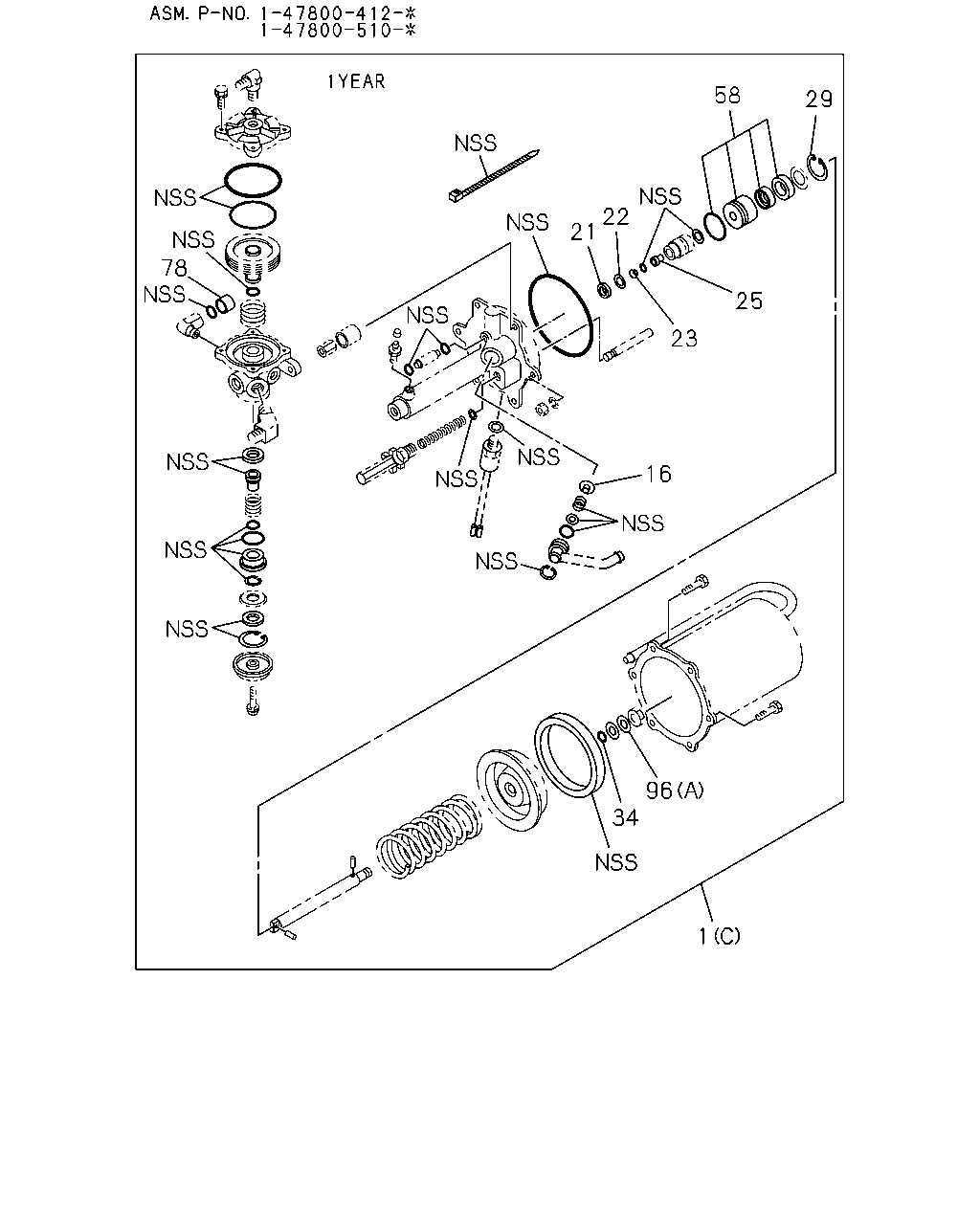

58 29 22 21 78 25 23 16 96 34 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; AIR MASTER (C), 1 YEAR ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	1-87520-204-0	01	1	-
1	REPAIR KIT; AIR MASTER (D), 2 YEAR ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	1-87520-205-0	01	1	-
1	REPAIR KIT; AIR MASTER (A), 1 YEAR ASM PART: A = 1-47800-382-1, B = 1-47800-397-1	1-87520-206-0	01	1	-
1	REPAIR KIT; AIR MASTER (B), 2 YEAR ASM PART: A = 1-47800-382-1, B = 1-47800-397-1	1-87520-207-0	01	1	-
16	VALVE ASM ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47842-009-0	01	1	-
21	GASKET; CUP ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47821-009-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47829-011-0	01	1	-
23	RING; RET ASM PART: A = 1-47800-382-1, B = 1-47800-397-1	1-46366-111-0	01	1	-
23	RING; RET ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	9-83315-102-0	01	1	-
25	SEAL; VALVE ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47821-024-0	01	1	-
29	RING; RET,VLV,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47829-057-0	01	1	-
34	GASKET ASM PART: A = 1-47800-382-1, B = 1-47800-397-1	5-44529-005-0	01	1	-
34	GASKET ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	9-09561-111-0	01	1	-
58	RETAINER; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47829-056-0	01	1	-
78	COLLAR; AIR MASTER ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	1-47829-051-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47829-032-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47829-053-0	01	1	-

1 29 58 20 16 96 34 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; AIR MASTER (C), 1 YEAR ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	1-87520-204-0	01	1	-
1	REPAIR KIT; AIR MASTER (D), 2 YEAR ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	1-87520-205-0	01	1	-
1	REPAIR KIT; AIR MASTER (A), 1 YEAR ASM PART: A = 1-47800-382-1, B = 1-47800-397-1	1-87520-206-0	01	1	-
1	REPAIR KIT; AIR MASTER (B), 2 YEAR ASM PART: A = 1-47800-382-1, B = 1-47800-397-1	1-87520-207-0	01	1	-
16	VALVE ASM ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47842-009-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47821-021-0	01	1	-
29	RING; RET,VLV,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47829-057-0	01	1	-
34	GASKET ASM PART: A = 1-47800-382-1, B = 1-47800-397-1	5-44529-005-0	01	1	-
34	GASKET ASM PART: C = 1-47800-412-1, D = 1-47800-510-1	9-09561-111-0	01	1	-
58	RETAINER; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47829-056-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47829-032-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-382-1, B = 1-47800-397-1, C = 1-47800-412-1, D = 1-47800-510-1	1-47829-053-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
