◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51500 - NPS(MALAYSIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#125182) — 19 parça

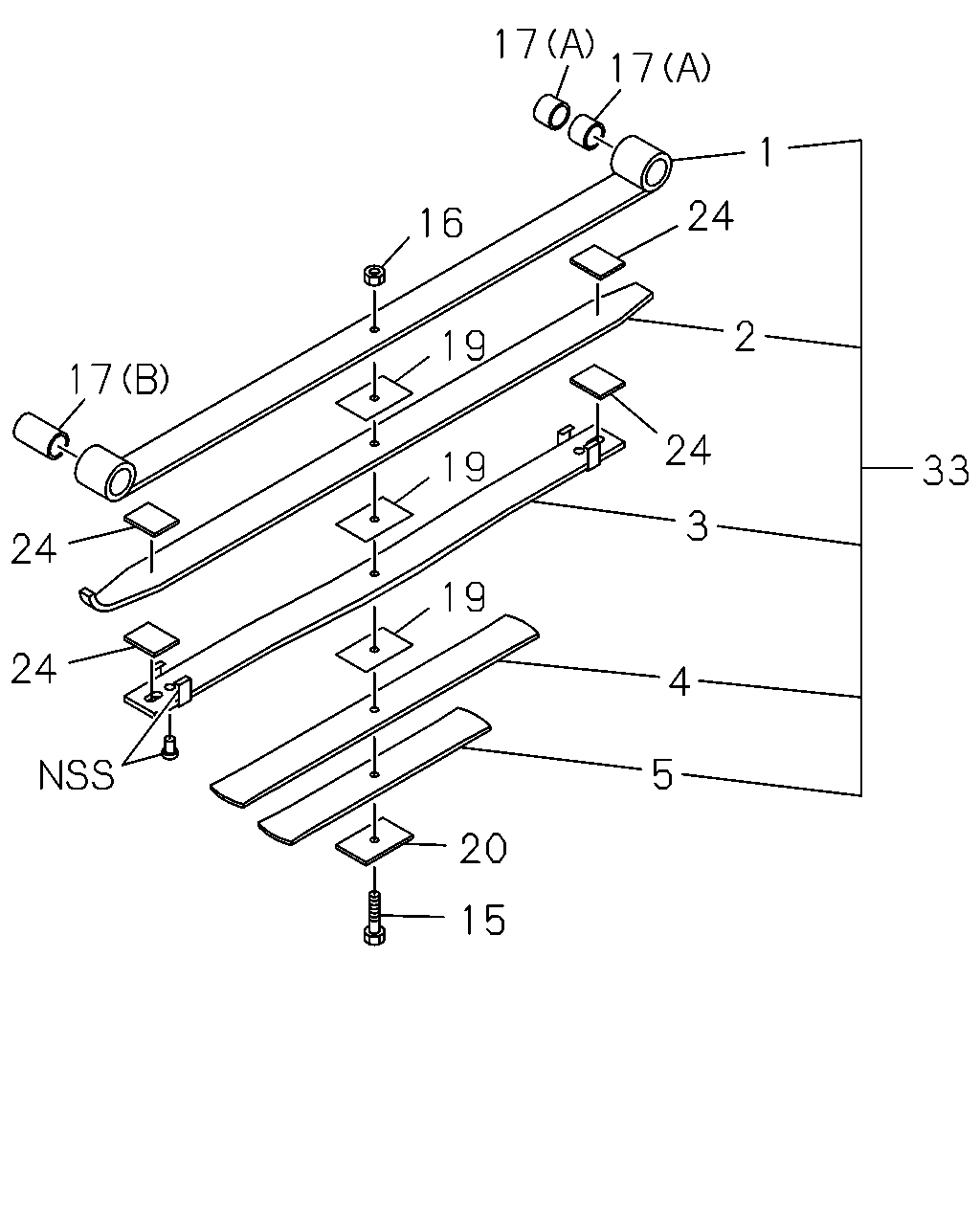

çizim 364686
17 17 1 33 24 2 24 3 4 5 17 16 19 19 24 24 15 20 19
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-98090-401-0 		8-98094-418-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-98090-402-0 		8-98094-420-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-98090-401-0 		8-98080-189-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-98090-402-0 		8-98080-195-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-98090-401-0 		8-98080-190-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: B = 8-98090-402-0 		8-98080-196-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: A = 8-98090-401-0 		8-98080-191-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: B = 8-98090-402-0 		8-98080-197-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: A = 8-98090-401-0 		8-98080-193-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: B = 8-98090-402-0 		8-98080-199-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=90 ASM PART: A = 8-98090-401-0, B = 8-98090-402-0 		8-98095-023-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M18 ASM PART: A = 8-98090-401-0, B = 8-98090-402-0 		9-99110-518-0 01 1 -
17 BUSHING; LEAF SPR,FRT
(A), OD=40 L=43.7 ASM PART: A = 8-98090-401-0, B = 8-98090-402-0 		8-94118-588-1 02 1 -
17 BUSHING; LEAF SPR,FRT
(B), OD=42 L=81 ASM PART: A = 8-98090-401-0, B = 8-98090-402-0 		8-97081-586-0 01 1 -
19 SPACER; LEAF SPRING,FRT
ASM PART: A = 8-98090-401-0, B = 8-98090-402-0 		8-97084-847-0 03 1 -
20 SEAT; LEAF SPR,FRT
ASM PART: A = 8-98090-401-0, B = 8-98090-402-0 		8-98095-024-0 01 1 -
24 LINER; LEAF SPR,FWD FRT
ASM PART: A = 8-98090-401-0, B = 8-98090-402-0 		8-97084-848-0 04 1 -
33 SPRING ASM; LEAF,FRT MAIN
ASM PART: A = 8-98090-401-0 		8-98094-417-0 01 1 -
33 SPRING ASM; LEAF,FRT MAIN
ASM PART: B = 8-98090-402-0 		8-98094-419-0 01 1 -
