4-42 — POWER STEERING OIL PUMP (#125180) — 35 parça

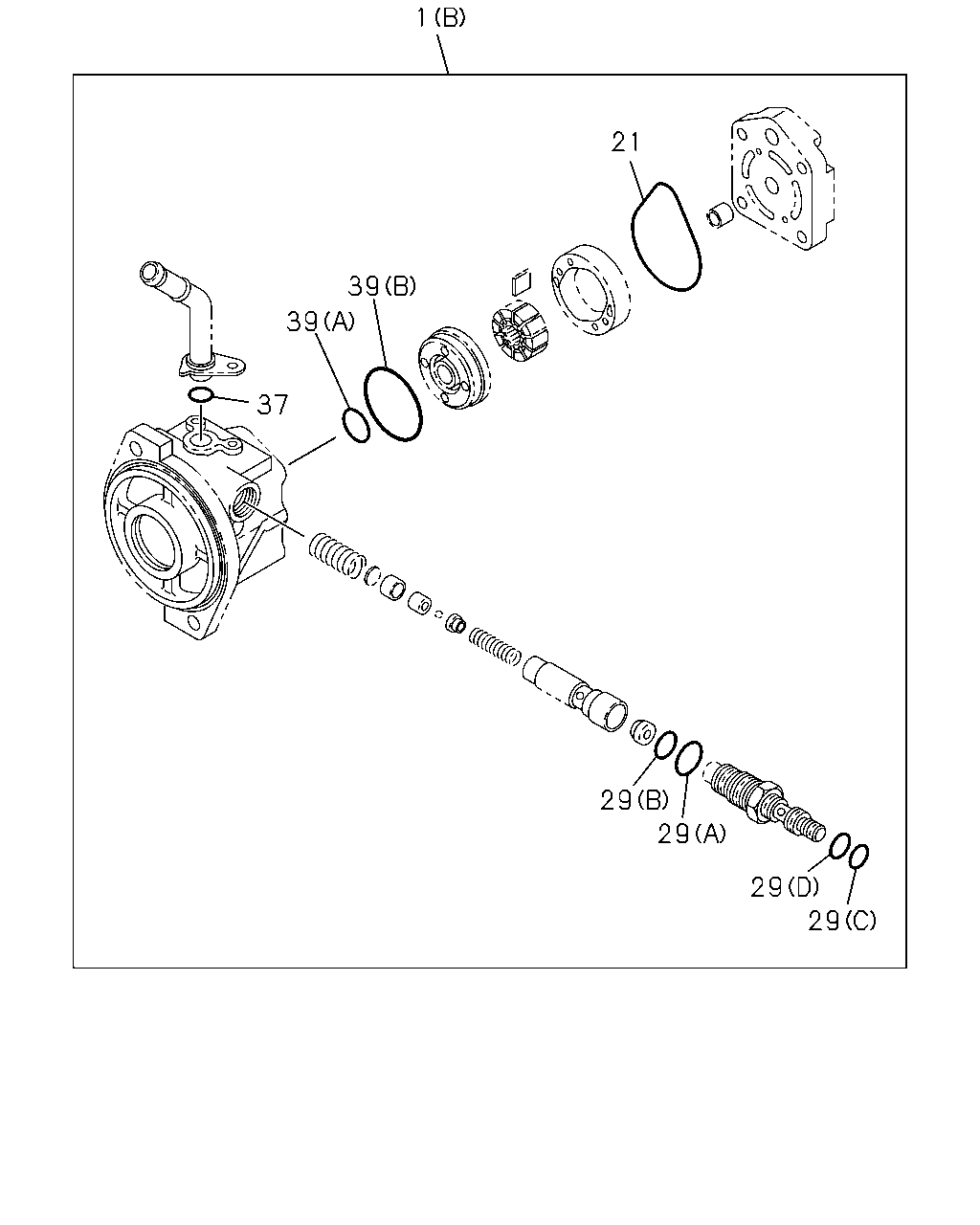

çizim 363677
1 21 39 39 37 29 29 29 29
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
(B) ASM PART: A = 8-98138-131-2 		8-98058-095-0 01 1 -
1 REPAIR KIT; OIL PUMP
(A) ASM PART: A = 8-98138-131-2 		8-98058-096-0 01 1 -
21 GASKET; FRT COVER TO BODY
ASM PART: A = 8-98138-131-2 		8-94380-746-0 01 1 -
29 GASKET; PLUG TO VLV
(A) ASM PART: A = 8-98138-131-2 		8-94379-658-0 01 1 -
29 GASKET; PLUG TO VLV
(B) ASM PART: A = 8-98138-131-2 		8-94379-659-0 01 1 -
29 GASKET; PLUG TO VLV
(C) ASM PART: A = 8-98138-131-2 		8-94379-666-0 01 1 -
29 GASKET; PLUG TO VLV
(D) ASM PART: A = 8-98138-131-2 		8-97075-581-0 01 1 -
37 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 8-98138-131-2 		8-97184-767-0 01 1 -
39 GASKET; OIL PUMP
(B) ASM PART: A = 8-98138-131-2 		8-94379-647-0 01 1 -
39 GASKET; OIL PUMP
(A) ASM PART: A = 8-98138-131-2 		8-97147-441-0 01 1 -

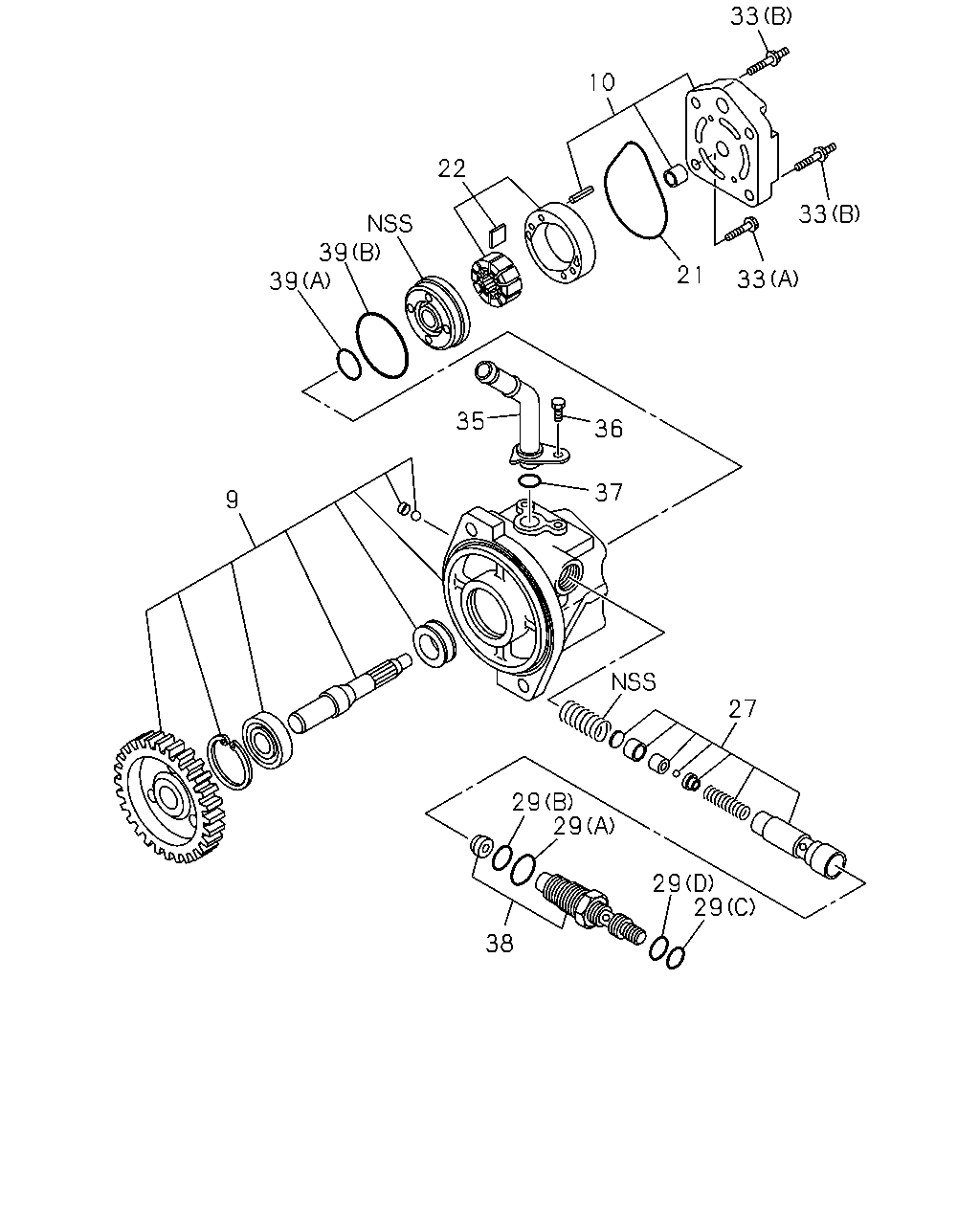

çizim 364613
9 39 39 22 10 33 33 33 21 35 36 37 27 29 29 29 29 38
BalonParca AdiParca NoAdetTipApplied Date
9 BODY ASM; FRT,OIL PUMP
ASM PART: A = 8-98138-131-2 		8-98058-097-0 01 1 -
10 BODY ASM; RR,OIL PUMP
ASM PART: A = 8-98138-131-2 		8-98116-059-0 01 1 -
21 GASKET; FRT COVER TO BODY
ASM PART: A = 8-98138-131-2 		8-94380-746-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
ASM PART: A = 8-98138-131-2 		8-98216-517-0 01 1 -
27 VALVE ASM; OIL PUMP
ASM PART: A = 8-98138-131-2 		8-98139-288-0 01 1 -
29 GASKET; PLUG TO VLV
(A) ASM PART: A = 8-98138-131-2 		8-94379-658-0 01 1 -
29 GASKET; PLUG TO VLV
(B) ASM PART: A = 8-98138-131-2 		8-94379-659-0 01 1 -
29 GASKET; PLUG TO VLV
(C) ASM PART: A = 8-98138-131-2 		8-94379-666-0 01 1 -
29 GASKET; PLUG TO VLV
(D) ASM PART: A = 8-98138-131-2 		8-97075-581-0 01 1 -
33 BOLT; COVER
(A) ASM PART: A = 8-98138-131-2 		8-97184-761-0 01 1 -
33 BOLT; COVER
(B) ASM PART: A = 8-98138-131-2 		8-98139-286-0 03 1 -
35 PIPE; HOSE CONN,OIL PUMP
ASM PART: A = 8-98138-131-2 		8-98139-290-0 01 1 -
36 BOLT; CONN,PIPE
ASM PART: A = 8-98138-131-2 		8-97184-763-0 01 1 -
37 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 8-98138-131-2 		8-97184-767-0 01 1 -
38 CONNECTOR; OIL PUMP
ASM PART: A = 8-98138-131-2 		8-98139-291-0 01 1 -
39 GASKET; OIL PUMP
(B) ASM PART: A = 8-98138-131-2 		8-94379-647-0 01 1 -
39 GASKET; OIL PUMP
(A) ASM PART: A = 8-98138-131-2 		8-97147-441-0 01 1 -
çizim 365527
1 21 37 29 29
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
(B) ASM PART: A = 8-98138-131-2 		8-98058-095-0 01 1 -
1 REPAIR KIT; OIL PUMP
(A) ASM PART: A = 8-98138-131-2 		8-98058-096-0 01 1 -
21 GASKET; FRT COVER TO BODY
ASM PART: A = 8-98138-131-2 		8-94380-746-0 01 1 -
29 GASKET; PLUG TO VLV
(A) ASM PART: A = 8-98138-131-2 		8-94379-658-0 01 1 -
29 GASKET; PLUG TO VLV
(B) ASM PART: A = 8-98138-131-2 		8-94379-659-0 01 1 -
29 GASKET; PLUG TO VLV
(C) ASM PART: A = 8-98138-131-2 		8-94379-666-0 01 1 -
29 GASKET; PLUG TO VLV
(D) ASM PART: A = 8-98138-131-2 		8-97075-581-0 01 1 -
37 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 8-98138-131-2 		8-97184-767-0 01 1 -
