◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10875 - CXZ LHD S-CAM BRAKE ▶ 3 - Brakes, Brake System ▶ 3-40 - FRONT BRAKE POWER CHAMBER ▶
3-40 — FRONT BRAKE POWER CHAMBER (#12518) — 46 parça

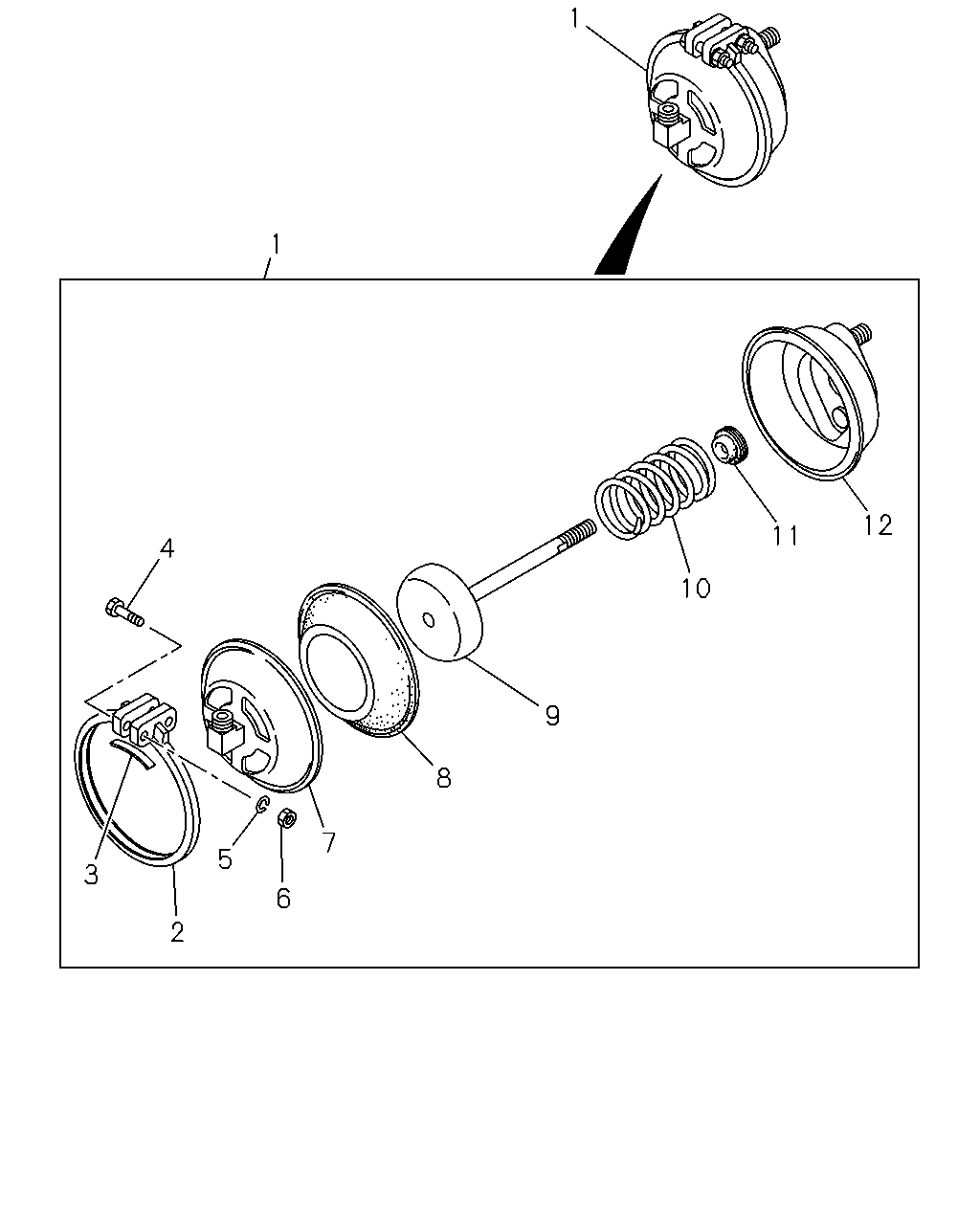

çizim 81536
1 1 4 3 2 5 6 7 8 9 10 11 12
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ECE<TDV> 		1-48250-425-0 01 1 0207- ●
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ECE<TDV> 		1-48250-518-0 01 1 0207- ●
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48250-338-0 02 1 0105-0203 ● ●
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48250-062-2 02 1 0204-0206 ● ●
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48250-062-2 02 1 0207- ●
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> 		1-48250-062-2 02 1 0207- ●
2 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ECE<TDV> 		9-48259-049-0 02 1 0207- ●
2 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-001-0 02 1 0105-0206 ● ●
2 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-001-0 02 1 0207- ●
2 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> 		1-48259-001-0 02 1 0207- ●
3 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ECE<TDV> 		1-48250-044-0 01 1 0207- ●
3 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ECE<TDV> 		9-48259-016-0 01 1 0207- ●
3 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		9-48259-016-0 04 1 0105-0203 ● ●
3 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		9-48259-016-0 02 1 0204-0206 ● ●
3 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		9-48259-016-0 02 1 0207- ●
3 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> 		9-48259-016-0 02 1 0207- ●
4 BOLT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-002-0 04 1 0105-0211 ● ●
4 BOLT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DISC WHEEL AL<SDM> 		1-48259-002-0 04 1 0212- ● ●
5 WASHER; LK,CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.2 		9-09150-510-0 04 1 0105-0211 ● ●
5 WASHER; LK,CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DISC WHEEL AL<SDM> ID=10.2 		9-09150-510-0 04 1 0212- ● ●
6 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 		9-09110-010-0 04 1 0105-0211 ● ●
6 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DISC WHEEL AL<SDM> M10 		9-09110-010-0 04 1 0212- ● ●
7 COVER ASM; UPR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ECE<TDV> 		1-48251-050-0 01 1 0207- ●
7 COVER ASM; UPR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ECE<TDV> 		1-48251-051-0 01 1 0207- ●
7 COVER ASM; UPR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48251-039-0 02 1 0105-0206 ● ●
7 COVER ASM; UPR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48251-039-0 02 1 0207- ●
7 COVER ASM; UPR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> 		1-48251-039-0 02 1 0207- ●
8 DIAPHRAGM; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ECE<TDV> 		1-48252-009-0 02 1 0207- ●
8 DIAPHRAGM; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48252-006-0 02 1 0105-0203 ● ●
8 DIAPHRAGM; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48252-054-0 02 1 0204-0206 ● ●
8 DIAPHRAGM; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48252-054-0 02 1 0207- ●
8 DIAPHRAGM; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> 		1-48252-054-0 02 1 0207- ●
9 PISTON; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ECE<TDV> 		1-48253-003-0 02 1 0207- ●
9 PISTON; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48253-001-0 02 1 0105-0206 ● ●
9 PISTON; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48253-001-0 02 1 0207- ●
9 PISTON; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> 		1-48253-001-0 02 1 0207- ●
10 SPRING; PISTON,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ECE<TDV> 		9-48255-012-0 02 1 0207- ●
10 SPRING; PISTON,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48255-001-0 02 1 0105-0206 ● ●
10 SPRING; PISTON,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48255-001-0 02 1 0207- ●
10 SPRING; PISTON,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> 		1-48255-001-0 02 1 0207- ●
11 SEAL; PISTON,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48252-025-0 02 1 0105-0211 ● ●
11 SEAL; PISTON,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DISC WHEEL AL<SDM> 		1-48252-025-0 02 1 0212- ● ●
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ECE<TDV> 		1-48251-023-0 02 1 0207- ●
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48251-019-0 02 1 0105-0206 ● ●
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48251-019-0 02 1 0207- ●
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> 		1-48251-019-0 02 1 0207- ●
