1 |

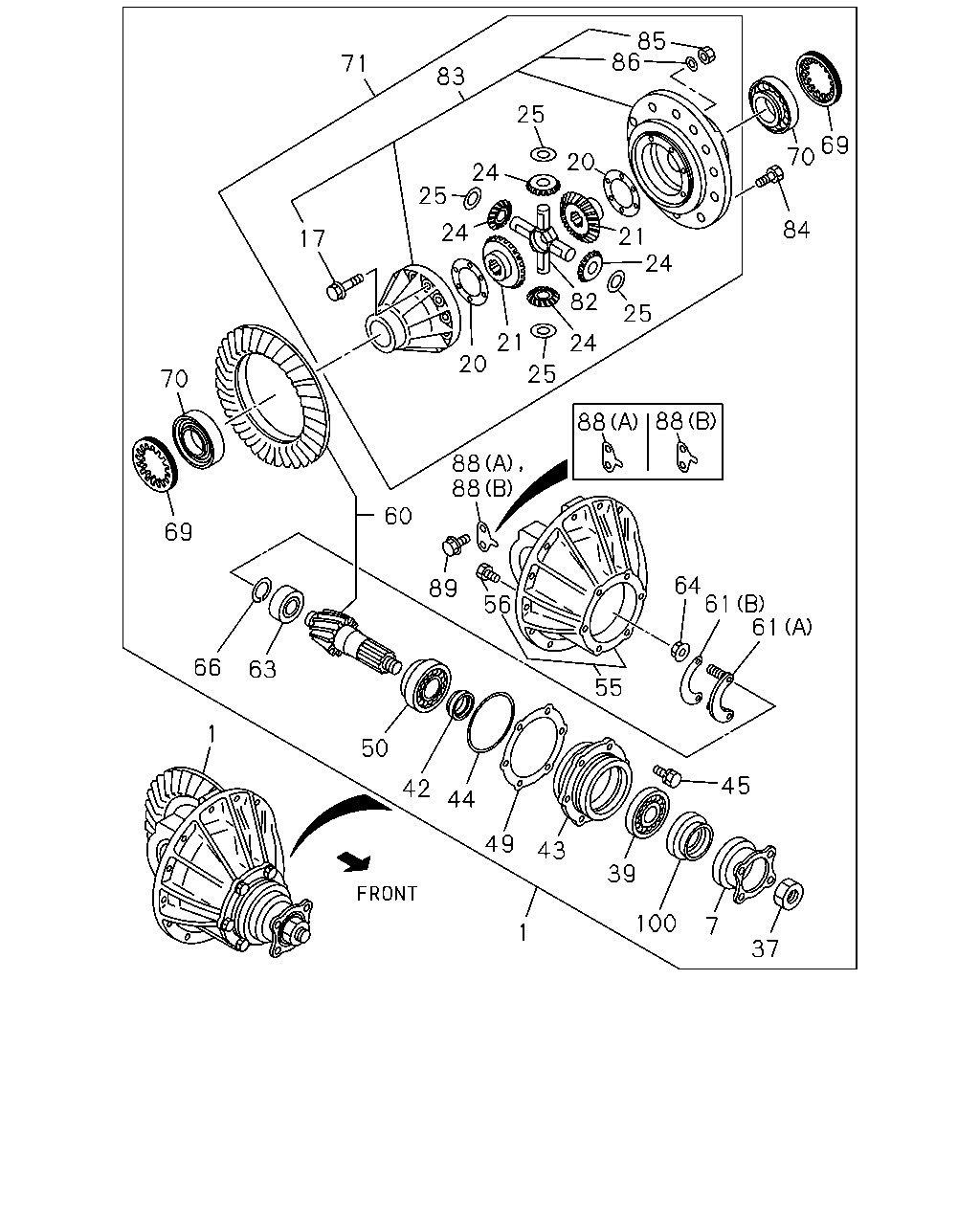

DRIVE ASM; FINAL,RR
43/7
|
8-98044-421-0 |
01 |
1 |
1306- |
| |
7 |
FLANGE; FINAL
|
8-97047-095-2 |
01 |
1 |
1306- |
| |
17 |
BOLT; DIFF CAGE SETTING
M12X90
|
8-98219-448-0 |
12 |
1 |
1306- |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=2.80
|
1-41562-073-0 |
AR |
1 |
1306- |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=2.90
|
1-41562-074-0 |
AR |
1 |
1306- |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.00
|
1-41562-075-0 |
AR |
1 |
1306- |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.10
|
1-41562-076-0 |
AR |
1 |
1306- |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.20
|
1-41562-077-0 |
AR |
1 |
1306- |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.30
|
1-41562-078-0 |
AR |
1 |
1306- |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.40
|
1-41562-079-0 |
AR |
1 |
1306- |
| |
21 |
GEAR; SIDE,DIFF
Z=16
|
8-98165-935-0 |
02 |
1 |
1306- |
| |
24 |
GEAR; PINION,DIFF
Z=10
|
1-41551-050-0 |
04 |
1 |
1306- |
| |
25 |
WASHER; THRUST,PINION
|
1-41552-020-0 |
04 |
1 |
1306- |
| |
37 |
NUT; DRIVING PINION
M30 FLANGE
|
8-97047-146-0 |
01 |
1 |
1306- |
| |
39 |
BEARING; FINAL PINION
JTEKT
|
5-09812-062-1 |
01 |
1 |
1306- |
| |
39 |
BEARING; FINAL PINION
NSK
|
5-09812-063-0 |
01 |
1 |
1306- |
| |
42 |
COLLAR; DIST,COLLAPSIBLE
|
8-97047-097-0 |
01 |
1 |
1306- |
| |
43 |
CAGE; FINAL PINION
|
8-97047-098-0 |
01 |
1 |
1306- |
| |
44 |
GASKET; PINION CAGE
|
8-97048-053-0 |
01 |
1 |
1306- |
| |
45 |
BOLT; FINAL PINION CAGE
M12X40 W/LK WASHER
|
8-98220-227-0 |
06 |
1 |
1306- |
| |
49 |
SHIM; FINAL PINION CAGE
ID=142 T=0.12
|
8-97047-298-0 |
AR |
1 |
1306- |
| |
49 |
SHIM; FINAL PINION CAGE
ID=142 T=0.15
|
8-97047-299-0 |
AR |
1 |
1306- |
| |
49 |
SHIM; FINAL PINION CAGE
ID=142 T=0.20
|
8-97047-300-0 |
AR |
1 |
1306- |
| |
49 |
SHIM; FINAL PINION CAGE
ID=142 T=0.25
|
8-97048-418-0 |
AR |
1 |
1306- |
| |
49 |
SHIM; FINAL PINION CAGE
ID=142 T=0.50
|
8-97048-419-0 |
AR |
1 |
1306- |
| |
50 |
BEARING; FINAL PINION
NSK
|
1-09812-041-2 |
01 |
1 |
1306- |
| |
50 |
BEARING; FINAL PINION
JTEKT
|
1-09812-042-1 |
01 |
1 |
1306- |
| |
55 |
CARRIER; DIFF
|
8-97094-637-0 |
01 |
1 |
1306- |
| |
56 |
BOLT; BRG CAP
M14X95 FLANGE
|
1-09070-027-0 |
04 |
1 |
1306- |
| |
60 |
GEAR SET; FINAL DRIVE,RR
43/7
|
8-97092-946-0 |
01 |
1 |
1306- |
| |
61 |
RETAINER; PILOT BRG,PINION
(A)
W/STUD
|
8-97047-149-0 |
01 |
1 |
1306- |
| |
61 |
RETAINER; PILOT BRG,PINION
(B)
|
8-97047-150-0 |
01 |
1 |
1306- |
| |
63 |
BEARING; PINION PILOT
NSK
|
8-97047-296-0 |
01 |
1 |
1306- |
| |
63 |
BEARING; PINION PILOT
JTEKT
|
8-97047-928-0 |
01 |
1 |
1306- |
| |
64 |
NUT; RET
M6 FLANGE
MAL
|
0-91180-106-0 |
02 |
1 |
1306- |
| |
66 |
RING; SNAP,PILOT BRG
|
8-97047-297-0 |
01 |
1 |
1306- |
| |
69 |
NUT; ADJ,DIFF CAGE
M115 H=20
|
1-41121-039-0 |
02 |
1 |
1306- |
| |
70 |
BEARING; DIFF CAGE
JTEKT ID=66.7 OD=113 T=30
|
9-00093-130-0 |
02 |
1 |
1306- |
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
|
8-97047-100-4 |
01 |
1 |
1306- |
| |
82 |
SPIDER; DIFF PINION
|
1-41521-062-0 |
01 |
1 |
1306-1309 |
| |
82 |
SPIDER; DIFF PINION
|
1-41521-035-2 |
01 |
1 |
1310- |
| |
83 |
CAGE ASM; DIFF
|
8-98219-707-0 |
01 |
1 |
1306- |
| |
84 |
BOLT; FINAL DRIVE GEAR
M16X30
|
8-97047-147-0 |
12 |
1 |
1306- |
| |
85 |
NUT; DIFF CAGE SETTING
M12
|
8-97065-214-0 |
12 |
1 |
1306- |
| |
86 |
WASHER; PL,DIFF CAGE SETTING
ID=12.5 OD=22 T=2
|
8-97047-294-0 |
12 |
1 |
1306- |
| |
88 |
PLATE; LK,ADJ NUT
(B)
T=2.3
|
8-97087-821-0 |
AR |
1 |
1306- |
| |
88 |
PLATE; LK,ADJ NUT
(A)
T=2.3
|
9-41124-015-0 |
AR |
1 |
1306- |
| |
89 |
BOLT; LK PLATE
M8X16 FLANGE
MAL
|
0-28050-816-0 |
04 |
1 |
1306- |
| |
100 |
SEAL; OIL,FINAL PINION
NOK
|
1-09625-484-1 |
01 |
1 |
1306- |
