Isuzu WW
▶
TRUCKS
▶
NPS
▶
51500 - NPS(MALAYSIA)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-16 - FREE WHEEL HUB
▶

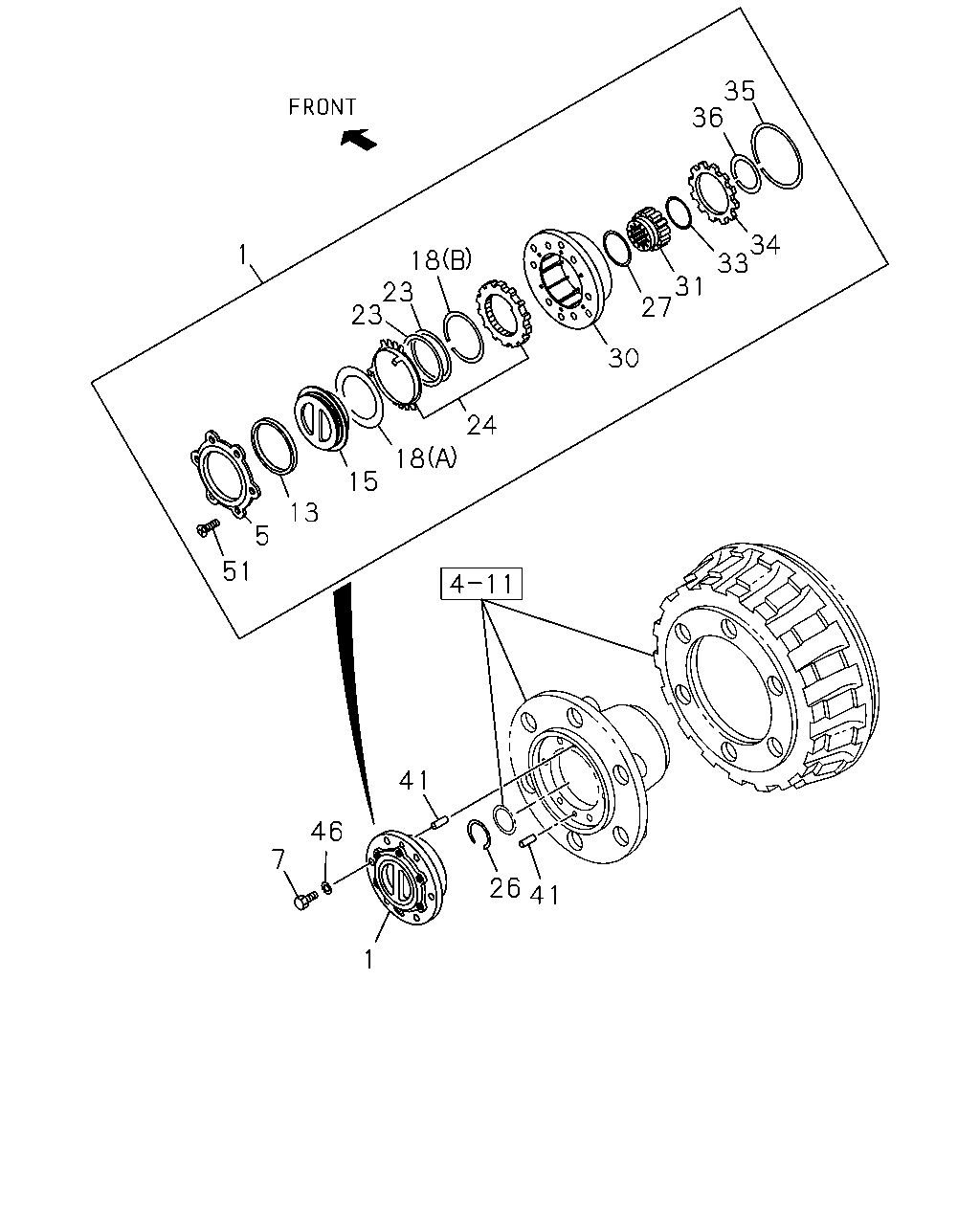

4-16 — FREE WHEEL HUB
(#125171) — 22 parça
26
41
1
41
46
7
51
5
18
15
13
1
18
23
23
30
24
27
31
33
34
36
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HUB ASM; FREE WHEEL
8-98049-339-0
02
1
1306-
5
COVER; HUB LOCK
8-97032-907-0
02
1
1306-
7
BOLT; FREE WHEEL HUB
8-98049-682-0
12
1
1306-
13
RING; HUB LOCK
8-97032-909-0
02
1
1306-
15
HANDLE; HUB LOCK
8-97032-908-0
02
1
1306-
18
RING; SNAP,INNER
(A)
8-94321-500-0
02
1
1306-
18
RING; SNAP,INNER
(B)
8-94321-504-0
02
1
1306-
23
SPRING; TENSION,HUB LOCK
8-94321-499-0
04
1
1306-
24
CLUTCH; HUB LOCK
8-94321-498-0
02
1
1306-
26
RING; SNAP,HUB
8-94478-198-0
02
1
1306-
27
SHIM; AXLE SHAFT
T=0.3
8-94441-489-0
AR
1
1306-
27
SHIM; AXLE SHAFT
T=0.5
8-94441-490-0
AR
1
1306-
27
SHIM; AXLE SHAFT
T=1.0
8-94441-491-0
AR
1
1306-
30
HOUSING; FREE WHEEL HUB
8-94321-492-0
02
1
1306-
31
INNER; HUB LOCK
8-94321-495-0
02
1
1306-
33
SPACER; HUB LOCK
8-94321-497-0
02
1
1306-
34
RING; HUB LOCK
8-94321-493-0
02
1
1306-
35
RING; SNAP,HUB LOCK,INNER
8-94321-494-0
02
1
1306-
36
RING; SNAP,HUB LOCK,OUTER
8-94321-496-0
02
1
1306-
41
PIN; KNOCK,FRT AXLE KNUCKLE
OD=10 L=20
9-08161-020-0
04
1
1306-
46
WASHER; LK,DRIVEN TO HSG
ID=12.2 MAL
0-91510-812-0
12
1
1306-
51
SCREW; FREE WHEEL HUB
8-98049-688-0
12
1
1306-
