4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-11 - FRONT HUB AND DRUM OR ROTOR
▶

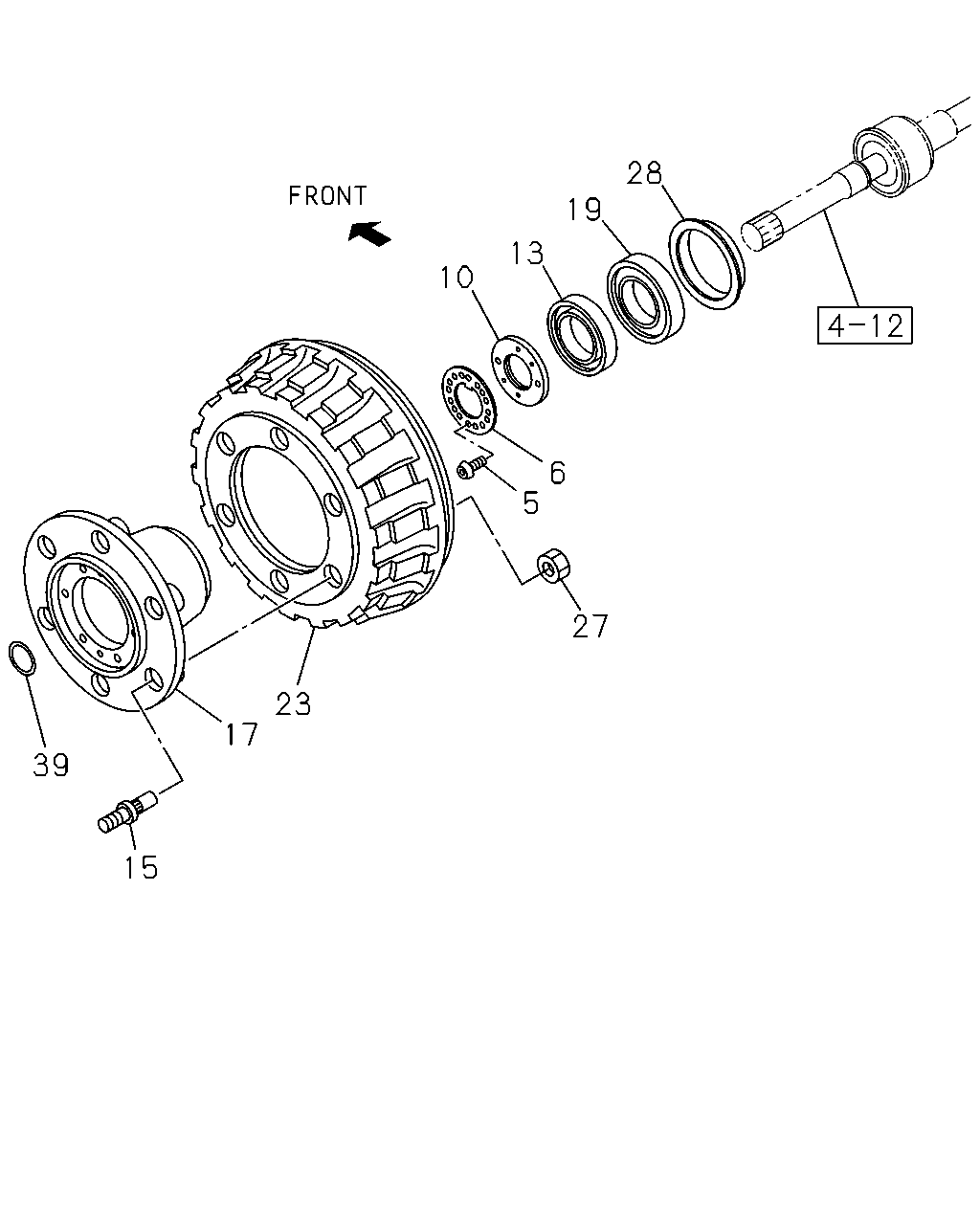

4-11 — FRONT HUB AND DRUM OR ROTOR
(#125168) — 14 parça
28
19
13
10
6
5
27
23
17
15
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
BOLT; LK WASHER
M6X12
8-94477-783-0
04
1
1306-
6
WASHER; LK,FRT HUB
ID=52
9-09853-214-1
02
1
1306-
10
NUT; FRT HUB BRG
8-98236-851-0
02
1
1306-
13
BEARING; HUB OUTER,FRT AXLE
NSK
1-09812-097-0
02
1
1306-
15
PIN; WHEEL,FRT AXLE
M20X28,M22X57 RH THREAD
8-97081-584-4
06
1
1306-
15
PIN; WHEEL,FRT AXLE
M20X28 LH THREAD,M22X57 RH THREAD
8-97081-585-4
06
1
1306-
17
HUB; FRT AXLE
8-97116-500-0
02
1
1306-
19
BEARING; HUB INNER,FRT AXLE
8-94441-252-0
02
1
1306-
23
DRUM; BRK,FRT
8-97138-110-0
02
1
1306-
27
NUT; WHEEL PIN,FRT AXLE
M22
0-91110-522-0
12
1
1306-
28
SEAL; OIL,FRT HUB
8-94440-904-0
02
1
1306-
39
SHIM; AXLE SHAFT OUTER
T=0.3
8-94441-489-0
AR
1
1306-
39
SHIM; AXLE SHAFT OUTER
T=0.5
8-94441-490-0
AR
1
1306-
39
SHIM; AXLE SHAFT OUTER
T=1.0
8-94441-491-0
AR
1
1306-
