3-60 — BRAKE PIPING; VACUUM (#125165) — 200 parça

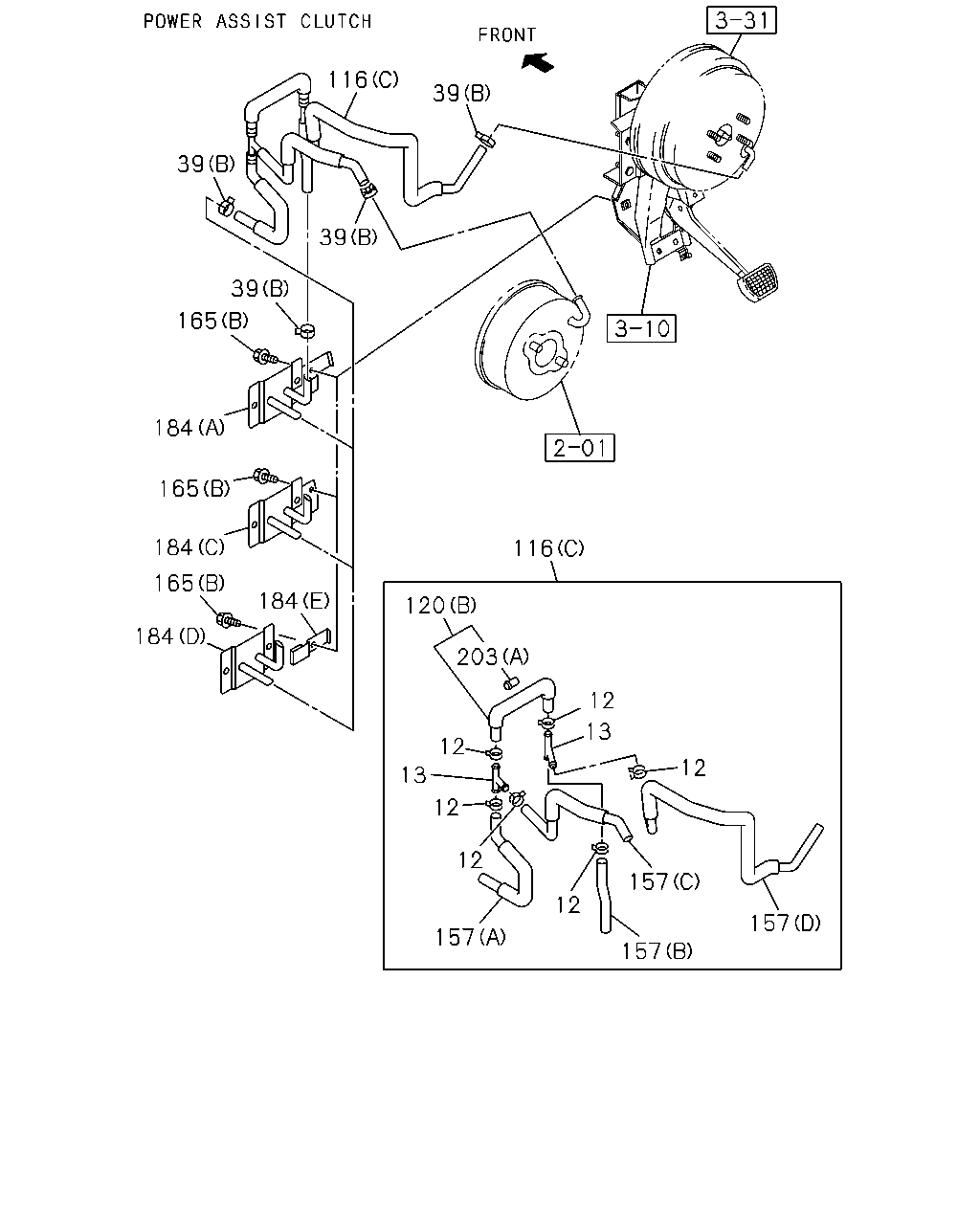

çizim 364399
12 157 157 157 12 157 12 12 13 12 203 120 116 184 184 165 184 165 184 165 39 39 39 116 39 12 13
BalonParca AdiParca NoAdetTipApplied Date
12 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) ID=15.5 		8-98008-097-0 10 1 1306-
12 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) ID=15.5 		8-98008-097-0 02 1 1306-
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 03 1 1306-
13 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 1306-
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 04 1 1306-
39 CLIP; HOSE,VAC
(A) L=170.3 		1-09987-182-0 01 1 1306-
39 CLIP; HOSE,VAC
(C) ID=16 		8-97329-628-0 02 1 1306-
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 02 1 1306-
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 1306-
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1306-
116 HOSE; VAC,M/VAC
(F) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 1306-
116 HOSE; VAC,M/VAC
(E) 		8-98189-220-0 01 1 1306-
116 HOSE; VAC,M/VAC
(G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-
116 HOSE; VAC,M/VAC
(G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1306-
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 1306-
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 1306-
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 1306-
120 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 1306-
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98017-168-3 01 1 1306-
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98027-350-3 01 1 1306-
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 1306-
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-353-3 01 1 1306-
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (A) 		8-98027-354-2 01 1 1306-
157 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98022-868-3 01 1 1306-
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER MAL 		8-98031-842-0 02 1 1306-
165 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 01 1 1306-
165 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 01 1 1306-
165 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE MAL 		0-28650-616-0 01 1 1306-
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-548-0 01 1 1312-
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-467-1 01 1 1306-
184 BRACKET; UNION FIX
(B) 		8-98017-628-1 01 1 1306-
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1306-1311
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98255-535-0 01 1 1312-
203 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 1306-
203 VALVE; CHECK
(A) 		8-94386-540-0 01 1 1306-

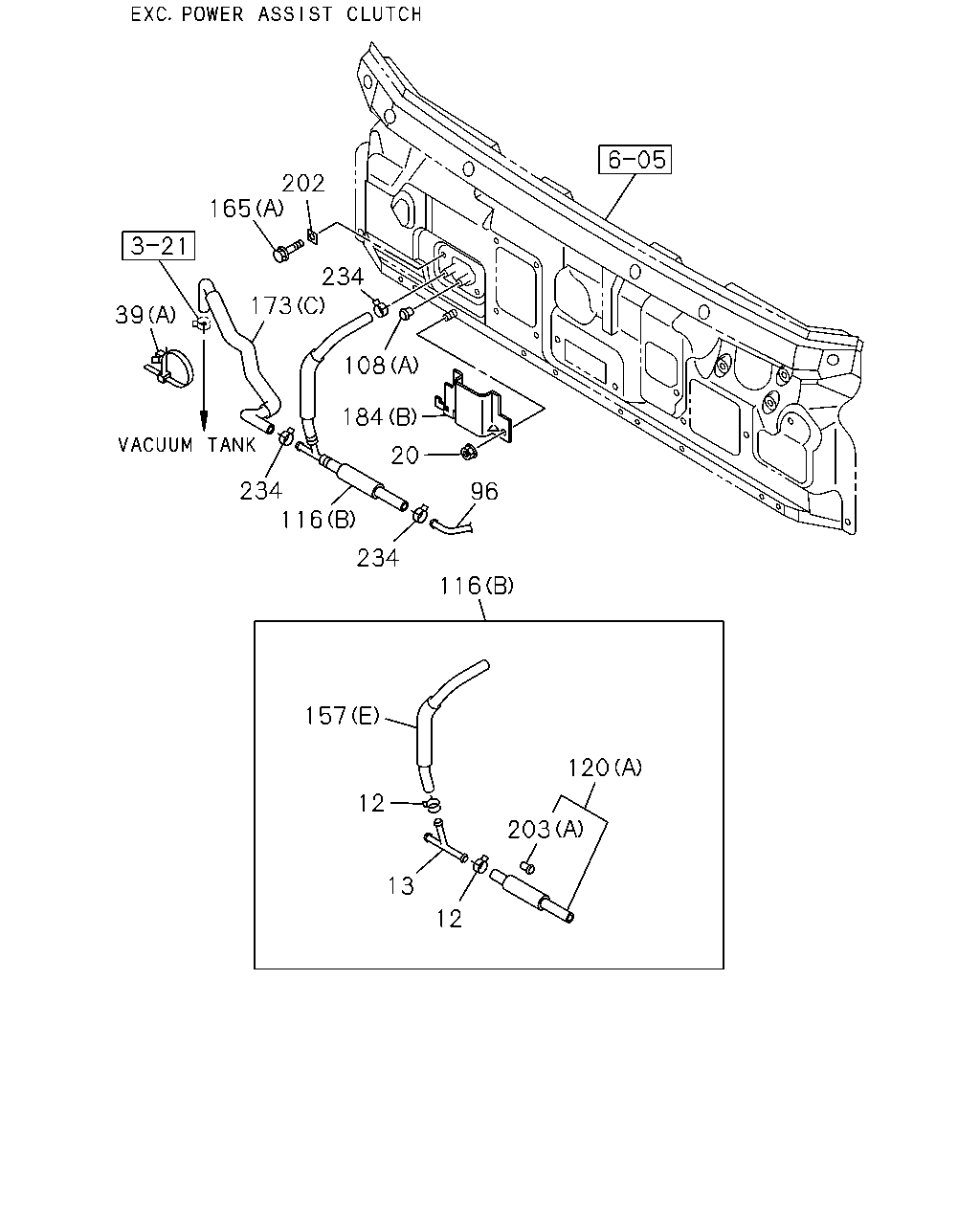

çizim 364418
116 120 203 12 13 12 157 234 116 234 20 96 184 108 173 234 202 165 39
BalonParca AdiParca NoAdetTipApplied Date
12 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) ID=15.5 		8-98008-097-0 10 1 1306-
12 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) ID=15.5 		8-98008-097-0 02 1 1306-
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 03 1 1306-
13 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 1306-
20 NUT; BRKT
M6 FLANGE MAL 		0-91180-106-0 01 1 1306-
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 04 1 1306-
39 CLIP; HOSE,VAC
(A) L=170.3 		1-09987-182-0 01 1 1306-
39 CLIP; HOSE,VAC
(C) ID=16 		8-97329-628-0 02 1 1306-
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 02 1 1306-
96 PIPE; VAC,M/VAC TO VAC PUMP
MAL 		8-98220-579-0 01 1 1306-
108 GROMMET; PIPE
(B) ID=17 		8-94128-319-2 01 1 1306-
108 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 1306-
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 1306-
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1306-
116 HOSE; VAC,M/VAC
(F) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 1306-
116 HOSE; VAC,M/VAC
(E) 		8-98189-220-0 01 1 1306-
116 HOSE; VAC,M/VAC
(G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-
116 HOSE; VAC,M/VAC
(G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1306-
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 1306-
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 1306-
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 1306-
120 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 1306-
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98017-168-3 01 1 1306-
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98027-350-3 01 1 1306-
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 1306-
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-353-3 01 1 1306-
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (A) 		8-98027-354-2 01 1 1306-
157 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98022-868-3 01 1 1306-
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER MAL 		8-98031-842-0 02 1 1306-
165 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 01 1 1306-
165 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 01 1 1306-
165 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE MAL 		0-28650-616-0 01 1 1306-
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98121-940-0 01 1 1306-
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98121-941-0 01 1 1306-
173 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98107-558-0 01 1 1306-
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-548-0 01 1 1312-
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-467-1 01 1 1306-
184 BRACKET; UNION FIX
(B) 		8-98017-628-1 01 1 1306-
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1306-1311
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98255-535-0 01 1 1312-
202 SEAL
MAL 		8-97856-616-0 02 1 1306-
203 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 1306-
203 VALVE; CHECK
(A) 		8-94386-540-0 01 1 1306-
234 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) ID=16 		8-94238-568-0 04 1 1306-
234 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) ID=16 		8-94238-568-0 03 1 1306-

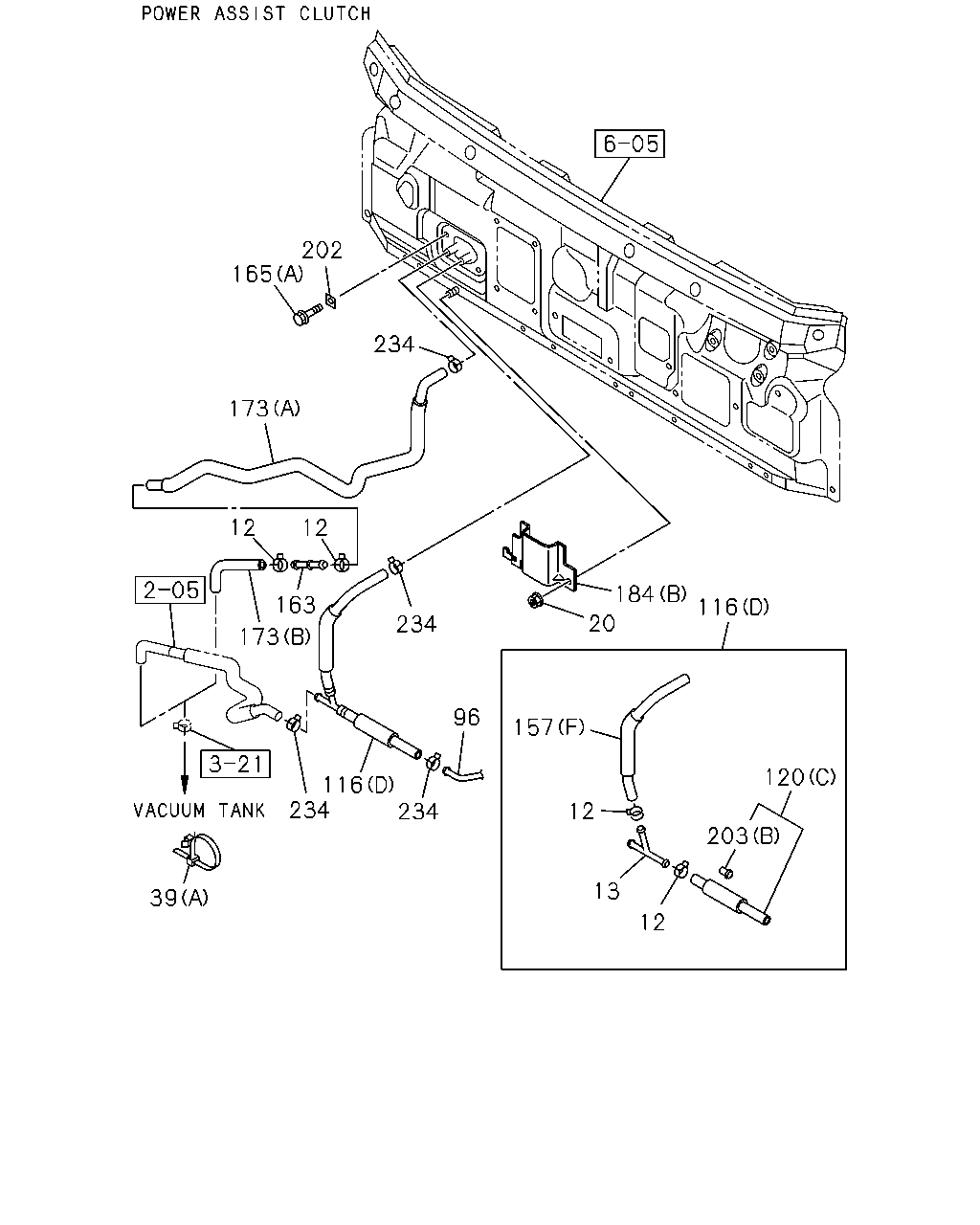

çizim 364439
116 120 203 12 13 12 157 20 184 96 234 116 234 39 173 163 234 12 12 173 234 165 202
BalonParca AdiParca NoAdetTipApplied Date
12 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) ID=15.5 		8-98008-097-0 10 1 1306-
12 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) ID=15.5 		8-98008-097-0 02 1 1306-
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 03 1 1306-
13 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 1306-
20 NUT; BRKT
M6 FLANGE MAL 		0-91180-106-0 01 1 1306-
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 04 1 1306-
39 CLIP; HOSE,VAC
(A) L=170.3 		1-09987-182-0 01 1 1306-
39 CLIP; HOSE,VAC
(C) ID=16 		8-97329-628-0 02 1 1306-
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 02 1 1306-
96 PIPE; VAC,M/VAC TO VAC PUMP
MAL 		8-98220-579-0 01 1 1306-
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 1306-
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1306-
116 HOSE; VAC,M/VAC
(F) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 1306-
116 HOSE; VAC,M/VAC
(E) 		8-98189-220-0 01 1 1306-
116 HOSE; VAC,M/VAC
(G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-
116 HOSE; VAC,M/VAC
(G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1306-
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 1306-
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 1306-
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 1306-
120 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 1306-
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98017-168-3 01 1 1306-
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98027-350-3 01 1 1306-
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 1306-
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-353-3 01 1 1306-
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (A) 		8-98027-354-2 01 1 1306-
157 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98022-868-3 01 1 1306-
163 JOINT; VAC HOSE
POWER ASSIST CLUTCH(S2T) 		8-97353-668-0 01 1 1306-
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER MAL 		8-98031-842-0 02 1 1306-
165 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 01 1 1306-
165 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 01 1 1306-
165 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE MAL 		0-28650-616-0 01 1 1306-
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98121-940-0 01 1 1306-
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98121-941-0 01 1 1306-
173 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98107-558-0 01 1 1306-
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-548-0 01 1 1312-
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-467-1 01 1 1306-
184 BRACKET; UNION FIX
(B) 		8-98017-628-1 01 1 1306-
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1306-1311
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98255-535-0 01 1 1312-
202 SEAL
MAL 		8-97856-616-0 02 1 1306-
203 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 1306-
203 VALVE; CHECK
(A) 		8-94386-540-0 01 1 1306-
234 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) ID=16 		8-94238-568-0 04 1 1306-
234 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) ID=16 		8-94238-568-0 03 1 1306-

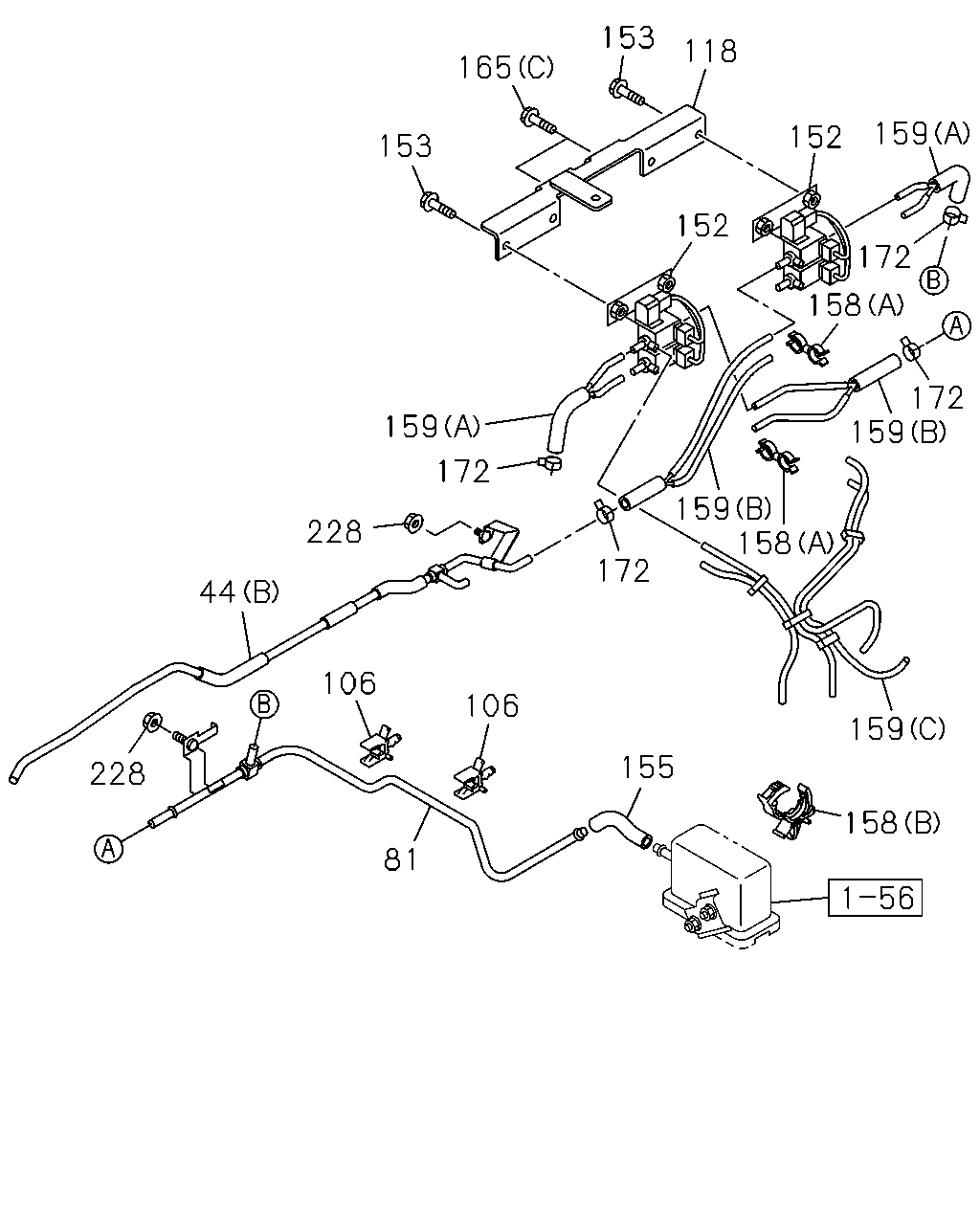

çizim 364455
158 159 155 106 106 81 228 44 228 159 172 172 159 158 159 172 158 172 159 152 152 118 153 165 153
BalonParca AdiParca NoAdetTipApplied Date
44 PIPE; VAC,MAG VLV
(A) MAL 		8-98070-194-0 01 1 1306-
44 PIPE; VAC,MAG VLV
(B) 		8-98103-009-0 01 1 1306-
81 PIPE; VAC,VSV 8-98060-407-3 01 1 1306-
106 CLIP; PIPE
ID=10 H=40 		8-94462-219-0 02 1 1306-
118 BRACKET; VSV 8-98069-541-3 01 1 1306-
152 VALVE; VAC SWITCHING,TRANSFER CONT 8-98222-432-0 02 1 1306-1310
152 VALVE; VAC SWITCHING,TRANSFER CONT 8-98256-404-0 02 1 1311-
153 BOLT; VSV
M10X25 FLANGE MAL 		0-28651-025-0 04 1 1306-
155 HOSE; VAC,AIR FILTER
L=130 SERVICED BY L=3000 		0-08258-300-0 01 1 1306-
158 CLIP; HOSE
(A) ID=16.5 & 16.5 		8-94468-380-0 01 1 1306-
158 CLIP; HOSE
(B) ID=14-20 		8-97061-603-0 01 1 1306-
159 HOSE ASM; VAC
(B) 		8-98070-137-2 02 1 1306-
159 HOSE ASM; VAC
(A) 		8-98070-138-1 02 1 1306-
159 HOSE ASM; VAC
(C) 		8-98093-010-0 01 1 1306-
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER MAL 		8-98031-842-0 02 1 1306-
165 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 01 1 1306-
165 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 01 1 1306-
165 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE MAL 		0-28650-616-0 01 1 1306-
172 CLIP; VAC HOSE
ID=16 		8-98008-098-0 04 1 1306-
228 NUT; PIPE
M10 FLANGE MAL 		0-91180-110-0 01 1 1306-
228 NUT; PIPE
M10 FLANGE MAL 		0-91180-110-0 01 1 1306-

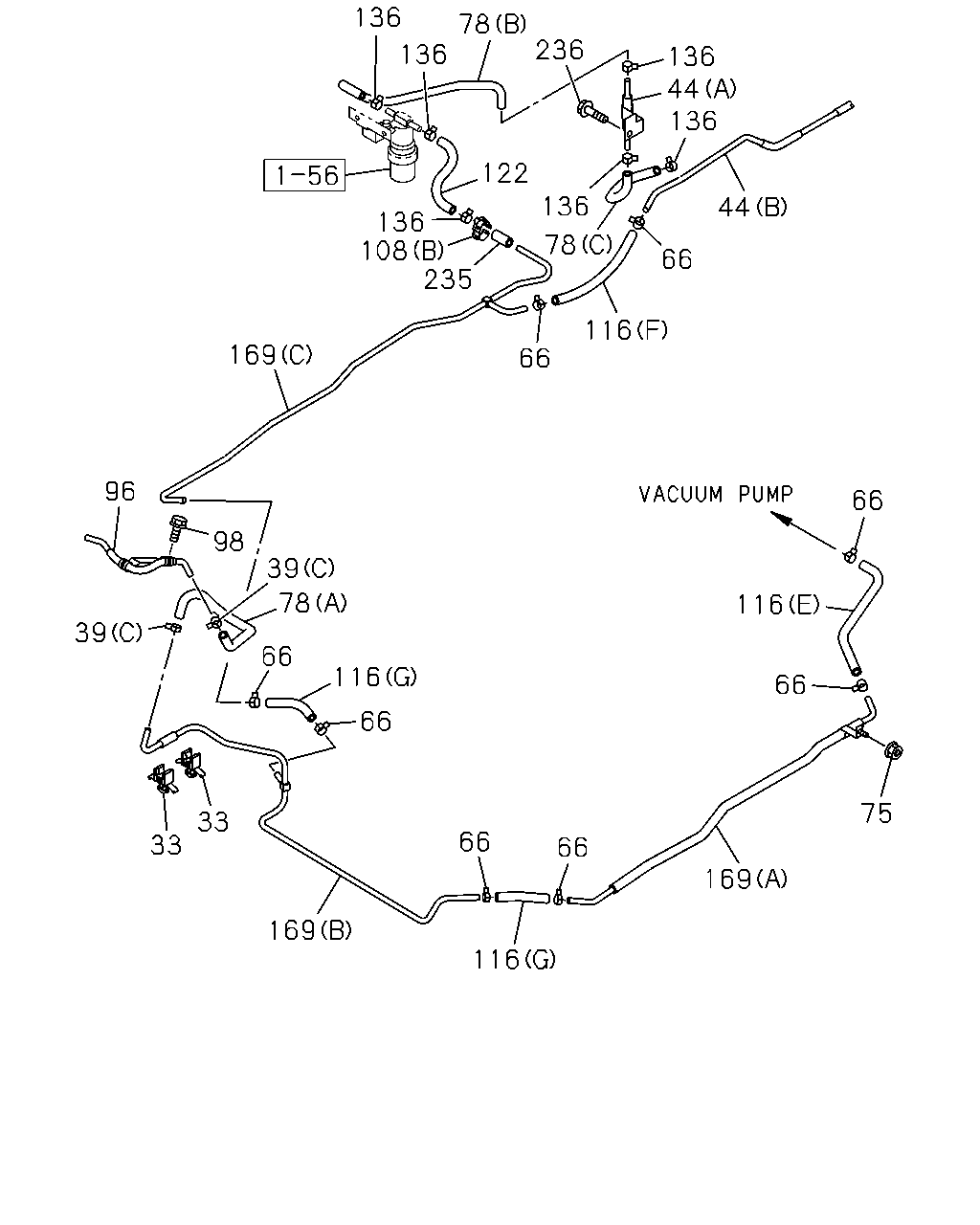

çizim 366619
116 66 66 75 169 116 66 66 66 116 66 78 39 98 96 169 235 66 116 66 44 136 44 136 236 78 78 136 122 136 108 136 136 39 33 33 169
BalonParca AdiParca NoAdetTipApplied Date
33 CLIP; VAC PIPE
ID=10 H=40 		8-94462-219-0 02 1 1306-
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 04 1 1306-
39 CLIP; HOSE,VAC
(A) L=170.3 		1-09987-182-0 01 1 1306-
39 CLIP; HOSE,VAC
(C) ID=16 		8-97329-628-0 02 1 1306-
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 02 1 1306-
44 PIPE; VAC,MAG VLV
(A) MAL 		8-98070-194-0 01 1 1306-
44 PIPE; VAC,MAG VLV
(B) 		8-98103-009-0 01 1 1306-
66 CLIP; VAC HOSE,M/VAC
ID=16 		8-98008-098-0 08 1 1306-
75 NUT; CLIP,VAC HOSE
M8 FLANGE MAL 		0-91180-108-0 01 1 1306-
78 HOSE; VAC,PIPE TO PIPE
(C) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 1306-
78 HOSE; VAC,PIPE TO PIPE
(A) 		8-98080-833-1 01 1 1306-
78 HOSE; VAC,PIPE TO PIPE
(B) 		8-98171-287-0 01 1 1306-
96 PIPE; VAC,M/VAC TO VAC PUMP
MAL 		8-98220-579-0 01 1 1306-
98 BOLT; VAC PIPE FIX
M6X12 FLANGE MAL 		0-28050-612-0 01 1 1306-
108 GROMMET; PIPE
(B) ID=17 		8-94128-319-2 01 1 1306-
108 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 1306-
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 1306-
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1306-
116 HOSE; VAC,M/VAC
(F) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 1306-
116 HOSE; VAC,M/VAC
(E) 		8-98189-220-0 01 1 1306-
116 HOSE; VAC,M/VAC
(G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-
116 HOSE; VAC,M/VAC
(G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1306-
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 1306-
122 HOSE; AIR,MAG VLV TO AIR PIPE 8-98189-104-0 01 1 1306-
136 CLIP; VAC HOSE
ID=16 		8-98008-098-0 06 1 1306-
169 PIPE; VAC,BOOSTER SIDE
(B) MAL 		8-98041-053-4 01 1 1306-
169 PIPE; VAC,BOOSTER SIDE
(A) MAL 		8-98100-234-2 01 1 1306-
169 PIPE; VAC,BOOSTER SIDE
(C) MAL 		8-98100-235-1 01 1 1306-
235 RUBBER; SUPPORT,PIPE
OD=16.5 L=50 		8-97214-235-0 01 1 1306-
236 BOLT; PIPE
M8X25 FLANGE MAL 		0-28650-825-0 01 1 1306-
çizim 367270
39 116 165 39 184 165 184 165 184 184
BalonParca AdiParca NoAdetTipApplied Date
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 04 1 1306-
39 CLIP; HOSE,VAC
(A) L=170.3 		1-09987-182-0 01 1 1306-
39 CLIP; HOSE,VAC
(C) ID=16 		8-97329-628-0 02 1 1306-
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 02 1 1306-
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 1306-
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1306-
116 HOSE; VAC,M/VAC
(F) L=280 SERVICED BY L=3000 		0-08258-300-0 01 1 1306-
116 HOSE; VAC,M/VAC
(E) 		8-98189-220-0 01 1 1306-
116 HOSE; VAC,M/VAC
(G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-
116 HOSE; VAC,M/VAC
(G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1306-
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 1306-
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER MAL 		8-98031-842-0 02 1 1306-
165 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 01 1 1306-
165 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 01 1 1306-
165 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE MAL 		0-28650-616-0 01 1 1306-
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-548-0 01 1 1312-
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98183-467-1 01 1 1306-
184 BRACKET; UNION FIX
(B) 		8-98017-628-1 01 1 1306-
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1306-1311
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98255-535-0 01 1 1312-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
