3-50 — BRAKE PIPING; OIL,MASTER CYLINDER
(#125161) — 28 parça
◀

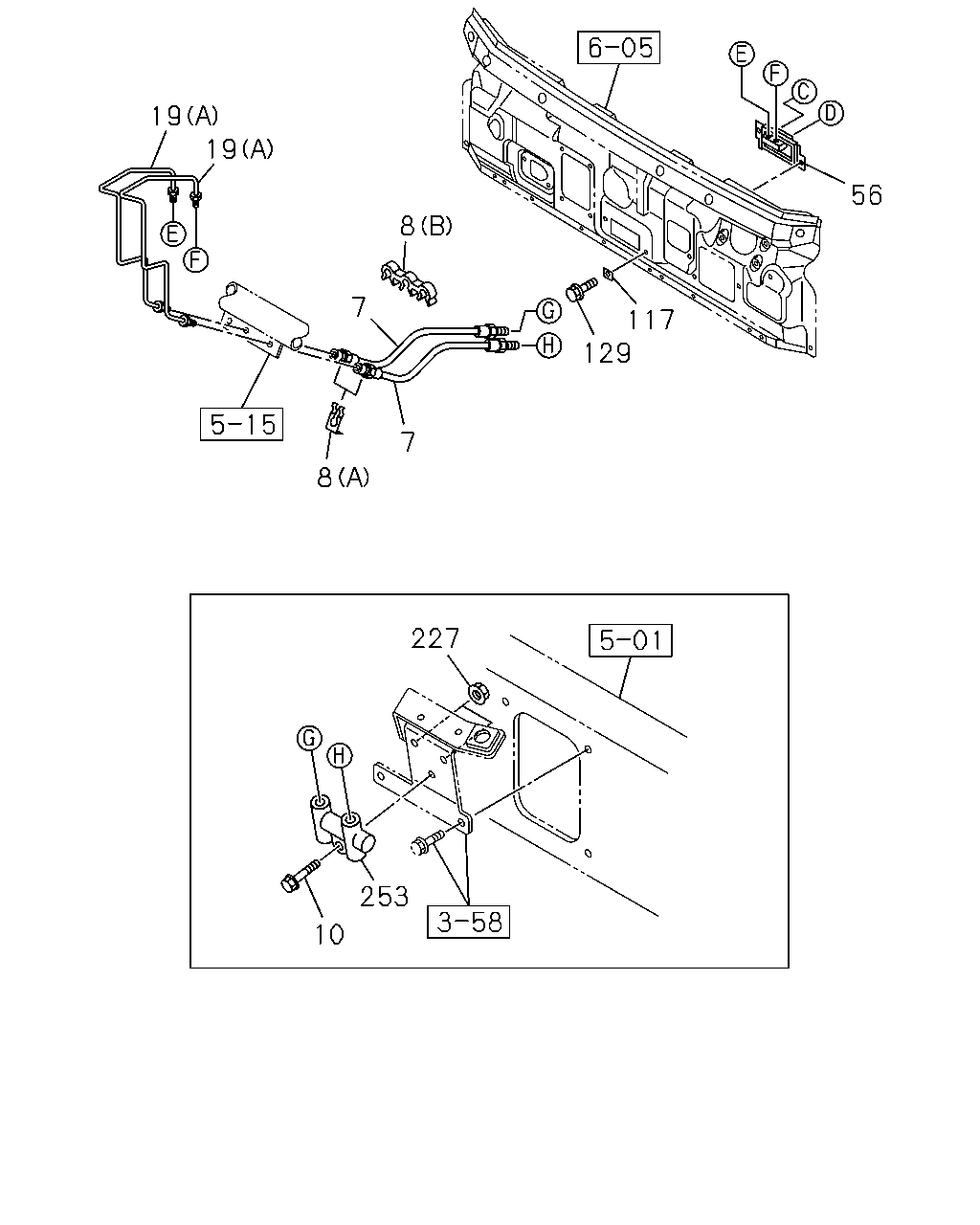

[350A] CAB OUTSIDE (11 parça)

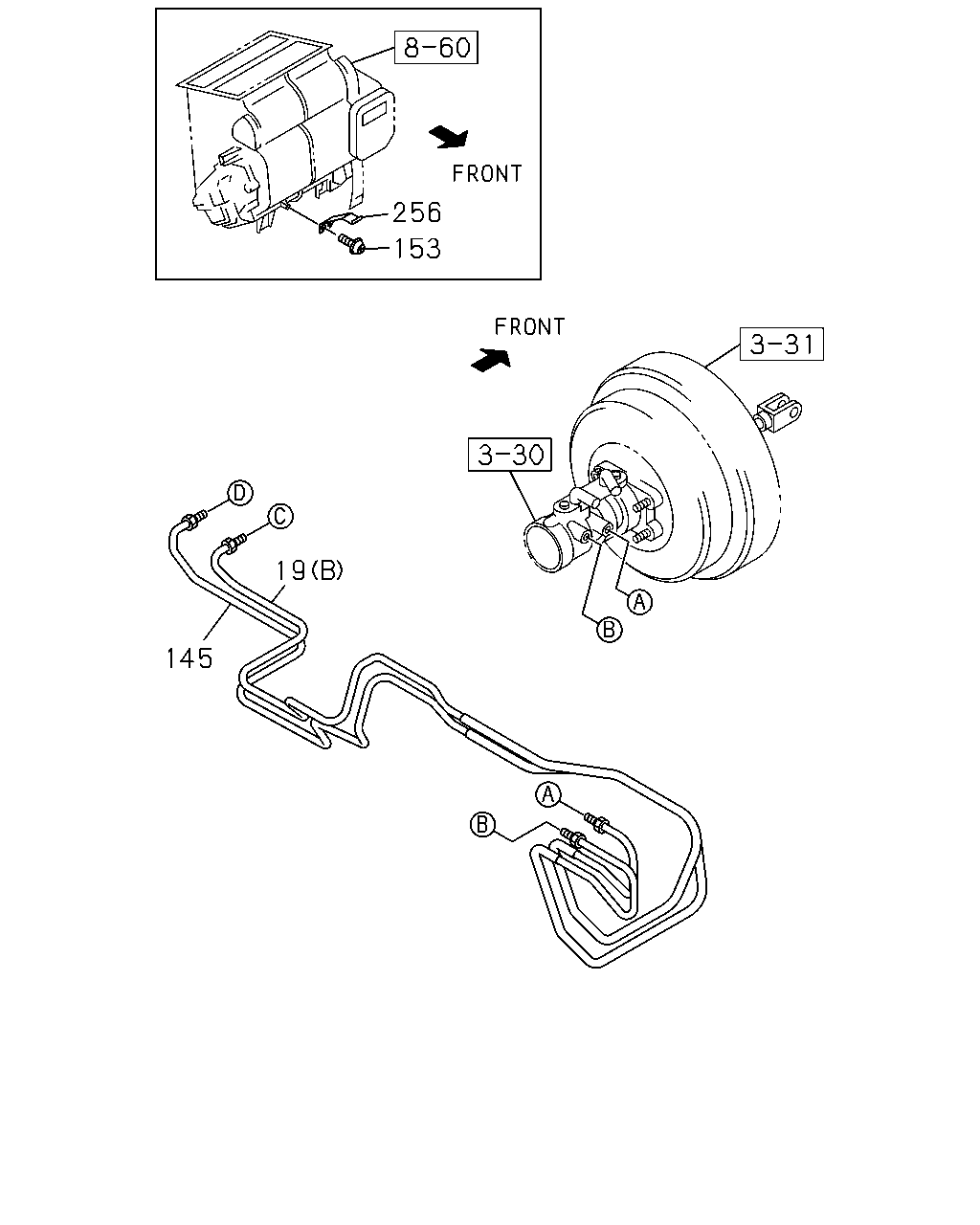

[350A] CAB INSIDE (5 parça)
[350A] PIPING;LSPV (2 parça)

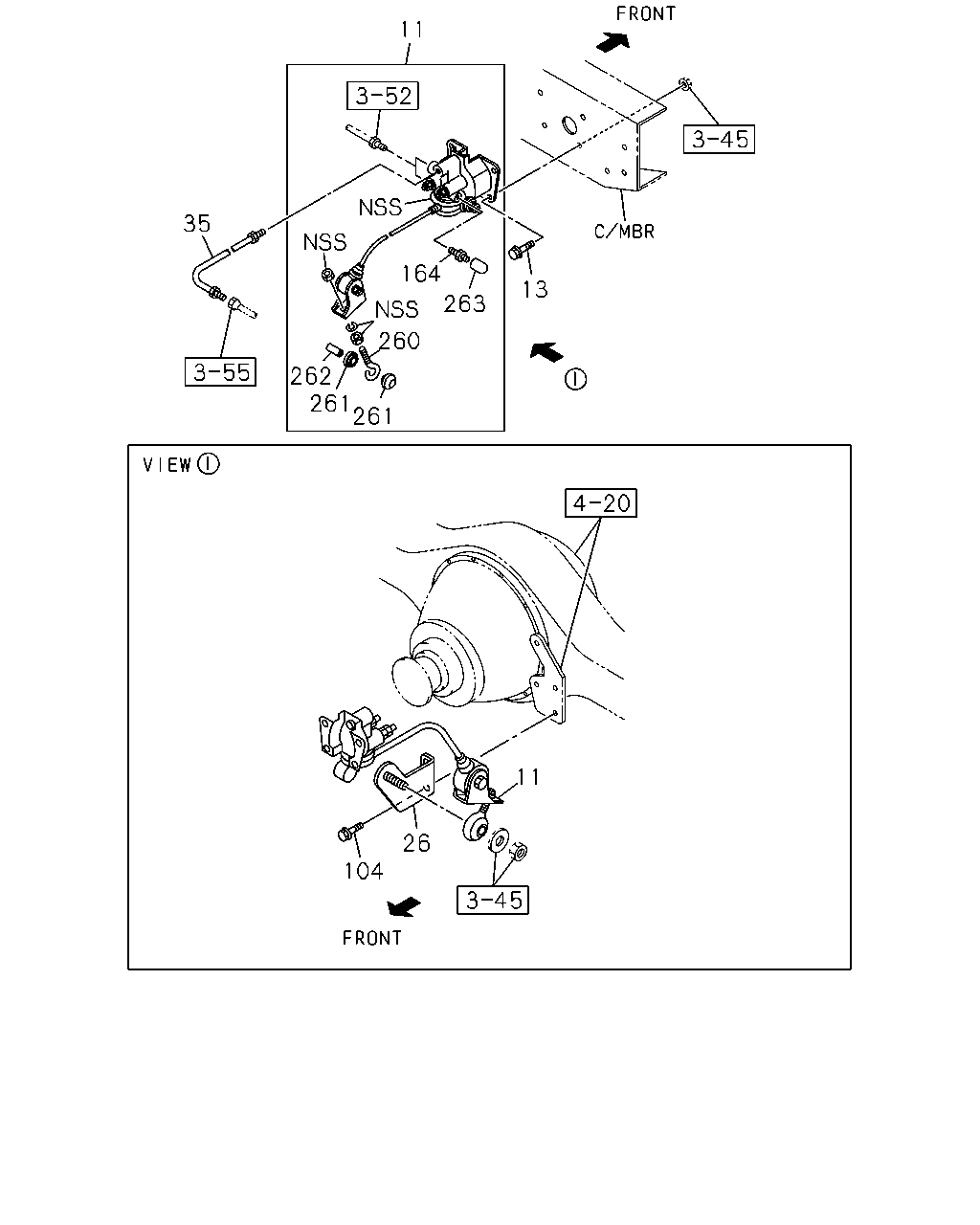

[350A] FIXING;LSPV (10 parça)
▶
19
19
7
7
8
129
117
56
227
253
10
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
HOSE; FLEX,PIPE TO 5 WAY JOINT
8-98029-865-0
02
1
1306-
8
CLIP; FLEX HOSE,CABLE SIDE
(B)
8-97076-471-0
01
1
1306-
8
CLIP; FLEX HOSE,CABLE SIDE
(A)
8-97365-304-0
02
1
1306-
10
BOLT; JOINT
M6X40 FLANGE
0-28650-640-0
01
1
1306-
19
PIPE; BRK,M/CYL TO UNION
(B) MAL
8-97389-337-3
01
1
1306-
19
PIPE; BRK,M/CYL TO UNION
(A) MAL
8-97389-366-1
02
1
1306-
56
BRACKET; UNION,BRK
8-98154-264-1
01
1
1306-
117
SEAL; UNION,BRK PIPE JOINT
MAL
8-97856-616-0
02
1
1306-
129
BOLT; BRKT
M6X20 W/LK&PL WASHER MAL
8-98081-030-0
02
1
1306-
227
NUT; JOINT
M8 FLANGE MAL
0-91180-108-0
02
1
1306-
253
JOINT
8-97120-033-2
01
1
1306-
145
19
153
256
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
PIPE; BRK,M/CYL TO UNION
(B) MAL
8-97389-337-3
01
1
1306-
19
PIPE; BRK,M/CYL TO UNION
(A) MAL
8-97389-366-1
02
1
1306-
145
PIPE; BRK,METERING VLV TO UNION
MAL
8-97389-295-3
01
1
1306-
153
SCREW; BRKT FIX
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. KD PREPARATORY PACK VAR.4<7TV> T25 M5X12 TAPPING HEXALOBULAR MAL
0-72180-512-0
01
1
1306-
256
BRACKET; BRK PIPE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. KD PREPARATORY PACK VAR.4<7TV>
8-98163-521-0
01
1
1306-
35
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
VALVE; BRK CONT
8-94427-224-2
01
1
1306-
35
PIPE; BRK,VLV TO RR AXLE
MAL
8-98057-271-0
01
1
1306-
35
11
164
13
260
262
261
261
11
26
104
263
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
VALVE; BRK CONT
8-94427-224-2
01
1
1306-
13
BOLT; VLV TO BRKT
M8X16 FLANGE MAL
0-28050-816-0
04
1
1306-
26
BRACKET; PROPORTIONING VLV
8-98057-012-0
01
1
1306-
35
PIPE; BRK,VLV TO RR AXLE
MAL
8-98057-271-0
01
1
1306-
104
BOLT; BRKT TO BODY
M8X16 FLANGE MAL
0-28050-816-0
02
1
1306-
164
SCREW; BLEEDER
8-97093-663-0
01
1
1306-
260
SHACKLE; LSPV
8-97173-366-0
01
1
1306-
261
BUSHING; LSPV
8-97145-631-0
02
1
1306-
262
COLLAR; LSPV
8-97139-186-0
01
1
1306-
263
CAP; BLEEDER
8-97093-662-0
01
1
1306-
