Isuzu WW
▶
TRUCKS
▶
NPS
▶
51500 - NPS(MALAYSIA)
▶
3 - Brakes, Brake System
▶
3-05 - REAR WHEEL BRAKE
▶

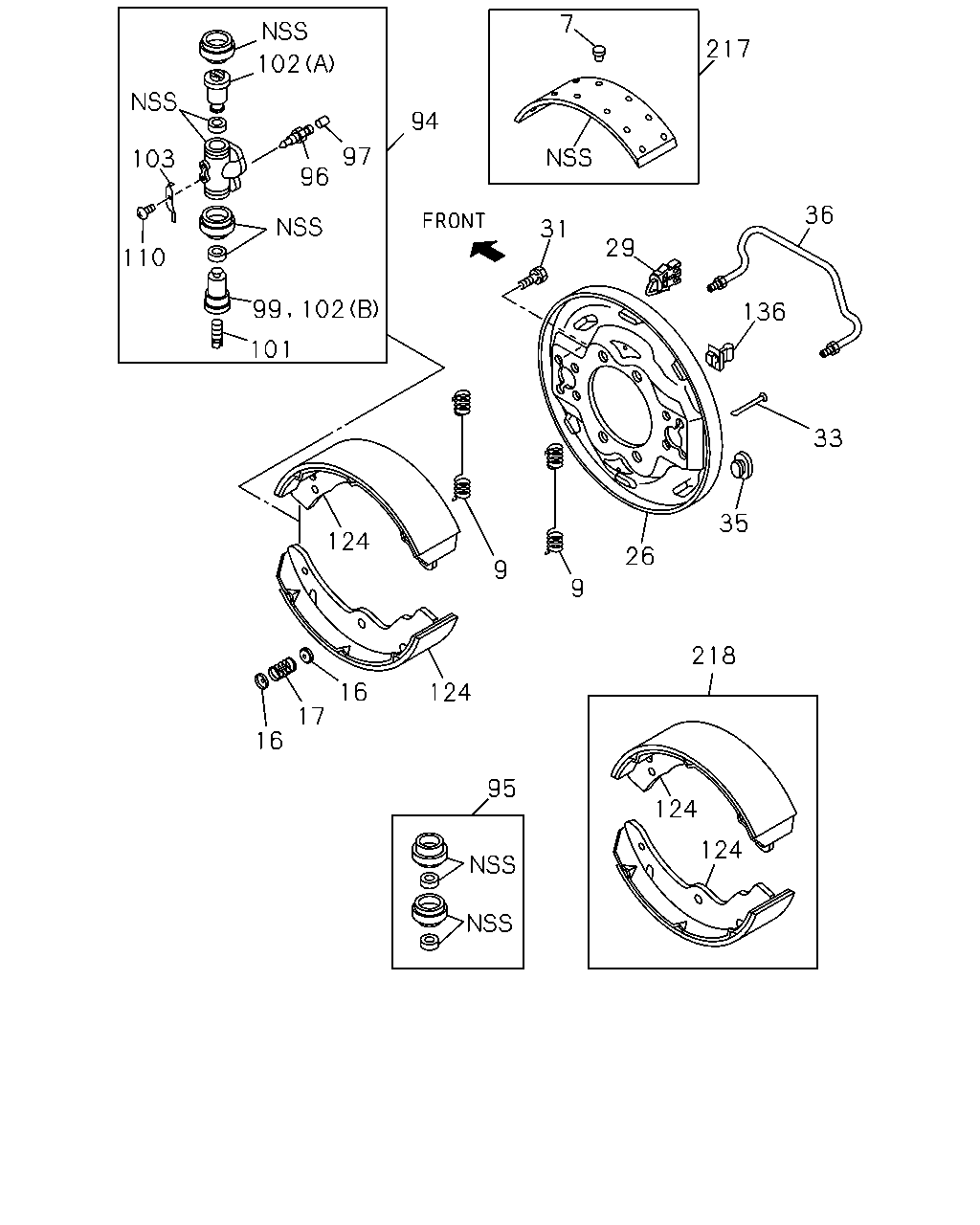

3-05 — REAR WHEEL BRAKE
(#125153) — 28 parça
95
218
35
26
33
36
136
29
9
9
124
16
17
6
124
31
217
7
94
97
96
99
102
101
110
103
102
124
124
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
RIVET; LINING,RR BRK
1-09732-029-0
48
1
1306-
9
SPRING; RETURN,BRK SHOE
8-97022-087-0
04
1
1306-
16
CUP; SHOE HOLDING
9-47165-096-0
08
1
1306-
17
SPRING; SHOE HOLD DOWN
5-09580-101-1
04
1
1306-
26
PLATE; BACK,RR BRK
8-97223-575-0
01
1
1306-
26
PLATE; BACK,RR BRK
8-97223-576-0
01
1
1306-
29
CLIP; PIPE,BRK
8-97022-086-0
02
1
1306-
31
BOLT; RR WHEEL CYL
8-97081-305-0
16
1
1306-
33
PIN; SHOE HOLD DOWN
8-97022-089-0
04
1
1306-
35
GROMMET; CHECK HOLE
8-97017-507-0
02
1
1306-
36
PIPE; OIL,RR BRK
8-97192-215-0
02
1
1306-
94
CYLINDER; WHEEL,RR BRK
FRONT
8-97332-225-0
01
1
1306-
94
CYLINDER; WHEEL,RR BRK
REAR
8-97332-226-0
01
1
1306-
94
CYLINDER; WHEEL,RR BRK
8-97332-227-0
02
1
1306-
95
CUP SET; RR WHEEL CYL
5-87832-051-0
02
1
1306-
96
SCREW; BLEEDER,RR BRK
8-98050-476-0
01
1
1306-
97
CAP; BLEEDER,RR WHEEL CYL
8-98050-479-0
01
1
1306-
99
PISTON; RR WHEEL CYL
8-97332-229-0
03
1
1306-
101
SCREW; ADJ,RR WHEEL CYL
8-94414-702-0
04
1
1306-
102
PISTON; REAR WHEEL CYL
(A)
8-97332-043-0
04
1
1306-
102
PISTON; REAR WHEEL CYL
(B)
8-97332-229-0
01
1
1306-
103
SPRING; LK,RR WHEEL CYL,ADJ
8-94128-486-0
04
1
1306-
110
SCREW; LOCK SPRING,RR WHEEL CYL
8-94128-727-0
04
1
1306-
124
SHOE ASM; BRK,RR
8-97201-061-0
04
1
1306-
136
GROMMET
8-97044-742-1
04
1
1306-
217
LINING KIT; RR BRK
5-87831-774-0
01
1
1306-
217
LINING KIT; RR BRK
BEST VALUE PARTS
5-87610-120-0
01
1
1306-
218
SHOE KIT; BRK,RR
5-87831-775-0
01
1
1306-
