3-26 — TRAILER CONTROL (#12515) — 79 parça

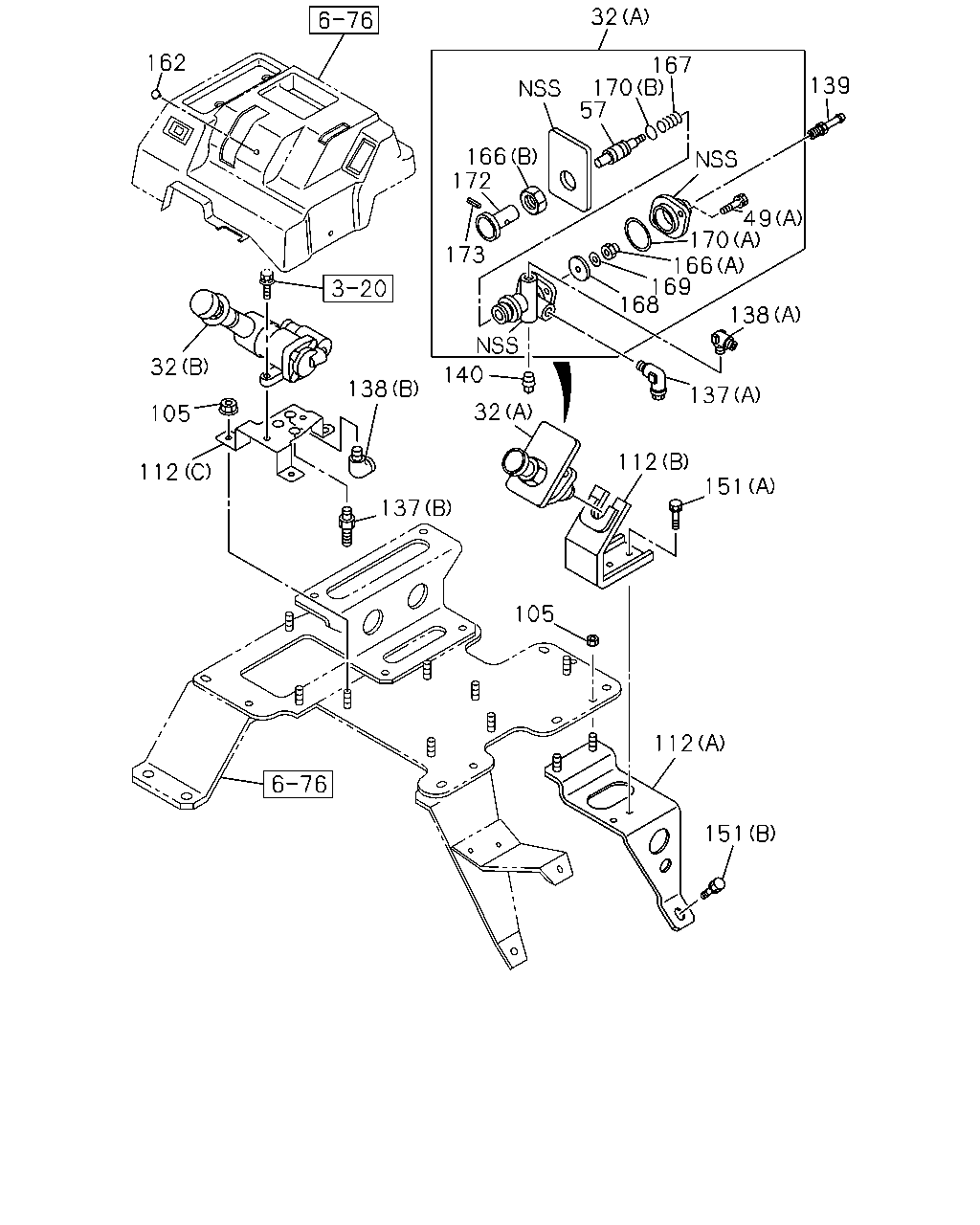

139 167 32 170 57 49 170 166 169 168 138 137 112 151 162 32 105 112 138 137 105 112 151 32 140 173 172 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	VALVE; BRK,HAND CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48460-306-0	01	1	0207-	●	●
32	VALVE; BRK,HAND CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48460-198-0	01	1	0105-0206	●	●
32	VALVE; BRK,HAND CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48460-198-0	01	1	0207-	●	●
49	SCREW; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48469-092-0	04	1	0207-	●	●
49	SCREW; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-52139-005-0	02	1	0105-0206	●	●
49	SCREW; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-52139-005-0	02	1	0207-	●	●
57	PLUNGER; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48469-097-0	01	1	0105-0206	●	●
57	PLUNGER; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-097-0	01	1	0207-	●	●
105	NUT; BRKT SPRING BRAKE(SU9) M8 FLANGE	0-91150-108-0	02	1	0105-0206	●	●
105	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	0207-0602	●	●
105	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
105	NUT; BRKT SPRING BRAKE(SU9) M8 FLANGE	0-91150-108-0	03	1	0105-0602	●	●
105	NUT; BRKT SPRING BRAKE(SU9) M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
112	BRACKET; CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> (C)	1-79996-378-1	01	1	0207-	●	●
112	BRACKET; CONT VLV SPRING BRAKE(SU9) (B)	1-47475-260-2	01	1	0105-0206	●	●
112	BRACKET; CONT VLV SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-47475-260-2	01	1	0207-0408	●	●
112	BRACKET; CONT VLV SPRING BRAKE(SU9) (A)	1-79996-113-2	01	1	0105-	●	●
137	CONNECTOR; SUPPLY PARKING BRAKE VALVE LEVER TYPE<W48> (B) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	0207-	●	●
137	CONNECTOR; SUPPLY SPRING BRAKE(SU9) (A) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	0105-0206	●	●
137	CONNECTOR; SUPPLY SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	0207-	●	●
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-09650-240-1	01	1	0207-	●	●
138	CONNECTOR; DELIVERY SPRING BRAKE(SU9) (A) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	0105-0206	●	●
138	CONNECTOR; DELIVERY SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	0207-	●	●
139	CONNECTOR; EXH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=45	8-94338-874-0	01	1	0105-0206	●	●
139	CONNECTOR; EXH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> L=45	8-94338-874-0	01	1	0207-	●	●
140	PLUG SPRING BRAKE(SU9) PT1/4	9-99204-513-0	01	1	0105-0206	●	●
140	PLUG SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> PT1/4	9-99204-513-0	01	1	0207-	●	●
151	BOLT; VLV BRKT SPRING BRAKE(SU9) (A) M6X16 W/LK WASHER	0-50040-616-0	02	1	0105-0206	●	●
151	BOLT; VLV BRKT SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) M6X16 W/LK WASHER	0-50040-616-0	02	1	0207-0211	●	●
151	BOLT; VLV BRKT SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0212-	●	●
151	BOLT; VLV BRKT SPRING BRAKE(SU9) (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0105-	●	●
162	SWITCH; PARKING BRK VLV SPRING BRAKE(SU9)	1-72447-390-0	01	1	0105-	●	●
166	NUT; PLUNGER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48129-069-0	01	1	0105-0206	●	●
166	NUT; PLUNGER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48129-069-0	01	1	0207-	●	●
166	NUT; PLUNGER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48469-101-0	01	1	0105-0206	●	●
166	NUT; PLUNGER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48469-101-0	01	1	0207-	●	●
167	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48469-098-0	01	1	0105-0206	●	●
167	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-098-0	01	1	0207-	●	●
168	VALVE; INL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48469-099-0	01	1	0105-0206	●	●
168	VALVE; INL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-099-0	01	1	0207-	●	●
169	WASHER; PL,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=6.4	9-09164-506-0	01	1	0105-0206	●	●
169	WASHER; PL,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> ID=6.4	9-09164-506-0	01	1	0207-	●	●
170	GASKET; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48469-100-0	01	1	0105-0206	●	●
170	GASKET; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48469-100-0	01	1	0207-	●	●
170	GASKET; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	9-19519-094-0	01	1	0105-0206	●	●
170	GASKET; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	9-19519-094-0	01	1	0207-	●	●
172	KNOB; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48469-102-0	01	1	0105-0206	●	●
172	KNOB; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-102-0	01	1	0207-	●	●
173	PIN; SPR,KNOB BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-94124-044-0	01	1	0105-0206	●	●
173	PIN; SPR,KNOB BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	8-94124-044-0	01	1	0207-	●	●

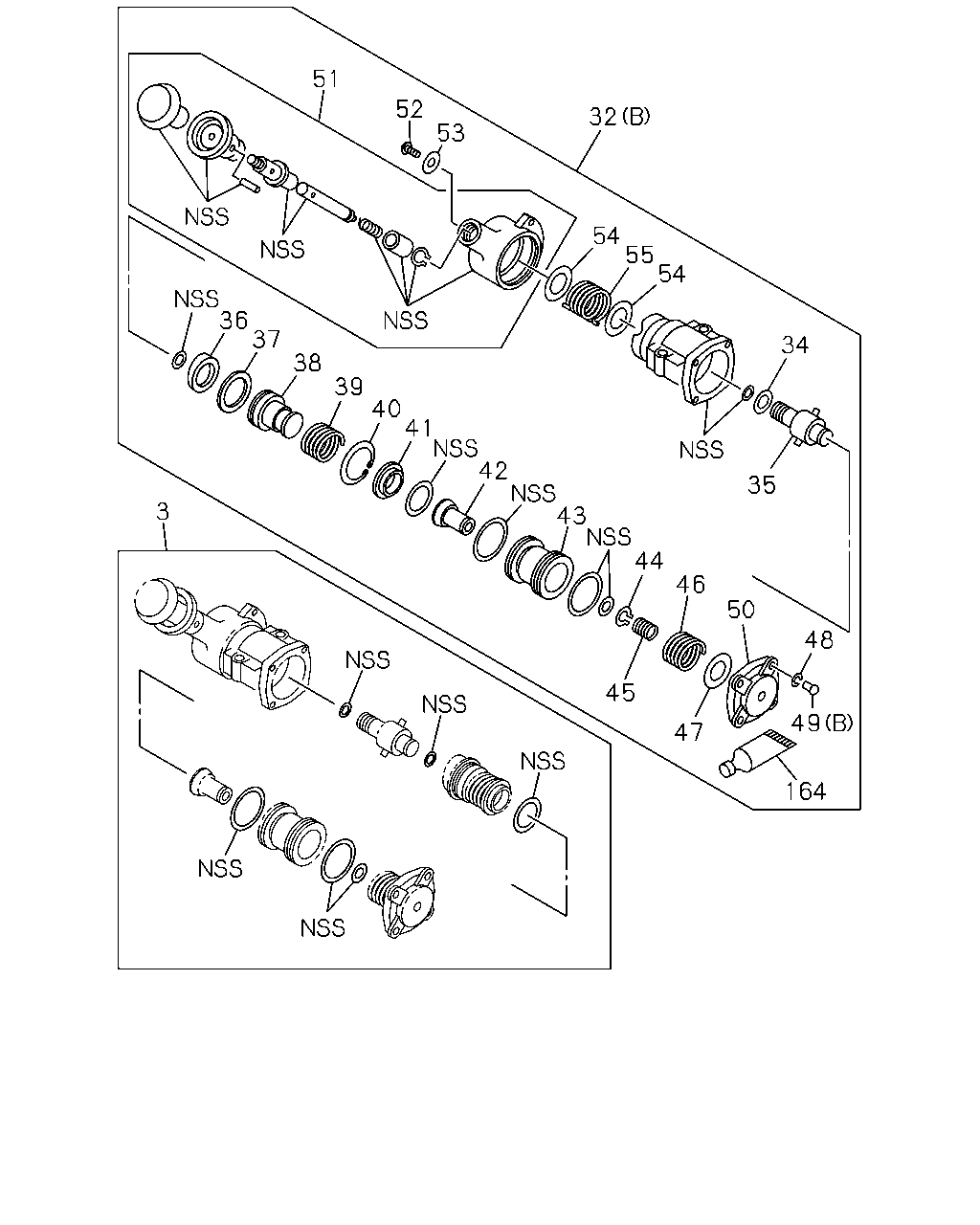

34 54 55 54 32 53 52 51 35 48 50 46 44 43 42 41 40 39 38 37 36 3 45 47 164 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	REPAIR KIT; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-096-0	01	1	0207-	●	●
32	VALVE; BRK,HAND CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48460-306-0	01	1	0207-	●	●
32	VALVE; BRK,HAND CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48460-198-0	01	1	0105-0206	●	●
32	VALVE; BRK,HAND CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48460-198-0	01	1	0207-	●	●
34	SHIM; CAM HOLDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-055-0	AR	1	0207-	●	●
35	HOLDER; CAM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-054-0	01	1	0207-	●	●
36	RING; CAM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-056-0	01	1	0207-	●	●
37	GUIDE; CAM RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-058-0	01	1	0207-	●	●
38	SEAT; EXH VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-057-0	01	1	0207-	●	●
39	SPRING; RETURN,CAM RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-063-0	01	1	0207-	●	●
40	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-067-0	01	1	0207-	●	●
41	SEAT; FEED VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-066-0	01	1	0207-	●	●
42	VALVE; FEED BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-065-0	01	1	0207-	●	●
43	PISTON; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-064-0	01	1	0207-	●	●
44	RING; SNAP,FEED VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-068-0	02	1	0207-	●	●
45	SPRING; FEED VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-070-0	01	1	0207-	●	●
46	SPRING; MAIN,PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-089-0	01	1	0207-	●	●
47	SHIM; MAIN SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-072-0	AR	1	0207-	●	●
48	WASHER; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-091-0	04	1	0207-	●	●
49	SCREW; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48469-092-0	04	1	0207-	●	●
49	SCREW; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-52139-005-0	02	1	0105-0206	●	●
49	SCREW; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-52139-005-0	02	1	0207-	●	●
50	COVER; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-090-0	01	1	0207-	●	●
51	HANDLE ASM; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-122-0	01	1	0207-	●	●
52	SCREW; HANDLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-062-0	01	1	0207-	●	●
53	WASHER; HANDLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-061-0	01	1	0207-	●	●
54	SEAT; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-082-0	02	1	0207-	●	●
55	SPRING; RETURN,HANDLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-059-0	01	1	0207-	●	●
164	GREASE; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-084-0	01	1	0207-	●	●
