◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51500 - NPS(MALAYSIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-61 - TRANSFER CASE AND GEAR SHIFTER ▶
2-61 — TRANSFER CASE AND GEAR SHIFTER (#125147) — 29 parça

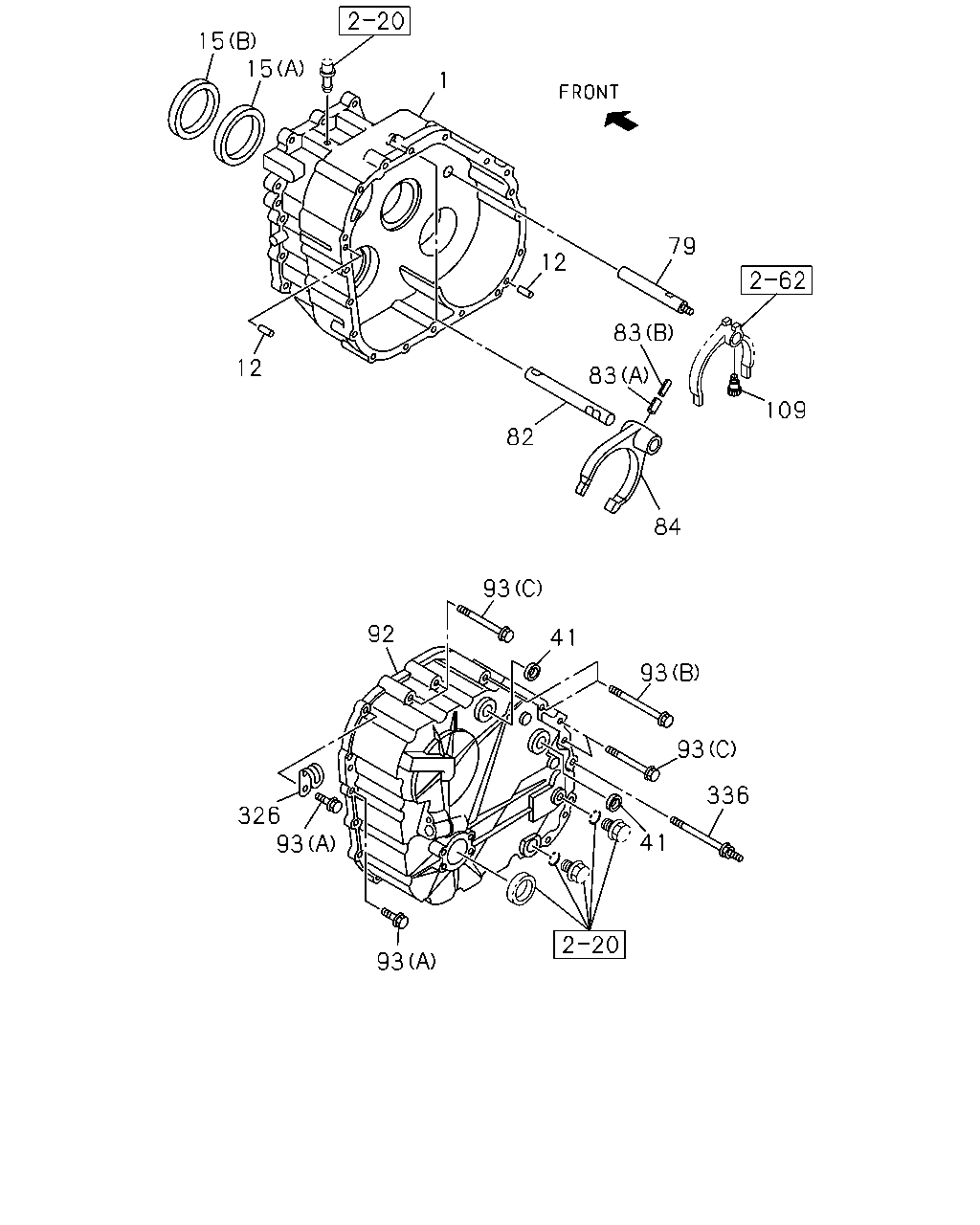

çizim 363266
93 41 336 93 93 41 93 92 326 93 12 15 15 1 12 82 84 109 83 83 79
BalonParca AdiParca NoAdetTipApplied Date
1 CASE; TRANSFER 8-98072-450-1 01 1 1306-
12 PIN; STRAIGHT,TRANSFER CASE 8-97326-880-0 02 1 1306-
15 SEAL; OIL,INPUT & FRT OUTPUT
(A) 		8-97326-934-0 02 1 1306-
15 SEAL; OIL,INPUT & FRT OUTPUT
(B) 		8-97327-114-0 01 1 1306-
41 SEAL; OIL,SHIFT ROD 8-97326-887-0 02 1 1306-
79 ROD; SHIFT,NEUTRAL & FRT DRIVE 8-97357-217-0 01 1 1306-
82 ROD; SHIFT,LOW & HIGH 8-98072-454-0 01 1 1306-
83 PIN; SPRING,LOW-HIGH,SHIFT BLOCK
(B) 		8-97326-931-0 01 1 1306-
83 PIN; SPRING,LOW-HIGH,SHIFT BLOCK
(A) 		8-97326-932-0 01 1 1306-
84 FORK; SHIFT,LOW & HIGH 8-98072-455-0 01 1 1306-
92 COVER; RR,TRANSFER 8-98072-447-1 01 1 1306-
93 BOLT; TRANSFER CASE TO RR COVER
(B) M10X100 FLANGE 		8-97326-881-0 02 1 1306-
93 BOLT; TRANSFER CASE TO RR COVER
(C) M10X70 FLANGE 		8-97326-882-0 04 1 1306-
93 BOLT; TRANSFER CASE TO RR COVER
(A) M10X40 FLANGE 		8-97326-883-0 11 1 1306-
109 BOLT; TAPER,TRANSFER CASE 1-09052-034-2 01 1 1306-
326 CLIP; HARNESS
ID=8 		8-97329-633-0 01 1 1306-
336 STUD; CASE 8-98098-017-0 01 1 1306-

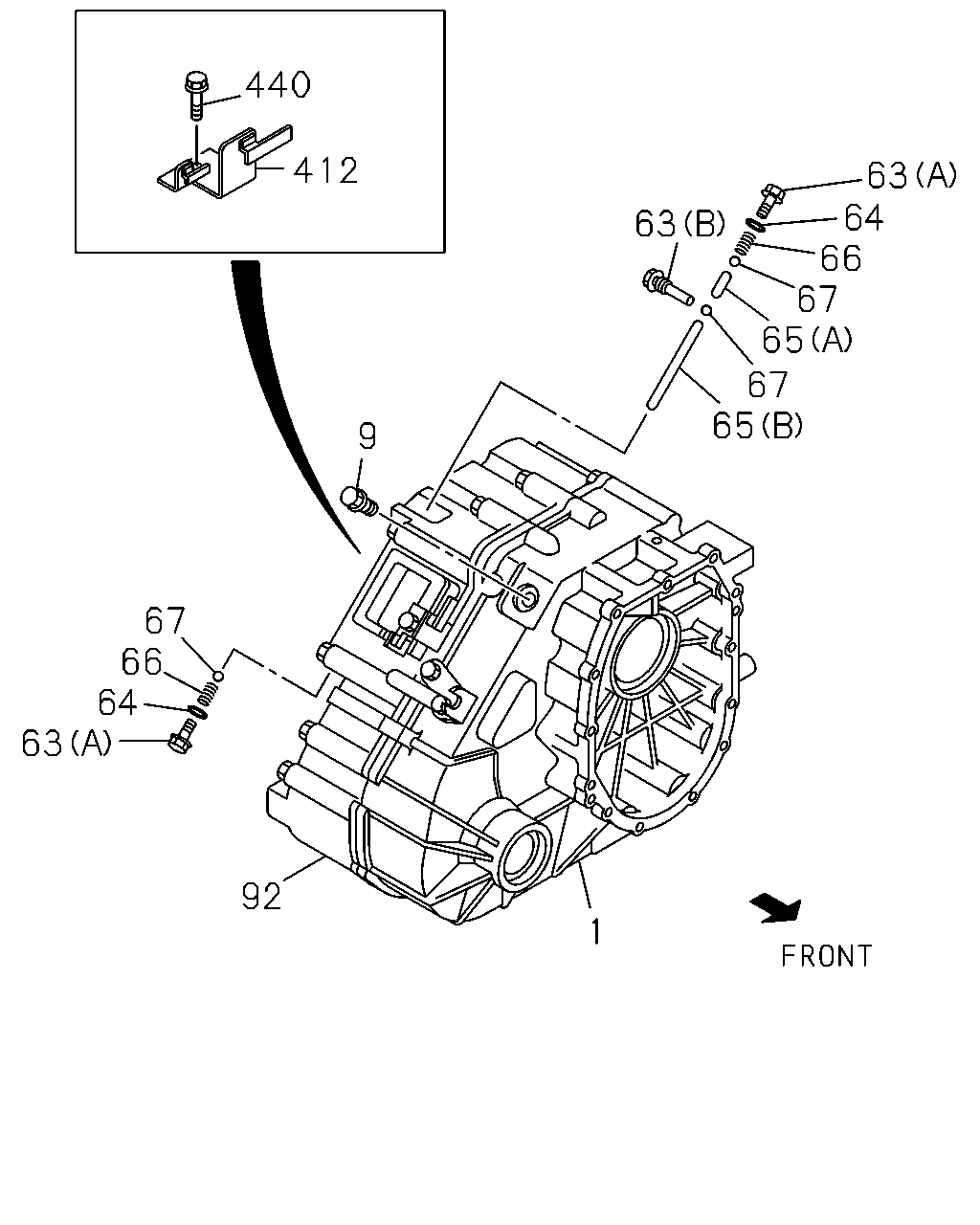

çizim 363268
440 412 9 67 66 64 63 92 1 65 67 65 67 66 64 63 63
BalonParca AdiParca NoAdetTipApplied Date
1 CASE; TRANSFER 8-98072-450-1 01 1 1306-
9 SWITCH; TRANSFER 8-98023-051-0 01 1 1306-
63 PLUG; DETENT SPRING
(A) 		8-97326-926-0 02 1 1306-
63 PLUG; DETENT SPRING
(B) 		8-98072-453-0 01 1 1306-
64 GASKET; DETENT SPRING PLUG 8-97326-925-0 02 1 1306-
65 ROD; INTER LOCK,SHIFT ROD
(A) 		8-98072-451-0 01 1 1306-
65 ROD; INTER LOCK,SHIFT ROD
(B) 		8-98072-452-0 01 1 1306-
66 SPRING; DETENT,SHIFT ROD 8-97326-927-0 02 1 1306-
67 BALL; DETENT,SHIFT ROD,TRANSFER 8-97326-928-0 03 1 1306-
92 COVER; RR,TRANSFER 8-98072-447-1 01 1 1306-
412 BRACKET; SW CONN 8-97327-662-1 01 1 1306-
440 BOLT; W/WASHER 8-98072-445-0 01 1 1306-
