Isuzu WW
▶
TRUCKS
▶
NPS
▶
51500 - NPS(MALAYSIA)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-20 - MANUAL TRANSMISSION ASM AND CASE
▶

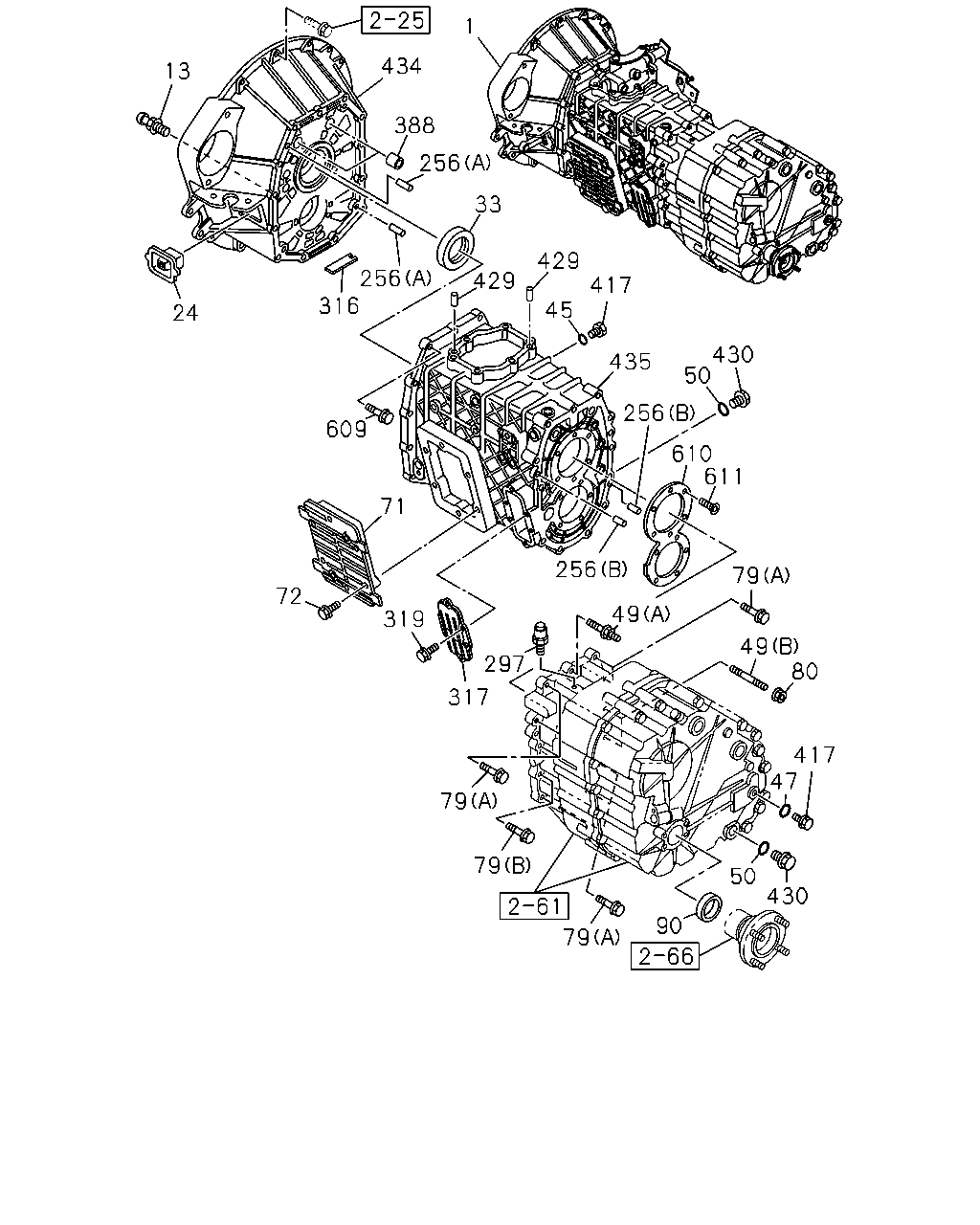

2-20 — MANUAL TRANSMISSION ASM AND CASE
(#125141) — 32 parça
434
388
13
24
316
256
256
33
429
429
45
435
430
256
611
610
256
49
79
49
80
417
47
430
50
90
79
79
79
317
319
72
71
609
417
50
1
297
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TRANSMISSION ASM; MANUAL
8-98187-421-0
01
1
1306-
13
SUPPORT; SHIFT FORK
8-97255-384-1
01
1
1306-
24
COVER; CHECK HOLE,DUST
8-97255-201-0
01
1
1306-
33
SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T).
8-97253-550-0
01
1
1306-
45
GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17
8-97115-712-0
01
1
1306-
47
GASKET; FILLER PLUG,TRANSFER CASE
ID=17
8-97115-712-0
01
1
1306-
49
STUD; TRANSFER CASE
(B) M10X35 L=50
0-44011-035-0
02
1
1306-
49
STUD; TRANSFER CASE
(A) M10X15,M10X40 L=65
8-97365-379-0
01
1
1306-1405
49
STUD; TRANSFER CASE
(A) M10X15,M10X40 L=65
8-97365-379-0
02
1
1406-
50
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17
8-97115-712-0
03
1
1306-
71
COVER; SIDE,TRANS CASE
8-97252-625-0
01
1
1306-
72
BOLT; SIDE COVER
M10X20 FLANGE
8-98014-142-0
06
1
1306-
79
BOLT; TRANSFER CASE
(A) M10X40 FLANGE
0-28151-040-0
08
1
1306-1405
79
BOLT; TRANSFER CASE
(A) M10X40 FLANGE
0-28151-040-0
07
1
1406-
79
BOLT; TRANSFER CASE
(B) M10X40 FLANGE
8-97365-377-0
02
1
1306-
80
NUT; TRANSFER CASE
M10 FLANGE MAL
0-91180-210-0
02
1
1306-
90
SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK
8-97253-552-1
01
1
1306-
256
PIN; KNOCK
(A) OD=10 L=20
8-97135-423-0
02
1
1306-
256
PIN; KNOCK
(B) ID=6 L=12
9-08160-612-0
02
1
1306-
297
BREATHER; AIR,TRANSFER CASE
8-98031-520-0
01
1
1306-
316
MAGNET; TRANS CASE
8-94249-524-2
01
1
1306-
317
COVER; CASE
8-97252-626-0
01
1
1306-
319
BOLT; COVER
M8X20 FLANGE MAL
0-28050-820-0
06
1
1306-
388
BUSHING; CLU HSG
8-97241-326-2
02
1
1306-
417
PLUG; OIL FILLER,TRANS
8-97365-373-0
02
1
1306-
429
PIN; STRAIGHT
OD=10 L=20
8-97135-423-0
02
1
1306-
430
PLUG; OIL DRAIN
8-97365-374-0
03
1
1306-
434
HOUSING; CLU
8-97310-346-4
01
1
1306-
435
CASE; TRANS
8-97379-374-0
01
1
1306-
609
BOLT; HSG TO CASE
M10X40 FLANGE
0-28151-040-0
13
1
1306-
610
RETAINER; BRG
8-97241-315-1
01
1
1306-
611
SCREW
M10X27 TORQUES
8-97365-354-0
11
1
1306-
