◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10875 - CXZ LHD S-CAM BRAKE ▶ 3 - Brakes, Brake System ▶ 3-25 - BRAKE LOCK CONTROL ▶
3-25 — BRAKE LOCK CONTROL (#12514) — 27 parça
çizim 21899
21 23 23 12 22 22
BalonParca AdiParca NoAdetTipApplied Date A B
12 BOLT; CONT VALVE,BRK LOCK
POWER BRAKE LOCK SYSTEM(J50) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512 ● ●
12 BOLT; CONT VALVE,BRK LOCK
POWER BRAKE LOCK SYSTEM(J50) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
21 BRACKET; CONT VLV,BRK LOCK
POWER BRAKE LOCK SYSTEM(J50) 		1-82569-283-1 01 1 0105- ● ●
22 BOLT; BRKT FIX,BRK LOCK CONT VLV
POWER BRAKE LOCK SYSTEM(J50) (A) M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512 ● ●
22 BOLT; BRKT FIX,BRK LOCK CONT VLV
POWER BRAKE LOCK SYSTEM(J50) (A) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
22 BOLT; BRKT FIX,BRK LOCK CONT VLV
POWER BRAKE LOCK SYSTEM(J50) (B) M10X30 FLANGE 		0-28681-030-0 02 1 0105-0512 ● ●
22 BOLT; BRKT FIX,BRK LOCK CONT VLV
POWER BRAKE LOCK SYSTEM(J50) (B) M10X30 FLANGE 		0-28651-030-0 02 1 0601- ● ●
23 NUT; BRKT FIX,BRK LOCK CONT VLV
POWER BRAKE LOCK SYSTEM(J50) (A) M8 FLANGE 		0-91150-108-0 02 1 0105-0602 ● ●
23 NUT; BRKT FIX,BRK LOCK CONT VLV
POWER BRAKE LOCK SYSTEM(J50) (A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
23 NUT; BRKT FIX,BRK LOCK CONT VLV
POWER BRAKE LOCK SYSTEM(J50) (B) M10 FLANGE 		0-91150-210-0 02 1 0105-0602 ● ●
23 NUT; BRKT FIX,BRK LOCK CONT VLV
POWER BRAKE LOCK SYSTEM(J50) (B) M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●

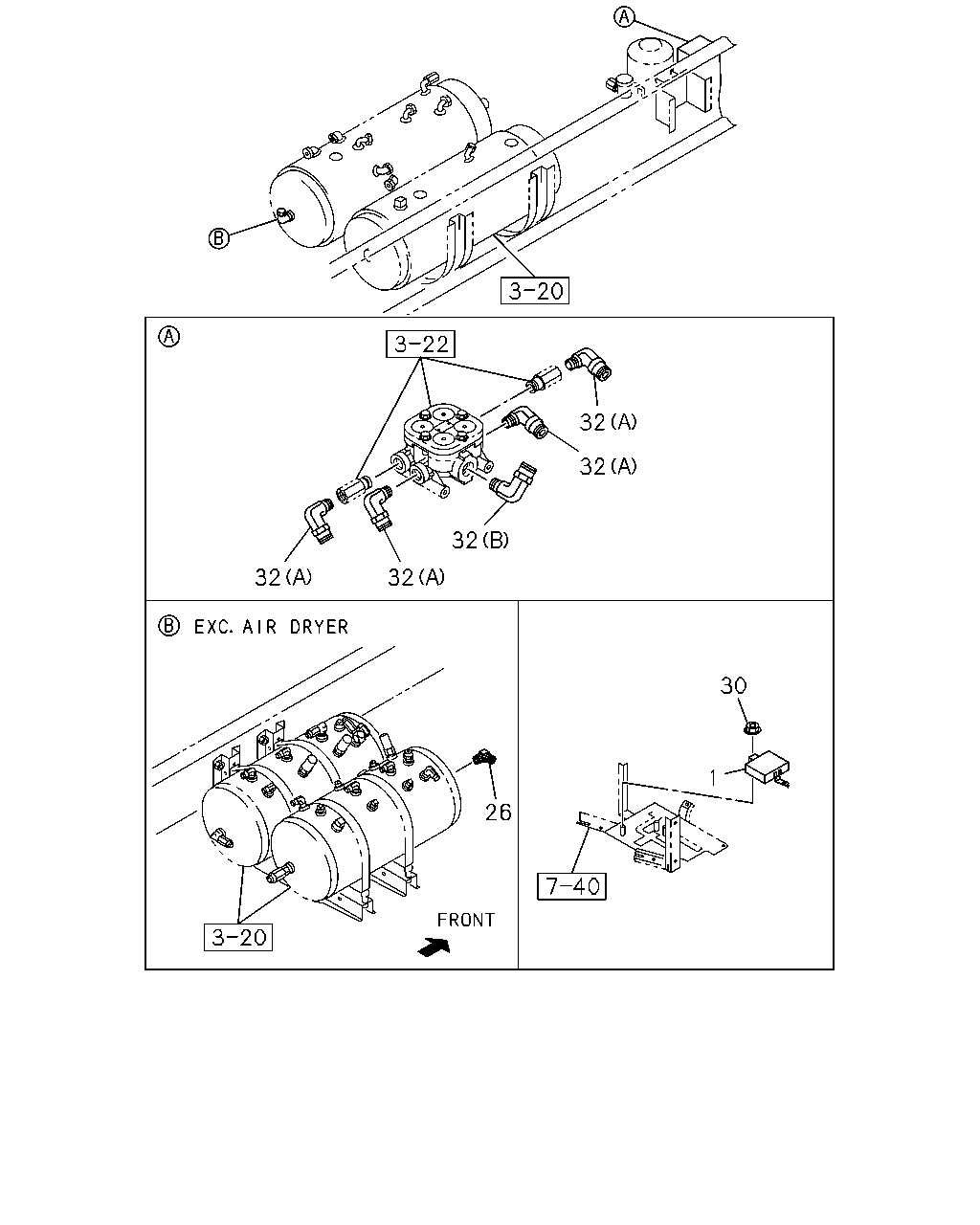

çizim 80331
32 32 32 32 32 30 1 26
BalonParca AdiParca NoAdetTipApplied Date A B
1 BOX; CONT,BRK LOCK
POWER BRAKE LOCK SYSTEM(J50) 		1-82550-311-0 01 1 0105- ● ●
26 UNION; CONT VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M22 		1-09650-277-0 01 1 0105-0105 ● ●
26 UNION; CONT VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. AIR DRYER<PS7> M22 		1-09650-277-0 01 1 0105-0105 ● ●
26 UNION; CONT VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M22 		1-09650-277-0 01 1 0105- ● ●
30 NUT
POWER BRAKE LOCK SYSTEM(J50) M6 FLANGE 		0-91150-106-0 02 1 0105-0602 ● ●
30 NUT
POWER BRAKE LOCK SYSTEM(J50) M6 FLANGE 		0-91180-106-0 02 1 0603- ● ●
32 UNION; DOUBLE CHECK VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105- ● ●
32 UNION; DOUBLE CHECK VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (B) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0105-0212 ● ●
32 UNION; DOUBLE CHECK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0105-0212 ● ●
32 UNION; DOUBLE CHECK VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (B) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0301-0401 ● ●
32 UNION; DOUBLE CHECK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. CHINA GB VAR1<JAC> (B) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0301-0401 ● ●
32 UNION; DOUBLE CHECK VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (B) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0402- ● ●
32 UNION; DOUBLE CHECK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (B) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0402- ● ●
32 UNION; DOUBLE CHECK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0105-0212 ● ●
32 UNION; DOUBLE CHECK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. CHINA GB VAR1<JAC> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0301-0401 ● ●
32 UNION; DOUBLE CHECK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0402- ● ●
