Isuzu WW
▶
TRUCKS
▶
NPS
▶
51500 - NPS(MALAYSIA)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-05 - CLUTCH PIPING
▶

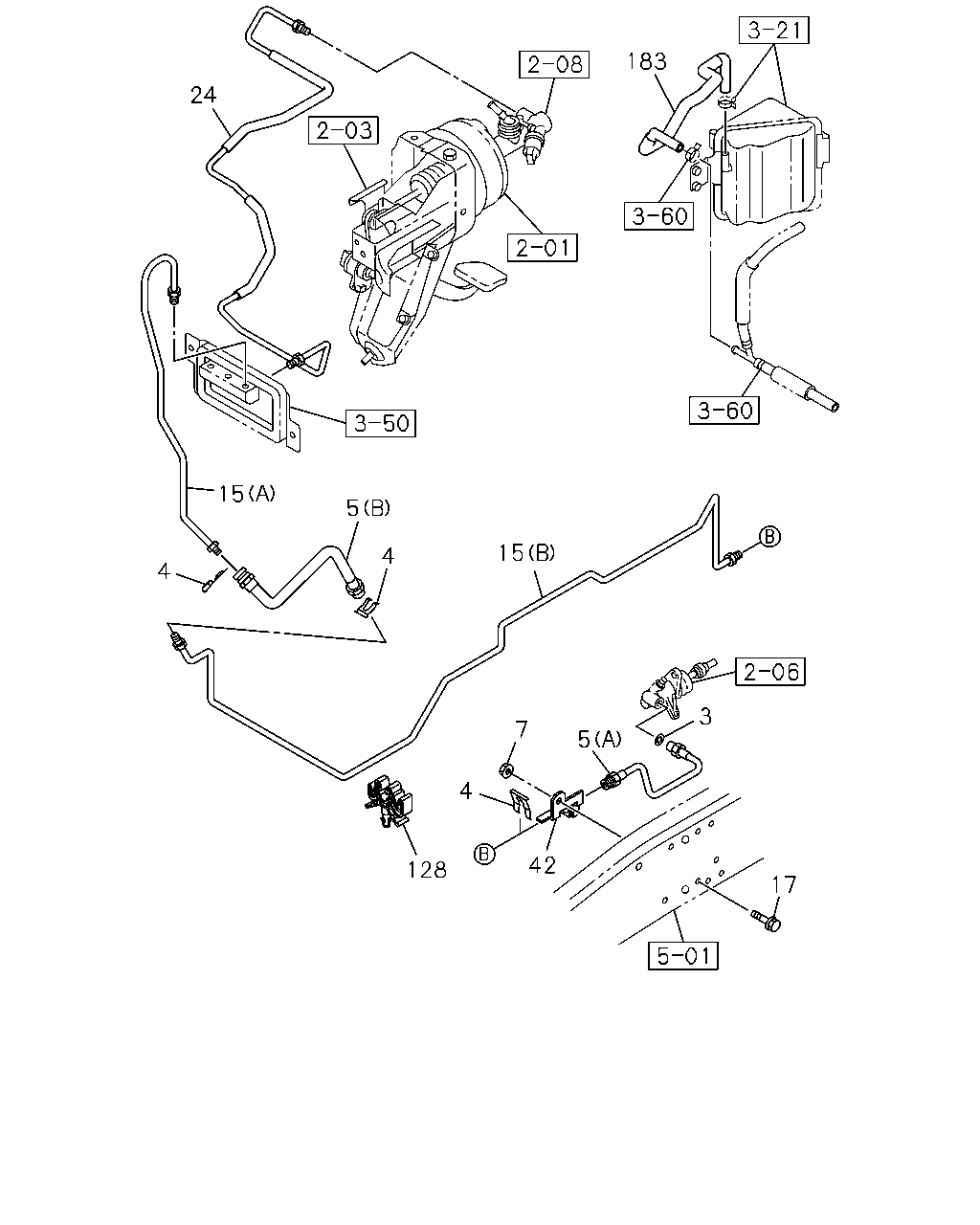

2-05 — CLUTCH PIPING
(#125136) — 15 parça
24
183
15
15
3
5
7
4
42
128
17
4
5
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
GASKET; FLEX HOSE,CLU
9-09920-873-1
01
1
1306-
4
CLIP; FLEX HOSE,CLU CONT
8-97365-304-0
01
1
1306-
4
CLIP; FLEX HOSE,CLU CONT
8-97365-304-0
02
1
1306-
5
HOSE; FLEX,CLU PIPE
(A)
8-97064-108-1
01
1
1306-
5
HOSE; FLEX,CLU PIPE
(B)
8-98083-907-0
01
1
1306-
7
NUT; FLEX HOSE,CLU CONT
M8 FLANGE MAL
0-91180-108-0
01
1
1306-
15
PIPE; CLU,FLEX HOSE
(A) MAL
8-97389-643-0
01
1
1306-1401
15
PIPE; CLU,FLEX HOSE
(A) MAL
8-98250-269-0
01
1
1402-
15
PIPE; CLU,FLEX HOSE
(B) MAL
8-98100-236-0
01
1
1306-
17
BOLT; BRKT
M8X25 FLANGE MAL
0-28650-825-0
01
1
1306-
24
PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T)
8-97389-356-1
01
1
1306-
24
PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) MAL
8-98077-617-0
01
1
1306-
42
BRACKET; FLEX HOSE,CLU CONT
8-98102-893-0
01
1
1306-
128
CLIP; AIR PIPE
ID=12 & 6.35 & 4.76
8-97202-954-1
01
1
1306-
183
HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T)
8-98121-942-0
01
1
1306-
