Isuzu WW
▶
TRUCKS
▶
NPS
▶
51500 - NPS(MALAYSIA)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-03 - CLUTCH PEDAL AND CONTROL
▶
2-03 — CLUTCH PEDAL AND CONTROL
(#125135) — 53 parça
◀
[203A] EXC.POWER ASSIST CLUTCH (26 parça)

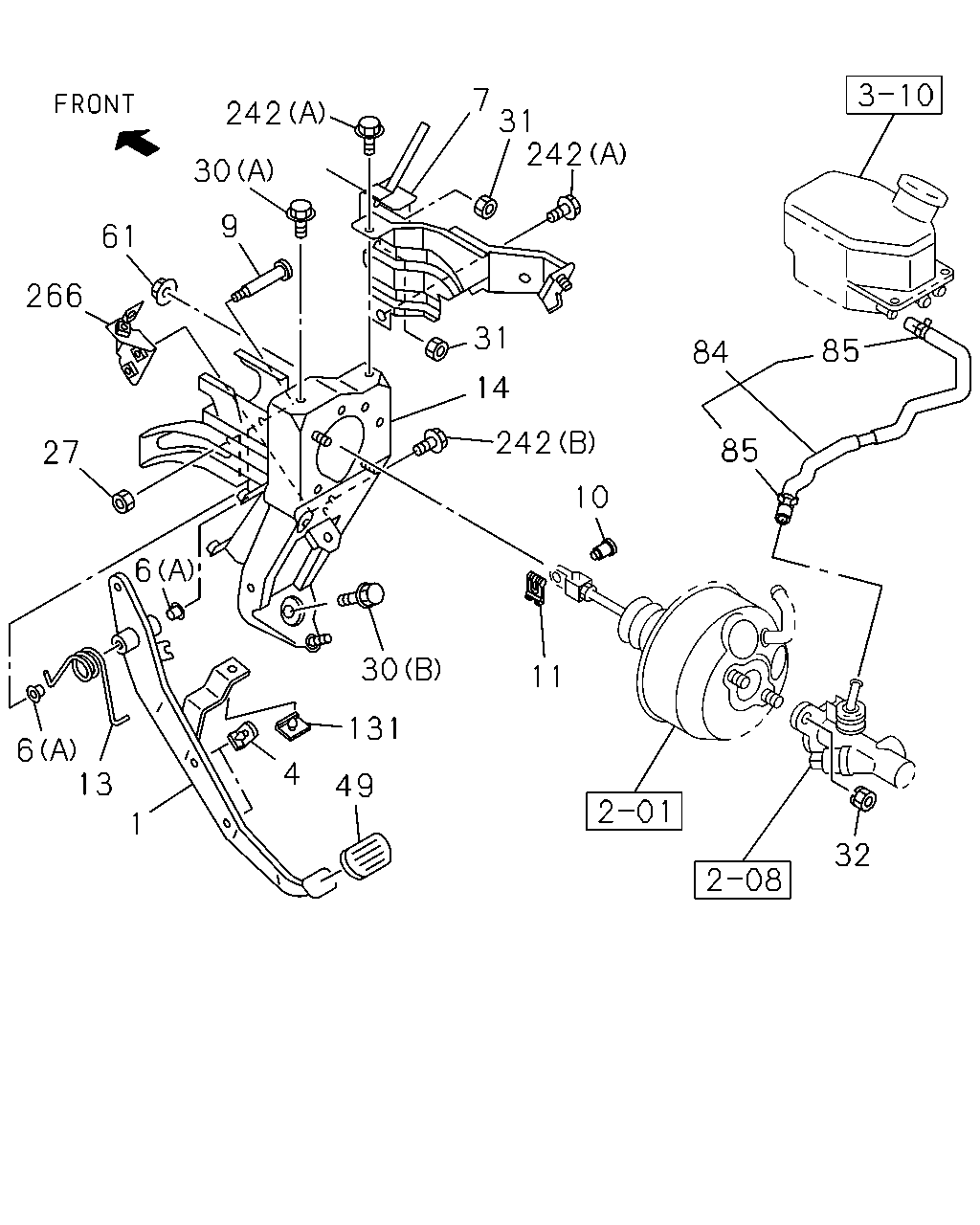

[203A] POWER ASSIST CLUTCH (27 parça)
▶
85
85
84
32
10
11
30
131
49
4
1
6
6
13
6
6
242
27
14
31
266
9
30
242
7
242
31
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PEDAL; CLU
POWER ASSIST CLUTCH(S2T)
8-98074-429-0
01
1
1306-
1
PEDAL; CLU
EXC. POWER ASSIST CLUTCH(S2T)
8-98074-430-0
01
1
1306-
4
STOPPER; CLU PEDAL
MAL
8-97853-534-1
02
1
1306-
6
BUSHING; CLU PEDAL
(A)
8-94238-596-0
02
1
1306-
6
BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (B)
8-97853-619-0
02
1
1306-
6
BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (C)
8-97853-620-0
01
1
1306-
7
BRACKET; CLU PEDAL
8-98029-186-4
01
1
1306-
9
PIN; CLU PEDAL
8-97866-667-0
01
1
1306-
10
PIN; CLU PEDAL
8-98147-657-0
01
1
1306-
11
PIN; SNAP,PUSH ROD TO PEDAL
8-98007-161-0
01
1
1306-
13
SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T)
8-98023-621-1
01
1
1306-
13
SPRING; ASSIST,CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T)
8-98034-014-0
01
1
1306-
14
BRACKET ASM; CLU PEDAL MTG
8-98074-425-0
01
1
1306-
27
NUT; FULCRUM PIN
M10 LOCK NUT FLANGE
0-91380-010-0
01
1
1306-
30
BOLT; CLU MTG BRKT
(A) M10X25 FLANGE MAL
0-28661-025-0
01
1
1306-
30
BOLT; CLU MTG BRKT
(B) M10X22 W/PL WASHER MAL
8-97313-188-0
01
1
1306-
31
NUT; MTG BRKT TO BODY
M8 W/LK WASHER
8-94279-050-0
02
1
1306-
32
NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER
8-94279-050-0
02
1
1306-
49
RUBBER; PAD,CLU PEDAL
MAL
8-97853-413-2
01
1
1306-
84
HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T)
8-98218-205-1
01
1
1306-
84
HOSE; RUBBER,CLU LINE
EXC. POWER ASSIST CLUTCH(S2T)
8-98218-207-1
01
1
1306-
85
CLIP; HOSE TO M/CYL
MAL
8-98168-080-0
02
1
1306-
131
STOPPER; CLU SW
8-97302-305-0
02
1
1306-
242
BOLT; BRKT,CLUTCH
(B) M6X12 FLANGE MAL
0-28050-612-0
02
1
1306-
242
BOLT; BRKT,CLUTCH
(A) M8X16 FLANGE
0-28450-816-0
02
1
1306-
266
BRACKET; CLU SWITCH
8-98079-100-0
01
1
1306-
32
85
84
85
242
10
11
242
14
31
31
7
242
30
61
9
266
27
30
131
49
4
1
13
6
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PEDAL; CLU
POWER ASSIST CLUTCH(S2T)
8-98074-429-0
01
1
1306-
1
PEDAL; CLU
EXC. POWER ASSIST CLUTCH(S2T)
8-98074-430-0
01
1
1306-
4
STOPPER; CLU PEDAL
MAL
8-97853-534-1
02
1
1306-
6
BUSHING; CLU PEDAL
(A)
8-94238-596-0
02
1
1306-
6
BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (B)
8-97853-619-0
02
1
1306-
6
BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (C)
8-97853-620-0
01
1
1306-
7
BRACKET; CLU PEDAL
8-98029-186-4
01
1
1306-
9
PIN; CLU PEDAL
8-97866-667-0
01
1
1306-
10
PIN; CLU PEDAL
8-98147-657-0
01
1
1306-
11
PIN; SNAP,PUSH ROD TO PEDAL
8-98007-161-0
01
1
1306-
13
SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T)
8-98023-621-1
01
1
1306-
13
SPRING; ASSIST,CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T)
8-98034-014-0
01
1
1306-
14
BRACKET ASM; CLU PEDAL MTG
8-98074-425-0
01
1
1306-
27
NUT; FULCRUM PIN
M10 LOCK NUT FLANGE
0-91380-010-0
01
1
1306-
30
BOLT; CLU MTG BRKT
(A) M10X25 FLANGE MAL
0-28661-025-0
01
1
1306-
30
BOLT; CLU MTG BRKT
(B) M10X22 W/PL WASHER MAL
8-97313-188-0
01
1
1306-
31
NUT; MTG BRKT TO BODY
M8 W/LK WASHER
8-94279-050-0
02
1
1306-
32
NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER
8-94279-050-0
02
1
1306-
49
RUBBER; PAD,CLU PEDAL
MAL
8-97853-413-2
01
1
1306-
61
NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH(S2T) M8 W/LK WASHER
8-94279-050-0
04
1
1306-
84
HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T)
8-98218-205-1
01
1
1306-
84
HOSE; RUBBER,CLU LINE
EXC. POWER ASSIST CLUTCH(S2T)
8-98218-207-1
01
1
1306-
85
CLIP; HOSE TO M/CYL
MAL
8-98168-080-0
02
1
1306-
131
STOPPER; CLU SW
8-97302-305-0
02
1
1306-
242
BOLT; BRKT,CLUTCH
(B) M6X12 FLANGE MAL
0-28050-612-0
02
1
1306-
242
BOLT; BRKT,CLUTCH
(A) M8X16 FLANGE
0-28450-816-0
02
1
1306-
266
BRACKET; CLU SWITCH
8-98079-100-0
01
1
1306-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
