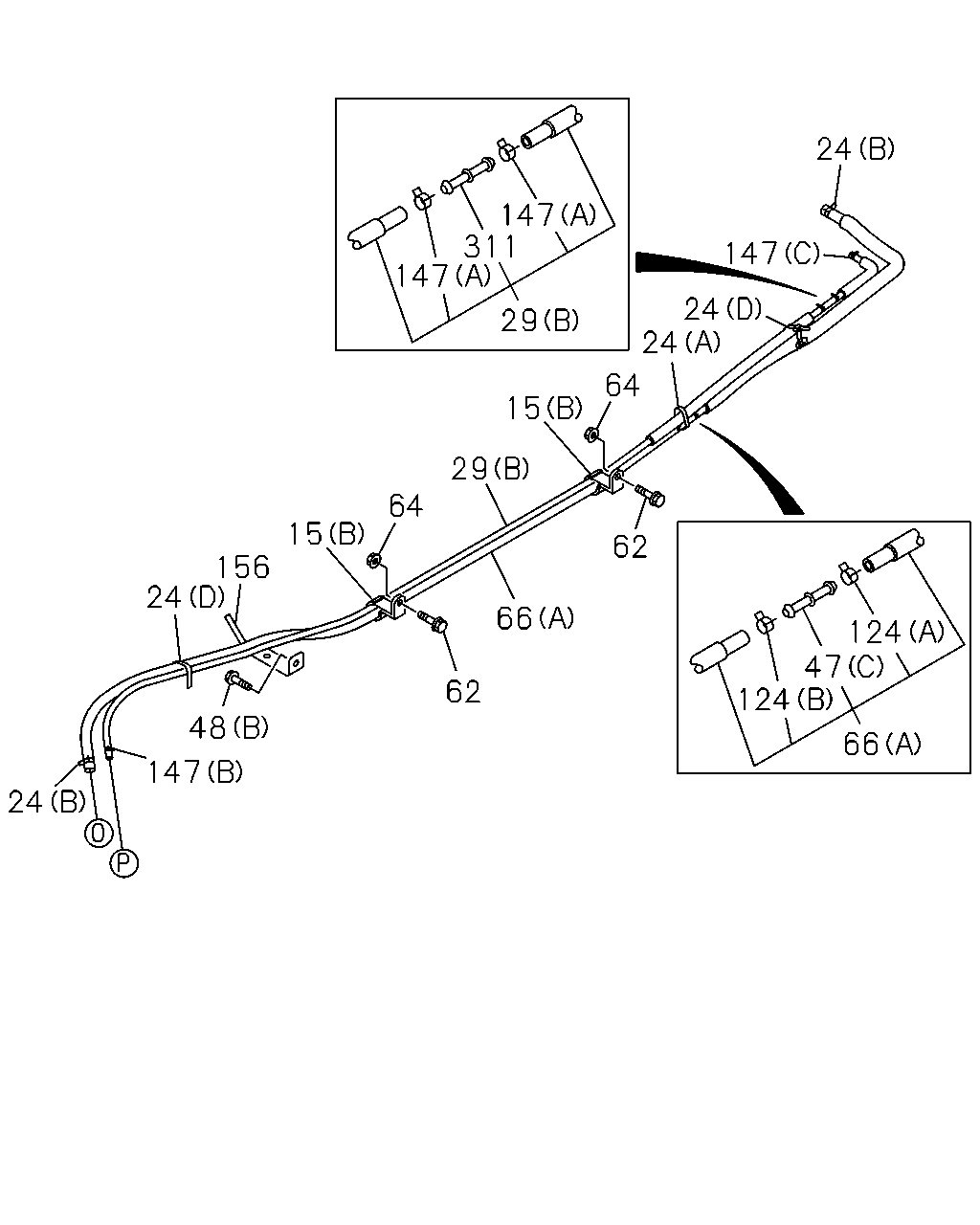

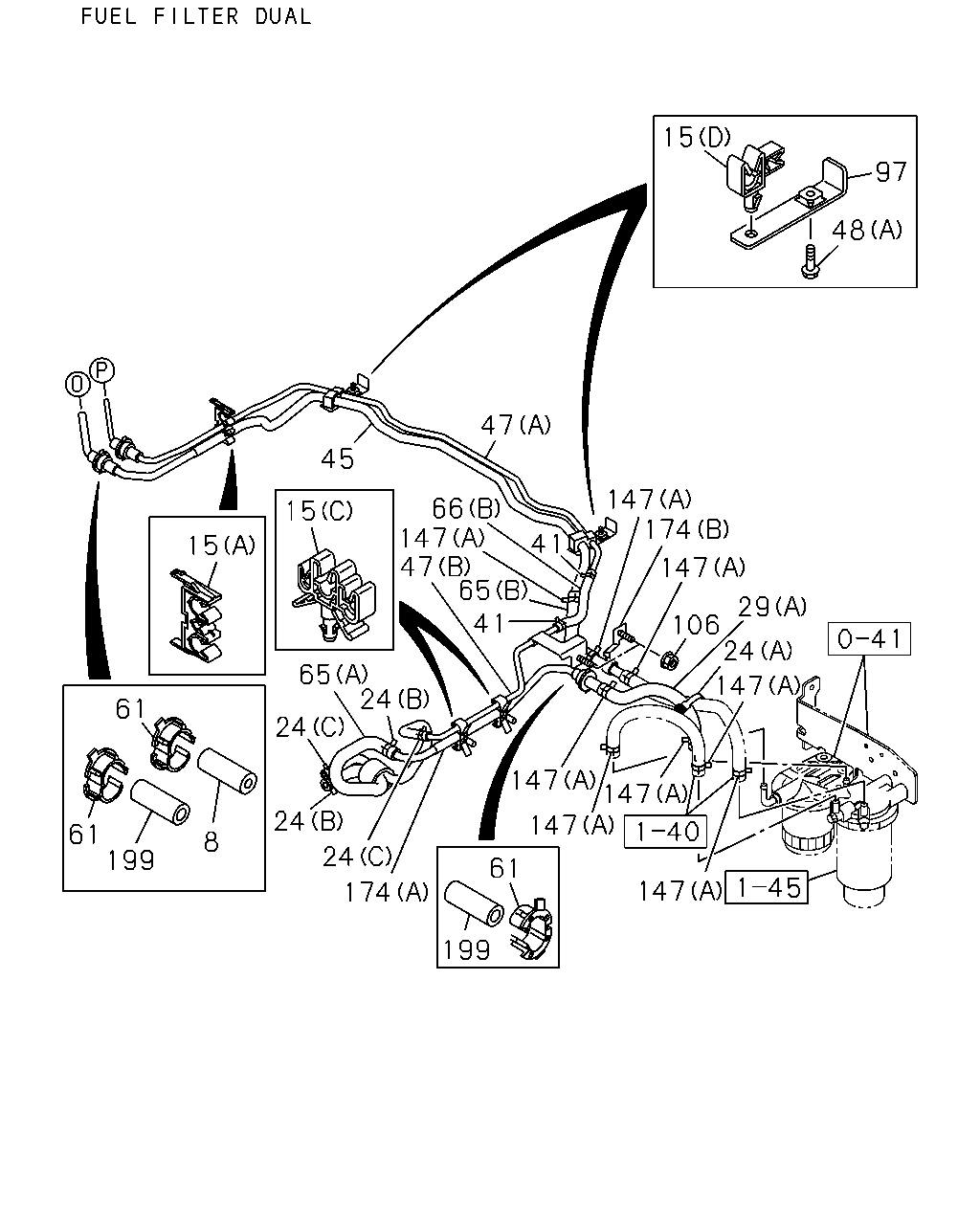

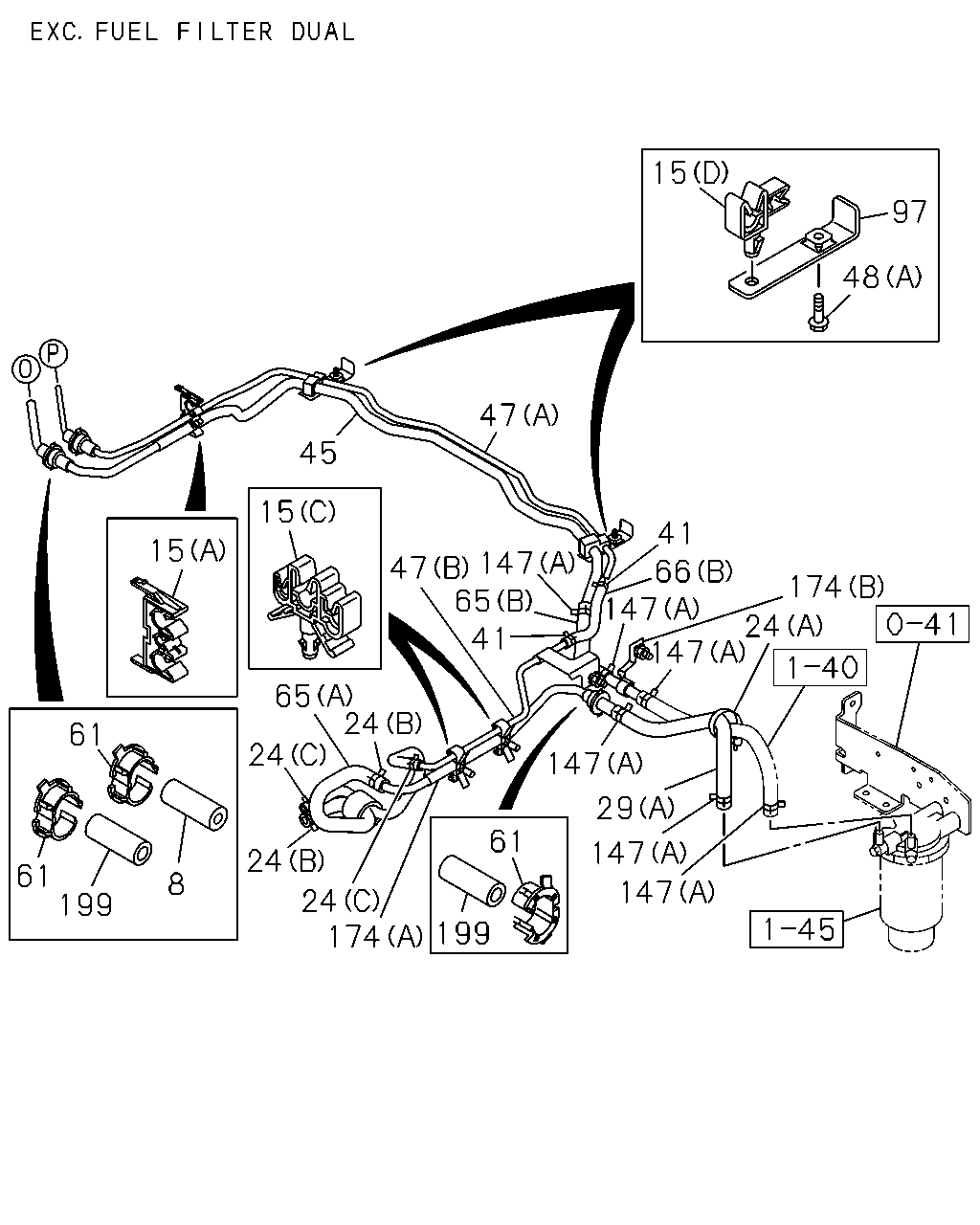

1-41 — FUEL PIPING; CHASSIS (#125129) — 144 parça

45 47 15 15 47 147 41 174 24 147 147 66 147 29 147 147 61 199 174 24 24 24 65 24 41 65 8 199 61 61 15 97 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	RUBBER; MTG OD=17 L=50	8-94157-054-1	01	1	1306-
15	CLIP; FUEL PIPE (C) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	1306-
15	CLIP; FUEL PIPE (D) ID=12 & 6.35	8-97215-437-0	02	1	1306-
15	CLIP; FUEL PIPE (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1306-
15	CLIP; FUEL PIPE (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1306-
15	CLIP; FUEL PIPE (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1306-
24	CLIP; FUEL HOSE (A) L=140 MAL	5-09707-031-1	01	1	1306-
24	CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140 MAL	5-09707-031-1	01	1	1306-
24	CLIP; FUEL HOSE (D) L=170.3	1-09987-182-0	01	1	1306-
24	CLIP; FUEL HOSE (A) L=140 MAL	5-09707-031-1	02	1	1306-
24	CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	04	1	1306-
24	CLIP; FUEL HOSE (C) ID=12	8-98150-358-0	02	1	1306-
29	HOSE; FUEL FUEL FILTER DUAL(S6B) BIO DIESEL FUEL B10<8NV> (A)	8-98299-331-0	01	1	1512-
29	HOSE; FUEL BIO DIESEL FUEL B10<8NV> (B)	8-98120-951-3	01	1	1512-
29	HOSE; FUEL BIO DIESEL FUEL B10<8NV> EXC. FUEL FILTER DUAL(S6B) (A) L=280 SERVICED BY L=3000	0-01859-300-0	01	1	1512-
29	HOSE; FUEL FUEL FILTER DUAL(S6B) (A)	8-98130-342-0	01	1	1306-1511
29	HOSE; FUEL FUEL FILTER DUAL(S6B) EXC. BIO DIESEL FUEL B10<8NV> (A)	8-98130-342-0	01	1	1512-
29	HOSE; FUEL (B)	8-98067-564-4	01	1	1306-1511
29	HOSE; FUEL EXC. BIO DIESEL FUEL B10<8NV> (B)	8-98067-564-4	01	1	1512-
29	HOSE; FUEL EXC. FUEL FILTER DUAL(S6B) (A) L=280 SERVICED BY L=3000	0-01259-300-0	01	1	1306-1511
29	HOSE; FUEL EXC. FUEL FILTER DUAL(S6B),BIO DIESEL FUEL B10<8NV> (A) L=280 SERVICED BY L=3000	0-01259-300-0	01	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK ID=12	8-98150-358-0	02	1	1306-
45	PIPE; FUEL,DELIVERY MAL	8-98113-910-0	01	1	1306-
47	PIPE; FUEL,RETURN (C) L=70	8-98036-483-0	01	1	1306-
47	PIPE; FUEL,RETURN (B) MAL	8-98041-618-1	01	1	1306-
47	PIPE; FUEL,RETURN (A) MAL	8-98113-911-1	01	1	1306-
48	BOLT; BRKT (A) M8X25 FLANGE MAL	0-28650-825-0	02	1	1306-
48	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	1306-
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	01	1	1306-
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	1306-
65	HOSE; FUEL,DELIVERY PIPE BIO DIESEL FUEL B10<8NV> (A)	8-98289-253-0	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE BIO DIESEL FUEL B10<8NV> (B) L=140 SERVICED BY L=3000	0-01859-300-0	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1306-1511
65	HOSE; FUEL,DELIVERY PIPE EXC. BIO DIESEL FUEL B10<8NV> (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE (A)	8-98179-936-0	01	1	1306-1511
65	HOSE; FUEL,DELIVERY PIPE EXC. BIO DIESEL FUEL B10<8NV> (A)	8-98179-936-0	01	1	1512-
66	HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	1306-
66	HOSE; FUEL,RETURN PIPE (A)	8-98067-567-2	01	1	1306-
97	BRACKET; CLIP	8-98057-653-0	02	1	1306-
147	CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL(S6B) (A) ID=16	8-98008-098-0	02	1	1306-
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1306-
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1306-
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1306-
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1306-
147	CLIP; FUEL PIPE TO HOSE (C) ID=13	8-98150-357-0	01	1	1306-
147	CLIP; FUEL PIPE TO HOSE (B) ID=12	8-98150-358-0	01	1	1306-
174	PIPE; FUEL,FEED,FRT (A) MAL	8-98033-844-1	01	1	1306-
174	PIPE; FUEL,FEED,FRT (B) MAL	8-98041-616-0	01	1	1306-
199	PROTECTOR; FUEL PIPE OD=15 L=50	8-97077-629-0	01	1	1306-
199	PROTECTOR; FUEL PIPE OD=15 L=50	8-97077-629-0	01	1	1306-

24 147 24 24 64 15 29 66 62 15 156 24 147 48 62 147 147 311 124 124 47 66 29 64 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	CLIP; FUEL PIPE (C) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	1306-
15	CLIP; FUEL PIPE (D) ID=12 & 6.35	8-97215-437-0	02	1	1306-
15	CLIP; FUEL PIPE (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1306-
15	CLIP; FUEL PIPE (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1306-
15	CLIP; FUEL PIPE (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1306-
24	CLIP; FUEL HOSE (A) L=140 MAL	5-09707-031-1	01	1	1306-
24	CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140 MAL	5-09707-031-1	01	1	1306-
24	CLIP; FUEL HOSE (D) L=170.3	1-09987-182-0	01	1	1306-
24	CLIP; FUEL HOSE (A) L=140 MAL	5-09707-031-1	02	1	1306-
24	CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	04	1	1306-
24	CLIP; FUEL HOSE (C) ID=12	8-98150-358-0	02	1	1306-
29	HOSE; FUEL FUEL FILTER DUAL(S6B) BIO DIESEL FUEL B10<8NV> (A)	8-98299-331-0	01	1	1512-
29	HOSE; FUEL BIO DIESEL FUEL B10<8NV> (B)	8-98120-951-3	01	1	1512-
29	HOSE; FUEL BIO DIESEL FUEL B10<8NV> EXC. FUEL FILTER DUAL(S6B) (A) L=280 SERVICED BY L=3000	0-01859-300-0	01	1	1512-
29	HOSE; FUEL FUEL FILTER DUAL(S6B) (A)	8-98130-342-0	01	1	1306-1511
29	HOSE; FUEL FUEL FILTER DUAL(S6B) EXC. BIO DIESEL FUEL B10<8NV> (A)	8-98130-342-0	01	1	1512-
29	HOSE; FUEL (B)	8-98067-564-4	01	1	1306-1511
29	HOSE; FUEL EXC. BIO DIESEL FUEL B10<8NV> (B)	8-98067-564-4	01	1	1512-
29	HOSE; FUEL EXC. FUEL FILTER DUAL(S6B) (A) L=280 SERVICED BY L=3000	0-01259-300-0	01	1	1306-1511
29	HOSE; FUEL EXC. FUEL FILTER DUAL(S6B),BIO DIESEL FUEL B10<8NV> (A) L=280 SERVICED BY L=3000	0-01259-300-0	01	1	1512-
47	PIPE; FUEL,RETURN (C) L=70	8-98036-483-0	01	1	1306-
47	PIPE; FUEL,RETURN (B) MAL	8-98041-618-1	01	1	1306-
47	PIPE; FUEL,RETURN (A) MAL	8-98113-911-1	01	1	1306-
48	BOLT; BRKT (A) M8X25 FLANGE MAL	0-28650-825-0	02	1	1306-
48	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	1306-
62	BOLT; CLIP FIX M8X25 FLANGE MAL	0-28650-825-0	01	1	1306-
62	BOLT; CLIP FIX M8X25 FLANGE MAL	0-28650-825-0	01	1	1306-
64	NUT; CLIP M8 FLANGE MAL	0-91180-108-0	01	1	1306-
64	NUT; CLIP M8 FLANGE MAL	0-91180-108-0	01	1	1306-
66	HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	1306-
66	HOSE; FUEL,RETURN PIPE (A)	8-98067-567-2	01	1	1306-
124	CLIP; HOSE (A) ID=13	8-98150-357-0	01	1	1306-
124	CLIP; HOSE (B) ID=12	8-98150-358-0	01	1	1306-
147	CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL(S6B) (A) ID=16	8-98008-098-0	02	1	1306-
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1306-
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1306-
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1306-
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1306-
147	CLIP; FUEL PIPE TO HOSE (C) ID=13	8-98150-357-0	01	1	1306-
147	CLIP; FUEL PIPE TO HOSE (B) ID=12	8-98150-358-0	01	1	1306-
156	BRACKET; FUEL HOSE	8-98041-250-2	01	1	1306-
311	JOINT; HOSE	8-97353-668-0	01	1	1306-

45 147 147 106 47 24 24 65 24 174 147 147 147 147 29 66 147 47 41 147 24 41 65 174 24 15 15 61 8 199 61 61 199 15 97 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	RUBBER; MTG OD=17 L=50	8-94157-054-1	01	1	1306-
15	CLIP; FUEL PIPE (C) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	1306-
15	CLIP; FUEL PIPE (D) ID=12 & 6.35	8-97215-437-0	02	1	1306-
15	CLIP; FUEL PIPE (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1306-
15	CLIP; FUEL PIPE (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1306-
15	CLIP; FUEL PIPE (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1306-
24	CLIP; FUEL HOSE (A) L=140 MAL	5-09707-031-1	01	1	1306-
24	CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140 MAL	5-09707-031-1	01	1	1306-
24	CLIP; FUEL HOSE (D) L=170.3	1-09987-182-0	01	1	1306-
24	CLIP; FUEL HOSE (A) L=140 MAL	5-09707-031-1	02	1	1306-
24	CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	04	1	1306-
24	CLIP; FUEL HOSE (C) ID=12	8-98150-358-0	02	1	1306-
29	HOSE; FUEL FUEL FILTER DUAL(S6B) BIO DIESEL FUEL B10<8NV> (A)	8-98299-331-0	01	1	1512-
29	HOSE; FUEL BIO DIESEL FUEL B10<8NV> (B)	8-98120-951-3	01	1	1512-
29	HOSE; FUEL BIO DIESEL FUEL B10<8NV> EXC. FUEL FILTER DUAL(S6B) (A) L=280 SERVICED BY L=3000	0-01859-300-0	01	1	1512-
29	HOSE; FUEL FUEL FILTER DUAL(S6B) (A)	8-98130-342-0	01	1	1306-1511
29	HOSE; FUEL FUEL FILTER DUAL(S6B) EXC. BIO DIESEL FUEL B10<8NV> (A)	8-98130-342-0	01	1	1512-
29	HOSE; FUEL (B)	8-98067-564-4	01	1	1306-1511
29	HOSE; FUEL EXC. BIO DIESEL FUEL B10<8NV> (B)	8-98067-564-4	01	1	1512-
29	HOSE; FUEL EXC. FUEL FILTER DUAL(S6B) (A) L=280 SERVICED BY L=3000	0-01259-300-0	01	1	1306-1511
29	HOSE; FUEL EXC. FUEL FILTER DUAL(S6B),BIO DIESEL FUEL B10<8NV> (A) L=280 SERVICED BY L=3000	0-01259-300-0	01	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK ID=12	8-98150-358-0	02	1	1306-
45	PIPE; FUEL,DELIVERY MAL	8-98113-910-0	01	1	1306-
47	PIPE; FUEL,RETURN (C) L=70	8-98036-483-0	01	1	1306-
47	PIPE; FUEL,RETURN (B) MAL	8-98041-618-1	01	1	1306-
47	PIPE; FUEL,RETURN (A) MAL	8-98113-911-1	01	1	1306-
48	BOLT; BRKT (A) M8X25 FLANGE MAL	0-28650-825-0	02	1	1306-
48	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	1306-
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	01	1	1306-
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	1306-
65	HOSE; FUEL,DELIVERY PIPE BIO DIESEL FUEL B10<8NV> (A)	8-98289-253-0	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE BIO DIESEL FUEL B10<8NV> (B) L=140 SERVICED BY L=3000	0-01859-300-0	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1306-1511
65	HOSE; FUEL,DELIVERY PIPE EXC. BIO DIESEL FUEL B10<8NV> (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1512-
65	HOSE; FUEL,DELIVERY PIPE (A)	8-98179-936-0	01	1	1306-1511
65	HOSE; FUEL,DELIVERY PIPE EXC. BIO DIESEL FUEL B10<8NV> (A)	8-98179-936-0	01	1	1512-
66	HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	1306-
66	HOSE; FUEL,RETURN PIPE (A)	8-98067-567-2	01	1	1306-
97	BRACKET; CLIP	8-98057-653-0	02	1	1306-
106	NUT; FUEL PIPE M10 FLANGE MAL	0-91180-110-0	01	1	1306-
106	NUT; FUEL PIPE M10 FLANGE MAL	0-91180-110-0	01	1	1306-
147	CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL(S6B) (A) ID=16	8-98008-098-0	02	1	1306-
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1306-
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1306-
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1306-
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1306-
147	CLIP; FUEL PIPE TO HOSE (C) ID=13	8-98150-357-0	01	1	1306-
147	CLIP; FUEL PIPE TO HOSE (B) ID=12	8-98150-358-0	01	1	1306-
174	PIPE; FUEL,FEED,FRT (A) MAL	8-98033-844-1	01	1	1306-
174	PIPE; FUEL,FEED,FRT (B) MAL	8-98041-616-0	01	1	1306-
199	PROTECTOR; FUEL PIPE OD=15 L=50	8-97077-629-0	01	1	1306-
199	PROTECTOR; FUEL PIPE OD=15 L=50	8-97077-629-0	01	1	1306-
