1-11 — RADIATOR HOSE AND SUB TANK
(#125125) — 13 parça
◀

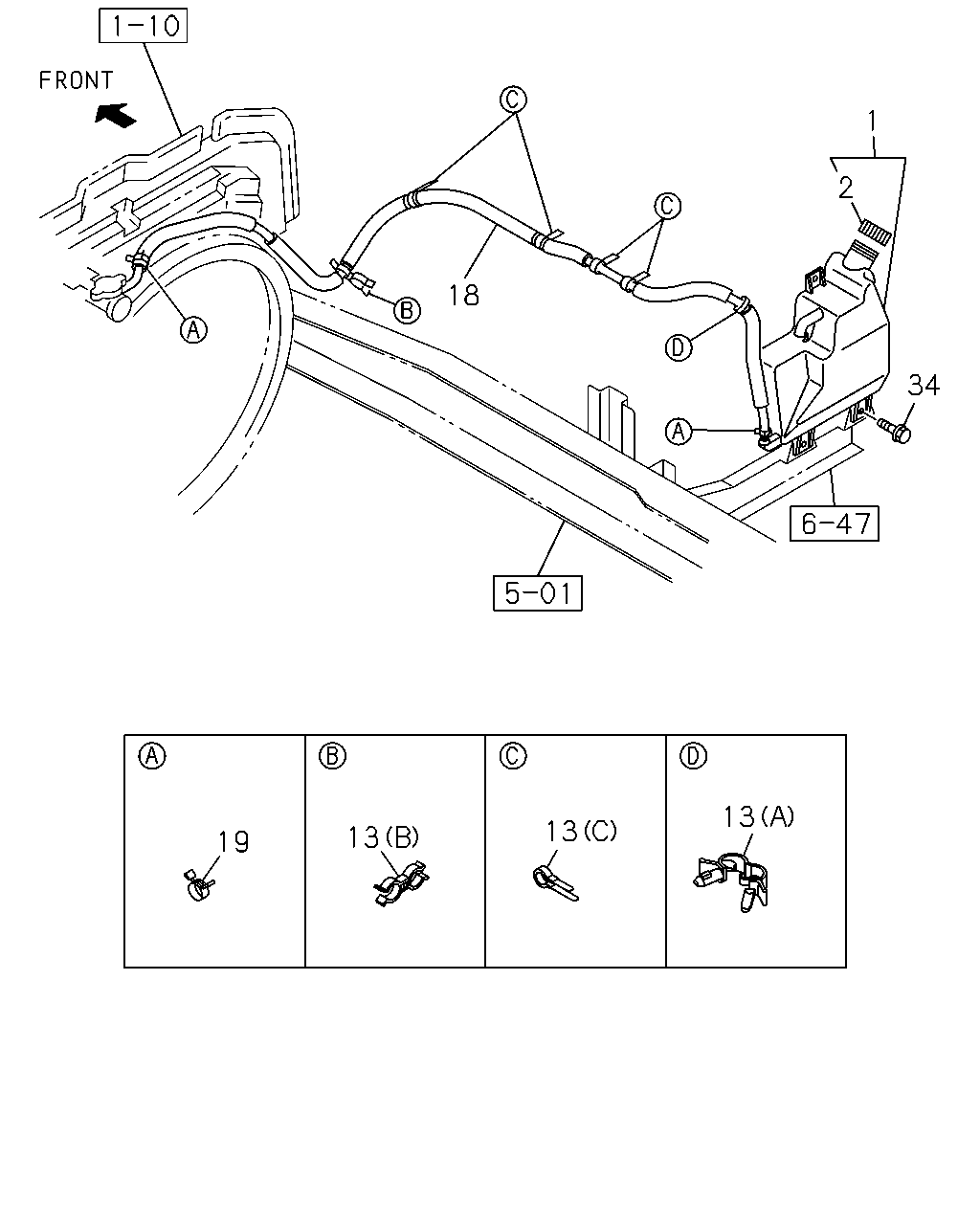

[111A] SURGE TANK (8 parça)

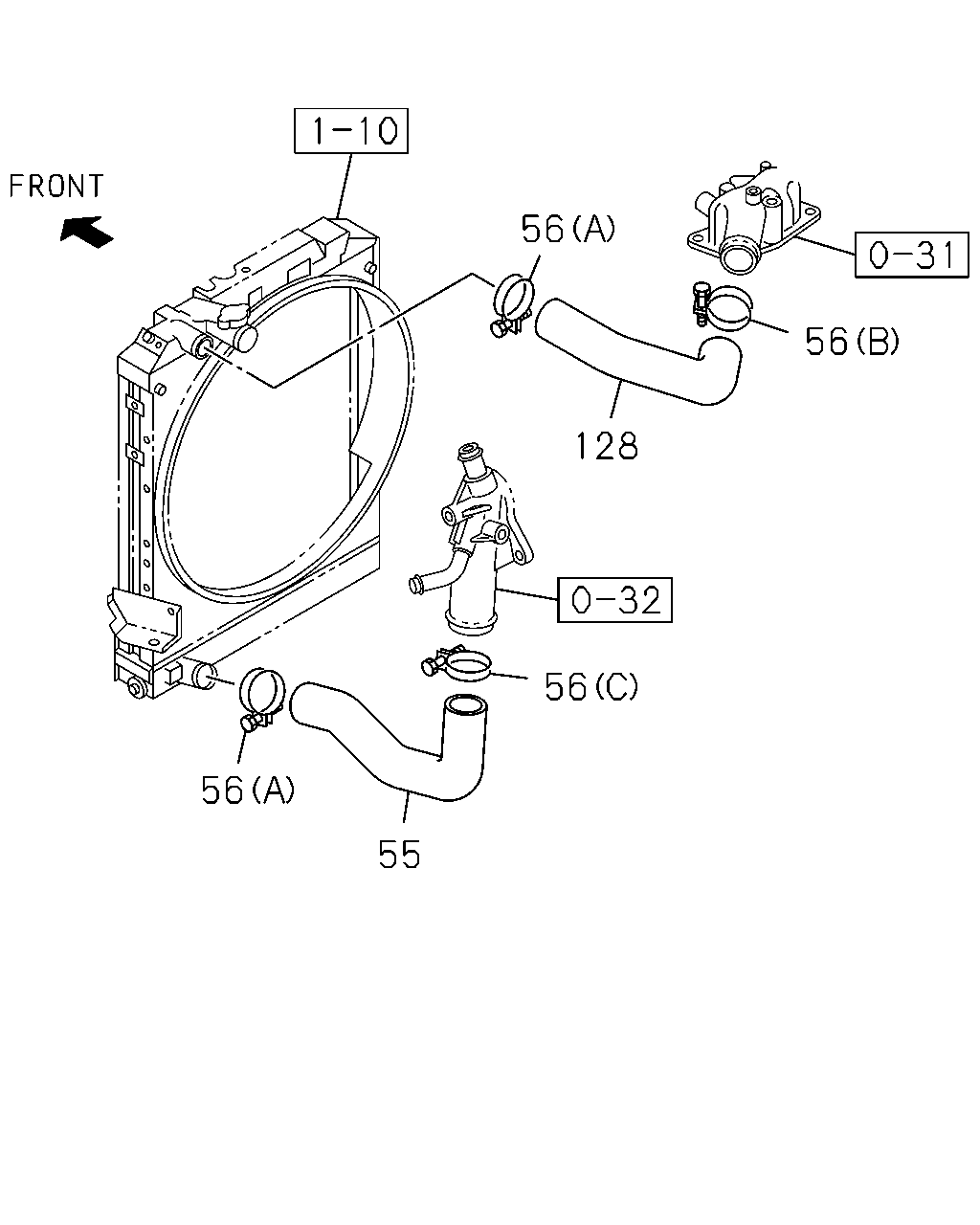

[111A] RADIATOR HOSE (5 parça)
▶
18
34
2
1
13
13
13
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; SURGE,RAD
8-98178-179-0
01
1
1306-
2
CAP; SURGE TANK
MAL
8-98178-074-0
01
1
1306-
13
CLIP; HOSE,SURGE TANK
(A) ID=13-18 L=14.5
1-09709-290-0
01
1
1306-
13
CLIP; HOSE,SURGE TANK
(C) ID=14 L=47 MAL
5-09700-319-0
04
1
1306-
13
CLIP; HOSE,SURGE TANK
(B) ID=10 & 11
8-94438-996-0
01
1
1306-
18
HOSE; RAD TO SURGE TANK
L=1660
8-98095-672-0
01
1
1306-
19
CLIP; HOSE,SURGE TANK
ID=12
8-98150-358-0
02
1
1306-
34
BOLT; RESERVE TANK
M8X22 W/LK&PL WASHER
1-09030-042-0
03
1
1306-
56
128
56
56
55
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
55
HOSE; WATER,RAD OUTLET
MAL
8-98095-579-0
01
1
1306-
56
CLIP; WATER HOSE,RAD
(A) ID=52
1-09704-057-0
01
1
1306-
56
CLIP; WATER HOSE,RAD
(B) ID=48
8-98133-956-0
02
1
1306-
56
CLIP; WATER HOSE,RAD
(C) ID=62
8-98133-957-0
01
1
1306-
128
HOSE; WATER,RAD INL
8-98095-578-0
01
1
1306-
