Sayfa 8-15 - Isuzu EPC

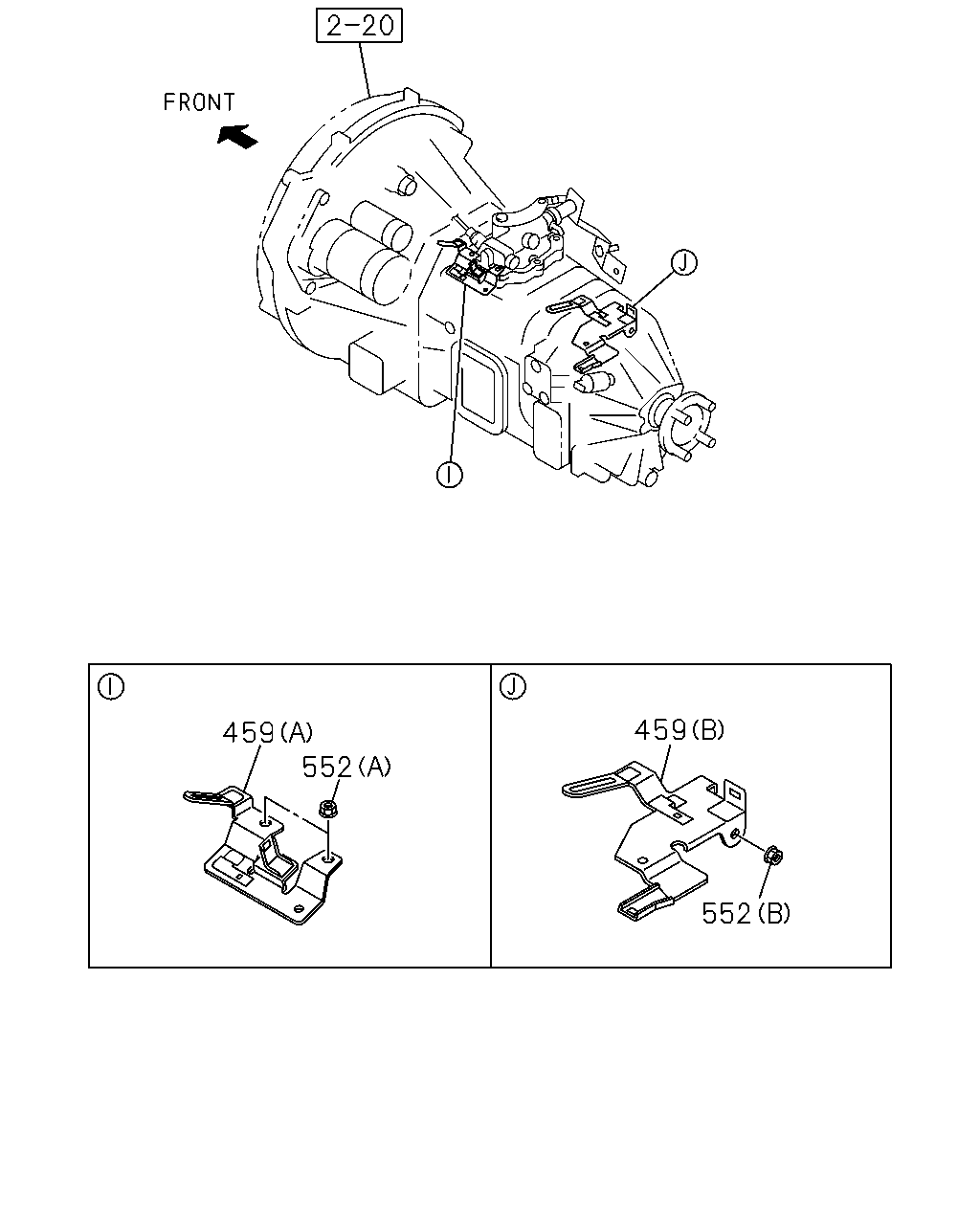

459 552 459 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
459	02.483 BRACKET; SUPPORT,HARNESS (A)	8-98020-227-3	01	1	1307-
459	02.483 BRACKET; SUPPORT,HARNESS (B)	8-98196-974-0	01	1	1307-
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1307-
552	02.483 NUT; BRKT,HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1307-
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1307-
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1307-

483 483 483 570 48 16 16 14 102 102 16 488

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	02.559 CLIP; BAND,HARNESS GLOW SYSTEM DELETE<7RK> GENERATOR 24V60A(KG2),GENERATOR 24V80A(7YN) 03.162 L=140	5-09707-031-1	01	1	1502-
16	02.559 CLIP; HARNESS RR BODY FLAT BED(RS6) 02.587 (I) L=112	8-94232-618-0	05	1	1307-
16	02.559 CLIP; HARNESS 04.930 (E) L=91 ID=8.5	8-94329-956-0	01	1	1307-
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1307-
16	02.559 CLIP; HARNESS 03.483 (B)	8-97101-436-0	01	1	1307-
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1307-
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1307-
16	02.559 CLIP; HARNESS 16.578 (G) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1307-
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1307-
16	02.559 CLIP; HARNESS EXC. RR BODY FLAT BED(RS6) (H) L=250	5-09707-030-1	01	1	1307-
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W) 01.240 (B) ID=14 L=47	5-09700-319-0	03	1	1307-
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (B) ID=14 L=47	5-09700-319-0	05	1	1307-
48	02.559 CLIP; FRAME HARNESS 03.483 (C) L=450	1-09707-142-1	01	1	1307-
48	02.559 CLIP; FRAME HARNESS 03.430 (A) ID=10 & 16.5	8-94424-440-0	01	1	1307-
102	02.559 CLIP; BAND 04.342 (B) L=197	1-83574-032-0	03	1	1307-
102	02.559 CLIP; BAND 03.162 (A) L=140	5-09707-031-1	03	1	1307-
483	02.559 CLIP; ENG HARNESS (C) ID=19 L=60	0-95235-896-0	01	1	1307-
483	02.559 CLIP; ENG HARNESS (B) ID=28 L=40	1-09701-261-0	01	1	1307-
483	02.559 CLIP; ENG HARNESS 01.152 (E) L=36	8-94224-891-1	02	1	1307-
483	02.559 CLIP; ENG HARNESS 03.671 (D) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1307-
483	02.559 CLIP; ENG HARNESS (A) ID=21 L=24	8-98019-191-0	01	1	1307-
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	1307-
570	02.559 CLIP; HARNESS,PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1307-

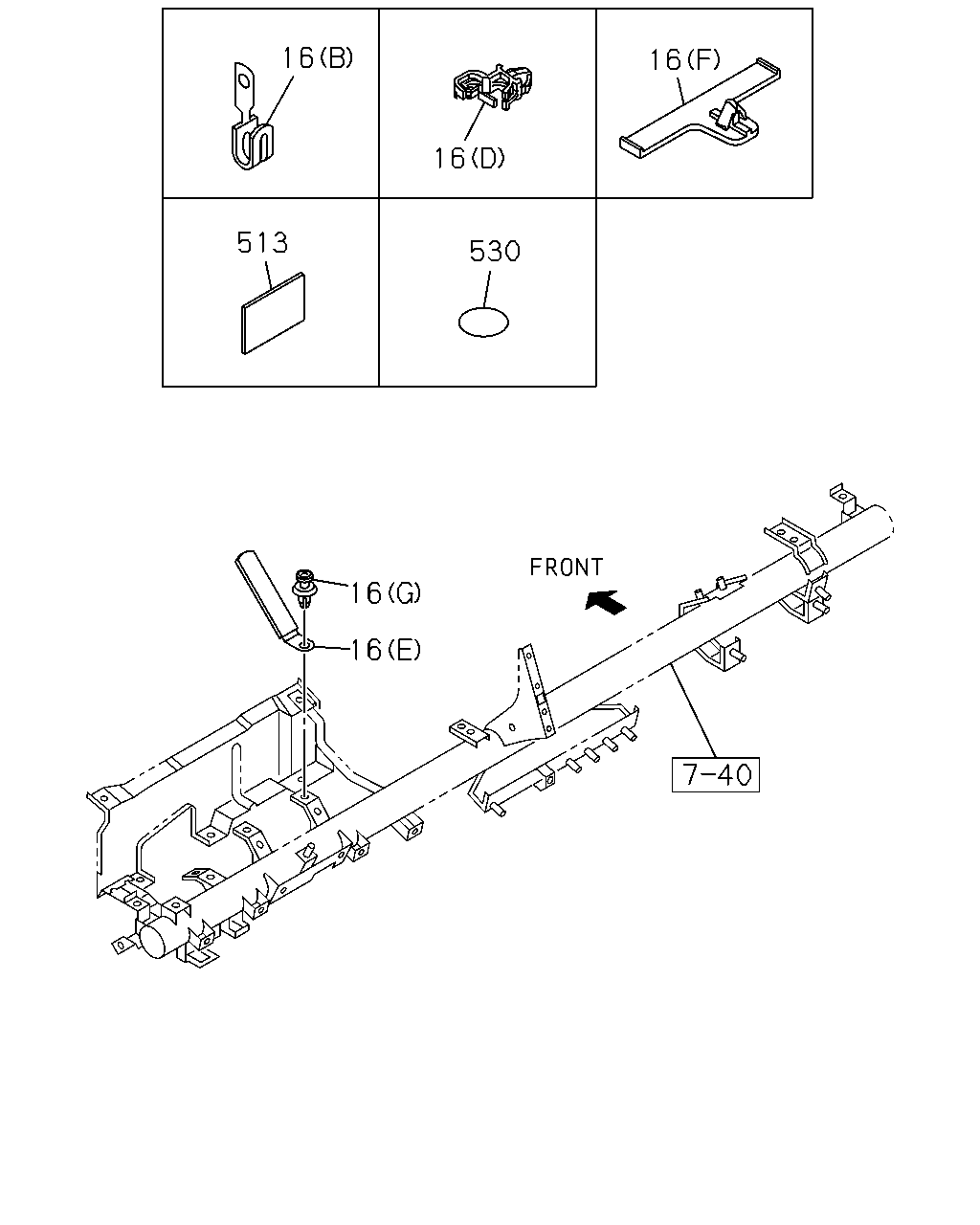

16 16 16 513 530 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS RR BODY FLAT BED(RS6) 02.587 (I) L=112	8-94232-618-0	05	1	1307-
16	02.559 CLIP; HARNESS 04.930 (E) L=91 ID=8.5	8-94329-956-0	01	1	1307-
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1307-
16	02.559 CLIP; HARNESS 03.483 (B)	8-97101-436-0	01	1	1307-
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1307-
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1307-
16	02.559 CLIP; HARNESS 16.578 (G) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1307-
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1307-
16	02.559 CLIP; HARNESS EXC. RR BODY FLAT BED(RS6) (H) L=250	5-09707-030-1	01	1	1307-
513	02.559 TAPE; SOFT,HARNESS 130X80	8-97304-373-0	01	1	1307-
513	02.559 TAPE; SOFT,HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 130X80	8-97304-373-0	01	1	1307-
530	02.559 SEAL; HARNESS 16.545 OD=32 BLACK	8-98031-126-0	01	1	1307-

516 150 139 313 481 529 86 480 150 481 139 38 139 480 377 377 386 386 24 515 552 552 515 24 294 515 577 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.559 NUT; HARNESS 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1307-1409
24	02.559 NUT; HARNESS (A) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-
24	02.559 NUT; HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1307-
38	02.559 BOLT; CLIP,HARNESS PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1307-
86	02.559 BOLT; CLIP BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1307-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1307-
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1307-
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	1307-
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1307-
150	02.343 BOLT; CLIP 03.671 (B) M6X10 FLANGE	0-28050-610-0	01	1	1307-
150	02.343 BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	03	1	1307-
294	02.559 NUT 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	1307-
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1307-
377	02.559 BOLT; CAB EARTH 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1307-
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1307-
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1307-
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1307-
480	02.483 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1307-
480	02.483 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	1307-
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1307-
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 04.665 (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	1307-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1307-
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1307-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1307-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1307-
516	02.559 BOLT; HARNESS 09.650 M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1307-
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1307-
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1307-
552	02.483 NUT; BRKT,HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1307-
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1307-
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1307-
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1307-

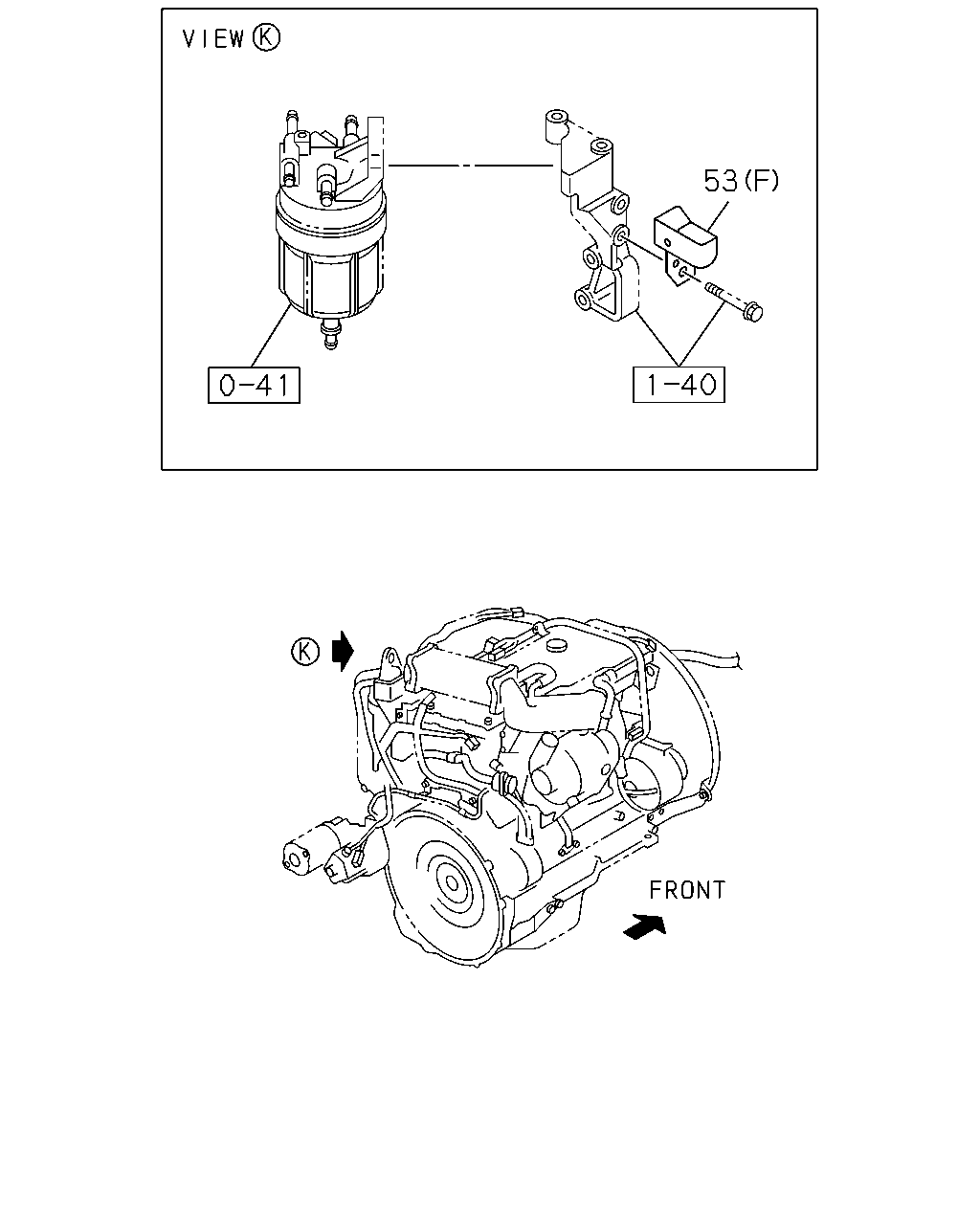

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	02.483 BRACKET; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-98074-502-0	01	1	1307-
53	02.483 BRACKET; HARNESS 02.559 (F)	8-98052-804-0	01	1	1307-
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1307-
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1307-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1307-
53	02.483 BRACKET; HARNESS (I)	8-98077-504-0	01	1	1307-
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1307-
53	02.483 BRACKET; HARNESS (B)	8-98130-669-1	01	1	1307-
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (H)	8-98084-699-0	01	1	1307-

48 483 16 48 16 572 483 483

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS RR BODY FLAT BED(RS6) 02.587 (I) L=112	8-94232-618-0	05	1	1307-
16	02.559 CLIP; HARNESS 04.930 (E) L=91 ID=8.5	8-94329-956-0	01	1	1307-
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1307-
16	02.559 CLIP; HARNESS 03.483 (B)	8-97101-436-0	01	1	1307-
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1307-
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1307-
16	02.559 CLIP; HARNESS 16.578 (G) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1307-
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1307-
16	02.559 CLIP; HARNESS EXC. RR BODY FLAT BED(RS6) (H) L=250	5-09707-030-1	01	1	1307-
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W) 01.240 (B) ID=14 L=47	5-09700-319-0	03	1	1307-
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (B) ID=14 L=47	5-09700-319-0	05	1	1307-
48	02.559 CLIP; FRAME HARNESS 03.483 (C) L=450	1-09707-142-1	01	1	1307-
48	02.559 CLIP; FRAME HARNESS 03.430 (A) ID=10 & 16.5	8-94424-440-0	01	1	1307-
483	02.559 CLIP; ENG HARNESS (C) ID=19 L=60	0-95235-896-0	01	1	1307-
483	02.559 CLIP; ENG HARNESS (B) ID=28 L=40	1-09701-261-0	01	1	1307-
483	02.559 CLIP; ENG HARNESS 01.152 (E) L=36	8-94224-891-1	02	1	1307-
483	02.559 CLIP; ENG HARNESS 03.671 (D) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1307-
483	02.559 CLIP; ENG HARNESS (A) ID=21 L=24	8-98019-191-0	01	1	1307-
572	02.559 CLIP; HARNESS,SPD SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> ID=11 L=20	0-95235-035-0	02	1	1307-

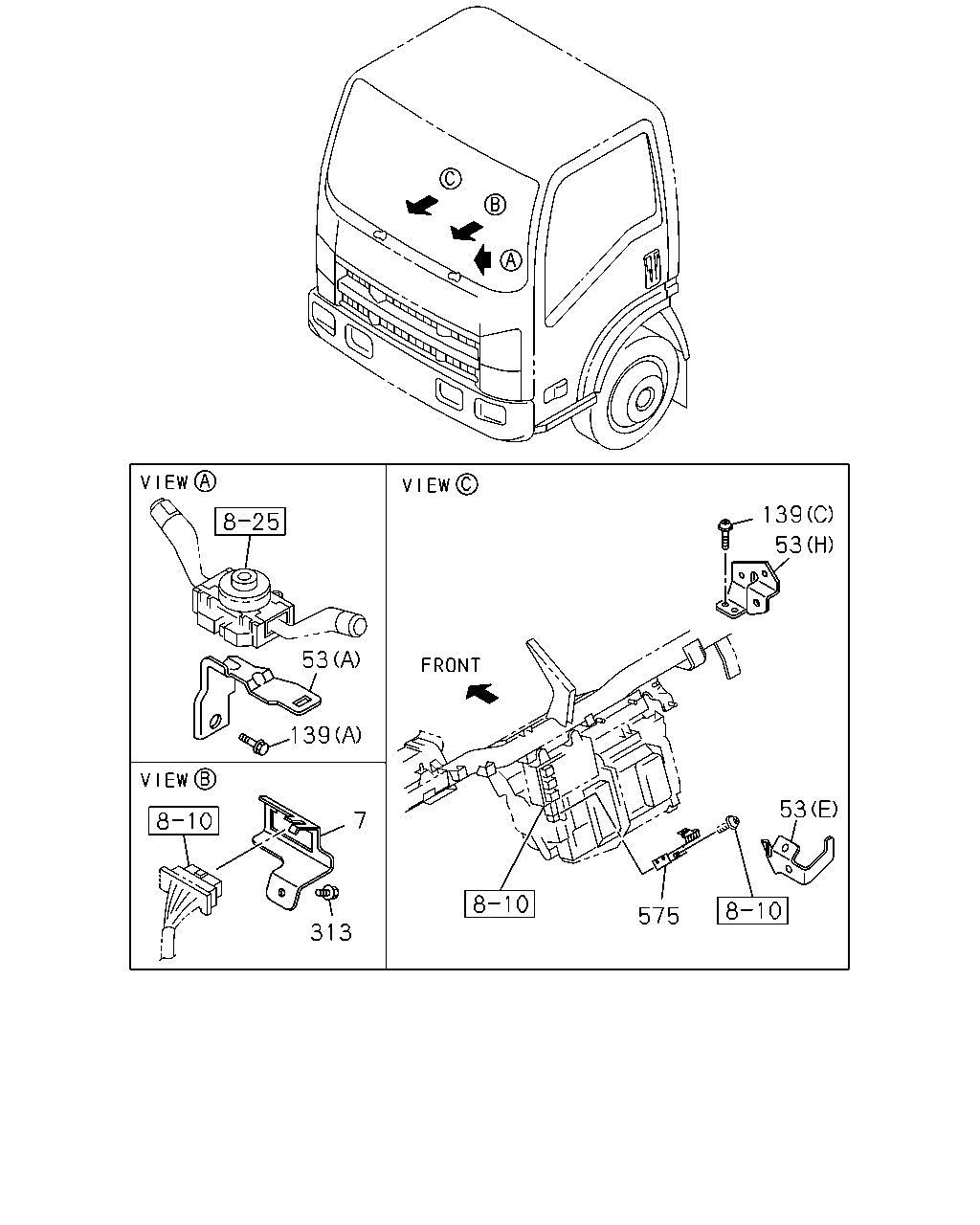

53 139 7 313 139 53 53 575

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	02.559 BRACKET; CONNECTOR	8-98043-070-1	01	1	1307-
53	02.483 BRACKET; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-98074-502-0	01	1	1307-
53	02.483 BRACKET; HARNESS 02.559 (F)	8-98052-804-0	01	1	1307-
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1307-
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1307-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1307-
53	02.483 BRACKET; HARNESS (I)	8-98077-504-0	01	1	1307-
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1307-
53	02.483 BRACKET; HARNESS (B)	8-98130-669-1	01	1	1307-
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (H)	8-98084-699-0	01	1	1307-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1307-
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1307-
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	1307-
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1307-
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1307-
575	02.559 BRACKET; FUSE BOX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98054-320-2	01	1	1307-
575	02.559 BRACKET; FUSE BOX EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98132-932-1	01	1	1307-

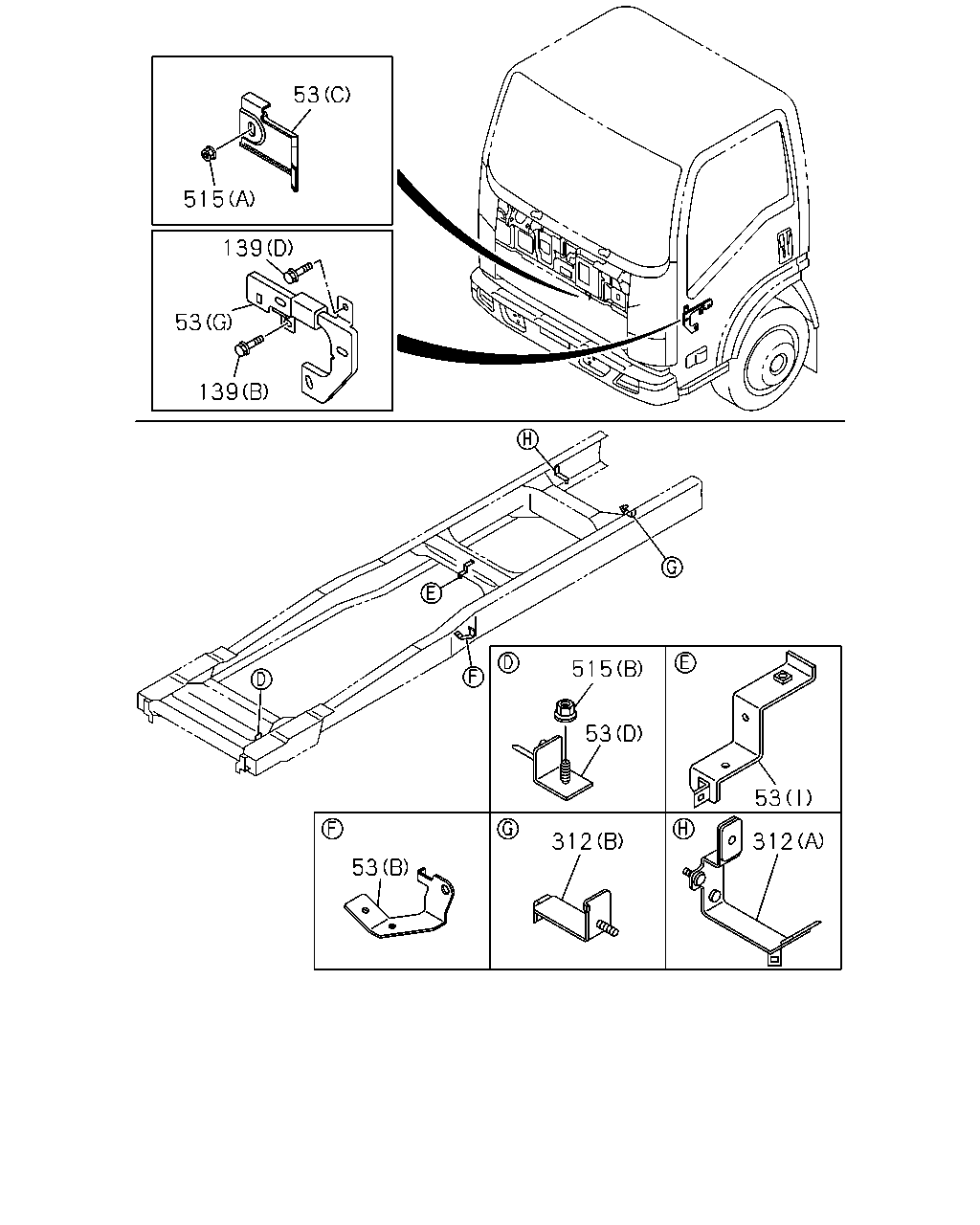

53 515 53 139 515 53 312 53 312 53 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	02.483 BRACKET; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-98074-502-0	01	1	1307-
53	02.483 BRACKET; HARNESS 02.559 (F)	8-98052-804-0	01	1	1307-
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1307-
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1307-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1307-
53	02.483 BRACKET; HARNESS (I)	8-98077-504-0	01	1	1307-
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1307-
53	02.483 BRACKET; HARNESS (B)	8-98130-669-1	01	1	1307-
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (H)	8-98084-699-0	01	1	1307-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1307-
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1307-
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	1307-
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1307-
312	02.559 BRACKET; CLIP HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98202-865-0	01	1	1307-
312	02.559 BRACKET; CLIP HARNESS (A)	8-98202-866-0	01	1	1307-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1307-
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1307-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1307-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1307-
