8-10 — WIRING HARNESS AND FUSE (#125122) — 137 parça

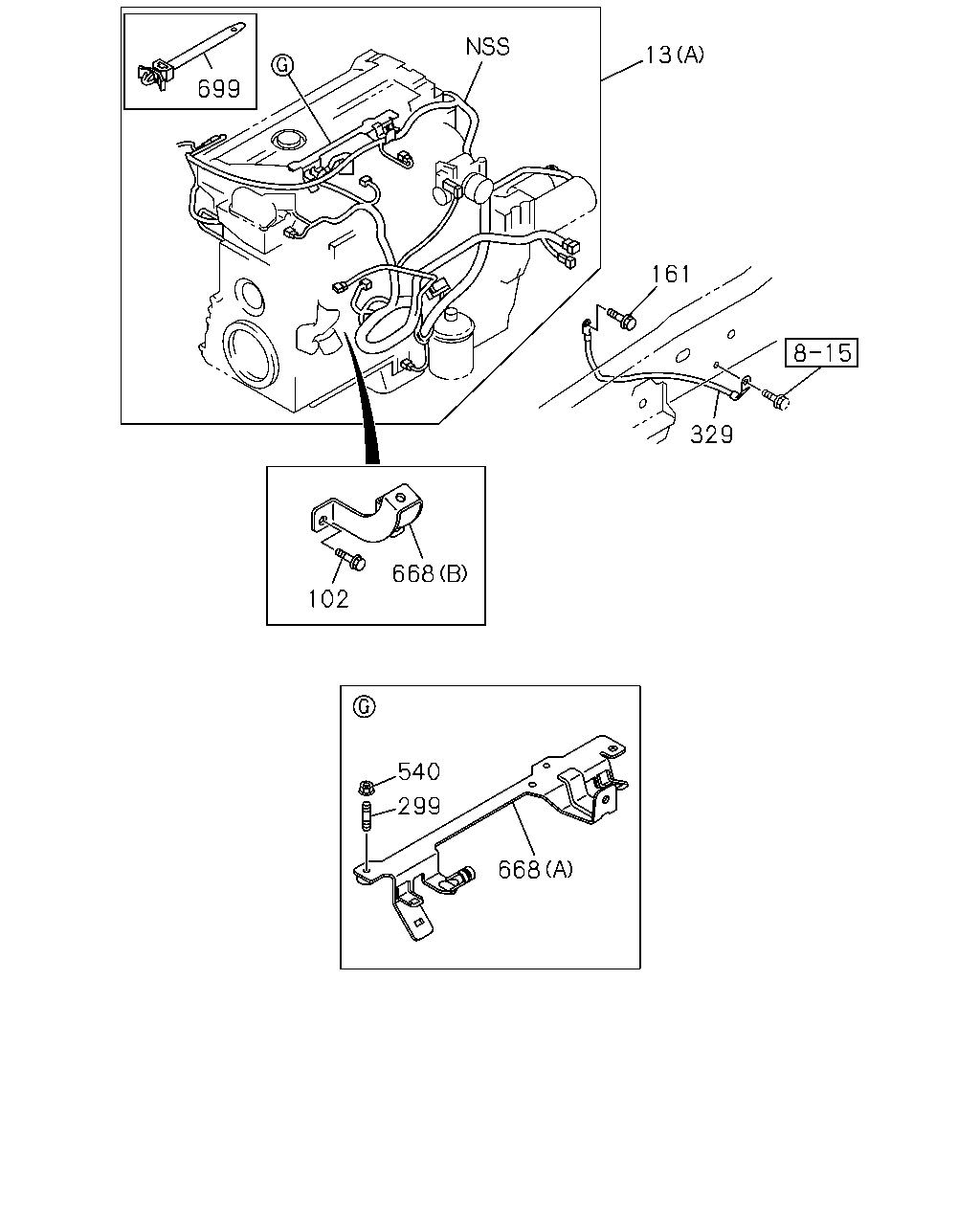

çizim 363883
699 102 540 299 668 668 329 161 13
BalonParca AdiParca NoAdetTipApplied Date
13 02.525 HARNESS; ENG
(A) 		8-98171-252-4 01 1 1307-
13 02.525 HARNESS; ENG
(B) 		8-98171-638-0 01 1 1307-
102 08.900 BOLT; BRKT,HARNESS CONNECTOR
00.029 M10X16 FLANGE 		0-28151-016-0 02 1 1307-
161 02.559 BOLT; GROUND,HARNESS
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1307-
299 02.559 STUD; BRKT
01.062 M6X18 L=27 		0-41010-618-0 02 1 1307-
329 02.480 CABLE; ENG TO FRAME 8-98102-465-0 01 1 1307-
540 02.483 NUT; BRKT FIX
01.062 M6 FLANGE 		0-91180-106-0 02 1 1307-
668 02.559 BRACKET; HARNESS
(A) 		8-98061-805-2 01 1 1307-
668 02.559 BRACKET; HARNESS
(B) 		8-98172-859-1 01 1 1307-
699 02.559 CLIP; ENG HARNESS
L=146.2 		8-98052-677-0 02 1 1307-

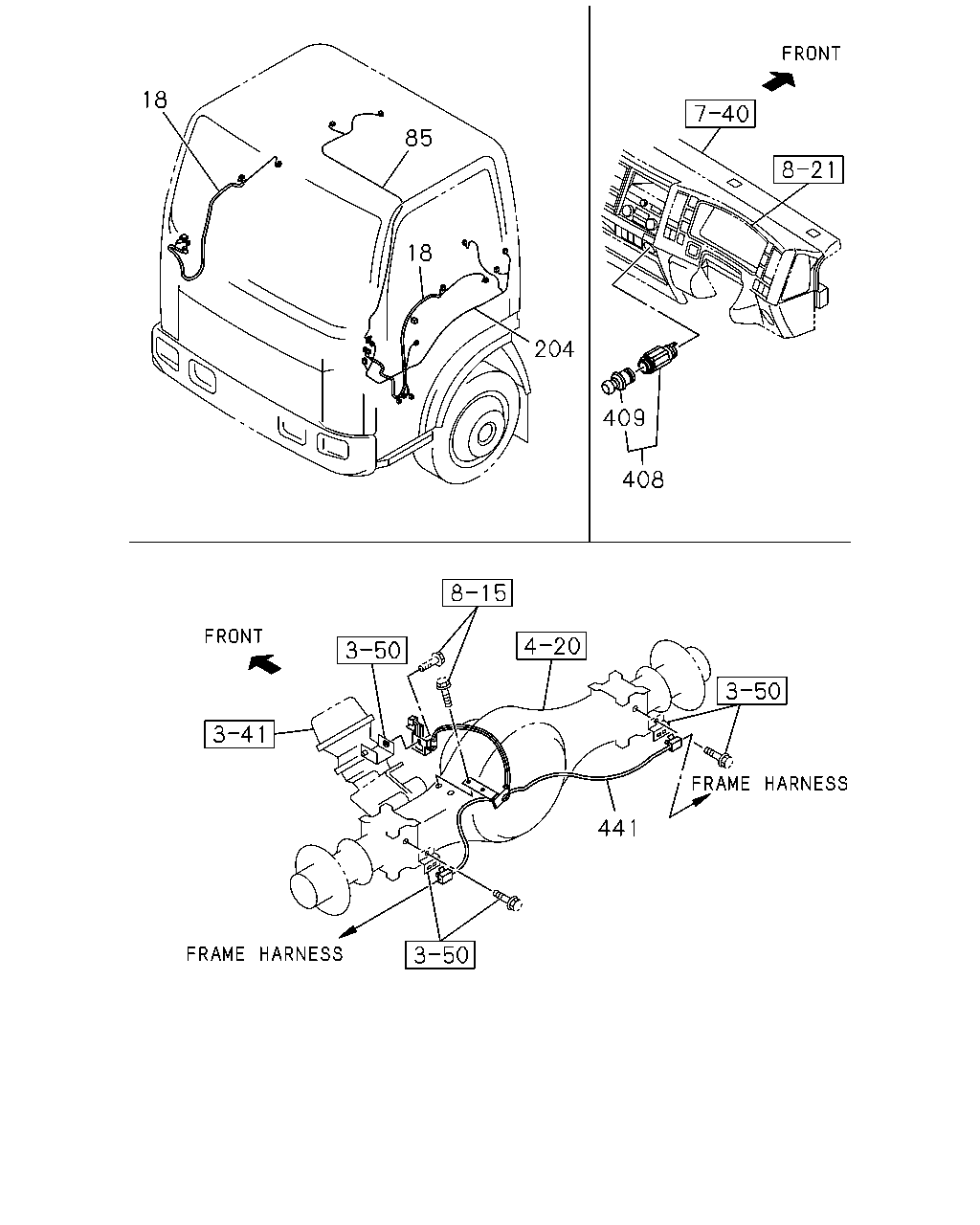

çizim 363940
441 18 204 409 408 85 18
BalonParca AdiParca NoAdetTipApplied Date
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-98077-592-3 01 1 1307-
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-98077-600-3 01 1 1307-
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-98077-591-2 01 1 1307-
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-98077-599-2 01 1 1307-
85 06.495 HARNESS; ROOM LAMP 8-98050-518-3 01 1 1307-
204 02.559 HARNESS; CABLE,FLOOR 8-98070-799-5 01 1 1307-
408 02.575 SOCKET ASM; ACCESSORY
ASH TRAY & CIGAR LIGHTER DELETE<8PC> 		8-98169-757-0 01 1 1307-
409 02.530 CAP; ACCESSORY SOCKET
ASH TRAY & CIGAR LIGHTER DELETE<8PC> 		8-98183-771-0 01 1 1307-
441 02.480 HARNESS; CABLE,SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98182-121-2 01 1 1307-

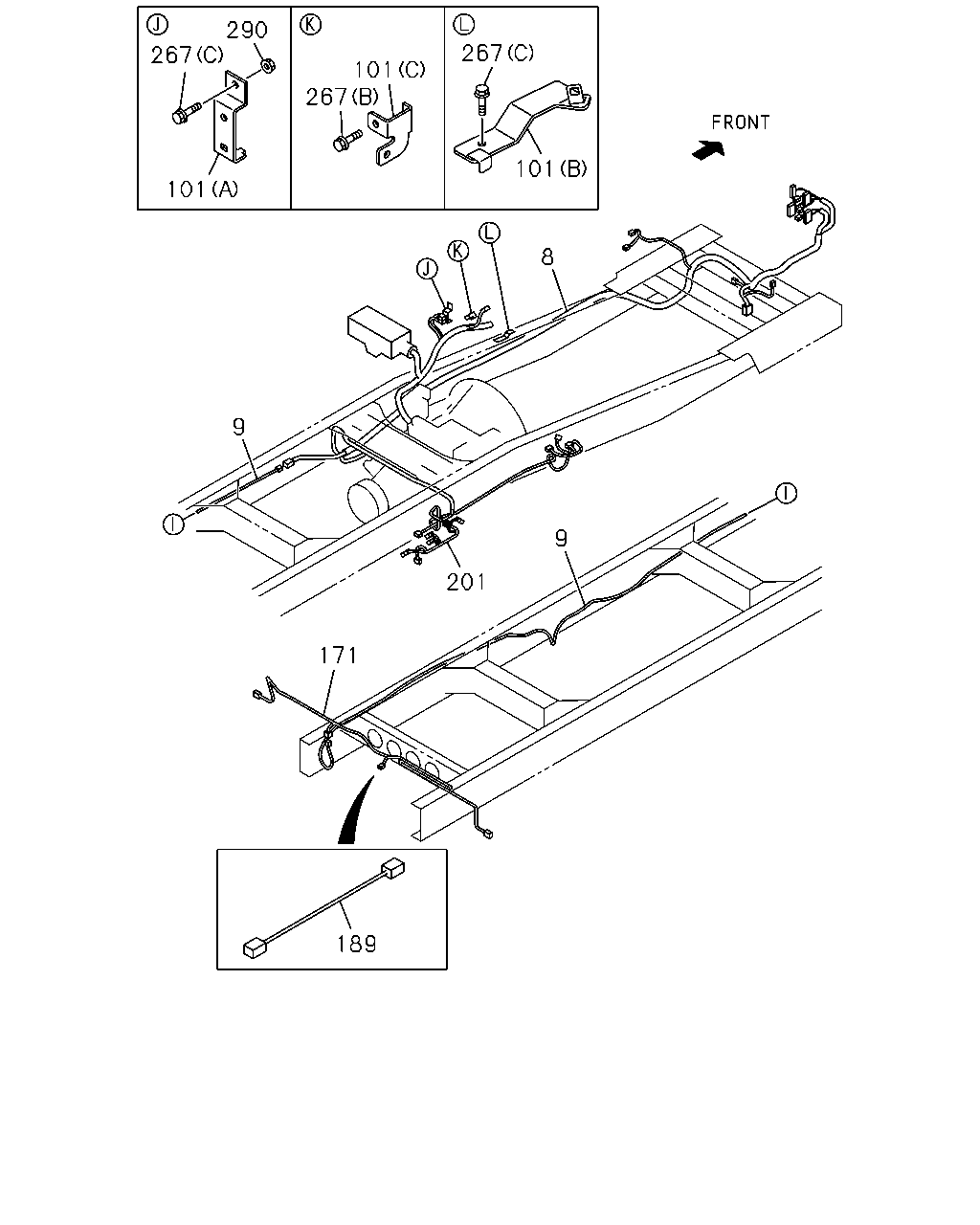

çizim 365157
267 101 267 290 101 267 101 8 9 201 171 189 9
BalonParca AdiParca NoAdetTipApplied Date
8 02.480 HARNESS; FRAME,FRT
FRONT UNDER RUN PROTECTOR<EBE> 4 WHEEL ANTI LOCK BRAKE<JE5> POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98293-706-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
FRONT UNDER RUN PROTECTOR<EBE> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98293-707-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
FRONT UNDER RUN PROTECTOR<EBE> POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98293-708-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
FRONT UNDER RUN PROTECTOR<EBE> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98293-709-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98201-723-2 01 1 1307-1407
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-98201-723-2 01 1 1408-1409
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-98293-700-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98201-724-2 01 1 1307-1407
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT UNDER RUN PROTECTOR<EBE>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98201-724-2 01 1 1408-1409
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT UNDER RUN PROTECTOR<EBE>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98293-701-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98201-725-1 01 1 1307-1407
8 02.480 HARNESS; FRAME,FRT
POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. FRONT UNDER RUN PROTECTOR<EBE>,4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98201-725-1 01 1 1408-1409
8 02.480 HARNESS; FRAME,FRT
POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. FRONT UNDER RUN PROTECTOR<EBE>,4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98293-702-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98201-726-1 01 1 1307-1407
8 02.480 HARNESS; FRAME,FRT
EXC. FRONT UNDER RUN PROTECTOR<EBE>,4 WHEEL ANTI LOCK BRAKE<JE5>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98201-726-1 01 1 1408-1409
8 02.480 HARNESS; FRAME,FRT
EXC. FRONT UNDER RUN PROTECTOR<EBE>,4 WHEEL ANTI LOCK BRAKE<JE5>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98293-703-0 01 1 1410-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98198-802-3 01 1 1307-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98198-801-3 01 1 1307-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98198-800-3 01 1 1307-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98198-799-3 01 1 1307-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98198-806-3 01 1 1307-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98198-805-3 01 1 1307-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98198-804-3 01 1 1307-
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98198-803-3 01 1 1307-
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98052-805-0 01 1 1307-
101 02.483 BRACKET; HARNESS CONNECTOR
(A) 		8-98182-052-1 01 1 1307-
101 02.483 BRACKET; HARNESS CONNECTOR
(B) 		8-98196-416-0 01 1 1307-
101 02.483 BRACKET; HARNESS CONNECTOR
(C) 		8-98208-521-0 01 1 1307-
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98156-028-0 01 1 1307-
189 02.480 HARNESS; EXT
WHEEL BASE 4100MM(41W) 		8-98308-022-0 01 1 1507-
201 02.480 HARNESS; AIR TANK 8-98198-761-2 01 1 1307-
267 02.483 BOLT; BRKT
03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1307-
267 02.483 BOLT; BRKT
06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1307-
267 02.483 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 (A) M10X120 FLANGE 		0-28156-012-0 01 1 1307-
290 02.483 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1307-

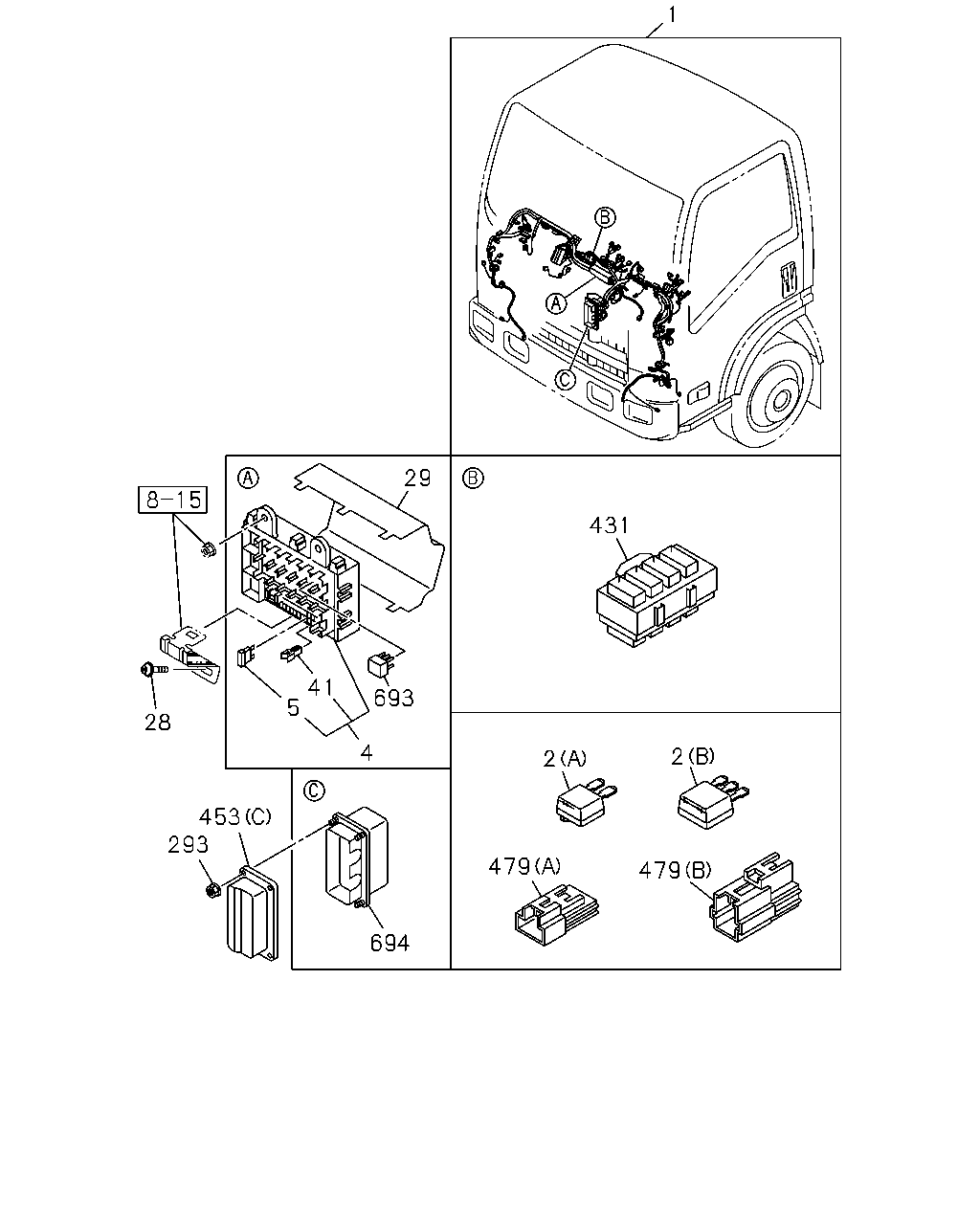

çizim 365334
1 431 2 2 479 479 694 453 293 28 693 29 41 5 4
BalonParca AdiParca NoAdetTipApplied Date
1 02.480 HARNESS; CAB
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98247-966-0 01 1 1307-
1 02.480 HARNESS; CAB
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98210-964-0 01 1 1307-
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1307-
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1307-
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1307-
5 02.485 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1307-
5 02.485 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1307-
5 02.485 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1307-
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1307-
29 02.483 COVER; FUSE BOX 8-98056-968-0 01 1 1307-
41 08.821 PULLER; FUSE 8-98054-260-0 01 1 1307-
293 02.559 NUT
01.062 M6 FLANGE 		0-91180-106-0 04 1 1307-
431 02.530 CONNECTOR; JOINT 8-98046-206-0 01 1 1307-
453 02.483 PROTECTOR; HARNESS
(A) 		8-94417-716-0 02 1 1307-1407
453 02.483 PROTECTOR; HARNESS
EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) 		8-94417-716-0 02 1 1408-1409
453 02.483 PROTECTOR; HARNESS
(A) 		8-94417-716-0 03 1 1410-
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-620-1 01 1 1307-1407
453 02.483 PROTECTOR; HARNESS
EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) 		8-98031-620-1 01 1 1408-1409
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-620-1 01 1 1410-
453 02.483 PROTECTOR; HARNESS
(C) 		8-98057-647-0 01 1 1307-
479 02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98108-678-0 01 1 1307-
479 02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98108-679-0 01 1 1307-
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1307-
694 02.483 BOX ASM; CONNECTOR 8-98190-772-0 01 1 1307-

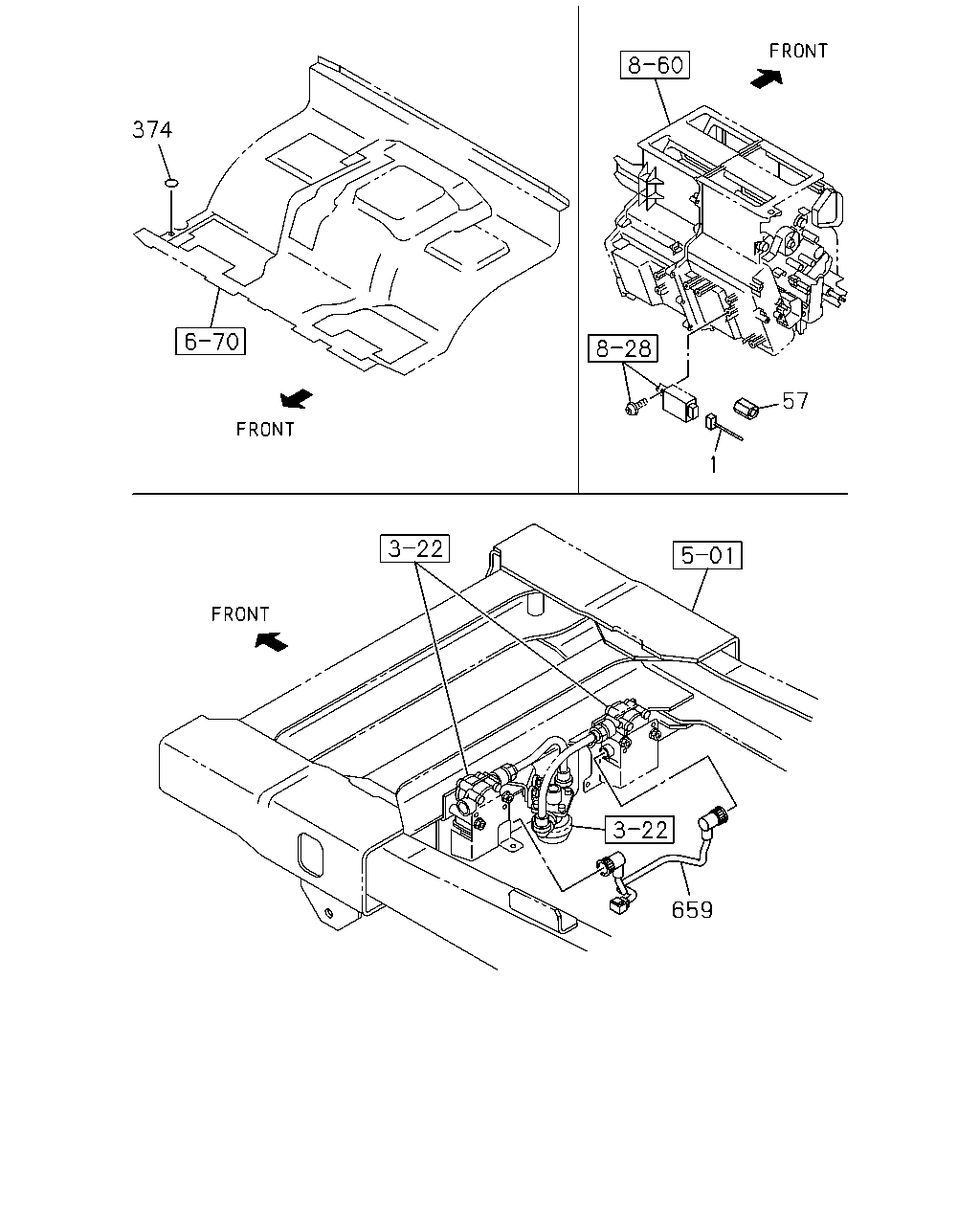

çizim 365915
374 57 1 659
BalonParca AdiParca NoAdetTipApplied Date
1 02.480 HARNESS; CAB
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98247-966-0 01 1 1307-
1 02.480 HARNESS; CAB
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98210-964-0 01 1 1307-
57 02.483 FILTER; FUSE BOX 8-98211-338-0 01 1 1307-
374 02.530 PLUG; HARNESS CONNECTOR
16.545 OD=32 BLACK 		8-98031-126-0 01 1 1307-
659 02.480 HARNESS; EXT,BRAKE VALVE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98198-762-2 01 1 1307-

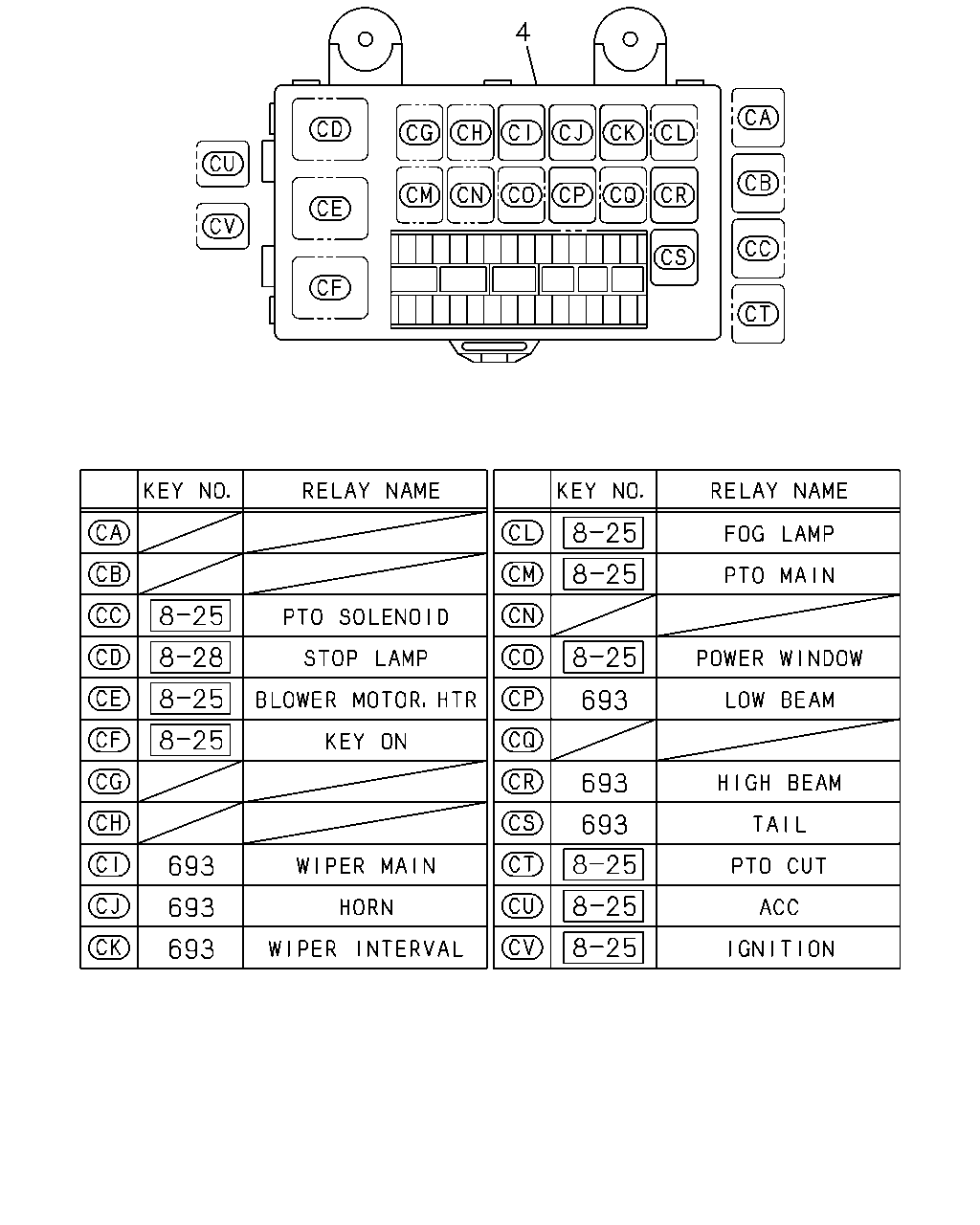

çizim 366875
693 693 693 693 693 693 4
BalonParca AdiParca NoAdetTipApplied Date
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1307-
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1307-

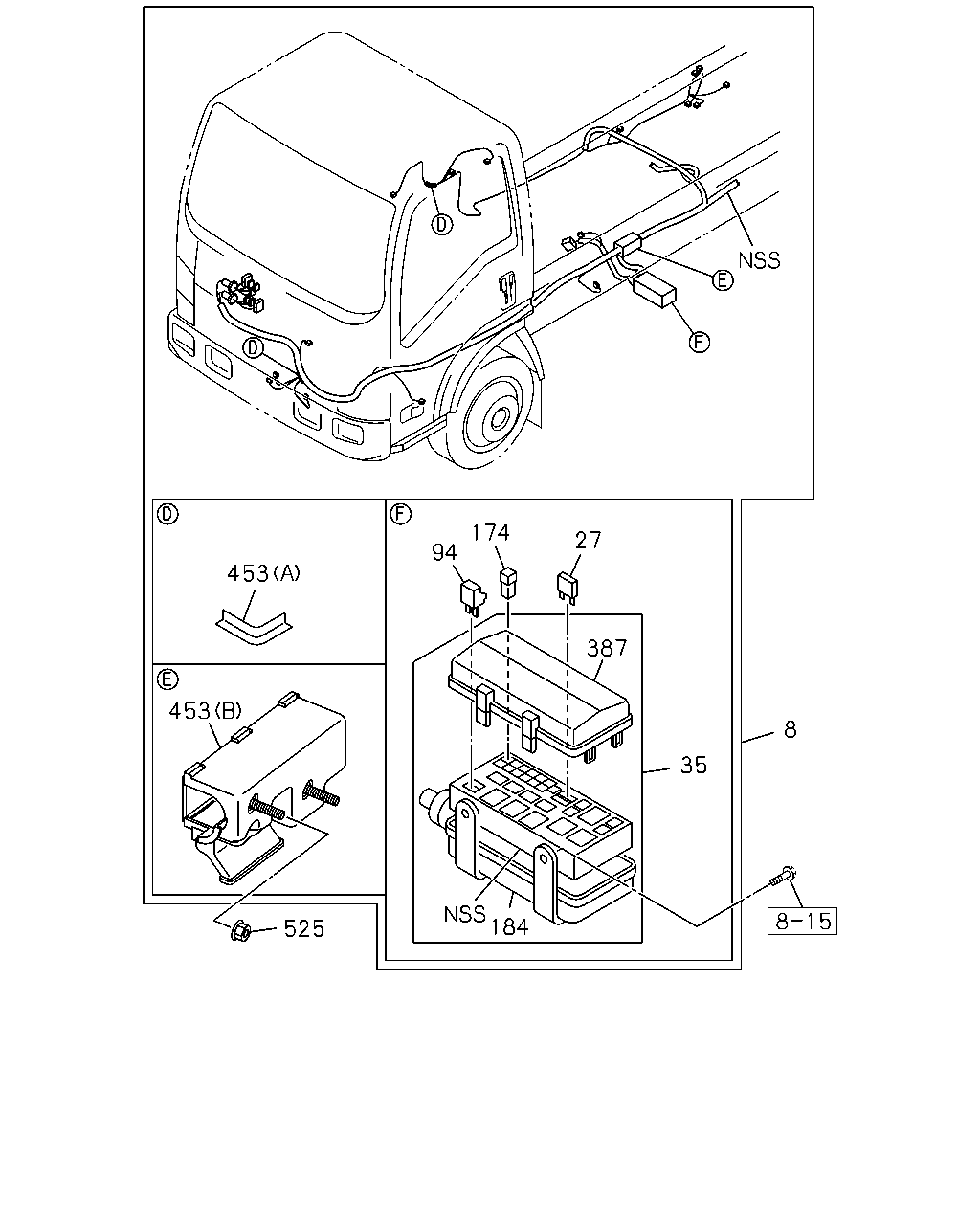

çizim 367053
453 453 525 184 35 8 387 27 174 94
BalonParca AdiParca NoAdetTipApplied Date
8 02.480 HARNESS; FRAME,FRT
FRONT UNDER RUN PROTECTOR<EBE> 4 WHEEL ANTI LOCK BRAKE<JE5> POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98293-706-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
FRONT UNDER RUN PROTECTOR<EBE> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98293-707-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
FRONT UNDER RUN PROTECTOR<EBE> POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98293-708-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
FRONT UNDER RUN PROTECTOR<EBE> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98293-709-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98201-723-2 01 1 1307-1407
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-98201-723-2 01 1 1408-1409
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-98293-700-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98201-724-2 01 1 1307-1407
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT UNDER RUN PROTECTOR<EBE>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98201-724-2 01 1 1408-1409
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT UNDER RUN PROTECTOR<EBE>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98293-701-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98201-725-1 01 1 1307-1407
8 02.480 HARNESS; FRAME,FRT
POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. FRONT UNDER RUN PROTECTOR<EBE>,4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98201-725-1 01 1 1408-1409
8 02.480 HARNESS; FRAME,FRT
POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. FRONT UNDER RUN PROTECTOR<EBE>,4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98293-702-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98201-726-1 01 1 1307-1407
8 02.480 HARNESS; FRAME,FRT
EXC. FRONT UNDER RUN PROTECTOR<EBE>,4 WHEEL ANTI LOCK BRAKE<JE5>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98201-726-1 01 1 1408-1409
8 02.480 HARNESS; FRAME,FRT
EXC. FRONT UNDER RUN PROTECTOR<EBE>,4 WHEEL ANTI LOCK BRAKE<JE5>,POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98293-703-0 01 1 1410-
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 AR 1 1307-
27 08.965 FUSE UNIT
02.485 15A BLUE 		8-98054-258-0 AR 1 1307-
27 08.965 FUSE UNIT
02.485 20A YELLOW 		8-98054-259-0 AR 1 1307-
35 02.530 BOX; RELAY & FUSE 8-98030-763-0 01 1 1307-1407
35 02.530 BOX; RELAY & FUSE
EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-98030-763-0 01 1 1408-1409
35 02.530 BOX; RELAY & FUSE 8-98030-763-0 01 1 1410-
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A 		8-94422-639-1 01 1 1307-1407
94 02.483 DIODE; FRAME HARNESS
EXC. FRONT UNDER RUN PROTECTOR<EBE> BLACK 2P-1.5A 		8-94422-639-1 01 1 1408-1409
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A 		8-94422-639-1 01 1 1410-
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 AR 1 1307-
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 AR 1 1307-
174 08.965 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 AR 1 1307-
174 08.965 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 AR 1 1307-
184 02.559 COVER; RELAY & FUSE BOX 8-98030-766-0 01 1 1307-1407
184 02.559 COVER; RELAY & FUSE BOX
EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-98030-766-0 01 1 1408-1409
184 02.559 COVER; RELAY & FUSE BOX 8-98030-766-0 01 1 1410-
387 02.483 COVER; RELAY BOX 8-98081-367-0 01 1 1307-
453 02.483 PROTECTOR; HARNESS
(A) 		8-94417-716-0 02 1 1307-1407
453 02.483 PROTECTOR; HARNESS
EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) 		8-94417-716-0 02 1 1408-1409
453 02.483 PROTECTOR; HARNESS
(A) 		8-94417-716-0 03 1 1410-
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-620-1 01 1 1307-1407
453 02.483 PROTECTOR; HARNESS
EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) 		8-98031-620-1 01 1 1408-1409
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-620-1 01 1 1410-
453 02.483 PROTECTOR; HARNESS
(C) 		8-98057-647-0 01 1 1307-
525 08.919 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1307-

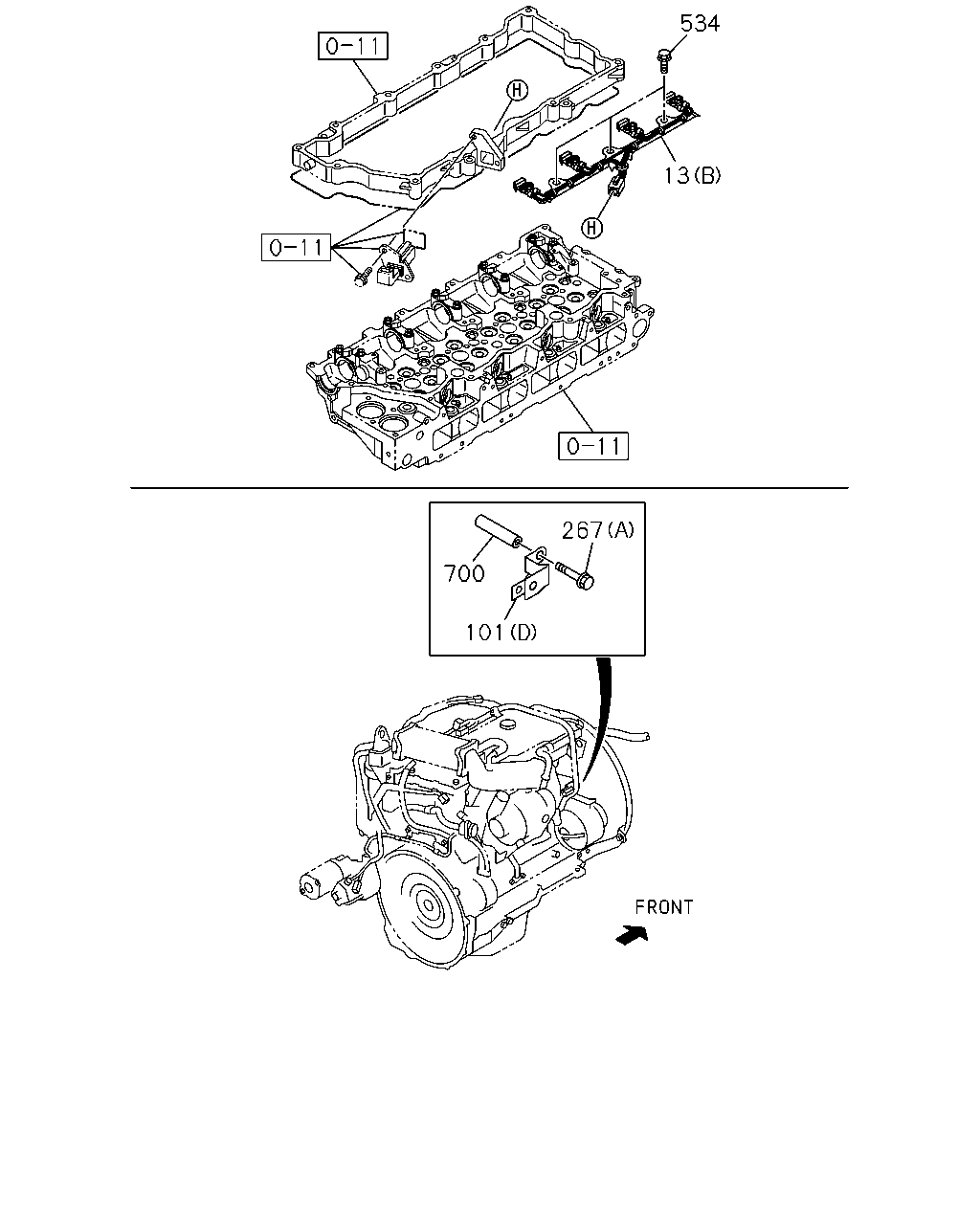

çizim 367338
13 534 267 101 700
BalonParca AdiParca NoAdetTipApplied Date
13 02.525 HARNESS; ENG
(A) 		8-98171-252-4 01 1 1307-
13 02.525 HARNESS; ENG
(B) 		8-98171-638-0 01 1 1307-
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98052-805-0 01 1 1307-
101 02.483 BRACKET; HARNESS CONNECTOR
(A) 		8-98182-052-1 01 1 1307-
101 02.483 BRACKET; HARNESS CONNECTOR
(B) 		8-98196-416-0 01 1 1307-
101 02.483 BRACKET; HARNESS CONNECTOR
(C) 		8-98208-521-0 01 1 1307-
267 02.483 BOLT; BRKT
03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1307-
267 02.483 BOLT; BRKT
06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1307-
267 02.483 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 (A) M10X120 FLANGE 		0-28156-012-0 01 1 1307-
534 02.483 BOLT
00.683 M10X55 FLANGE 		8-97365-449-0 03 1 1307-
700 02.483 TUBE; DISTANCE
EXC. AIR CONDITIONER MANUAL CONT(C60) L=105 		8-98084-726-0 01 1 1307-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
