1 |

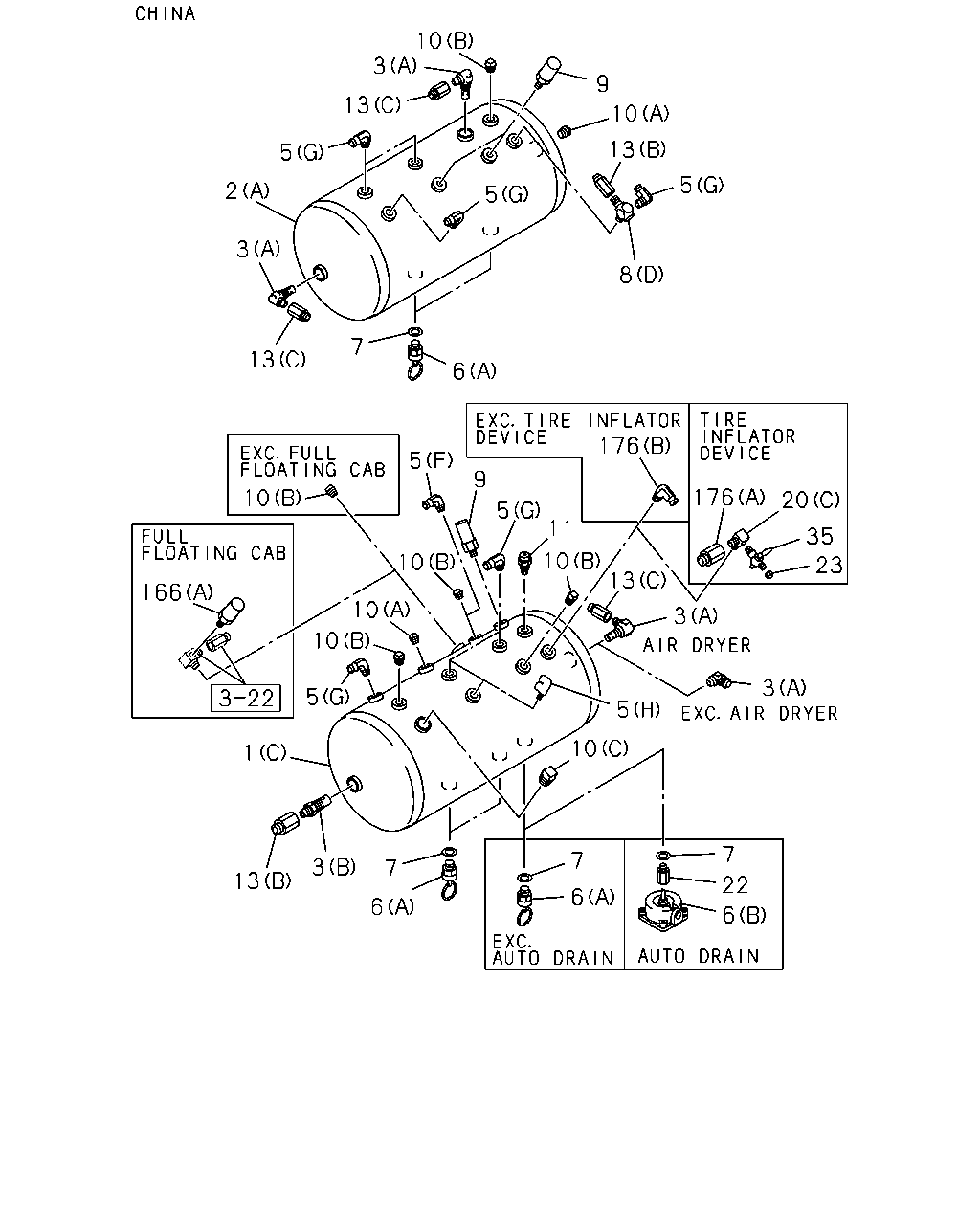

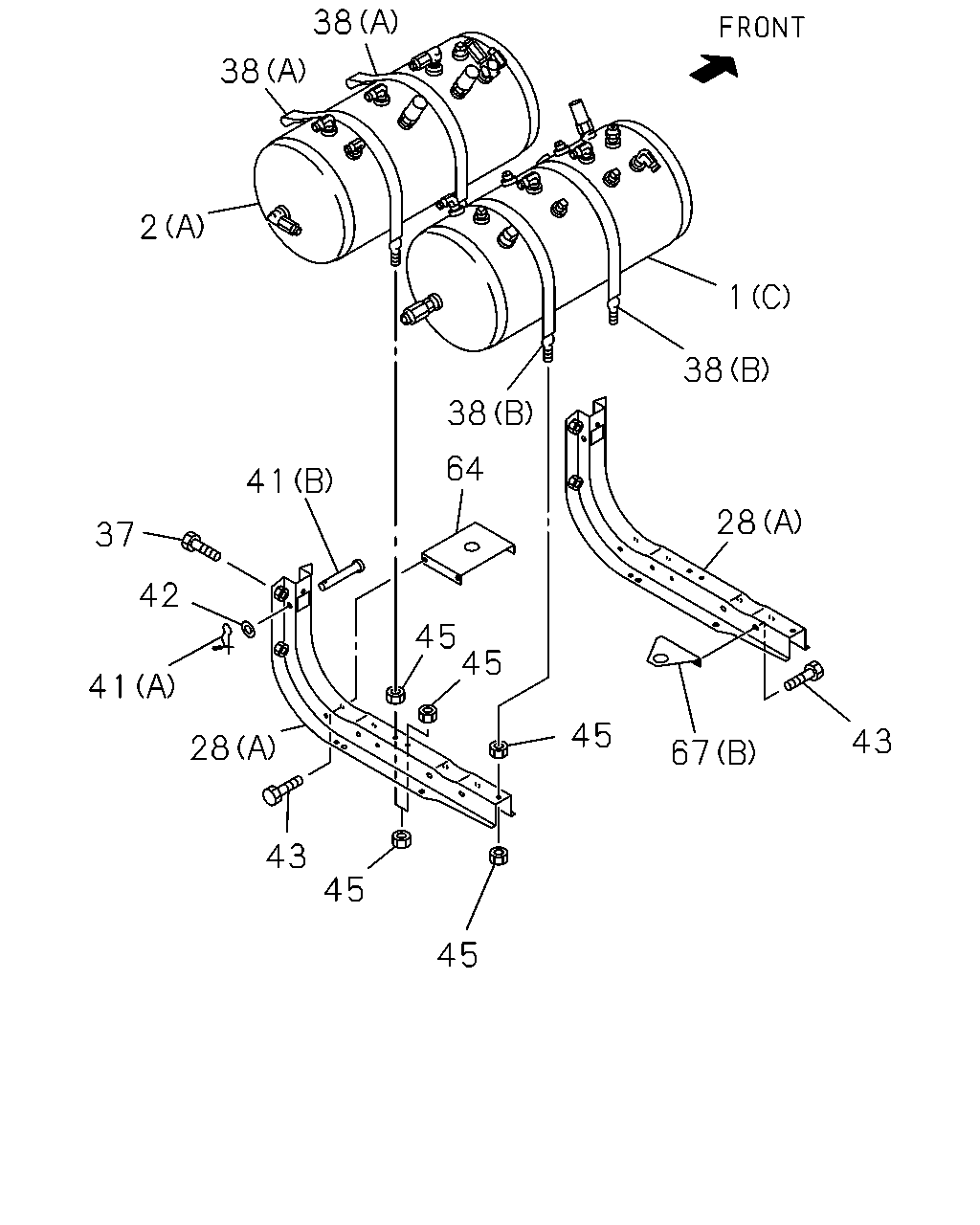

TANK ASM; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(D)
|
1-48370-222-1 |
01 |
1 |
0408-0409 |
● |
● |
| |
1 |
TANK ASM; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>

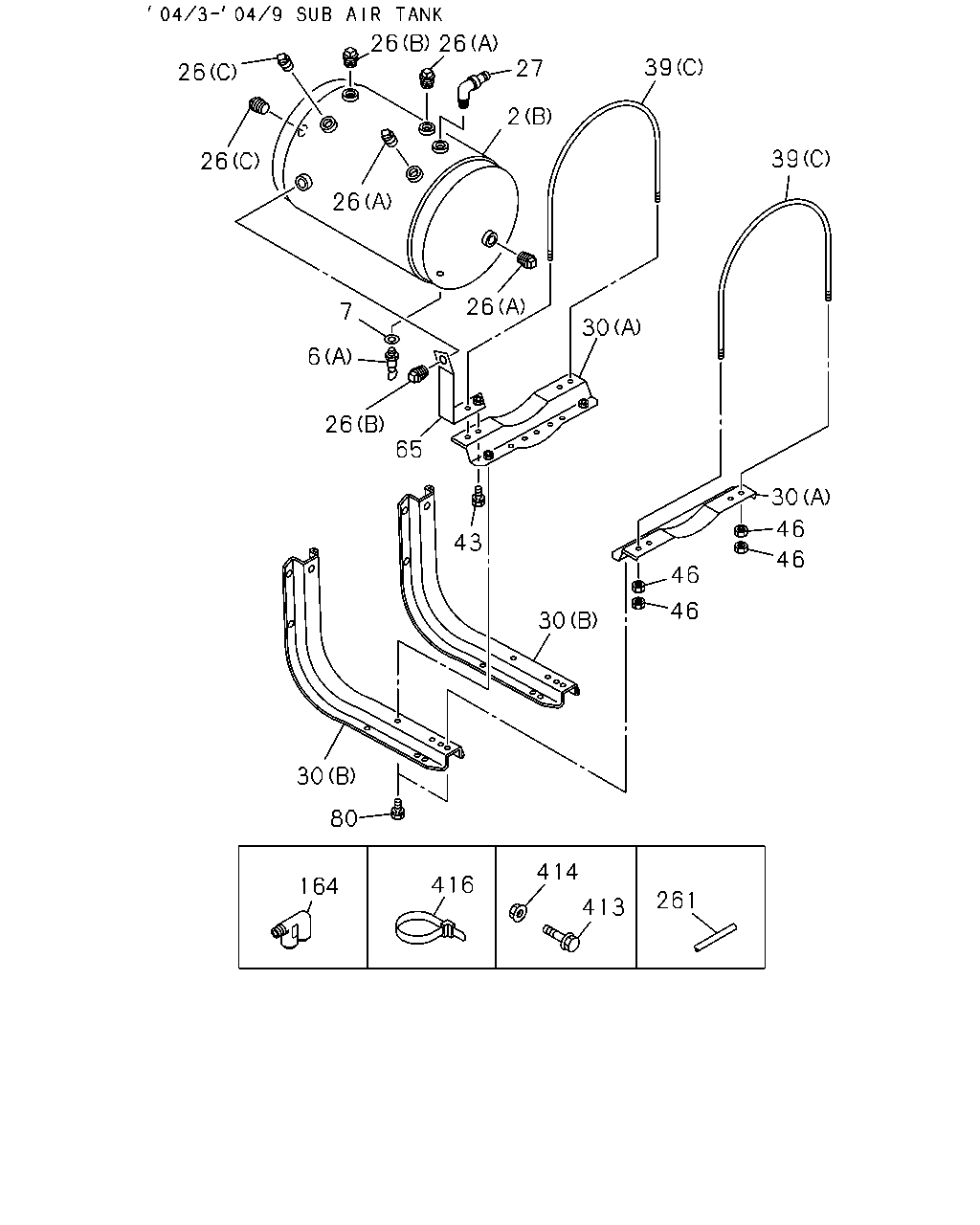

SUB AIR TANK<SJD>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(D)
|
1-48370-222-1 |
01 |
1 |
0410- |
● |
● |
| |
1 |
TANK ASM; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
(C)
|
1-48371-334-0 |
01 |
1 |
0312- |
● |
● |
| |
1 |
TANK ASM; AIR

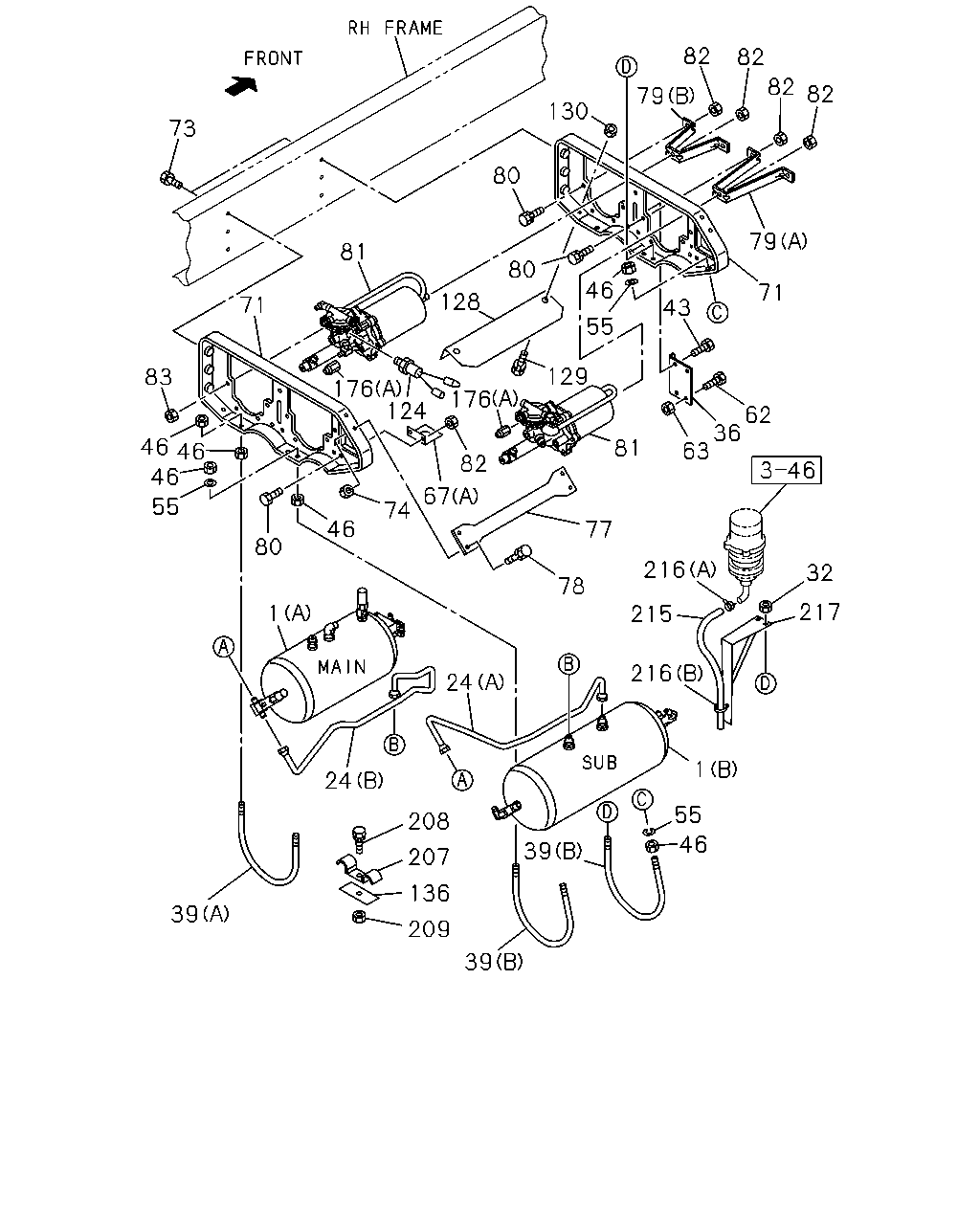

BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
|
1-48370-400-0 |
01 |
1 |
0105- |
● |
● |
| |
1 |
TANK ASM; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-48370-811-0 |
01 |
1 |
0105- |
● |
● |
| |
1 |
TANK ASM; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(C)
|
1-48370-221-0 |
01 |
1 |
0105-0105 |
● |
● |
| |
1 |
TANK ASM; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
|
1-48370-221-0 |
01 |
1 |
0106-0311 |
● |
● |
| |
1 |
TANK ASM; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
(C)
|
1-48370-221-0 |
01 |
1 |
0312- |
● |
● |
| |
1 |
TANK ASM; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)

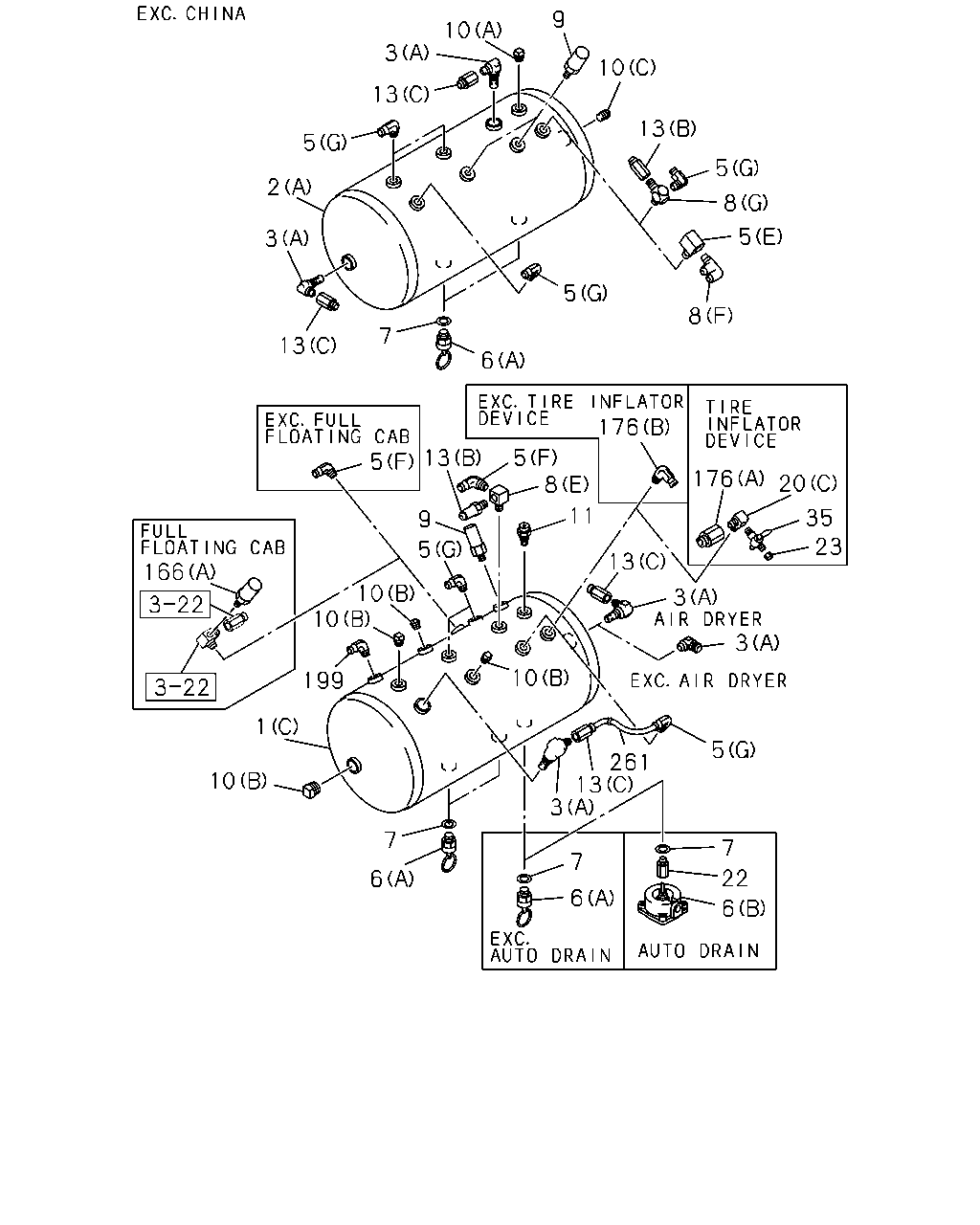

EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(C)
|
1-48370-221-0 |
01 |
1 |
0105-0105 |
● |
● |
| |
2 |
TANK; AIR
SUB AIR TANK<SJD>
(B)
|
1-48370-222-1 |
01 |
1 |
0403-0409 |
● |
● |
| |
2 |
TANK; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(A)
|
1-48370-353-0 |
01 |
1 |
0105-0105 |
● |
● |
| |
2 |
TANK; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-48370-353-0 |
01 |
1 |
0106- |
● |
● |
| |
2 |
TANK; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(A)
|
1-48370-353-0 |
01 |
1 |
0105-0105 |
● |
● |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(B) SUB TANK
|
1-48410-182-3 |
01 |
1 |
0105-0211 |
● |
● |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
EXC. AIR DRYER<PS7>
(B) SUB TANK
|
1-48410-182-3 |
01 |
1 |
0212-0401 |
● |
● |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
EXC. CHINA GB VAR1<JAC>
(B) SUB TANK
|
1-48410-182-3 |
01 |
1 |
0212-0401 |
● |
● |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
EXC. AIR DRYER<PS7>
(B) SUB TANK
|
1-48410-182-3 |
01 |
1 |
0402- |
● |
● |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>
(B) SUB TANK
|
1-48410-182-3 |
01 |
1 |
0402- |
● |
● |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
PE-SERIES ENG<1A0>,W-SERIES ENG<1A2>
(B) SUB TANK
|
1-48410-182-3 |
02 |
1 |
0105-0105 |
● |
● |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(B) SUB TANK
|
1-48410-182-3 |
02 |
1 |
0105-0105 |
● |
● |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B) SUB TANK
|
1-48410-182-3 |
02 |
1 |
0105- |
● |
● |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(A)
M20 & PT3/4 ELBOW
|
1-48410-412-0 |
03 |
1 |
0105-0105 |
● |
● |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(A)
M20 & PT3/4 ELBOW
|
1-48410-412-0 |
03 |
1 |
0105-0211 |
● |
● |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>,CHINA-SOUTHERN ECONOMIC ZONE
EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(A)
M20 & PT3/4 ELBOW
|
1-48410-412-0 |
03 |
1 |
0105-0211 |
● |
● |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA GB VAR1<JAC>
AIR DRYER<PS7>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(A)
M20 & PT3/4 ELBOW
|
1-48410-412-0 |
04 |
1 |
0212-0401 |
● |
● |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(A)
M20 & PT3/4 ELBOW
|
1-48410-412-0 |
04 |
1 |
0212-0401 |
● |
● |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>
AIR DRYER<PS7>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(A)
M20 & PT3/4 ELBOW
|
1-48410-412-0 |
04 |
1 |
0402- |
● |
● |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(A)
M20 & PT3/4 ELBOW
|
1-48410-412-0 |
04 |
1 |
0402- |
● |
● |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>,CHINA-SOUTHERN ECONOMIC ZONE
EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(A)
M20 & PT3/4 ELBOW
|
1-48410-412-0 |
03 |
1 |
0105-0105 |
● |
● |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
EXC. AIR DRYER<PS7>
(A)
M20 & PT3/4 ELBOW
|
1-48410-412-0 |
02 |
1 |
0105- |
● |
● |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
EXC. AIR DRYER<PS7>
(A)
M20 & PT3/4 ELBOW
|
1-48410-412-0 |
04 |
1 |
0105-0105 |
● |
● |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(A)
M20 & PT3/4 ELBOW
|
1-48410-412-0 |
04 |
1 |
0105-0105 |
● |
● |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(A)
M20 & PT3/4 ELBOW
|
1-48410-412-0 |
04 |
1 |
0105-0211 |
● |
● |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
EXC. CHINA GB VAR1<JAC>
(A)
M20 & PT3/4 ELBOW
|
1-48410-412-0 |
03 |
1 |
0212-0401 |
● |
● |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>,CHINA-SOUTHERN ECONOMIC ZONE
EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(A)
M20 & PT3/4 ELBOW
|
1-48410-412-0 |
03 |
1 |
0212-0401 |
● |
● |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>
(A)
M20 & PT3/4 ELBOW
|
1-48410-412-0 |
03 |
1 |
0402- |
● |
● |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>,CHINA-SOUTHERN ECONOMIC ZONE
EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(A)
M20 & PT3/4 ELBOW
|
1-48410-412-0 |
03 |
1 |
0402- |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>
AIR DRYER<PS7>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(H)
DIN12X2 & PT3/8 DOUBLE ELBOW
|
1-09661-026-0 |
01 |
1 |
0408-0409 |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>
AIR DRYER<PS7>
SUB AIR TANK<SJD>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(H)
DIN12X2 & PT3/8 DOUBLE ELBOW
|
1-09661-026-0 |
01 |
1 |
0410- |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE
VERTICAL<N28>,CHINA-SOUTHERN ECONOMIC ZONE
EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(F)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
09 |
1 |
0408-0409 |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>
AIR DRYER<PS7>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
EXC. SUB AIR TANK<SJD>
(F)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
09 |
1 |
0410- |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE
VERTICAL<N28>,CHINA-SOUTHERN ECONOMIC ZONE
EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(F)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
09 |
1 |
0410- |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
PE-SERIES ENG<1A0>
(D)
|
1-09656-548-1 |
02 |
1 |
0105- |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
DIN8 & R1/4 ELBOW
|
1-09660-956-0 |
01 |
1 |
0105-0108 |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
PE-SERIES ENG<1A0>
(B)
DIN8 & R1/4 ELBOW
|
1-09660-956-0 |
01 |
1 |
0109-0206 |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
W-SERIES ENG<1A2>
EXC. ELECTRICAL HORN(WB7)
(B)
DIN8 & R1/4 ELBOW
|
1-09660-956-0 |
01 |
1 |
0109-0206 |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
PE-SERIES ENG<1A0>
(B)
DIN8 & R1/4 ELBOW
|
1-09660-956-0 |
01 |
1 |
0207- |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ELECTRICAL HORN(WB7)
FULL FLOATING CAB(W16)
W-SERIES ENG<1A2>
(B)
DIN8 & R1/4 ELBOW
|
1-09660-956-0 |
01 |
1 |
0207- |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
W-SERIES ENG<1A2>
EXC. ELECTRICAL HORN(WB7)
(B)
DIN8 & R1/4 ELBOW
|
1-09660-956-0 |
01 |
1 |
0207- |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
01 |
1 |
0105-0407 |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(A)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
01 |
1 |
0408-0409 |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
PE-SERIES ENG<1A0>,W-SERIES ENG<1A2>
(A)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
01 |
1 |
0408-0409 |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>
SUB AIR TANK<SJD>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(A)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
01 |
1 |
0410- |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
PE-SERIES ENG<1A0>,W-SERIES ENG<1A2>
(A)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
01 |
1 |
0410- |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
W-SERIES ENG<1A2>
(C)
M20X2 & PT3/8 3WAY
|
1-09656-340-1 |
01 |
1 |
0105- |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
W-SERIES ENG<1A2>
(D)
|
1-09656-548-1 |
01 |
1 |
0105- |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
W-SERIES ENG<1A2>
(A)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
02 |
1 |
0105- |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(G)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
07 |
1 |
0105-0105 |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE
VERTICAL<N28>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(E)
PT3/8 ELBOW
|
1-09660-696-0 |
01 |
1 |
0105- |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE
VERTICAL<N28>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(F)
DIN8 & R3/8 ELBOW
|
1-09660-957-0 |
01 |
1 |
0105-0105 |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(F)
DIN8 & R3/8 ELBOW
|
1-09660-957-0 |
01 |
1 |
0105-0105 |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE
VERTICAL<N28>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(F)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
07 |
1 |
0105-0211 |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(F)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
07 |
1 |
0105-0211 |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA GB VAR1<JAC>
AIR DRYER<PS7>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(F)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
09 |
1 |
0212-0401 |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE
VERTICAL<N28>,CHINA-SOUTHERN ECONOMIC ZONE
EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(F)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
09 |
1 |
0212-0401 |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>
AIR DRYER<PS7>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(F)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
09 |
1 |
0402-0407 |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE
VERTICAL<N28>,CHINA-SOUTHERN ECONOMIC ZONE
EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(F)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
09 |
1 |
0402-0407 |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>
AIR DRYER<PS7>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(F)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
08 |
1 |
0408-0409 |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>
AIR DRYER<PS7>
SUB AIR TANK<SJD>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(F)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
08 |
1 |
0410- |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE
VERTICAL<N28>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(G)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
07 |
1 |
0105-0105 |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE
VERTICAL<N28>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(G)
DIN8 & R3/8 ELBOW
|
1-09660-957-0 |
01 |
1 |
0105- |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE
VERTICAL<N28>,CHINA-SOUTHERN ECONOMIC ZONE
EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(G)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
09 |
1 |
0105-0211 |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
EXC. AIR DRYER<PS7>
(G)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
07 |
1 |
0212-0401 |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
EXC. CHINA GB VAR1<JAC>
(G)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
07 |
1 |
0212-0401 |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE
VERTICAL<N28>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(G)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
07 |
1 |
0212-0401 |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
EXC. AIR DRYER<PS7>
(G)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
07 |
1 |
0402- |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>
(G)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
07 |
1 |
0402- |
● |
● |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE
VERTICAL<N28>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(G)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
07 |
1 |
0402- |
● |
● |
| |
6 |
COCK; DRAIN,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
(A)
|
1-48312-015-0 |
04 |
1 |
0312- |
● |
● |
| |
6 |
COCK; DRAIN,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-48312-015-0 |
02 |
1 |
0105- |
● |
● |
| |
6 |
COCK; DRAIN,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUTO DRAIN<J78>
(B)
|
9-09904-177-0 |
01 |
1 |
0105- |
● |
● |
| |
6 |
COCK; DRAIN,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUTO DRAIN<J78>
(A)
|
1-48312-015-0 |
01 |
1 |
0105-0402 |
● |
● |
| |
6 |
COCK; DRAIN,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-48312-015-0 |
01 |
1 |
0105-0402 |
● |
● |
| |
6 |
COCK; DRAIN,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUTO DRAIN<J78>
(A)
|
1-48312-015-0 |
01 |
1 |
0403-0407 |
● |
● |
| |
6 |
COCK; DRAIN,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-48312-015-0 |
01 |
1 |
0403-0407 |
● |
● |
| |
6 |
COCK; DRAIN,AIR TANK
SUB AIR TANK<SJD>
(A)
|
1-48312-015-0 |
01 |
1 |
0403-0407 |
● |
● |
| |
6 |
COCK; DRAIN,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUTO DRAIN<J78>
(A)
|
1-48312-015-0 |
01 |
1 |
0408-0409 |
● |
● |
| |
6 |
COCK; DRAIN,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-48312-015-0 |
01 |
1 |
0408-0409 |
● |
● |
| |
6 |
COCK; DRAIN,AIR TANK
SUB AIR TANK<SJD>
(A)
|
1-48312-015-0 |
01 |
1 |
0408-0409 |
● |
● |
| |
6 |
COCK; DRAIN,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(A)
|
1-48312-015-0 |
01 |
1 |
0408-0409 |
● |
● |
| |
6 |
COCK; DRAIN,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AUTO DRAIN<J78>
(A)
|
1-48312-015-0 |
01 |
1 |
0410- |
● |
● |
| |
6 |
COCK; DRAIN,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-48312-015-0 |
01 |
1 |
0410- |
● |
● |
| |
6 |
COCK; DRAIN,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>
SUB AIR TANK<SJD>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(A)
|
1-48312-015-0 |
01 |
1 |
0410- |
● |
● |
| |
6 |
COCK; DRAIN,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(A)
|
1-48312-015-0 |
04 |
1 |
0105-0105 |
● |
● |
| |
6 |
COCK; DRAIN,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-48312-015-0 |
04 |
1 |
0105-0311 |
● |
● |
| |
6 |
COCK; DRAIN,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
(A)
|
1-48312-015-0 |
03 |
1 |
0312- |
● |
● |
| |
6 |
COCK; DRAIN,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(A)
|
1-48312-015-0 |
04 |
1 |
0105-0105 |
● |
● |
| |
7 |
GASKET; DRAIN COCK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
ID=14
|
1-09630-145-0 |
04 |
1 |
0312- |
● |
● |
| |
7 |
GASKET; DRAIN COCK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=14
|
1-09630-145-0 |
02 |
1 |
0105- |
● |
● |
| |
7 |
GASKET; DRAIN COCK
ID=14
|
1-09630-145-0 |
01 |
1 |
0105-0402 |
● |
● |
| |
7 |
GASKET; DRAIN COCK
SUB AIR TANK<SJD>
ID=14
|
1-09630-145-0 |
01 |
1 |
0403-0407 |
● |
● |
| |
7 |
GASKET; DRAIN COCK
ID=14
|
1-09630-145-0 |
01 |
1 |
0403-0407 |
● |
● |
| |
7 |
GASKET; DRAIN COCK
SUB AIR TANK<SJD>
ID=14
|
1-09630-145-0 |
01 |
1 |
0408-0409 |
● |
● |
| |
7 |
GASKET; DRAIN COCK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>
ID=14
|
1-09630-145-0 |
01 |
1 |
0408-0409 |
● |
● |
| |
7 |
GASKET; DRAIN COCK
ID=14
|
1-09630-145-0 |
01 |
1 |
0408-0409 |
● |
● |
| |
7 |
GASKET; DRAIN COCK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>
SUB AIR TANK<SJD>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
ID=14
|
1-09630-145-0 |
01 |
1 |
0410- |
● |
● |
| |
7 |
GASKET; DRAIN COCK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=14
|
1-09630-145-0 |
01 |
1 |
0410- |
● |
● |
| |
7 |
GASKET; DRAIN COCK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
PE-SERIES ENG<1A0>,W-SERIES ENG<1A2>
ID=14
|
1-09630-145-0 |
01 |
1 |
0410- |
● |
● |
| |
7 |
GASKET; DRAIN COCK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
ID=14
|
1-09630-145-0 |
04 |
1 |
0105-0105 |
● |
● |
| |
7 |
GASKET; DRAIN COCK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=14
|
1-09630-145-0 |
04 |
1 |
0105-0311 |
● |
● |
| |
7 |
GASKET; DRAIN COCK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
ID=14
|
1-09630-145-0 |
03 |
1 |
0312- |
● |
● |
| |
7 |
GASKET; DRAIN COCK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
ID=14
|
1-09630-145-0 |
04 |
1 |
0105-0105 |
● |
● |
| |
8 |
CONNECTOR; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
PE-SERIES ENG<1A0>
(B)
DIN12 & RC1/4 & R3/8 3WAY
|
1-09661-132-0 |
02 |
1 |
0105- |
● |
● |
| |
8 |
CONNECTOR; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
M12 & PT1/4 STRAIGHT
|
1-09650-074-1 |
01 |
1 |
0105- |
● |
● |
| |
8 |
CONNECTOR; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(C)
|
1-09660-091-3 |
02 |
1 |
0105- |
● |
● |
| |
8 |
CONNECTOR; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
W-SERIES ENG<1A2>
(B)
M20 & M22 & PT1/2 3WAY
|
1-09656-296-1 |
01 |
1 |
0105- |
● |
● |
| |
8 |
CONNECTOR; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(D)
M16 PT3/8X2 3WAY
|
1-09656-556-1 |
01 |
1 |
0105-0105 |
● |
● |
| |
8 |
CONNECTOR; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE
VERTICAL<N28>,CHINA-SOUTHERN ECONOMIC ZONE
EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(D)
M16 PT3/8X2 3WAY
|
1-09656-556-1 |
01 |
1 |
0105-0404 |
● |
● |
| |
8 |
CONNECTOR; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(D)
M16 PT3/8X2 3WAY
|
1-09656-556-1 |
01 |
1 |
0105-0404 |
● |
● |
| |
8 |
CONNECTOR; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(D)
M16 PT3/8X2 3WAY
|
1-09656-556-1 |
01 |
1 |
0405- |
● |
● |
| |
8 |
CONNECTOR; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE
VERTICAL<N28>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(E)
M16 PT3/8X2 3WAY
|
1-09656-418-2 |
01 |
1 |
0105-0404 |
● |
● |
| |
8 |
CONNECTOR; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE
VERTICAL<N28>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(F)
DIN12X2 & PT3/8 DOUBLE ELBOW
|
1-09661-026-0 |
01 |
1 |
0105- |
● |
● |
| |
8 |
CONNECTOR; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE
VERTICAL<N28>,CHINA-SOUTHERN ECONOMIC ZONE
EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(G)
M16 PT3/8X2 3WAY
|
1-09656-556-1 |
01 |
1 |
0105-0105 |
● |
● |
| |
9 |
SWITCH; LOW PRESSURE GAGE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
530KPA
|
1-48340-054-1 |
03 |
1 |
0105-0105 |
● |
● |
| |
9 |
SWITCH; LOW PRESSURE GAGE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
530KPA
|
1-48340-054-1 |
03 |
1 |
0105- |
● |
● |
| |
9 |
SWITCH; LOW PRESSURE GAGE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
530KPA
|
1-48340-054-1 |
03 |
1 |
0105-0105 |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(C)
PT3/4
|
9-09204-526-0 |
02 |
1 |
0408-0409 |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>
SUB AIR TANK<SJD>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(C)
PT3/4
|
9-09204-526-0 |
02 |
1 |
0410- |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
PE-SERIES ENG<1A0>
EXC. TIRE INFLATOR DEVICE<W47>
(A)
PT1/4
|
9-99204-513-0 |
02 |
1 |
0105-0105 |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(A)
PT1/4
|
9-99204-513-0 |
02 |
1 |
0105-0105 |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
PE-SERIES ENG<1A0>
EXC. TIRE INFLATOR DEVICE<W47>
(A)
PT1/4
|
9-99204-513-0 |
02 |
1 |
0105-0108 |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
PT1/4
|
9-99204-513-0 |
02 |
1 |
0105-0108 |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
PE-SERIES ENG<1A0>
EXC. TIRE INFLATOR DEVICE<W47>
(A)
PT1/4
|
9-99204-513-0 |
02 |
1 |
0109-0206 |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ELECTRICAL HORN(WB7)
W-SERIES ENG<1A2>
EXC. TIRE INFLATOR DEVICE<W47>
(A)
PT1/4
|
9-99204-513-0 |
02 |
1 |
0109-0206 |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
PT1/4
|
9-99204-513-0 |
02 |
1 |
0109-0206 |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
PE-SERIES ENG<1A0>
EXC. TIRE INFLATOR DEVICE<W47>
(A)
PT1/4
|
9-99204-513-0 |
02 |
1 |
0207-0407 |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ELECTRICAL HORN(WB7)
W-SERIES ENG<1A2>
EXC. FULL FLOATING CAB(W16),TIRE INFLATOR
DEVICE<W47>
(A)
PT1/4
|
9-99204-513-0 |
02 |
1 |
0207-0407 |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
PT1/4
|
9-99204-513-0 |
02 |
1 |
0207-0407 |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
PE-SERIES ENG<1A0>
EXC. TIRE INFLATOR DEVICE<W47>
(A)
PT1/4
|
9-99204-513-0 |
02 |
1 |
0408-0409 |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ELECTRICAL HORN(WB7)
W-SERIES ENG<1A2>
EXC. FULL FLOATING CAB(W16),TIRE INFLATOR
DEVICE<W47>
(A)
PT1/4
|
9-99204-513-0 |
02 |
1 |
0408-0409 |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(A)
PT1/4
|
9-99204-513-0 |
02 |
1 |
0408-0409 |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
PT1/4
|
9-99204-513-0 |
02 |
1 |
0408-0409 |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
PE-SERIES ENG<1A0>
EXC. TIRE INFLATOR DEVICE<W47>
(A)
PT1/4
|
9-99204-513-0 |
02 |
1 |
0410- |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ELECTRICAL HORN(WB7)
W-SERIES ENG<1A2>
EXC. FULL FLOATING CAB(W16),TIRE INFLATOR
DEVICE<W47>
(A)
PT1/4
|
9-99204-513-0 |
02 |
1 |
0410- |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>
SUB AIR TANK<SJD>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(A)
PT1/4
|
9-99204-513-0 |
02 |
1 |
0410- |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
PT1/4
|
9-99204-513-0 |
02 |
1 |
0410- |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
W-SERIES ENG<1A2>
EXC. TIRE INFLATOR DEVICE<W47>
(A)
PT1/4
|
9-99204-513-0 |
01 |
1 |
0105-0108 |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<W47>
PE-SERIES ENG<1A0>
(A)
PT1/4
|
9-99204-513-0 |
01 |
1 |
0105-0108 |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
W-SERIES ENG<1A2>
(A)
PT1/4
|
9-99204-513-0 |
01 |
1 |
0109-0206 |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<W47>
PE-SERIES ENG<1A0>
(A)
PT1/4
|
9-99204-513-0 |
01 |
1 |
0109-0206 |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<W47>
PE-SERIES ENG<1A0>
(A)
PT1/4
|
9-99204-513-0 |
01 |
1 |
0207- |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ELECTRICAL HORN(WB7)
FULL FLOATING CAB(W16)
W-SERIES ENG<1A2>
EXC. TIRE INFLATOR DEVICE<W47>
(A)
PT1/4
|
9-99204-513-0 |
01 |
1 |
0207- |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
W-SERIES ENG<1A2>
EXC. ELECTRICAL HORN(WB7),TIRE INFLATOR
DEVICE<W47>
(A)
PT1/4
|
9-99204-513-0 |
01 |
1 |
0207- |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ELECTRICAL HORN(WB7)
TIRE INFLATOR DEVICE<W47>
W-SERIES ENG<1A2>
EXC. FULL FLOATING CAB(W16)
(A)
PT1/4
|
9-99204-513-0 |
01 |
1 |
0207- |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
EXC. FULL FLOATING CAB(W16)
(B)
PT3/8
|
9-09204-517-0 |
01 |
1 |
0105- |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
PE-SERIES ENG<1A0>
(B)
PT3/8
|
9-09204-517-0 |
01 |
1 |
0105- |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(B)
PT3/8
|
9-09204-517-0 |
09 |
1 |
0105-0105 |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(B)
PT3/8
|
9-09204-517-0 |
05 |
1 |
0105-0211 |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA GB VAR1<JAC>
AIR DRYER<PS7>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(B)
PT3/8
|
9-09204-517-0 |
03 |
1 |
0212-0401 |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(B)
PT3/8
|
9-09204-517-0 |
03 |
1 |
0212-0401 |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>
AIR DRYER<PS7>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(B)
PT3/8
|
9-09204-517-0 |
03 |
1 |
0402-0407 |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(B)
PT3/8
|
9-09204-517-0 |
03 |
1 |
0402-0407 |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>
AIR DRYER<PS7>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(B)
PT3/8
|
9-09204-517-0 |
03 |
1 |
0408-0409 |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(B)
PT3/8
|
9-09204-517-0 |
03 |
1 |
0408-0409 |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(B)
PT3/8
|
9-09204-517-0 |
03 |
1 |
0408-0409 |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>
SUB AIR TANK<SJD>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(B)
PT3/8
|
9-09204-517-0 |
03 |
1 |
0410- |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>
AIR DRYER<PS7>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(B)
PT3/8
|
9-09204-517-0 |
03 |
1 |
0410- |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(B)
PT3/8
|
9-09204-517-0 |
03 |
1 |
0410- |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(C)
PT3/4
|
9-09204-526-0 |
02 |
1 |
0105-0105 |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
PT3/4
|
9-09204-526-0 |
01 |
1 |
0105- |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(A)
PT1/4
|
9-99204-513-0 |
02 |
1 |
0105-0105 |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(B)
PT3/8
|
9-09204-517-0 |
03 |
1 |
0105-0211 |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
EXC. AIR DRYER<PS7>
(B)
PT3/8
|
9-09204-517-0 |
05 |
1 |
0212-0401 |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
EXC. CHINA GB VAR1<JAC>
(B)
PT3/8
|
9-09204-517-0 |
05 |
1 |
0212-0401 |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
EXC. AIR DRYER<PS7>
(B)
PT3/8
|
9-09204-517-0 |
05 |
1 |
0402- |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
EXC. CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>
(B)
PT3/8
|
9-09204-517-0 |
05 |
1 |
0402- |
● |
● |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(C)
PT3/4
|
9-09204-526-0 |
01 |
1 |
0105-0105 |
● |
● |
| |
11 |
VALVE; SAFETY,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
PE-SERIES ENG<1A0>,W-SERIES ENG<1A2>
|
1-48320-012-0 |
01 |
1 |
0105-0105 |
● |
● |
| |
11 |
VALVE; SAFETY,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
|
1-48320-012-0 |
01 |
1 |
0105-0105 |
● |
● |
| |
11 |
VALVE; SAFETY,AIR TANK
|
1-48320-012-2 |
01 |
1 |
0105- |
● |
● |
| |
11 |
VALVE; SAFETY,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
|
1-48320-012-0 |
01 |
1 |
0105-0105 |
● |
● |
| |
13 |
ADAPTER; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
PE-SERIES ENG<1A0>
(A)
DIN12 & M20 STRAIGHT
|
1-09660-877-0 |
02 |
1 |
0105- |
● |
● |
| |
13 |
ADAPTER; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
W-SERIES ENG<1A2>
(A)
M20 & RC3/8 STRAIGHT
|
1-09660-883-0 |
01 |
1 |
0105- |
● |
● |
| |
13 |
ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(C)
DIN12 & M20 STRAIGHT
|
1-09660-877-0 |
04 |
1 |
0105-0105 |
● |
● |
| |
13 |
ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
(C)
DIN12 & M20 STRAIGHT
|
1-09660-877-0 |
04 |
1 |
0105- |
● |
● |
| |
13 |
ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(C)
DIN12 & M20 STRAIGHT
|
1-09660-877-0 |
04 |
1 |
0105-0105 |
● |
● |
| |
13 |
ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
(C)
DIN12 & M20 STRAIGHT
|
1-09660-877-0 |
03 |
1 |
0105- |
● |
● |
| |
13 |
ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>,CHINA-SOUTHERN ECONOMIC ZONE
EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)
(C)
DIN12 & M20 STRAIGHT
|
1-09660-877-0 |
03 |
1 |
0105-0105 |
● |
● |
| |
13 |
ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
(B)
DIN12 & M16 STRAIGHT
|
1-09660-876-0 |
02 |
1 |
0105-0105 |
● |
● |
| |
13 |
ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
DIN12 & M16 STRAIGHT
|
1-09660-876-0 |
01 |
1 |
0105- |
● |
● |
| |
13 |
ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
EXC. AIR DRYER<PS7>
(C)
DIN12 & M20 STRAIGHT
|
1-09660-877-0 |
03 |
1 |
0105-0105 |
● |
● |
| |
13 |
ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
(B)
DIN12 & M16 STRAIGHT
|
1-09660-876-0 |
01 |
1 |
0105-0105 |
● |
● |
| |
20 |
NIPPLE; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FULL FLOATING CAB(W16)
(A)
M12 & PT1/4 3WAY
|
1-09656-586-1 |
01 |
1 |
0105- |
● |
● |
| |
20 |
NIPPLE; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. FULL FLOATING CAB(W16)
(B)
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
01 |
1 |
0105- |
● |
● |
| |
20 |
NIPPLE; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TIRE INFLATOR DEVICE<W47>
(C)
M16 & PT1/4 & PT3/8 3WAY
|
1-09656-677-0 |
01 |
1 |
0105- |
● |
● |
| |
22 |
ADAPTER; AUTO DRAIN VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AUTO DRAIN<J78>
|
1-48319-031-0 |
01 |
1 |
0105- |
● |
● |
| |
23 |
CAP; COCK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TIRE INFLATOR DEVICE<W47>
|
9-48319-102-0 |
01 |
1 |
0105- |
● |
● |
| |
35 |
COCK; AIR,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TIRE INFLATOR DEVICE<W47>
|
1-09680-099-0 |
01 |
1 |
0105- |
● |
● |
| |
166 |
SWITCH ASM; LOW PRESSURE,MAIN TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
PE-SERIES ENG<1A0>
(B)
530KPA
|
1-48340-054-1 |
02 |
1 |
0105- |
● |
● |
| |
166 |
SWITCH ASM; LOW PRESSURE,MAIN TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
W-SERIES ENG<1A2>
(B)
530KPA
|
1-48340-054-1 |
01 |
1 |
0105- |
● |
● |
| |
166 |
SWITCH ASM; LOW PRESSURE,MAIN TANK
FULL FLOATING CAB(W16)
(A)
650KPA
|
1-48340-059-1 |
01 |
1 |
0105- |
● |
● |
| |
176 |
ADAPTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
DIN8 & M16 STRAIGHT
|
1-09660-875-0 |
02 |
1 |
0105- |
● |
● |
| |
176 |
ADAPTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
POWER BRAKE LOCK SYSTEM(J50)
(A)
DIN8 & M12 STRAIGHT
|
1-09660-873-0 |
02 |
1 |
0105- |
● |
● |
| |
176 |
ADAPTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TIRE INFLATOR DEVICE<W47>
(A)
DIN8 & M16 STRAIGHT
|
1-09660-875-0 |
01 |
1 |
0105- |
● |
● |
| |
176 |
ADAPTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. TIRE INFLATOR DEVICE<W47>
(B)
DIN8 & R3/8 ELBOW
|
1-09660-957-0 |
01 |
1 |
0105- |
● |
● |
| |
199 |
CONNECTOR; AIR PIPE,AIR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
FULL FLOATING CAB(W16),CHINA EQUIPMENT(YT2)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
01 |
1 |
0105- |
● |
● |
| |
261 |
TUBE; NYLON
SUB AIR TANK<SJD>
SERVICED BY L=6000 OD=6
|
1-87411-003-0 |
01 |
1 |
0403-0409 |
● |
● |
| |
261 |
TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
SERVICED BY L=2000 OD=12
|
1-87410-069-0 |
01 |
1 |
0105-0211 |
● |
● |
| |
261 |
TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA GB VAR1<JAC>
AIR DRYER<PS7>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
SERVICED BY L=2000 OD=12
|
1-87410-069-0 |
01 |
1 |
0212-0212 |
● |
● |
| |
261 |
TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
SERVICED BY L=2000 OD=12
|
1-87410-069-0 |
01 |
1 |
0212-0212 |
● |
● |
| |
261 |
TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA GB VAR1<JAC>
AIR DRYER<PS7>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
SERVICED BY L=2000 OD=12
|
1-87411-011-0 |
01 |
1 |
0301-0401 |
● |
● |
| |
261 |
TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
SERVICED BY L=2000 OD=12
|
1-87411-011-0 |
01 |
1 |
0301-0401 |
● |
● |
| |
261 |
TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHINA GB VAR1<JAC>,CHINA GB VAR2<JAY>
AIR DRYER<PS7>
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA
EQUIPMENT(YT2)
SERVICED BY L=2000 OD=12
|
1-87411-011-0 |
01 |
1 |
0402- |
● |
● |
| |
261 |
TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),
CHINA EQUIPMENT(YT2)
SERVICED BY L=2000 OD=12
|
1-87411-011-0 |
01 |
1 |
0402- |
● |
● |
