Isuzu WW
▶
TRUCKS
▶
NQR
▶
51390 - NQR A/BRAKE MIDEAST
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-90 - REAR BUMPER
▶
6-90 — REAR BUMPER
(#125108) — 23 parça
◀

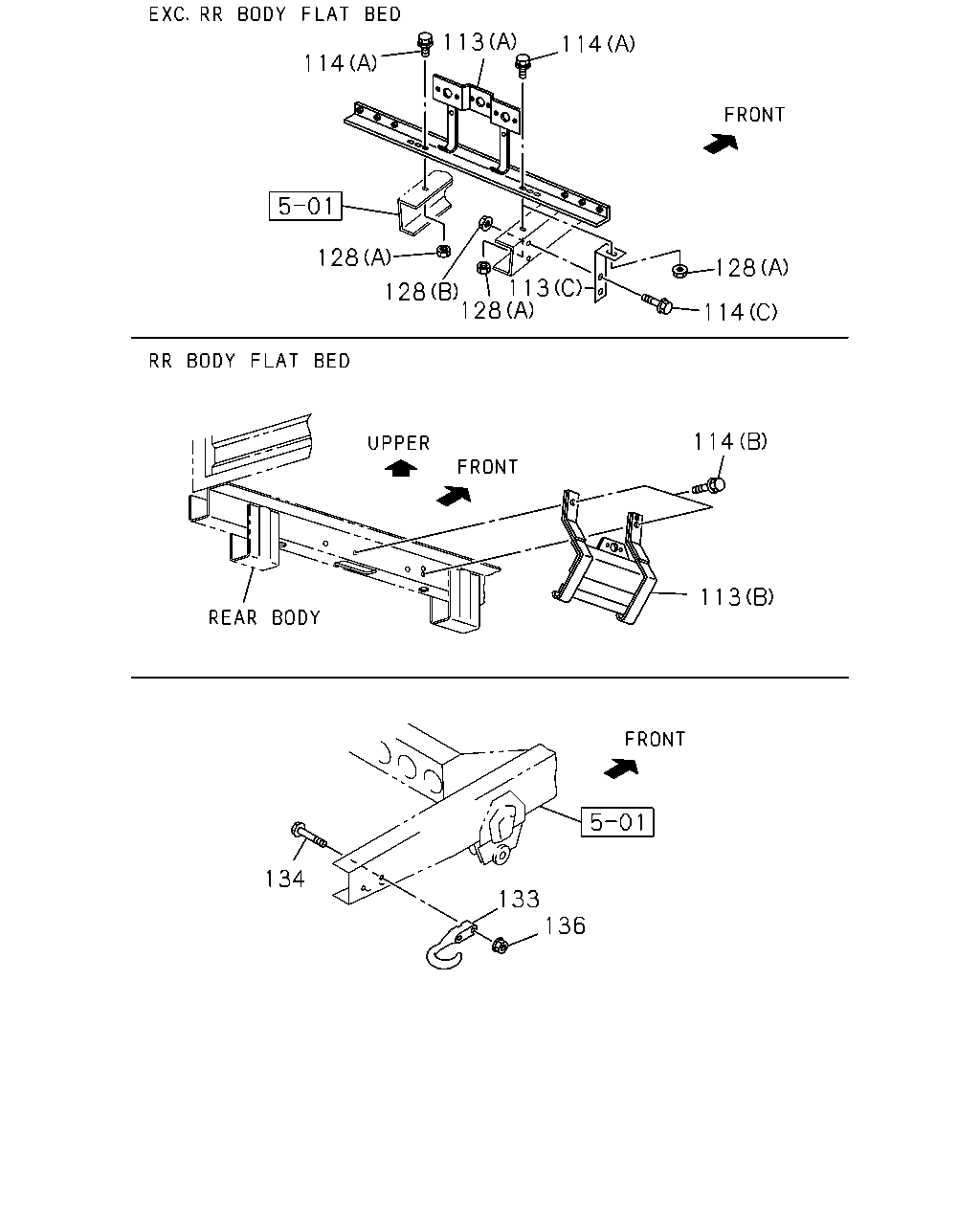

[690A] BUMPER (12 parça)
[690A] LICENSE PLATE AND HOOK (11 parça)
▶
11
1
315
315
11
306
306
12
2
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
07.070 BUMPER; RR
COUNTRY - SAUDI ARABIA<CU8> BUMPER REAR<7HZ> STAMP D8Q
8-98088-675-0
01
1
1409-
1
07.070 BUMPER; RR
BUMPER REAR<7HZ> STAMP IH2Q
8-98019-417-0
01
1
1307-1408
1
07.070 BUMPER; RR
BUMPER REAR<7HZ> EXC. COUNTRY - SAUDI ARABIA<CU8> STAMP IH2Q
8-98019-417-0
01
1
1409-
2
07.874 BOLT; BACK BAR
BUMPER REAR<7HZ> (A) M14X30
0-20851-430-0
08
1
1307-
2
07.874 BOLT; BACK BAR
BUMPER REAR<7HZ> 07.395 (B) M12X30 FLANGE
0-28651-230-0
08
1
1307-
11
07.829 CAP; RR BUMPER
COUNTRY - SAUDI ARABIA<CU8> BUMPER REAR<7HZ>
8-98070-331-0
02
1
1409-
11
07.829 CAP; RR BUMPER
BUMPER REAR<7HZ>
1-71290-064-0
02
1
1307-1408
11
07.829 CAP; RR BUMPER
BUMPER REAR<7HZ> EXC. COUNTRY - SAUDI ARABIA<CU8>
1-71290-064-0
02
1
1409-
12
07.833 NUT; BRKT
BUMPER REAR<7HZ> 00.429 M14 FLANGE
0-91180-214-0
08
1
1307-
306
07.836 BAR; BACK,RR
BUMPER REAR<7HZ> STAMP IA3
8-98039-408-0
01
1
1307-
306
07.836 BAR; BACK,RR
BUMPER REAR<7HZ> STAMP IA3
8-98039-409-0
01
1
1307-
315
07.829 RIVET; CAP
BUMPER REAR<7HZ>
1-71290-062-0
04
1
1307-
114
113
114
113
128
114
128
128
128
114
113
134
136
133
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
113
07.800 BRACKET; LICENSE PLATE
RR BODY FLAT BED(RS6) (B)
8-97077-573-2
01
1
1307-
113
07.800 BRACKET; LICENSE PLATE
WHEEL BASE 4100MM(41W) EXC. RR BODY FLAT BED(RS6) (C)
8-98091-681-0
02
1
1307-
113
07.800 BRACKET; LICENSE PLATE
EXC. RR BODY FLAT BED(RS6) (A)
8-98029-390-3
01
1
1307-
114
07.800 BOLT; BRKT,LICENSE PLATE
RR BODY FLAT BED(RS6) 00.685 (B) M6X25 FLANGE
0-28650-625-0
02
1
1307-
114
07.800 BOLT; BRKT,LICENSE PLATE
WHEEL BASE 4100MM(41W) EXC. RR BODY FLAT BED(RS6) 07.833 (C) M10X25 FLANGE
0-28661-025-0
04
1
1307-
114
07.800 BOLT; BRKT,LICENSE PLATE
EXC. RR BODY FLAT BED(RS6) 00.685 (A) M8X40 FLANGE
0-28650-840-0
02
1
1307-
128
02.662 NUT; CROSS PLATE
WHEEL BASE 4100MM(41W) EXC. RR BODY FLAT BED(RS6) 03.162 (B) M10 FLANGE
0-91180-110-0
04
1
1307-
128
02.662 NUT; CROSS PLATE
EXC. RR BODY FLAT BED(RS6) 01.062 (A) M8 FLANGE
0-91180-108-0
02
1
1307-
133
07.112 HOOK
07.068
8-97387-665-0
01
1
1307-
134
07.068 BOLT; HOOK
M14X60
0-10861-460-0
02
1
1307-
136
07.068 NUT; HOOK
00.429 M14 FLANGE
0-91180-214-0
02
1
1307-
