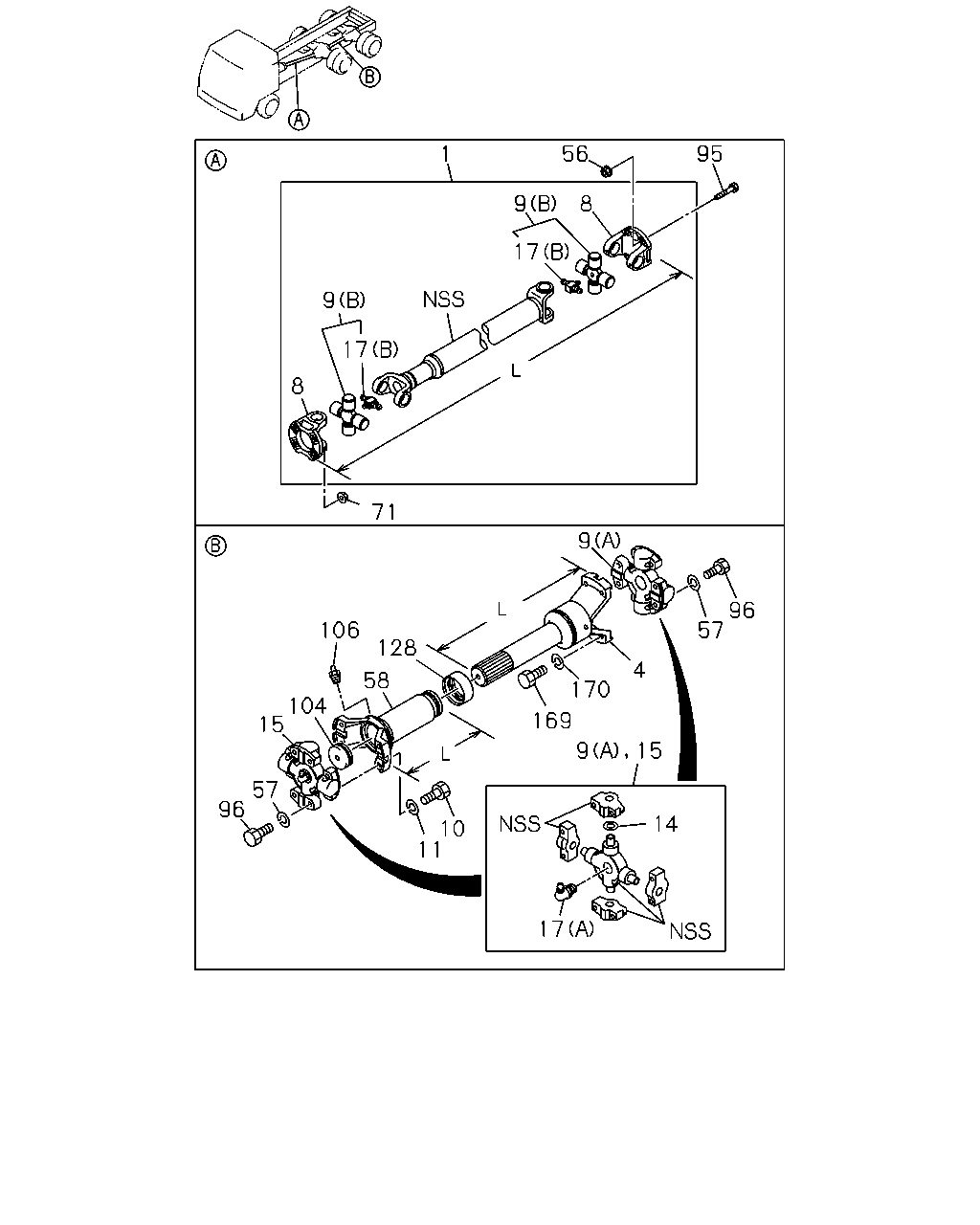

4-01 — PROPELLER SHAFT (#12509) — 26 parça

95 56 1 9 8 17 9 17 71 9 96 57 106 128 4 58 170 104 15 169 15 9 57 96 14 10 11 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP L=1280	1-37124-507-1	01	1	0105-0210
1	SHAFT; PROP L=1265	1-37125-167-0	01	1	0211-
4	SHAFT; PROP L=348	1-37171-127-2	01	1	0105-
8	YOKE; FLANGE,PROP SHAFT	1-37211-083-0	02	1	0105-
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-100-1	01	1	0105-
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-118-0	02	1	0105-
10	BOLT; UJT M12X45	9-91066-245-0	04	1	0105-
11	WASHER; LK,UNIVERSAL,PROP SHAFT ID=12.2	9-09150-612-0	04	1	0105-
14	COVER; DUST,SPIDER	1-37319-004-0	08	1	0105-
15	UNIVERSAL CENTER	1-37300-100-1	01	1	0105-
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0105-0512
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-
17	NIPPLE; GREASE,PROP SHAFT (B)	1-37319-013-0	02	1	0105-
56	NUT; YOKE M14 FLANGE	1-09440-048-0	04	1	0105-
57	WASHER; LK,YOKE ID=12.2	9-09150-612-0	08	1	0105-
58	FLANGE; SPLINED L=265	1-37245-317-0	01	1	0105-
71	NUT; YOKE M14 FLANGE	1-09440-048-0	04	1	0105-
95	BOLT; YOKE,FINAL EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M14X50	1-09000-645-0	04	1	0105-
96	BOLT; PROP SHAFT M12X45	9-91066-245-0	08	1	0105-
104	PLUG; SLEEVE YOKE	1-09600-049-0	01	1	0105-
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	9-09031-010-0	01	1	0105-0512
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-
128	SEAL; SLEEVE	1-37247-006-0	01	1	0105-0312
128	SEAL; SLEEVE	8-97603-618-0	01	1	0401-
169	BOLT; YOKE,SLEEVE M12X45	9-91066-245-0	04	1	0105-
170	WASHER; LK,YOKE,SLEEVE ID=12.2	9-09150-612-0	04	1	0105-
