Isuzu WW
▶
TRUCKS
▶
NQR
▶
51390 - NQR A/BRAKE MIDEAST
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-01 - FRONT BUMPER
▶
6-01 — FRONT BUMPER
(#125087) — 33 parça
◀

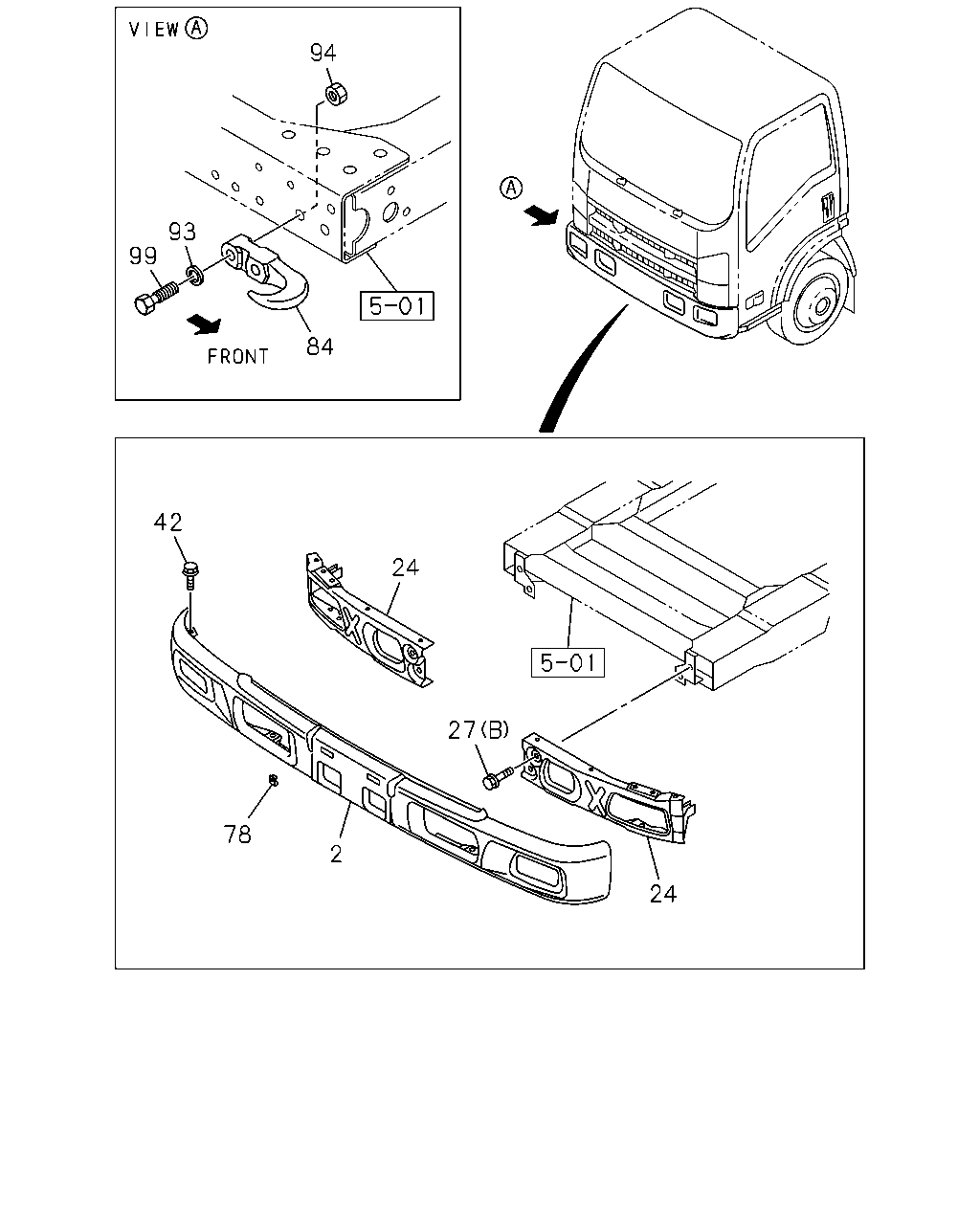

[601A] BUMPER (19 parça)

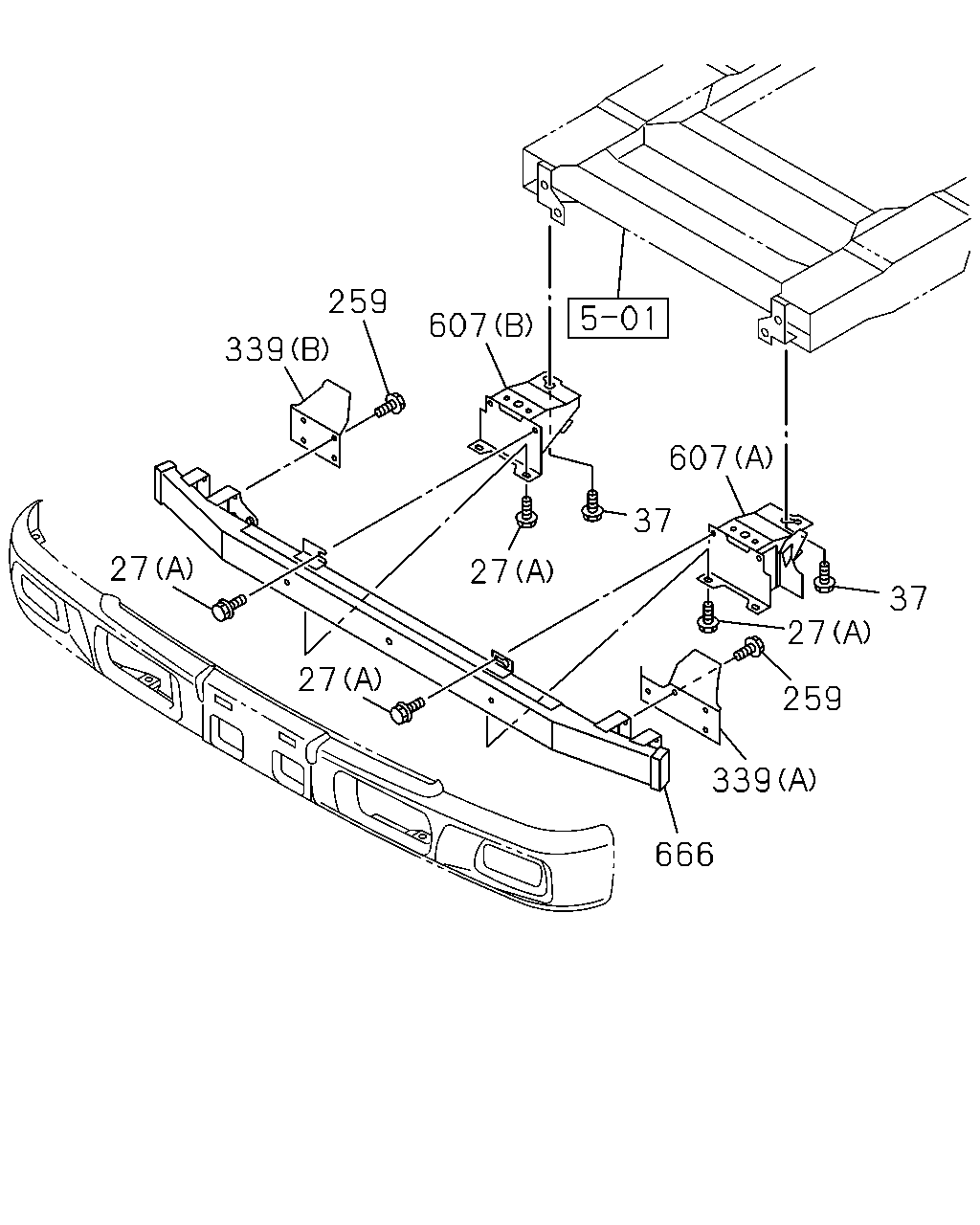

[601A] AIR GUIDE AND UNDER PROTECTOR (14 parça)
▶
94
84
93
99
42
24
78
2
24
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
07.831 BUMPER; FRT,CENTER
FOG LAMP<T96> FRONT BUMPER PAINTED<VB5> PRIMER
8-98055-079-2
01
1
1307-
2
07.831 BUMPER; FRT,CENTER
FOG LAMP<T96> FRT BUMPER DARK GRAY<EQ9> DARK GRAY
8-97405-627-5
01
1
1307-
2
07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> WHITE
8-97405-628-5
01
1
1307-
2
07.831 BUMPER; FRT,CENTER
BODY COLOR TRANS BLUE(999) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> BLUE
8-97405-629-5
01
1
1307-
2
07.831 BUMPER; FRT,CENTER
FRONT BUMPER PAINTED<VB5> EXC. FOG LAMP<T96> PRIMER
8-98055-080-2
01
1
1307-
2
07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> EXC. FOG LAMP<T96> DARK GRAY
8-97405-634-5
01
1
1307-
2
07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96>,FRONT BUMPER PAINTED<VB5> WHITE
8-97405-635-5
01
1
1307-
2
07.831 BUMPER; FRT,CENTER
BODY COLOR TRANS BLUE(999) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96>,FRONT BUMPER PAINTED<VB5> BLUE
8-97405-636-5
01
1
1307-
24
07.869 BAR; FRT BUMPER
8-98025-184-5
01
1
1307-
24
07.869 BAR; FRT BUMPER
8-98025-185-5
01
1
1307-
27
07.833 BOLT; BUMPER TO BACK BAR
FRONT UNDER RUN PROTECTOR<EBE> 00.029 (A) M10X30 FLANGE
0-28651-030-0
06
1
1408-1408
27
07.833 BOLT; BUMPER TO BACK BAR
COUNTRY - SAUDI ARABIA<CU8> FRONT UNDER RUN PROTECTOR<EBE> 00.029 (A) M10X30 FLANGE
0-28651-030-0
06
1
1409-
27
07.833 BOLT; BUMPER TO BACK BAR
(B) M10X30 W/TORQUES
8-98092-250-0
04
1
1307-
42
07.874 BOLT; BUMPER
08.143 M6X16 W/LK&PL WASHER
0-52010-616-0
10
1
1307-
78
07.874 NUT; SPIRE
M6
8-98029-416-0
02
1
1307-
84
07.068 HOOK
8-97387-665-0
01
1
1307-
93
07.068 WASHER; LK,HOOK
06.174 ID=14.2
0-91510-814-0
02
1
1307-
94
07.068 NUT; HOOK
07.833 M14
0-91110-514-0
01
1
1307-
99
07.039 BOLT; HOOK
M14X55
8-97301-262-0
02
1
1307-
259
339
607
607
37
27
37
27
27
666
339
259
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
07.833 BOLT; BUMPER TO BACK BAR
FRONT UNDER RUN PROTECTOR<EBE> 00.029 (A) M10X30 FLANGE
0-28651-030-0
06
1
1408-1408
27
07.833 BOLT; BUMPER TO BACK BAR
COUNTRY - SAUDI ARABIA<CU8> FRONT UNDER RUN PROTECTOR<EBE> 00.029 (A) M10X30 FLANGE
0-28651-030-0
06
1
1409-
27
07.833 BOLT; BUMPER TO BACK BAR
(B) M10X30 W/TORQUES
8-98092-250-0
04
1
1307-
37
01.263 BOLT; BRKT TO BUMPER LWR
FRONT UNDER RUN PROTECTOR<EBE> 09.003 M12X35 FLANGE
0-28651-235-0
06
1
1408-1408
37
01.263 BOLT; BRKT TO BUMPER LWR
COUNTRY - SAUDI ARABIA<CU8> FRONT UNDER RUN PROTECTOR<EBE> 09.003 M12X35 FLANGE
0-28651-235-0
06
1
1409-
259
07.833 BOLT; COVER
FRONT UNDER RUN PROTECTOR<EBE> 01.531 M8X20 FLANGE
0-28650-820-0
08
1
1408-1408
339
07.831 COVER; SNOW GUARD
FRONT UNDER RUN PROTECTOR<EBE> (B)
8-98126-477-0
01
1
1408-1408
339
07.831 COVER; SNOW GUARD
FRONT UNDER RUN PROTECTOR<EBE> (A)
8-98200-449-1
01
1
1408-1408
607
07.869 BRACKET
FRONT UNDER RUN PROTECTOR<EBE> (A)
8-98199-136-0
01
1
1408-1408
607
07.869 BRACKET
COUNTRY - SAUDI ARABIA<CU8> FRONT UNDER RUN PROTECTOR<EBE> (B)
8-98292-827-0
01
1
1409-
607
07.869 BRACKET
FRONT UNDER RUN PROTECTOR<EBE> (B)
8-98199-135-0
01
1
1408-1408
607
07.869 BRACKET
COUNTRY - SAUDI ARABIA<CU8> FRONT UNDER RUN PROTECTOR<EBE> (A)
8-98281-194-0
01
1
1409-
666
07.831 PROTECTOR; UNDER
FRONT UNDER RUN PROTECTOR<EBE>
8-98199-128-0
01
1
1408-1408
666
07.831 PROTECTOR; UNDER
COUNTRY - SAUDI ARABIA<CU8> FRONT UNDER RUN PROTECTOR<EBE>
8-98232-025-0
01
1
1409-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
