5-01 — FRAME AND OTHER PARTS (#125082) — 182 parça

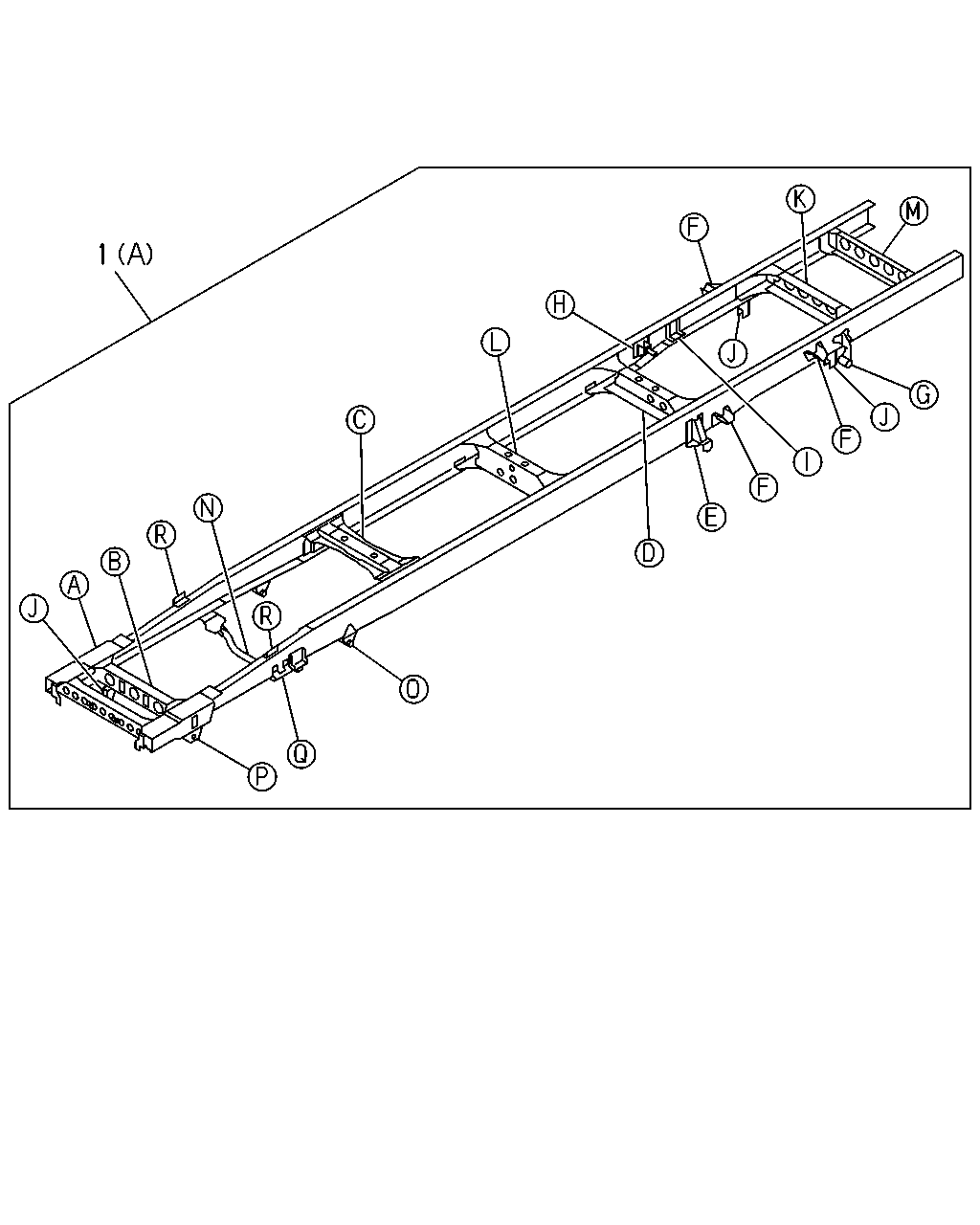

çizim 363526
1
BalonParca AdiParca NoAdetTipApplied Date
1 07.003 FRAME ASM
WHEEL BASE 3800MM(38W) FRONT UNDER RUN PROTECTOR<EBE> FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (A) 		8-98201-316-2 01 1 1408-1408
1 07.003 FRAME ASM
WHEEL BASE 3800MM(38W) FRONT UNDER RUN PROTECTOR<EBE> FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> (A) 		8-98201-316-2 01 1 1409-
1 07.003 FRAME ASM
WHEEL BASE 4100MM(41W) FRONT UNDER RUN PROTECTOR<EBE> FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (B) 		8-98201-317-2 01 1 1408-1408
1 07.003 FRAME ASM
WHEEL BASE 4100MM(41W) FRONT UNDER RUN PROTECTOR<EBE> FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> (B) 		8-98201-317-2 01 1 1409-
1 07.003 FRAME ASM
WHEEL BASE 3800MM(38W) FRONT UNDER RUN PROTECTOR<EBE> STABILIZER REAR<GN1> FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (A) 		8-98291-795-0 01 1 1409-
1 07.003 FRAME ASM
WHEEL BASE 3800MM(38W) (A) 		8-98181-443-3 01 1 1307-1407
1 07.003 FRAME ASM
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) 		8-98181-443-3 01 1 1408-
1 07.003 FRAME ASM
WHEEL BASE 4100MM(41W) (B) 		8-98181-449-3 01 1 1307-1407
1 07.003 FRAME ASM
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) 		8-98181-449-3 01 1 1408-1408
1 07.003 FRAME ASM
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. FRONT UNDER RUN PROTECTOR<EBE>, STABILIZER REAR<GN1> (B) 		8-98181-449-3 01 1 1409-

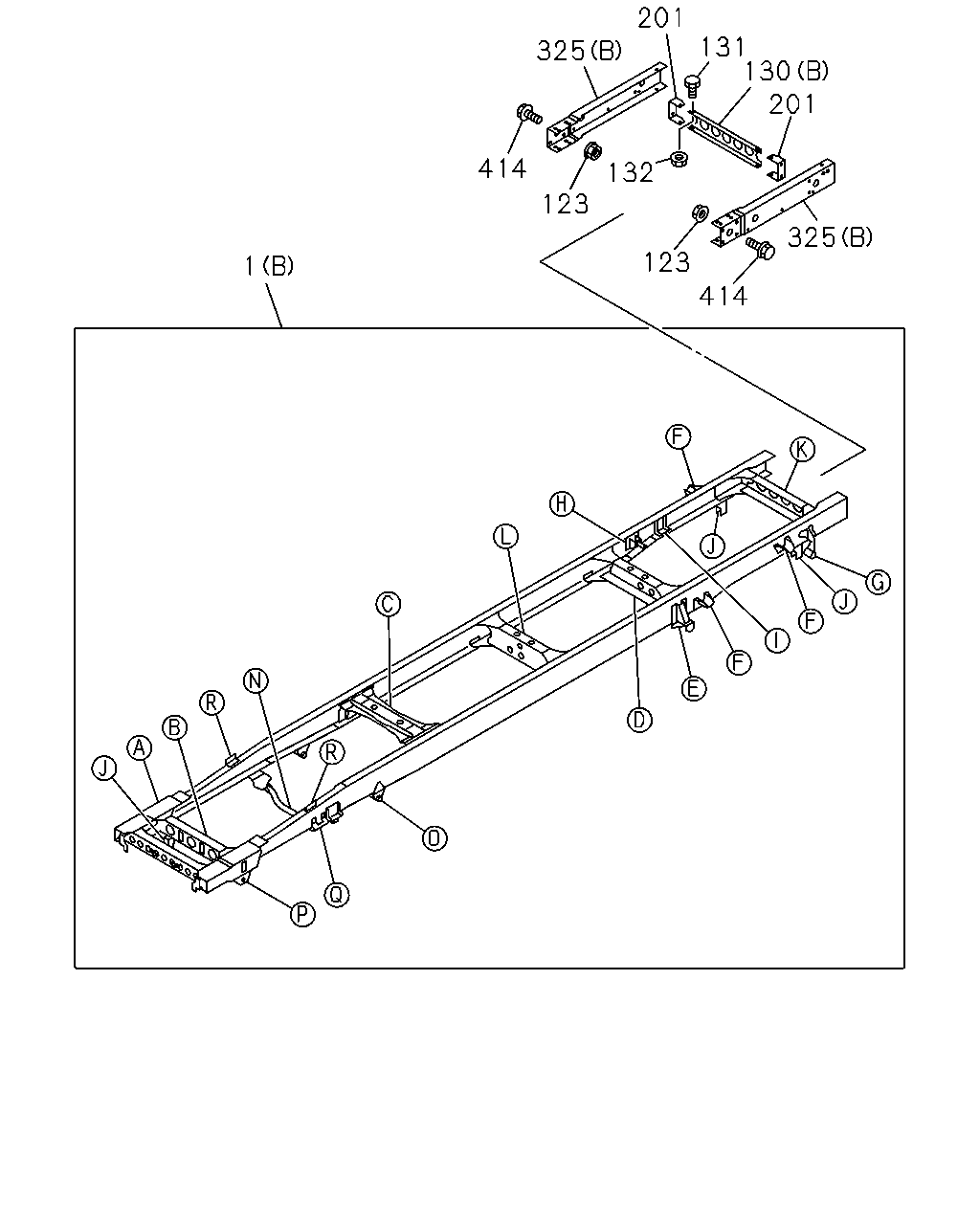

çizim 364677
1 201 325 131 414 130 123 132 201 123 325 414
BalonParca AdiParca NoAdetTipApplied Date
1 07.003 FRAME ASM
WHEEL BASE 3800MM(38W) FRONT UNDER RUN PROTECTOR<EBE> FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (A) 		8-98201-316-2 01 1 1408-1408
1 07.003 FRAME ASM
WHEEL BASE 3800MM(38W) FRONT UNDER RUN PROTECTOR<EBE> FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> (A) 		8-98201-316-2 01 1 1409-
1 07.003 FRAME ASM
WHEEL BASE 4100MM(41W) FRONT UNDER RUN PROTECTOR<EBE> FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (B) 		8-98201-317-2 01 1 1408-1408
1 07.003 FRAME ASM
WHEEL BASE 4100MM(41W) FRONT UNDER RUN PROTECTOR<EBE> FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> (B) 		8-98201-317-2 01 1 1409-
1 07.003 FRAME ASM
WHEEL BASE 3800MM(38W) FRONT UNDER RUN PROTECTOR<EBE> STABILIZER REAR<GN1> FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (A) 		8-98291-795-0 01 1 1409-
1 07.003 FRAME ASM
WHEEL BASE 3800MM(38W) (A) 		8-98181-443-3 01 1 1307-1407
1 07.003 FRAME ASM
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) 		8-98181-443-3 01 1 1408-
1 07.003 FRAME ASM
WHEEL BASE 4100MM(41W) (B) 		8-98181-449-3 01 1 1307-1407
1 07.003 FRAME ASM
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) 		8-98181-449-3 01 1 1408-1408
1 07.003 FRAME ASM
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. FRONT UNDER RUN PROTECTOR<EBE>, STABILIZER REAR<GN1> (B) 		8-98181-449-3 01 1 1409-
123 07.039 NUT
WHEEL BASE 4100MM(41W) 07.395 M12 		8-97360-126-0 16 1 1307-
130 07.014 MEMBER; CROSS,END
WHEEL BASE 3800MM(38W) (A) 		8-97080-872-0 01 1 1307-
130 07.014 MEMBER; CROSS,END
WHEEL BASE 4100MM(41W) (B) 		8-97205-394-0 01 1 1307-
131 07.014 BOLT; END C/MBR
WHEEL BASE 4100MM(41W) 07.833 M10X25 FLANGE 		0-28661-025-0 08 1 1307-
132 07.014 NUT; END C/MBR
WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE 		0-91180-110-0 08 1 1307-
201 07.039 GUSSET; C/MBR 8-97096-871-0 02 1 1307-
325 07.039 EXTENSION; FRAME
FRONT UNDER RUN PROTECTOR<EBE> (A) 		8-98196-150-0 01 1 1408-
325 07.039 EXTENSION; FRAME
FRONT UNDER RUN PROTECTOR<EBE> (A) 		8-98196-151-0 01 1 1408-
325 07.039 EXTENSION; FRAME
(A) 		8-98073-346-0 01 1 1307-1407
325 07.039 EXTENSION; FRAME
EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) 		8-98073-346-0 01 1 1408-
325 07.039 EXTENSION; FRAME
(A) 		8-98196-152-0 01 1 1307-1407
325 07.039 EXTENSION; FRAME
EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) 		8-98196-152-0 01 1 1408-
325 07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W) (B) 		8-97222-891-1 01 1 1307-
325 07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W) (B) 		8-97222-892-1 01 1 1307-
414 07.011 BOLT
WHEEL BASE 4100MM(41W) 06.509 M12X30 FLANGE 		0-28661-230-0 12 1 1307-
414 07.011 BOLT
WHEEL BASE 4100MM(41W) M12X40 FLANGE 		0-28661-240-0 04 1 1307-

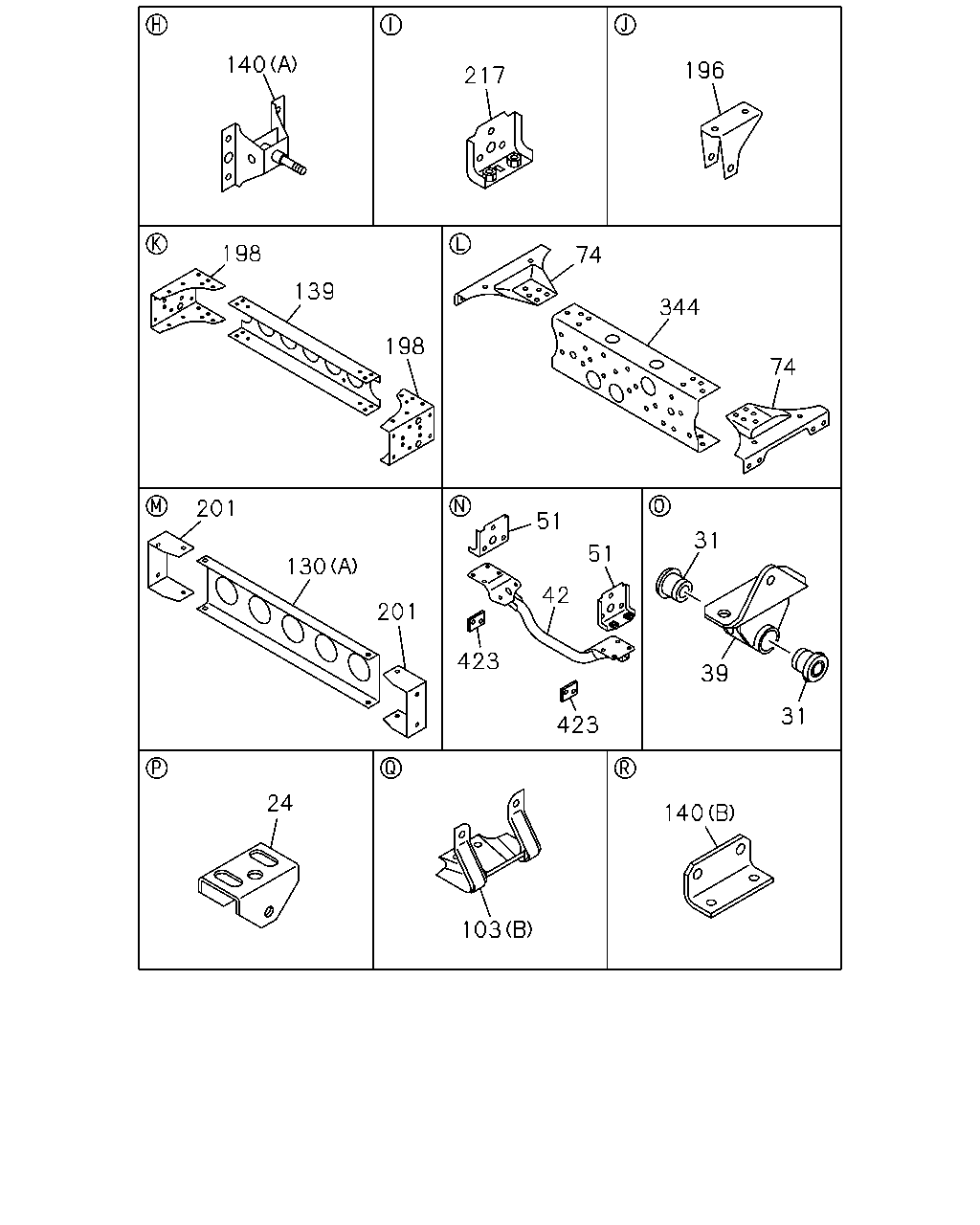

çizim 364680
140 217 196 344 74 74 31 51 51 201 198 198 139 130 423 103 140 423 39 42 31 201 24
BalonParca AdiParca NoAdetTipApplied Date
24 07.105 BRACKET; FRT SPR,FRT 8-98015-274-0 02 1 1307-1408
24 07.105 BRACKET; FRT SPR,FRT
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> 		8-98015-274-0 02 1 1409-
24 07.105 BRACKET; FRT SPR,FRT
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 		8-98015-274-0 02 1 1409-
31 07.428 BUSHING; FRT SPR,RR
07.524 		8-97184-699-1 04 1 1307-1408
31 07.428 BUSHING; FRT SPR,RR
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> 07.524 		8-97184-699-1 04 1 1409-
31 07.428 BUSHING; FRT SPR,RR
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 07.524 		8-97184-699-1 04 1 1409-
39 07.112 BRACKET; FRT SPR,RR 8-98014-125-0 02 1 1307-1408
39 07.112 BRACKET; FRT SPR,RR
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> 		8-98014-125-0 02 1 1409-
39 07.112 BRACKET; FRT SPR,RR
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 		8-98014-125-0 02 1 1409-
42 07.011 MEMBER; CROSS,ENG MTG 8-98032-389-0 01 1 1307-1408
42 07.011 MEMBER; CROSS,ENG MTG
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> 		8-98032-389-0 01 1 1409-
42 07.011 MEMBER; CROSS,ENG MTG
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 		8-98032-389-0 01 1 1409-
51 07.011 BRACKET; ENG SUPPORT,OUTER 8-98034-961-0 02 1 1307-1408
51 07.011 BRACKET; ENG SUPPORT,OUTER
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> 		8-98034-961-0 02 1 1409-
51 07.011 BRACKET; ENG SUPPORT,OUTER
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 		8-98034-961-0 02 1 1409-
74 07.039 GUSSET; 4TH C/MBR
RH-LOWER,LH-UPPER 		8-98000-583-0 02 1 1307-1408
74 07.039 GUSSET; 4TH C/MBR
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> 		8-98000-583-0 02 1 1409-
74 07.039 GUSSET; 4TH C/MBR
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 		8-98000-583-0 02 1 1409-
74 07.039 GUSSET; 4TH C/MBR
RH-UPPER,LH-LOWER 		8-98000-584-0 02 1 1307-1408
74 07.039 GUSSET; 4TH C/MBR
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> 		8-98000-584-0 02 1 1409-
74 07.039 GUSSET; 4TH C/MBR
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 		8-98000-584-0 02 1 1409-
103 07.420 STOPPER; SUB SPR
07.524 (B) 		8-97079-659-1 02 1 1307-1408
103 07.420 STOPPER; SUB SPR
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> 07.524 (B) 		8-97079-659-1 02 1 1409-
103 07.420 STOPPER; SUB SPR
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 07.524 (B) 		8-97079-659-1 02 1 1409-
103 07.420 STOPPER; SUB SPR
(A) 		8-97223-748-0 04 1 1307-1408
103 07.420 STOPPER; SUB SPR
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> (A) 		8-97223-748-0 04 1 1409-
103 07.420 STOPPER; SUB SPR
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (A) 		8-97223-748-0 04 1 1409-
130 07.014 MEMBER; CROSS,END
WHEEL BASE 3800MM(38W) (A) 		8-97080-872-0 01 1 1307-
130 07.014 MEMBER; CROSS,END
WHEEL BASE 4100MM(41W) (B) 		8-97205-394-0 01 1 1307-
139 07.012 MEMBER; CROSS,6TH 8-97107-384-0 01 1 1307-1408
139 07.012 MEMBER; CROSS,6TH
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> 		8-97107-384-0 01 1 1409-
139 07.012 MEMBER; CROSS,6TH
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 		8-97107-384-0 01 1 1409-
140 07.112 BRACKET; S/ABS,RR
WHEEL BASE 3800MM(38W) FRONT UNDER RUN PROTECTOR<EBE> STABILIZER REAR<GN1> FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (A) 		8-97080-884-1 02 1 1501-1501
140 07.112 BRACKET; S/ABS,RR
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> (A) 		8-97080-884-1 02 1 1501-
140 07.112 BRACKET; S/ABS,RR
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (A) 		8-97080-884-1 02 1 1501-
140 07.112 BRACKET; S/ABS,RR
(A) 		8-98184-110-0 02 1 1307-1408
140 07.112 BRACKET; S/ABS,RR
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> (A) 		8-98184-110-0 02 1 1409-1412
140 07.112 BRACKET; S/ABS,RR
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (A) 		8-98184-110-0 02 1 1409-1412
140 07.112 BRACKET; S/ABS,RR
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) 		8-98184-110-0 02 1 1501-1501
140 07.112 BRACKET; S/ABS,RR
WHEEL BASE 3800MM(38W) FRONT UNDER RUN PROTECTOR<EBE> FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> (A) 		8-98184-110-0 02 1 1501-1501
140 07.112 BRACKET; S/ABS,RR
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> (A) 		8-98184-110-0 02 1 1501-1501
140 07.112 BRACKET; S/ABS,RR
07.395 (B) 		8-97302-511-0 02 1 1307-
196 07.242 BRACKET; STAB TO FRAME
WHEEL BASE 3800MM(38W) 		8-98033-523-0 04 1 1307-1407
196 07.242 BRACKET; STAB TO FRAME
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-98033-523-0 04 1 1408-1408
196 07.242 BRACKET; STAB TO FRAME
WHEEL BASE 3800MM(38W) FRONT UNDER RUN PROTECTOR<EBE> FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> 		8-98033-523-0 02 1 1409-
196 07.242 BRACKET; STAB TO FRAME
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> 		8-98033-523-0 02 1 1409-
196 07.242 BRACKET; STAB TO FRAME
WHEEL BASE 4100MM(41W) 		8-98033-523-0 02 1 1307-1407
196 07.242 BRACKET; STAB TO FRAME
WHEEL BASE 3800MM(38W) FRONT UNDER RUN PROTECTOR<EBE> FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 		8-98033-523-0 02 1 1408-1408
196 07.242 BRACKET; STAB TO FRAME
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 		8-98033-523-0 02 1 1408-1408
196 07.242 BRACKET; STAB TO FRAME
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-98033-523-0 04 1 1409-
196 07.242 BRACKET; STAB TO FRAME
WHEEL BASE 3800MM(38W) FRONT UNDER RUN PROTECTOR<EBE> STABILIZER REAR<GN1> FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 		8-98033-523-0 04 1 1409-
198 07.039 GUSSET; 6TH C/MBR 8-98092-777-1 01 1 1307-1408
198 07.039 GUSSET; 6TH C/MBR
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> 		8-98092-777-1 01 1 1409-
198 07.039 GUSSET; 6TH C/MBR
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 		8-98092-777-1 01 1 1409-
198 07.039 GUSSET; 6TH C/MBR 8-98092-778-1 01 1 1307-1408
198 07.039 GUSSET; 6TH C/MBR
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> 		8-98092-778-1 01 1 1409-
198 07.039 GUSSET; 6TH C/MBR
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 		8-98092-778-1 01 1 1409-
201 07.039 GUSSET; C/MBR 8-97096-871-0 02 1 1307-
217 07.535 BRACKET; HELPER RUBBER,RR SPRING 8-97202-417-0 02 1 1307-1408
217 07.535 BRACKET; HELPER RUBBER,RR SPRING
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> 		8-97202-417-0 02 1 1409-
217 07.535 BRACKET; HELPER RUBBER,RR SPRING
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 		8-97202-417-0 02 1 1409-
344 07.012 MEMBER; CROSS,4TH 8-97175-993-3 01 1 1307-1408
344 07.012 MEMBER; CROSS,4TH
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> 		8-97175-993-3 01 1 1409-
344 07.012 MEMBER; CROSS,4TH
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 		8-97175-993-3 01 1 1409-
423 07.039 PATCH 8-98163-494-0 02 1 1307-1408
423 07.039 PATCH
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> 		8-98163-494-0 02 1 1409-
423 07.039 PATCH
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 		8-98163-494-0 02 1 1409-
çizim 364705
176 376 376 376 376 376 376 376 376 376 376 376 376 176 67 118 296
BalonParca AdiParca NoAdetTipApplied Date
67 07.011 NUT; C/MBR
04.085 M10 FLANGE 		0-91180-210-0 18 1 1307-1408
67 07.011 NUT; C/MBR
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> 04.085 M10 FLANGE 		0-91180-210-0 18 1 1409-
67 07.011 NUT; C/MBR
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 04.085 M10 FLANGE 		0-91180-210-0 18 1 1409-
118 07.529 NUT; STOPPER
M8 LOCK NUT 		0-91370-008-0 02 1 1307-1408
118 07.529 NUT; STOPPER
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> M8 LOCK NUT 		0-91370-008-0 02 1 1409-
118 07.529 NUT; STOPPER
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> M8 LOCK NUT 		0-91370-008-0 02 1 1409-
176 04.085 BOLT; C/MBR,ENG MTG
03.890 (B) M10X30 FLANGE 		0-28051-030-0 04 1 1307-1408
176 04.085 BOLT; C/MBR,ENG MTG
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> 03.890 (B) M10X30 FLANGE 		0-28051-030-0 04 1 1409-
176 04.085 BOLT; C/MBR,ENG MTG
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 03.890 (B) M10X30 FLANGE 		0-28051-030-0 04 1 1409-
176 04.085 BOLT; C/MBR,ENG MTG
00.029 (A) M10X25 FLANGE 		0-28651-025-0 04 1 1307-1408
176 04.085 BOLT; C/MBR,ENG MTG
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> 00.029 (A) M10X25 FLANGE 		0-28651-025-0 04 1 1409-
176 04.085 BOLT; C/MBR,ENG MTG
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 00.029 (A) M10X25 FLANGE 		0-28651-025-0 04 1 1409-
296 07.039 BOLT; 3RD C/MBR
00.029 M10X30 FLANGE 		0-28651-030-0 16 1 1307-1408
296 07.039 BOLT; 3RD C/MBR
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> 00.029 M10X30 FLANGE 		0-28651-030-0 16 1 1409-
296 07.039 BOLT; 3RD C/MBR
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 00.029 M10X30 FLANGE 		0-28651-030-0 16 1 1409-
376 07.039 RIVET; FRAME
07.011 (A) D8X24 TAPER END 		9-06750-824-0 AR 1 1307-
376 07.039 RIVET; FRAME
(B) D10X24 TAPER END 		9-06751-024-0 AR 1 1307-
376 07.039 RIVET; FRAME
(C) D10X26 TAPER END 		9-06751-026-0 AR 1 1307-
376 07.039 RIVET; FRAME
(D) D10X28 TAPER END 		9-06751-028-0 AR 1 1307-
376 07.039 RIVET; FRAME
(E) D10X30 TAPER END 		9-06751-030-0 AR 1 1307-
376 07.039 RIVET; FRAME
(F) D10X32 TAPER END 		9-06751-032-0 AR 1 1307-
376 07.039 RIVET; FRAME
(G) D10X36 TAPER END 		9-06751-036-0 AR 1 1307-
376 07.039 RIVET; FRAME
(H) D11X26 TAPER END 		9-06751-126-0 AR 1 1307-
376 07.039 RIVET; FRAME
(I) D11X30 TAPER END 		9-06751-130-0 AR 1 1307-
376 07.039 RIVET; FRAME
07.105 (J) D12X30 TAPER END 		9-06751-230-0 AR 1 1307-
376 07.039 RIVET; FRAME
07.428 (K) D12X36 TAPER END 		9-06751-236-0 AR 1 1307-
376 07.039 RIVET; FRAME
07.112 (L) D12X40 TAPER END 		9-06751-240-0 AR 1 1307-

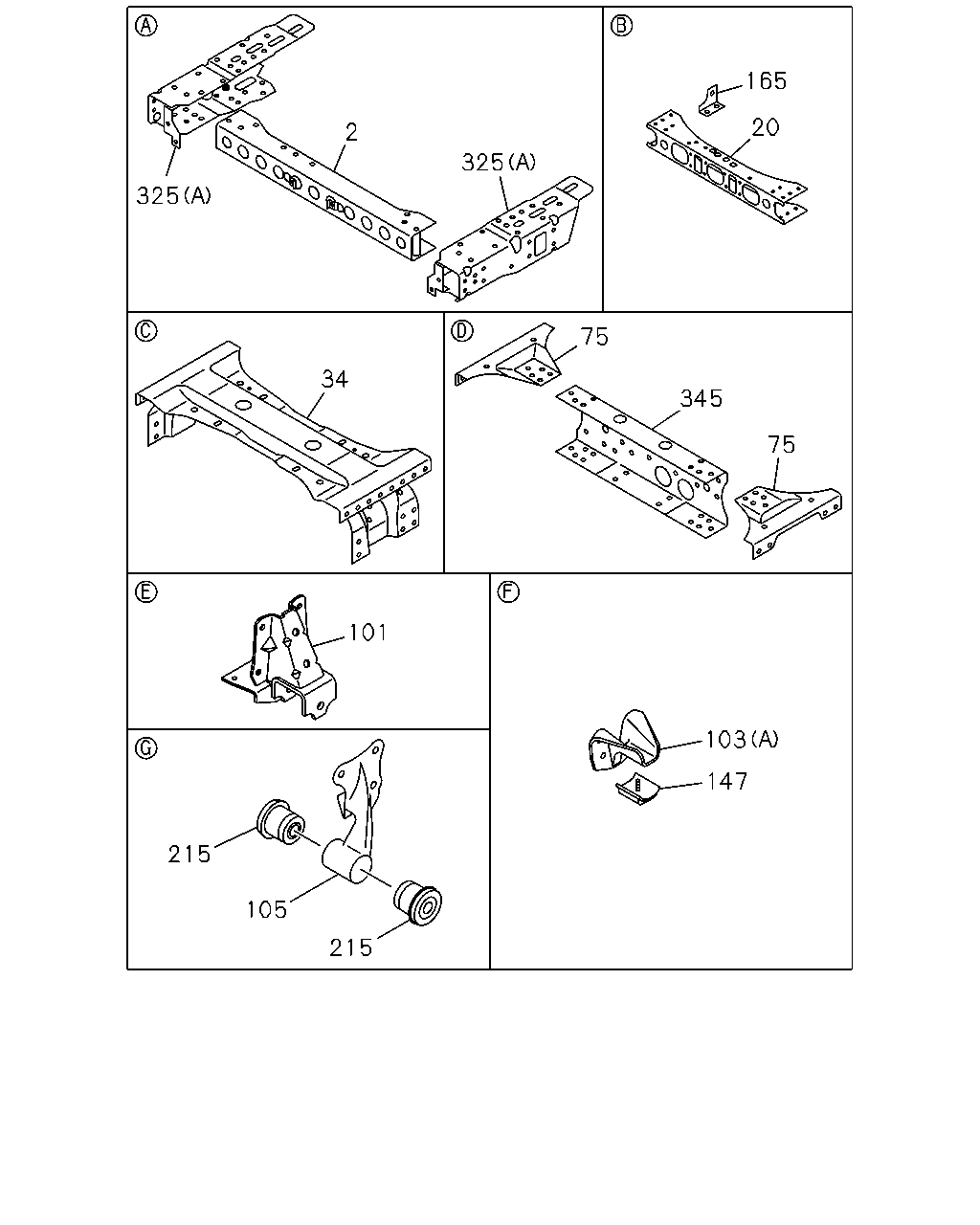

çizim 364745
325 2 34 101 103 147 215 105 215 345 75 75 20 165 325
BalonParca AdiParca NoAdetTipApplied Date
2 07.010 MEMBER; CROSS,1ST
FRONT UNDER RUN PROTECTOR<EBE> 		8-98155-433-1 01 1 1408-
2 07.010 MEMBER; CROSS,1ST 8-97387-866-5 01 1 1307-1407
2 07.010 MEMBER; CROSS,1ST
EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-97387-866-5 01 1 1408-
20 07.012 MEMBER; CROSS,2ND 8-98014-074-7 01 1 1307-1408
20 07.012 MEMBER; CROSS,2ND
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> 		8-98014-074-7 01 1 1409-
20 07.012 MEMBER; CROSS,2ND
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 		8-98014-074-7 01 1 1409-
34 07.012 MEMBER; CROSS,3RD 8-98074-639-4 01 1 1307-1408
34 07.012 MEMBER; CROSS,3RD
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> 		8-98074-639-4 01 1 1409-
34 07.012 MEMBER; CROSS,3RD
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 		8-98074-639-4 01 1 1409-
75 07.039 GUSSET; 5TH C/MBR
RH-UPPER,LH-LOWER 		8-98000-583-0 02 1 1307-1408
75 07.039 GUSSET; 5TH C/MBR
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> 		8-98000-583-0 02 1 1409-
75 07.039 GUSSET; 5TH C/MBR
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 		8-98000-583-0 02 1 1409-
75 07.039 GUSSET; 5TH C/MBR
RH-LOWER,LH-UPPER 		8-98000-584-0 02 1 1307-1408
75 07.039 GUSSET; 5TH C/MBR
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> 		8-98000-584-0 02 1 1409-
75 07.039 GUSSET; 5TH C/MBR
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 		8-98000-584-0 02 1 1409-
101 07.112 BRACKET; RR SPR,FRT
WHEEL BASE 3800MM(38W) FRONT UNDER RUN PROTECTOR<EBE> STABILIZER REAR<GN1> FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 		8-97042-245-1 02 1 1409-
101 07.112 BRACKET; RR SPR,FRT 8-98202-857-0 02 1 1307-1408
101 07.112 BRACKET; RR SPR,FRT
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-98202-857-0 02 1 1409-
101 07.112 BRACKET; RR SPR,FRT
WHEEL BASE 3800MM(38W) FRONT UNDER RUN PROTECTOR<EBE> FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> 		8-98202-857-0 02 1 1409-
101 07.112 BRACKET; RR SPR,FRT
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> 		8-98202-857-0 02 1 1409-
103 07.420 STOPPER; SUB SPR
07.524 (B) 		8-97079-659-1 02 1 1307-1408
103 07.420 STOPPER; SUB SPR
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> 07.524 (B) 		8-97079-659-1 02 1 1409-
103 07.420 STOPPER; SUB SPR
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 07.524 (B) 		8-97079-659-1 02 1 1409-
103 07.420 STOPPER; SUB SPR
(A) 		8-97223-748-0 04 1 1307-1408
103 07.420 STOPPER; SUB SPR
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> (A) 		8-97223-748-0 04 1 1409-
103 07.420 STOPPER; SUB SPR
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (A) 		8-97223-748-0 04 1 1409-
105 07.112 BRACKET; RR SPR,RR 8-98032-488-0 01 1 1307-1408
105 07.112 BRACKET; RR SPR,RR
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> 		8-98032-488-0 01 1 1409-
105 07.112 BRACKET; RR SPR,RR
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 		8-98032-488-0 01 1 1409-
105 07.112 BRACKET; RR SPR,RR 8-98032-489-0 01 1 1307-1408
105 07.112 BRACKET; RR SPR,RR
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> 		8-98032-489-0 01 1 1409-
105 07.112 BRACKET; RR SPR,RR
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 		8-98032-489-0 01 1 1409-
147 07.535 RUBBER; SUB SPRING 8-97254-387-0 04 1 1307-1408
147 07.535 RUBBER; SUB SPRING
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> 		8-97254-387-0 04 1 1409-
147 07.535 RUBBER; SUB SPRING
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 		8-97254-387-0 04 1 1409-
165 01.270 BRACKET; RAD STAY 8-98000-886-0 01 1 1307-1408
165 01.270 BRACKET; RAD STAY
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> 		8-98000-886-0 01 1 1409-
165 01.270 BRACKET; RAD STAY
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 		8-98000-886-0 01 1 1409-
215 07.524 BUSHING; BRKT,RR SPRING 8-97184-699-1 04 1 1307-1408
215 07.524 BUSHING; BRKT,RR SPRING
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> 		8-97184-699-1 04 1 1409-
215 07.524 BUSHING; BRKT,RR SPRING
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 		8-97184-699-1 04 1 1409-
325 07.039 EXTENSION; FRAME
FRONT UNDER RUN PROTECTOR<EBE> (A) 		8-98196-150-0 01 1 1408-
325 07.039 EXTENSION; FRAME
FRONT UNDER RUN PROTECTOR<EBE> (A) 		8-98196-151-0 01 1 1408-
325 07.039 EXTENSION; FRAME
(A) 		8-98073-346-0 01 1 1307-1407
325 07.039 EXTENSION; FRAME
EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) 		8-98073-346-0 01 1 1408-
325 07.039 EXTENSION; FRAME
(A) 		8-98196-152-0 01 1 1307-1407
325 07.039 EXTENSION; FRAME
EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) 		8-98196-152-0 01 1 1408-
325 07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W) (B) 		8-97222-891-1 01 1 1307-
325 07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W) (B) 		8-97222-892-1 01 1 1307-
345 07.012 MEMBER; CROSS,5TH 8-97175-993-3 01 1 1307-1408
345 07.012 MEMBER; CROSS,5TH
WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> EXC. STABILIZER REAR<GN1> 		8-97175-993-3 01 1 1409-
345 07.012 MEMBER; CROSS,5TH
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 		8-97175-993-3 01 1 1409-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
