4-50 — FRONT SUSPENSION (#125076) — 25 parça

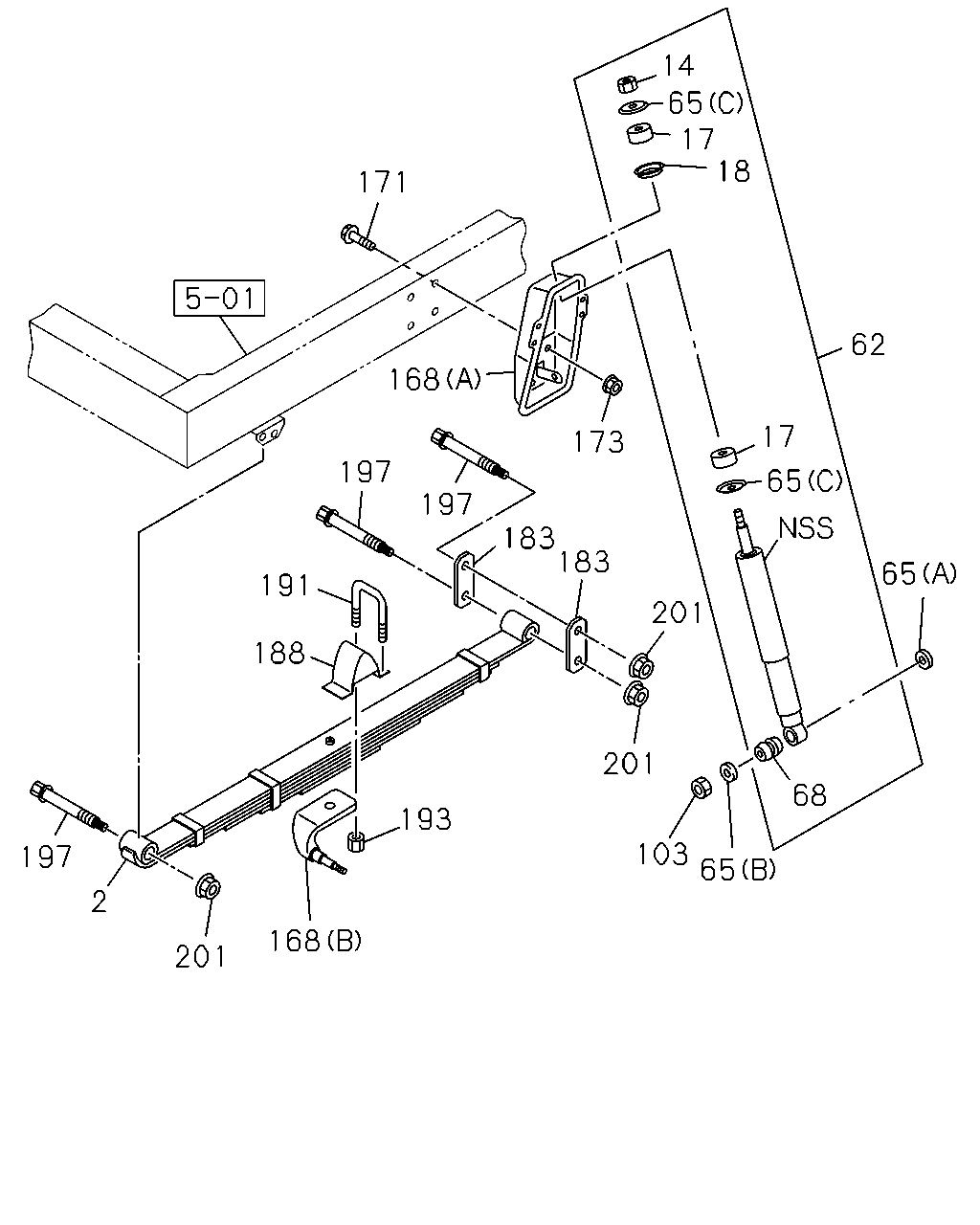

çizim 364616
201 168 193 201 103 65 68 65 62 65 17 173 168 171 14 65 17 18 201 183 183 197 197 191 188 2 197
BalonParca AdiParca NoAdetTipApplied Date
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98181-939-0 01 1 1307-
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98181-943-0 01 1 1307-
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98181-941-0 01 1 1307-
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF 		8-98181-942-0 01 1 1307-
14 07.389 NUT; S/ABS,UPR
M10 T=8 		9-09640-020-0 02 1 1307-
17 07.388 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 1307-
18 07.347 WASHER; CENTERING,S/ABS
TOKICO 		8-94412-791-0 02 1 1307-
62 07.345 ABSORBER ASM; SHOCK,FRT 8-98232-673-1 02 1 1307-
65 07.347 WASHER; S/ABS
(A) ID=21 OD=40 		0-91614-620-0 02 1 1307-
65 07.347 WASHER; S/ABS
(B) ID=15 		8-97360-056-0 02 1 1307-
65 07.347 WASHER; S/ABS
(C) OD=40 		9-51631-614-0 04 1 1307-
68 07.388 BUSHING; S/ABS
TOKICO 		8-94382-149-0 02 1 1307-
103 07.347 NUT; S/ABS TO LWR LINK
07.833 M14 		0-91110-514-0 02 1 1307-
168 07.380 BRACKET; S/ABS,FRT SUSP
(A) 		8-98180-782-2 01 1 1307-
168 07.380 BRACKET; S/ABS,FRT SUSP
(A) 		8-98180-784-2 01 1 1307-
168 07.380 BRACKET; S/ABS,FRT SUSP
(B) 		8-98181-880-0 01 1 1307-
168 07.380 BRACKET; S/ABS,FRT SUSP
(B) 		8-98181-881-0 01 1 1307-
171 07.395 BOLT; S/ABS BRKT
09.003 M12X35 FLANGE 		0-28651-235-0 08 1 1307-
173 07.395 NUT; S/ABS
M12 		8-97360-126-0 08 1 1307-
183 07.436 SHACKLE; FRT SUSP 8-94110-399-3 04 1 1307-
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR 8-98033-516-0 02 1 1307-
191 07.417 U-BOLT; FRT SPR
L=165 		9-51171-075-1 04 1 1307-
193 07.417 NUT; U BOLT
M16 		8-97360-121-0 08 1 1307-
197 07.427 PIN; FRT SPR,FRT
M16X122 FLANGE 		8-97360-110-0 06 1 1307-
201 07.427 NUT; PIN LK
M16 FLANGE 		8-97360-125-0 06 1 1307-
