3-80 — BRAKE PIPING; TRAILER
(#12507) — 48 parça
◀

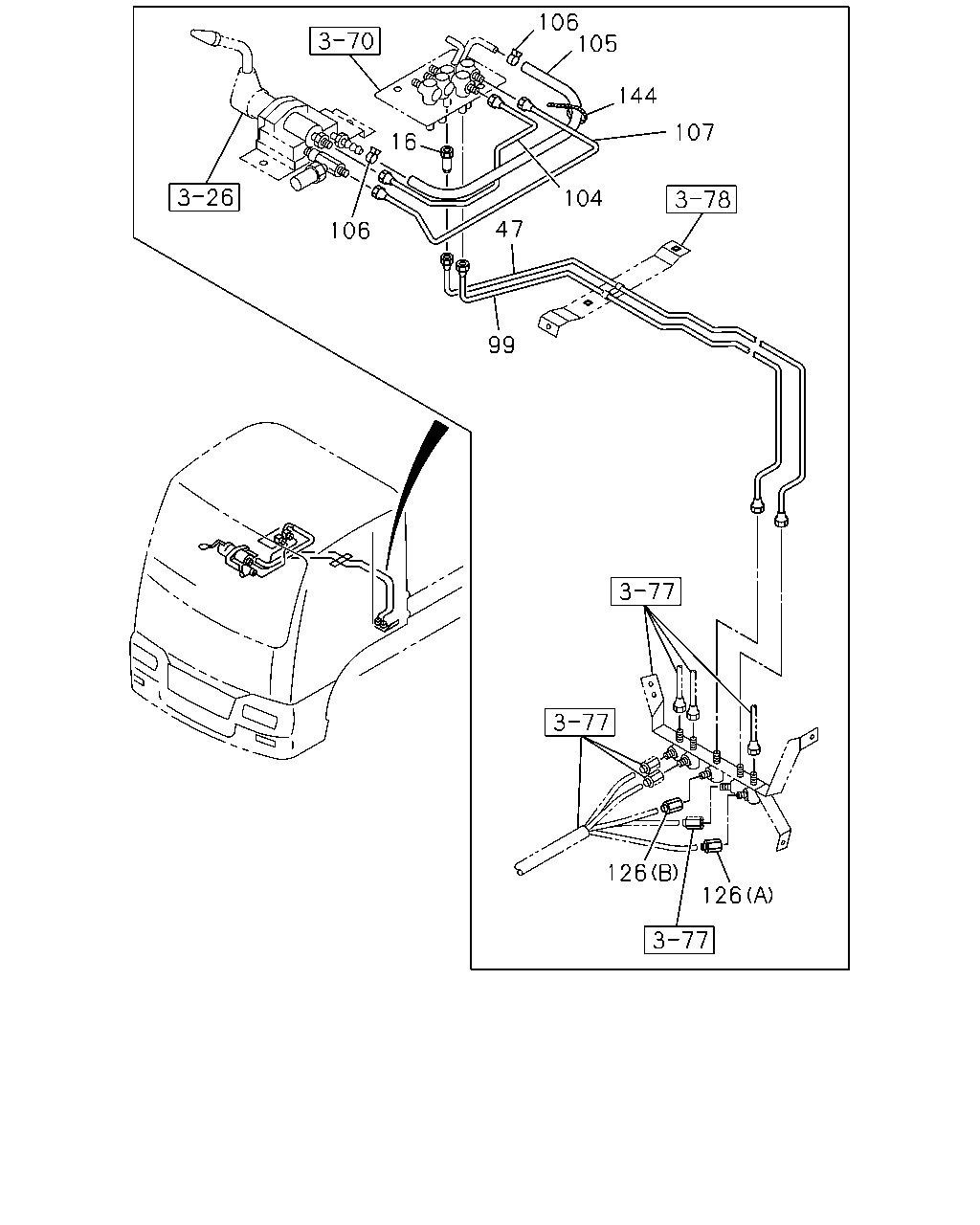

[380A] -'03/1 CAB SIDE (16 parça)

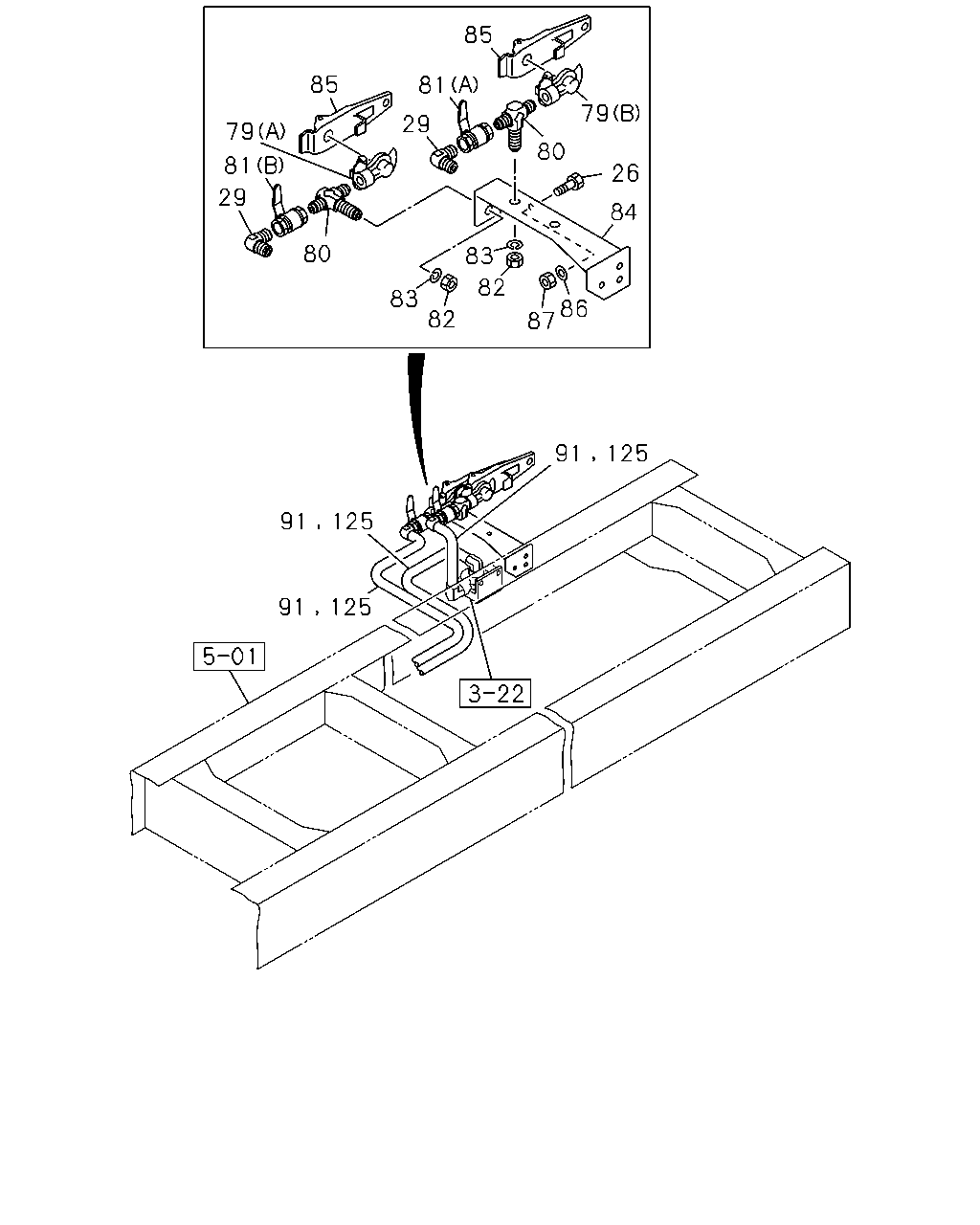

[380A] FRAME SIDE (18 parça)

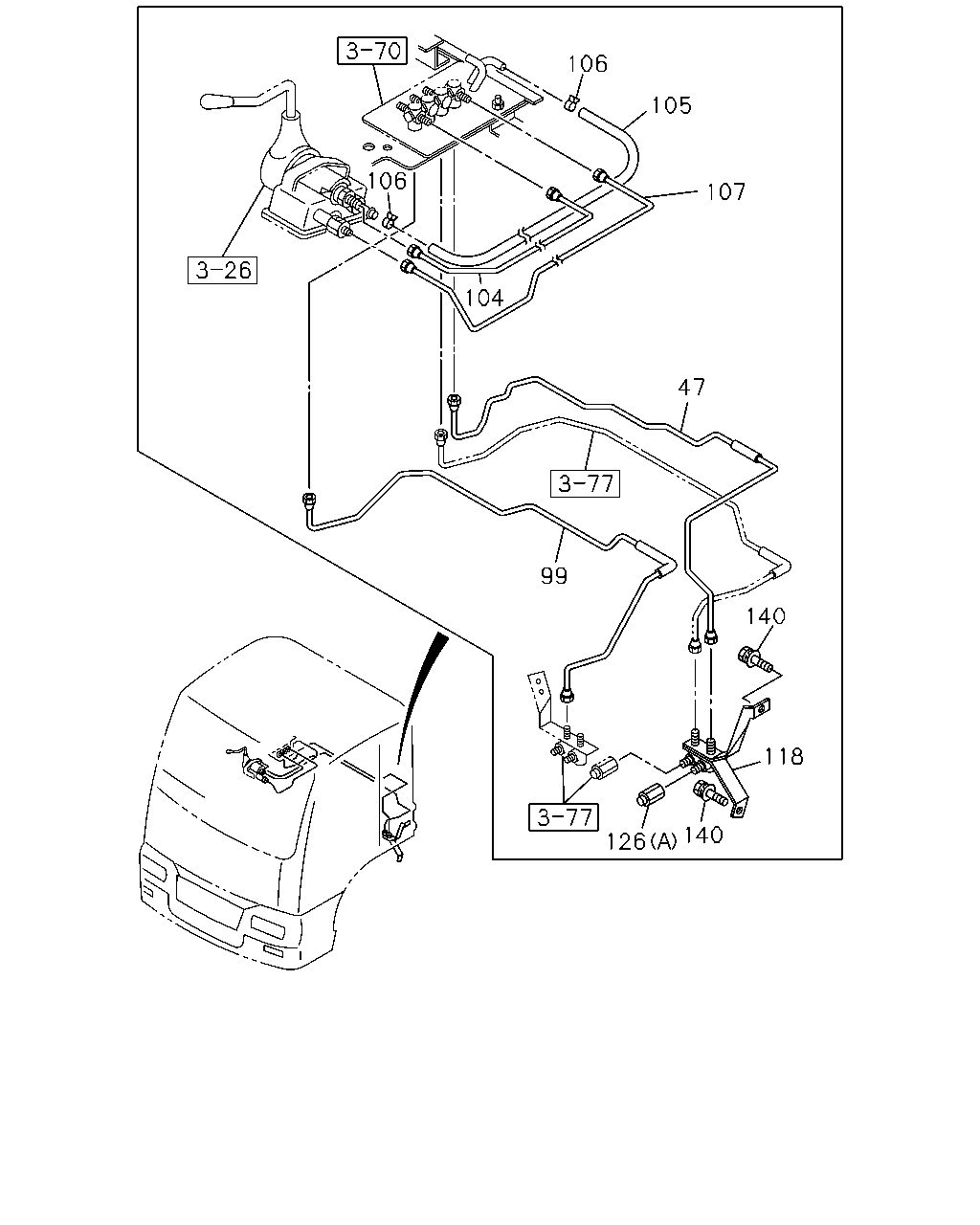

[380A] '03/2- CAB SIDE (14 parça)
▶
106
105
144
107
16
104
47
106
99
126
126
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
UNION; AIR PIPE
1-09654-258-1
01
1
0105-0301
47
PIPE; AIR,UNION TO UNION
L=1936
1-49121-473-0
01
1
0105-0301
47
PIPE; AIR,UNION TO UNION
BAGGAGE BOX CAB RR SIDE<TBM>
1-49121-763-2
01
1
0302-
47
PIPE; AIR,UNION TO UNION
EXC. BAGGAGE BOX CAB RR SIDE<TBM> L=1910 SERVICED BY L=1950
1-47428-854-0
01
1
0302-
99
PIPE; AIR,JOINT TO JOINT
L=1551
1-49121-054-0
01
1
0105-0301
99
PIPE; AIR,JOINT TO JOINT
BAGGAGE BOX CAB RR SIDE<TBM>
1-49122-058-1
01
1
0302-
99
PIPE; AIR,JOINT TO JOINT
EXC. BAGGAGE BOX CAB RR SIDE<TBM>
1-49122-057-1
01
1
0302-
104
PIPE; AIR,JOINT TO PARKING BRK VLV
1-49114-295-0
01
1
0105-0301
104
PIPE; AIR,JOINT TO PARKING BRK VLV
1-49121-477-0
01
1
0302-
105
PIPE; VINYL,EXH,PARKING BRK VLV
L=400 SERVICED BY L=10000
9-09914-701-0
01
1
0105-
106
CLIP; PIPE
ID=14
8-94238-572-0
02
1
0105-
107
PIPE; AIR,JOINT TO PARKING BRK VLV
1-49114-296-0
01
1
0105-0301
107
PIPE; AIR,JOINT TO PARKING BRK VLV
1-47495-160-0
01
1
0302-
126
CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
0105-
126
CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0105-0301
144
CLIP; BAND
L=140
5-09707-031-1
01
1
0112-
85
85
81
79
29
81
79
80
26
29
83
84
80
86
87
82
83
82
91
125
91
125
91
125
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
BOLT; CHAIN
M10X33
9-09808-590-0
02
1
0105-
29
CONNECTOR; COCK
DIN12 & R1/2 ELBOW
1-09660-960-0
02
1
0105-
79
COUPLING; AIR,TRAILER
(A) BLUE
1-47465-151-0
01
1
0105-
79
COUPLING; AIR,TRAILER
(B) RED
1-47465-152-0
01
1
0105-
80
NIPPLE; AIR COUPLING
1-09656-377-1
02
1
0105-
81
COCK; AIR COUPLING
(A) RED
1-09680-091-0
01
1
0105-
81
COCK; AIR COUPLING
(B) BLUE
1-09680-092-0
01
1
0105-
82
NUT; LK,CONNECTOR
M16
9-99111-416-0
02
1
0105-0512
82
NUT; LK,CONNECTOR
M16
0-91111-516-0
02
1
0601-
83
WASHER; LK,CONNECTOR
ID=16.2
9-09150-516-0
02
1
0105-
84
BRACKET; COUPLER
1-47465-883-1
01
1
0105-
85
CHAIN; AIR HOSE
1-47469-010-0
02
1
0105-
86
WASHER; PL
ID=10.5 OD=22
9-09164-610-0
02
1
0105-
87
NUT
M10 FLANGE
0-91150-210-0
02
1
0105-0602
87
NUT
M10 FLANGE
0-91180-210-0
02
1
0603-
91
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87410-069-0
AR
1
0105-0301
91
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0302-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87410-100-0
AR
1
0105-
106
105
106
107
47
99
140
118
140
126
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
47
PIPE; AIR,UNION TO UNION
L=1936
1-49121-473-0
01
1
0105-0301
47
PIPE; AIR,UNION TO UNION
BAGGAGE BOX CAB RR SIDE<TBM>
1-49121-763-2
01
1
0302-
47
PIPE; AIR,UNION TO UNION
EXC. BAGGAGE BOX CAB RR SIDE<TBM> L=1910 SERVICED BY L=1950
1-47428-854-0
01
1
0302-
99
PIPE; AIR,JOINT TO JOINT
L=1551
1-49121-054-0
01
1
0105-0301
99
PIPE; AIR,JOINT TO JOINT
BAGGAGE BOX CAB RR SIDE<TBM>
1-49122-058-1
01
1
0302-
99
PIPE; AIR,JOINT TO JOINT
EXC. BAGGAGE BOX CAB RR SIDE<TBM>
1-49122-057-1
01
1
0302-
105
PIPE; VINYL,EXH,PARKING BRK VLV
L=400 SERVICED BY L=10000
9-09914-701-0
01
1
0105-
106
CLIP; PIPE
ID=14
8-94238-572-0
02
1
0105-
107
PIPE; AIR,JOINT TO PARKING BRK VLV
1-49114-296-0
01
1
0105-0301
107
PIPE; AIR,JOINT TO PARKING BRK VLV
1-47495-160-0
01
1
0302-
118
JOINT; AIR PIPE
1-47470-608-1
01
1
0302-
126
CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
0105-
126
CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0105-0301
140
BOLT; UNION
M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0302-
