Isuzu WW
▶
TRUCKS
▶
NQR
▶
51390 - NQR A/BRAKE MIDEAST
▶
3 - Brakes, Brake System
▶
3-77 - BRAKE PIPING; AIR,REAR
▶
3-77 — BRAKE PIPING; AIR,REAR
(#125062) — 30 parça
◀

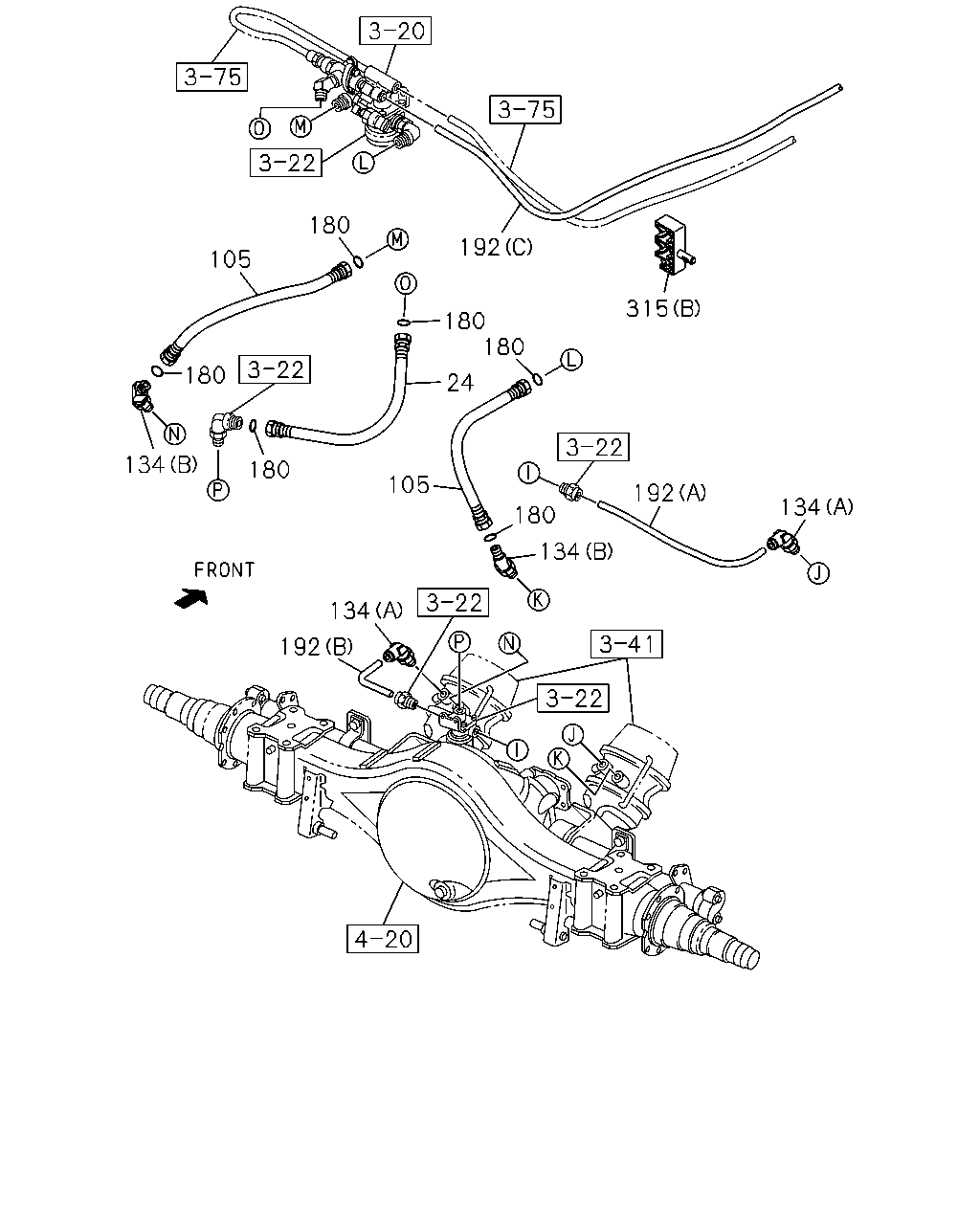

[377A] 4 WHEEL ANTI LOCK BRAKE (15 parça)

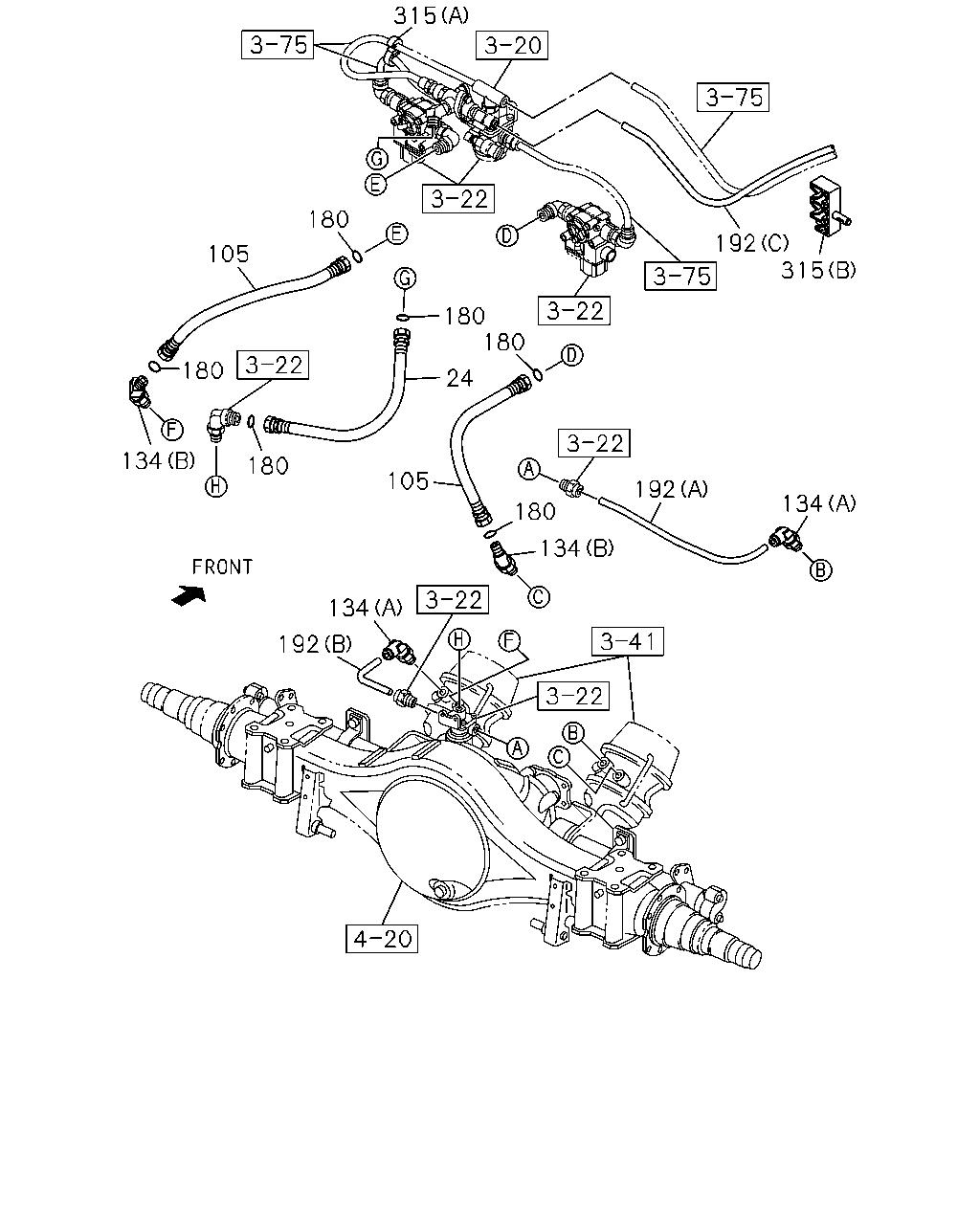

[377A] EXC.4 WHEEL ANTI LOCK BRAKE (15 parça)
▶
192
134
134
180
192
134
105
24
180
180
180
180
134
180
105
192
315
315
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
04.867 HOSE; FLEX,PARKING BRK
0-57494-400-1
01
1
1307-
105
04.867 HOSE; FLEX
0-57494-400-1
02
1
1307-
134
04.866 CONNECTOR
(A)
8-98179-465-0
02
1
1307-
134
04.866 CONNECTOR
(B)
8-98179-495-0
02
1
1307-
180
04.868 GASKET; FLEX HOSE
ID=11 OD=18
9-09572-510-0
03
1
1307-
180
04.868 GASKET; FLEX HOSE
ID=11 OD=18
9-09572-510-0
03
1
1307-
192
04.867 TUBE; NYLON
WHEEL BASE 3800MM(38W) (C)
8-98196-422-0
01
1
1307-1407
192
04.867 TUBE; NYLON
WHEEL BASE 3800MM(38W) (C)
8-98269-740-0
01
1
1408-
192
04.867 TUBE; NYLON
WHEEL BASE 4100MM(41W) (C)
8-98196-423-0
01
1
1307-1407
192
04.867 TUBE; NYLON
WHEEL BASE 4100MM(41W) (C)
8-98269-741-0
01
1
1408-
192
04.867 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87411-011-0
01
1
1307-
192
04.867 TUBE; NYLON
(B)
8-98197-632-0
01
1
1307-
315
08.950 CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 06.672 (A) ID=12 & 12
1-09709-280-1
01
1
1307-
315
08.950 CLIP
WHEEL BASE 3800MM(38W) 04.128 (B) ID=10 OR 12X2 & 4.76
8-98058-323-0
06
1
1307-
315
08.950 CLIP
WHEEL BASE 4100MM(41W) 04.128 (B) ID=10 OR 12X2 & 4.76
8-98058-323-0
07
1
1307-
180
192
315
180
180
24
105
180
180
134
105
180
134
192
134
134
192
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
04.867 HOSE; FLEX,PARKING BRK
0-57494-400-1
01
1
1307-
105
04.867 HOSE; FLEX
0-57494-400-1
02
1
1307-
134
04.866 CONNECTOR
(A)
8-98179-465-0
02
1
1307-
134
04.866 CONNECTOR
(B)
8-98179-495-0
02
1
1307-
180
04.868 GASKET; FLEX HOSE
ID=11 OD=18
9-09572-510-0
03
1
1307-
180
04.868 GASKET; FLEX HOSE
ID=11 OD=18
9-09572-510-0
03
1
1307-
192
04.867 TUBE; NYLON
WHEEL BASE 3800MM(38W) (C)
8-98196-422-0
01
1
1307-1407
192
04.867 TUBE; NYLON
WHEEL BASE 3800MM(38W) (C)
8-98269-740-0
01
1
1408-
192
04.867 TUBE; NYLON
WHEEL BASE 4100MM(41W) (C)
8-98196-423-0
01
1
1307-1407
192
04.867 TUBE; NYLON
WHEEL BASE 4100MM(41W) (C)
8-98269-741-0
01
1
1408-
192
04.867 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87411-011-0
01
1
1307-
192
04.867 TUBE; NYLON
(B)
8-98197-632-0
01
1
1307-
315
08.950 CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 06.672 (A) ID=12 & 12
1-09709-280-1
01
1
1307-
315
08.950 CLIP
WHEEL BASE 3800MM(38W) 04.128 (B) ID=10 OR 12X2 & 4.76
8-98058-323-0
06
1
1307-
315
08.950 CLIP
WHEEL BASE 4100MM(41W) 04.128 (B) ID=10 OR 12X2 & 4.76
8-98058-323-0
07
1
1307-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
