Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#12506) — 258 parça

108 375 298 370 295 109 11 110 110 22 22 321 34 297 110 110 316 80 369 266 76 128 286 294 299 22 81 269 266 78 266 375 286 79 372

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BOLT; CLIP BRKT M8X35 FLANGE	0-28680-835-0	02	1	0105-0512
11	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
22	BRACKET; CLIP (A) L=150 H=30	1-47477-629-2	01	1	0105-
22	BRACKET; CLIP (A) L=150 H=30	1-47477-629-2	02	1	0105-
22	BRACKET; CLIP (C) L=225	1-47477-646-3	01	1	0105-
22	BRACKET; CLIP (B) L=125	1-47477-975-1	02	1	0105-
34	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602
34	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
76	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	07	1	0105-
76	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	02	1	0105-
76	CLIP; NYLON TUBE (B) ID=6 & 8.3	8-94167-742-0	02	1	0105-
78	CLIP; AIR PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	0105-
79	BOLT; PIPE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
79	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-
80	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0105-0602
80	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	01	1	0603-
81	BRACKET; CLIP (A)	1-47477-483-0	01	1	0105-
81	BRACKET; CLIP (B) L=125	1-47477-975-1	01	1	0105-
108	BOLT; TUBE CLIP (A) M8X25 FLANGE	0-28080-825-0	05	1	0105-0107
108	BOLT; TUBE CLIP (A) M8X25 FLANGE	0-28080-825-0	04	1	0108-0204
108	BOLT; TUBE CLIP (A) M8X25 FLANGE	0-28080-825-0	03	1	0205-0512
108	BOLT; TUBE CLIP (A) M8X25 FLANGE	0-28050-825-0	03	1	0601-
108	BOLT; TUBE CLIP (B) M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
108	BOLT; TUBE CLIP (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-
108	BOLT; TUBE CLIP (C) M8X20 FLANGE	0-28080-820-0	01	1	0108-0512
108	BOLT; TUBE CLIP (C) M8X20 FLANGE	0-28050-820-0	01	1	0601-
108	BOLT; TUBE CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	0205-0512
108	BOLT; TUBE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0105
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0106-0204
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0106-0204
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	0205-0301
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	0205-0301
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	04	1	0302-0602
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	0105-0204
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0205-0602
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	04	1	0603-
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	20	1	0105-0204
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	21	1	0205-0301
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	46	1	0302-0304
110	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	46	1	0305-
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	22	1	0105-0105
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	24	1	0106-0204
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	25	1	0205-0301
110	CLIP; BAND,NYLON TUBE FULL TRACTOR TRUCK<RD6> (B) L=140	5-09707-031-1	02	1	0105-0111
110	CLIP; BAND,NYLON TUBE (B) L=140	5-09707-031-1	01	1	0112-
110	CLIP; BAND,NYLON TUBE EXC. FULL TRACTOR TRUCK<RD6> (B) L=140	5-09707-031-1	01	1	0105-0111
110	CLIP; BAND,NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> (A) ID=35 L=33	1-09700-945-0	01	1	0105-0301
110	CLIP; BAND,NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> (A) ID=28 L=40	1-09700-995-1	01	1	0302-
110	CLIP; BAND,NYLON TUBE EXC. TRAILER BRAKE HAND CONTROL<NLG> (A) ID=28 L=40	1-09701-261-0	01	1	0105-
128	CLIP; NYLON TUBE (A) ID=28 H=45 L=30	1-09700-948-0	04	1	0105-
128	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	02	1	0105-0304
128	CLIP; NYLON TUBE (B) L=350	1-09707-183-0	03	1	0305-
266	CLIP; NYLON TUBE (A) ID=18 H=23 L=28	1-09700-860-0	01	1	0105-0201
266	CLIP; NYLON TUBE (A) ID=21 L=30 H=40	1-09700-991-1	01	1	0202-0301
266	CLIP; NYLON TUBE (A) ID=21 L=30 H=40	1-09700-991-1	01	1	0302-
266	CLIP; NYLON TUBE (B) ID=25 H=30 L=35	1-09700-875-0	01	1	0105-
266	CLIP; NYLON TUBE (C) L=250	1-09707-126-0	02	1	0105-0304
266	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	02	1	0305-
269	CLIP; BAND,NYLON TUBE L=250	1-09707-126-0	20	1	0105-0304
269	CLIP; BAND,NYLON TUBE L=350	1-09707-183-0	20	1	0305-0504
269	CLIP; BAND,NYLON TUBE L=350	1-09707-183-0	21	1	0505-
286	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	02	1	0105-
286	CLIP; NYLON TUBE (B) ID=18 L=28 H=30	1-09701-110-0	01	1	0106-
294	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0105-0602
294	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	01	1	0603-
295	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0105-0602
295	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	01	1	0603-
297	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0105-0602
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
297	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0112-0301
297	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0302-0602
297	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0603-
298	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0105-0301
299	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0105-0301
316	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
316	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	02	1	0601-
316	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	01	1	0105-0512
316	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	01	1	0601-
321	BRACKET; CLIP (A)	1-47477-472-1	01	1	0105-0301
321	BRACKET; CLIP (C) L=150 H=30	1-47477-629-2	01	1	0105-
321	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	02	1	0105-0301
321	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	01	1	0302-
321	BRACKET; CLIP (B)	1-47477-810-0	01	1	0105-
369	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0105-
370	BRACKET; PIPE CLIP	1-47477-669-1	01	1	0105-
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	04	1	0105-0512
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	04	1	0601-
375	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-0202
375	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	02	1	0203-0301
375	CLIP; AIR PIPE (B) ID=7 L=20	9-09524-635-0	01	1	0105-0301

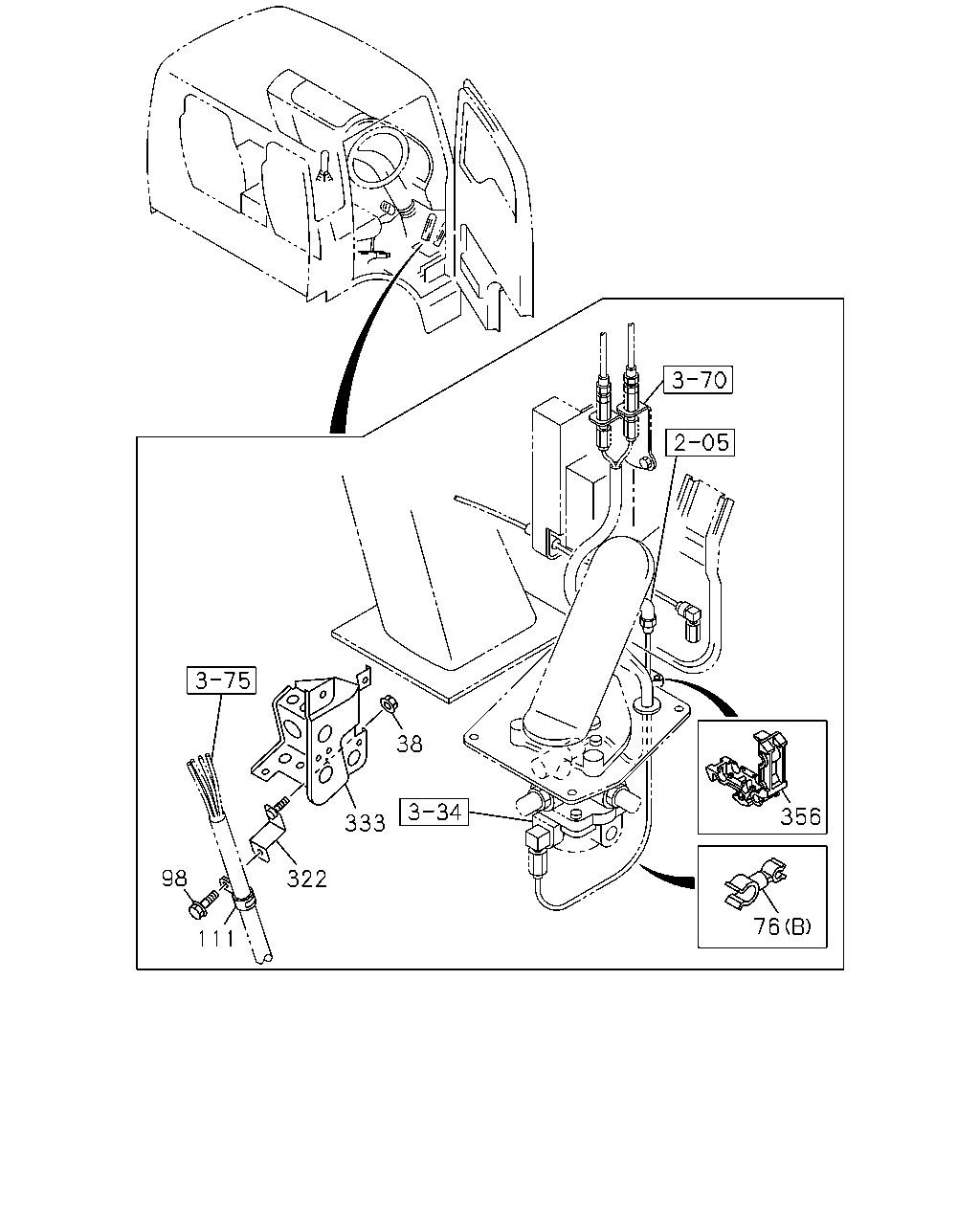

38 356 333 98 322 76 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0105-0602
38	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
76	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	07	1	0105-
76	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	02	1	0105-
76	CLIP; NYLON TUBE (B) ID=6 & 8.3	8-94167-742-0	02	1	0105-
98	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
98	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	01	1	0601-
111	CLIP; AIR PIPE ID=35 L=33	1-09700-945-0	01	1	0105-
322	BRACKET; CLIP	1-79996-360-0	01	1	0105-0601
322	BRACKET; CLIP	1-79996-659-1	01	1	0602-
333	BRACKET; BRK AIR PIPE	1-79997-360-6	01	1	0105-
356	CLIP; AIR PIPE BLACK	8-94222-876-0	01	1	0105-

133 321 126 16 128 16 126 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	BRACKET; PIPE CLIP (A)	1-47477-743-0	04	1	0105-
16	BRACKET; PIPE CLIP (B)	1-47477-744-0	02	1	0105-
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	08	1	0105-0512
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	08	1	0601-
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	04	1	0105-0602
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	04	1	0603-
128	CLIP; NYLON TUBE (A) ID=28 H=45 L=30	1-09700-948-0	04	1	0105-
128	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	02	1	0105-0304
128	CLIP; NYLON TUBE (B) L=350	1-09707-183-0	03	1	0305-
133	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	01	1	0105-0512
133	BOLT; BRKT M8X25 FLANGE	0-28050-825-0	01	1	0601-
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0105-0204
133	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	0205-0301
133	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	0302-0512
133	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	02	1	0601-
133	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	01	1	0108-0512
133	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	01	1	0601-
321	BRACKET; CLIP (A)	1-47477-472-1	01	1	0105-0301
321	BRACKET; CLIP (C) L=150 H=30	1-47477-629-2	01	1	0105-
321	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	02	1	0105-0301
321	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	01	1	0302-
321	BRACKET; CLIP (B)	1-47477-810-0	01	1	0105-

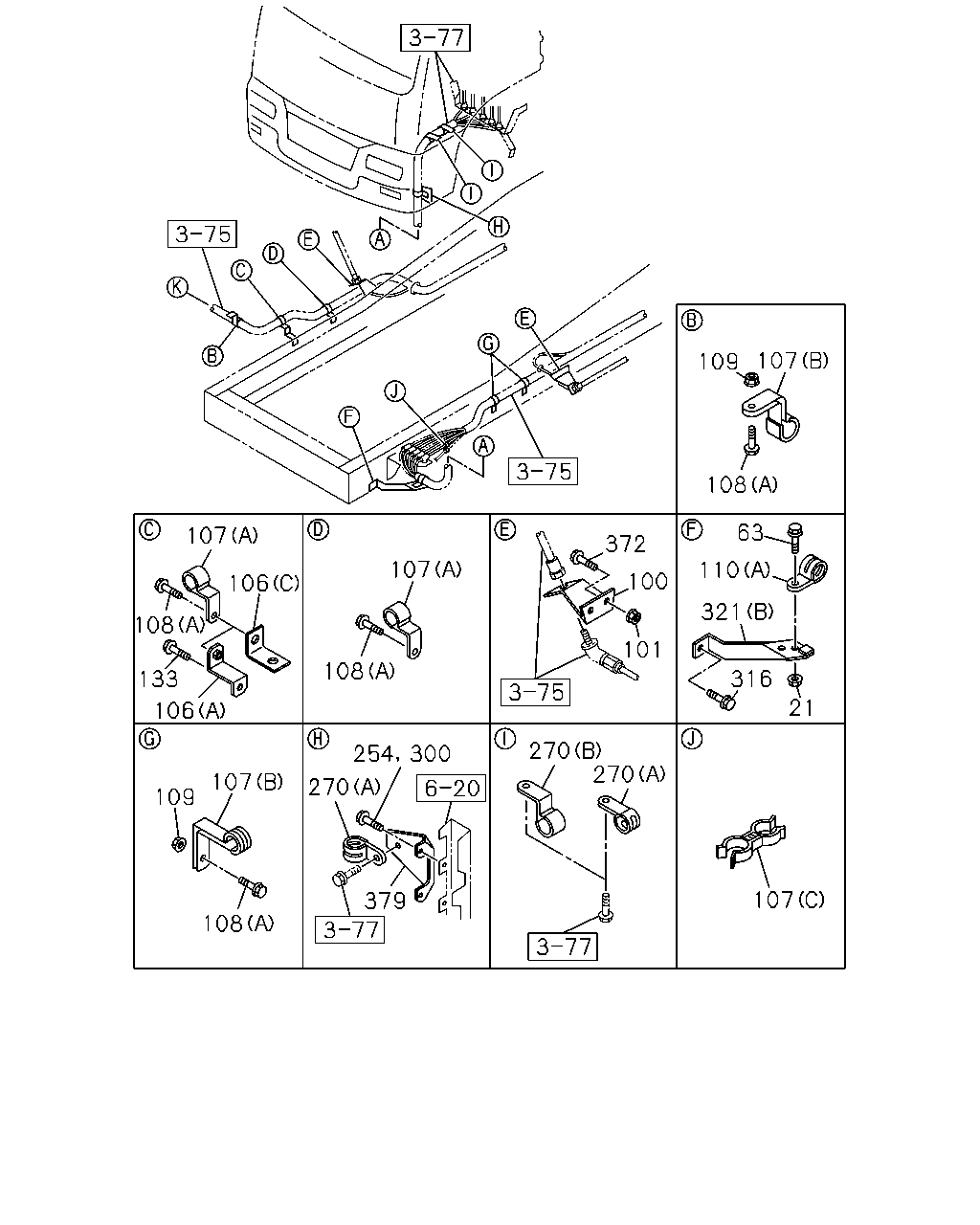

108 63 107 372 107 110 100 106 108 321 101 108 316 133 21 106 270 270 107 270 109 107 379 108 254 300 109 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0602
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
63	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
63	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	01	1	0601-
100	BRACKET; PIPE CLIP	1-47477-770-0	01	1	0105-
100	BRACKET; PIPE CLIP	1-47477-365-0	01	1	0105-
101	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	04	1	0105-0602
101	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	04	1	0603-
106	BRACKET; TUBE CLIP (A)	1-47476-200-0	01	1	0105-0111
106	BRACKET; TUBE CLIP (C)	1-47477-694-0	01	1	0112-
106	BRACKET; TUBE CLIP (B) L=115 B=25	1-47476-758-0	01	1	0108-
107	CLIP; NYLON TUBE (A) ID=35 H=45 L=33	1-09701-047-0	03	1	0105-0107
107	CLIP; NYLON TUBE (A) ID=35 H=45 L=33	1-09701-047-0	02	1	0108-
107	CLIP; NYLON TUBE (D) ID=35 L=35	1-09700-895-0	01	1	0108-
107	CLIP; NYLON TUBE FULL FLOATING CAB(W16) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	0105-
107	CLIP; NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> (B) ID=39 H=28 L=32	1-09701-263-0	02	1	0105-0204
107	CLIP; NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> (B) ID=39 H=28 L=32	1-09701-263-0	01	1	0205-0301
107	CLIP; NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> (B) ID=31 H=30 L=35	1-09700-994-0	01	1	0205-0301
107	CLIP; NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> (B) ID=31 H=30 L=35	1-09700-994-0	02	1	0302-
107	CLIP; NYLON TUBE EXC. TRAILER BRAKE HAND CONTROL<NLG> (B) ID=27.5 H=23 L=24	1-09700-863-0	02	1	0105-
108	BOLT; TUBE CLIP (A) M8X25 FLANGE	0-28080-825-0	05	1	0105-0107
108	BOLT; TUBE CLIP (A) M8X25 FLANGE	0-28080-825-0	04	1	0108-0204
108	BOLT; TUBE CLIP (A) M8X25 FLANGE	0-28080-825-0	03	1	0205-0512
108	BOLT; TUBE CLIP (A) M8X25 FLANGE	0-28050-825-0	03	1	0601-
108	BOLT; TUBE CLIP (B) M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
108	BOLT; TUBE CLIP (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-
108	BOLT; TUBE CLIP (C) M8X20 FLANGE	0-28080-820-0	01	1	0108-0512
108	BOLT; TUBE CLIP (C) M8X20 FLANGE	0-28050-820-0	01	1	0601-
108	BOLT; TUBE CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	0205-0512
108	BOLT; TUBE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0105
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0106-0204
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0106-0204
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	0205-0301
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	0205-0301
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	04	1	0302-0602
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	0105-0204
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0205-0602
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	04	1	0603-
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	20	1	0105-0204
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	21	1	0205-0301
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	46	1	0302-0304
110	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	46	1	0305-
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	22	1	0105-0105
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	24	1	0106-0204
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	25	1	0205-0301
110	CLIP; BAND,NYLON TUBE FULL TRACTOR TRUCK<RD6> (B) L=140	5-09707-031-1	02	1	0105-0111
110	CLIP; BAND,NYLON TUBE (B) L=140	5-09707-031-1	01	1	0112-
110	CLIP; BAND,NYLON TUBE EXC. FULL TRACTOR TRUCK<RD6> (B) L=140	5-09707-031-1	01	1	0105-0111
110	CLIP; BAND,NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> (A) ID=35 L=33	1-09700-945-0	01	1	0105-0301
110	CLIP; BAND,NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> (A) ID=28 L=40	1-09700-995-1	01	1	0302-
110	CLIP; BAND,NYLON TUBE EXC. TRAILER BRAKE HAND CONTROL<NLG> (A) ID=28 L=40	1-09701-261-0	01	1	0105-
133	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	01	1	0105-0512
133	BOLT; BRKT M8X25 FLANGE	0-28050-825-0	01	1	0601-
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0105-0204
133	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	0205-0301
133	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	0302-0512
133	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	02	1	0601-
133	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	01	1	0108-0512
133	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	01	1	0601-
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	05	1	0105-0204
254	BOLT; PIPE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	05	1	0205-0205
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-0204
254	BOLT; PIPE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0205-0205
270	CLIP; NYLON TUBE (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0309-
270	CLIP; NYLON TUBE (A) ID=35 L=33	1-09700-945-0	02	1	0105-0301
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	02	1	0302-0308
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	01	1	0309-
300	BOLT; TUBE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0206-
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0206-
316	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
316	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	02	1	0601-
316	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	01	1	0105-0512
316	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	01	1	0601-
321	BRACKET; CLIP (A)	1-47477-472-1	01	1	0105-0301
321	BRACKET; CLIP (C) L=150 H=30	1-47477-629-2	01	1	0105-
321	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	02	1	0105-0301
321	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	01	1	0302-
321	BRACKET; CLIP (B)	1-47477-810-0	01	1	0105-
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	04	1	0105-0512
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	04	1	0601-
379	BRACKET; NYLON TUBE	1-79996-110-2	01	1	0105-

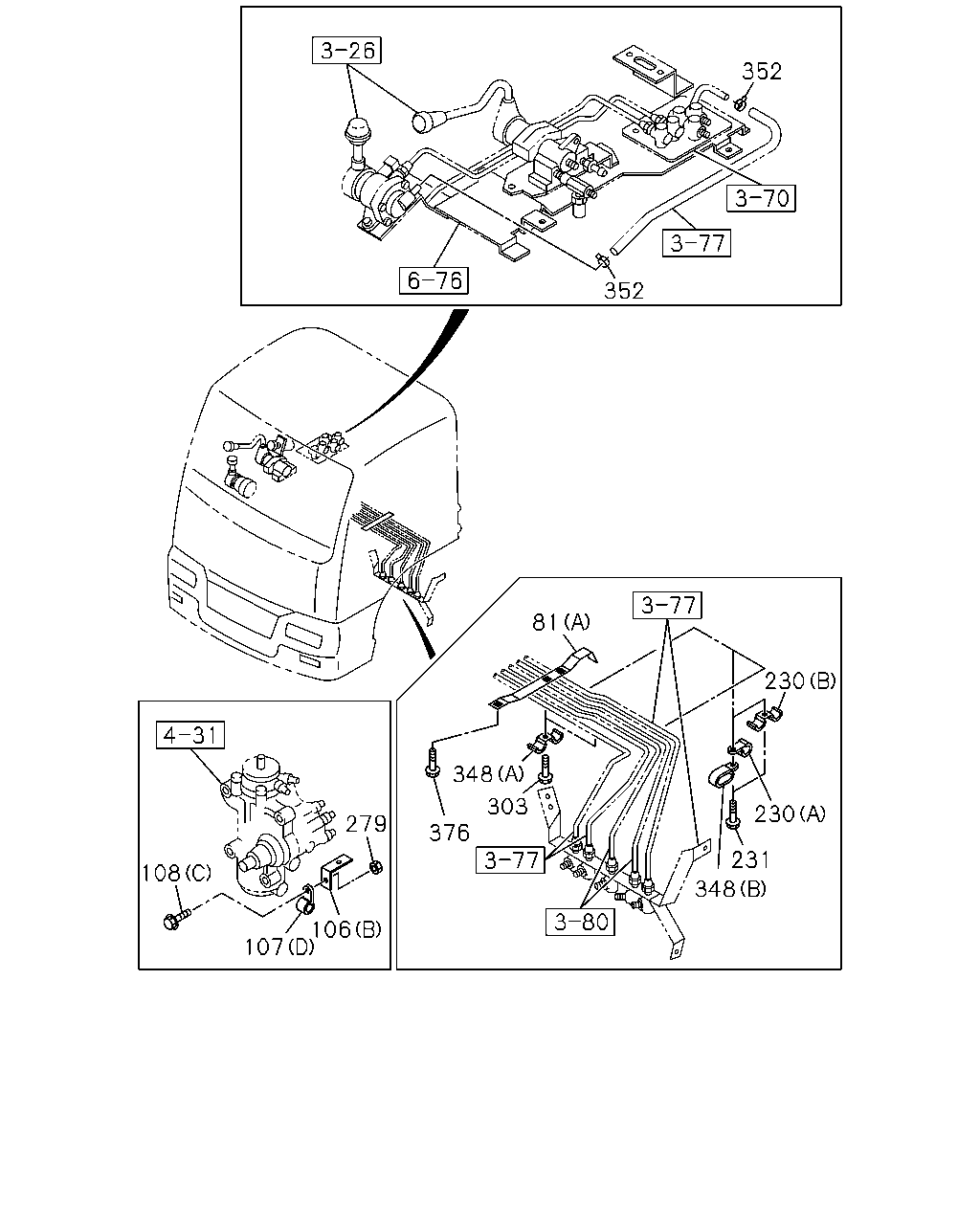

352 352 81 230 348 303 230 279 376 231 108 348 106 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
81	BRACKET; CLIP (A)	1-47477-483-0	01	1	0105-
81	BRACKET; CLIP (B) L=125	1-47477-975-1	01	1	0105-
106	BRACKET; TUBE CLIP (A)	1-47476-200-0	01	1	0105-0111
106	BRACKET; TUBE CLIP (C)	1-47477-694-0	01	1	0112-
106	BRACKET; TUBE CLIP (B) L=115 B=25	1-47476-758-0	01	1	0108-
107	CLIP; NYLON TUBE (A) ID=35 H=45 L=33	1-09701-047-0	03	1	0105-0107
107	CLIP; NYLON TUBE (A) ID=35 H=45 L=33	1-09701-047-0	02	1	0108-
107	CLIP; NYLON TUBE (D) ID=35 L=35	1-09700-895-0	01	1	0108-
107	CLIP; NYLON TUBE FULL FLOATING CAB(W16) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	0105-
107	CLIP; NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> (B) ID=39 H=28 L=32	1-09701-263-0	02	1	0105-0204
107	CLIP; NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> (B) ID=39 H=28 L=32	1-09701-263-0	01	1	0205-0301
107	CLIP; NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> (B) ID=31 H=30 L=35	1-09700-994-0	01	1	0205-0301
107	CLIP; NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> (B) ID=31 H=30 L=35	1-09700-994-0	02	1	0302-
107	CLIP; NYLON TUBE EXC. TRAILER BRAKE HAND CONTROL<NLG> (B) ID=27.5 H=23 L=24	1-09700-863-0	02	1	0105-
108	BOLT; TUBE CLIP (A) M8X25 FLANGE	0-28080-825-0	05	1	0105-0107
108	BOLT; TUBE CLIP (A) M8X25 FLANGE	0-28080-825-0	04	1	0108-0204
108	BOLT; TUBE CLIP (A) M8X25 FLANGE	0-28080-825-0	03	1	0205-0512
108	BOLT; TUBE CLIP (A) M8X25 FLANGE	0-28050-825-0	03	1	0601-
108	BOLT; TUBE CLIP (B) M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
108	BOLT; TUBE CLIP (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-
108	BOLT; TUBE CLIP (C) M8X20 FLANGE	0-28080-820-0	01	1	0108-0512
108	BOLT; TUBE CLIP (C) M8X20 FLANGE	0-28050-820-0	01	1	0601-
108	BOLT; TUBE CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	0205-0512
108	BOLT; TUBE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-
230	CLIP; PIPE,AIR (A) ID=9 L=16	9-09524-822-0	02	1	0105-0301
230	CLIP; PIPE,AIR (B) ID=11 & 9 L=15 & 15	1-09700-062-0	02	1	0302-
231	BOLT; CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-
279	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0108-0602
279	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-
348	CLIP; AIR PIPE (A) ID=9 & 9 L=15 & 15	1-09700-061-0	02	1	0105-
348	CLIP; AIR PIPE (B) ID=13X2 L=16	9-09535-225-0	02	1	0105-0301
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	0105-
376	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
376	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0105-0206
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0207-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
