3-60 — BRAKE PIPING; VACUUM (#125059) — 87 parça

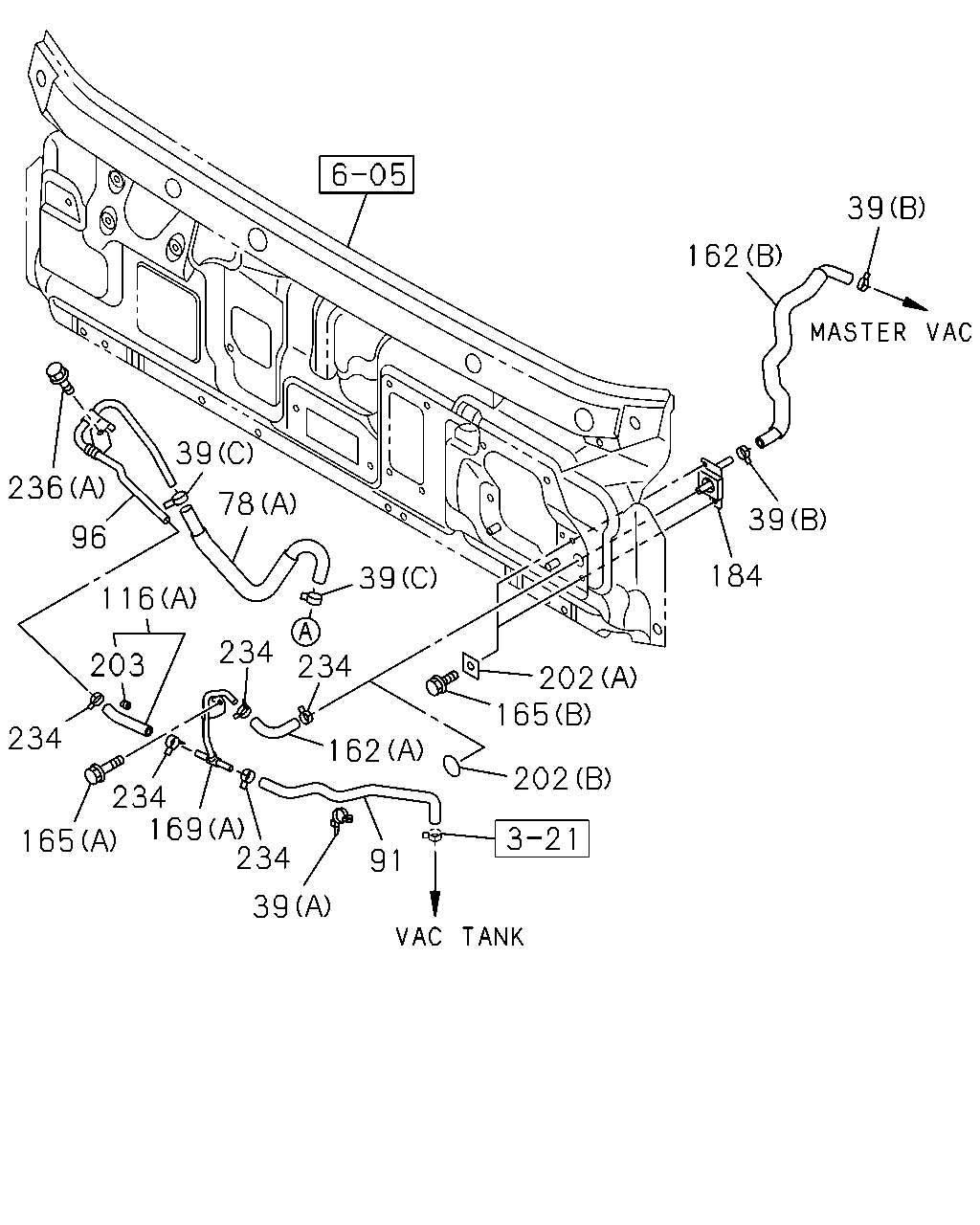

39 184 202 165 202 91 162 234 39 78 39 116 96 236 234 203 234 165 234 169 234 39 162 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3	1-09987-182-0	01	1	1307-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1307-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 01.097 (C) ID=16	8-97329-628-0	02	1	1307-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98081-681-2	01	1	1307-
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (B) L=240 SERVICED BY L=3000	0-08258-300-0	01	1	1307-
78	04.931 HOSE; VAC,PIPE TO PIPE (D)	8-98181-404-0	01	1	1307-
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98189-106-0	01	1	1307-
91	04.931 HOSE; VAC,RESERVE TANK POWER ASSIST CLUTCH(S2T)	8-98174-537-2	01	1	1307-
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T)	8-98181-382-1	01	1	1307-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98174-560-0	01	1	1307-
116	04.931 HOSE; VAC,M/VAC 08.962 (C) L=140 SERVICED BY L=3000	0-04740-300-0	01	1	1307-
116	04.931 HOSE; VAC,M/VAC (D) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1307-
116	04.931 HOSE; VAC,M/VAC (B)	8-98178-956-0	01	1	1307-
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (B)	8-98169-697-0	01	1	1307-
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (A)	8-98174-561-0	01	1	1307-
165	04.686 BOLT; BRKT POWER ASSIST CLUTCH(S2T) 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1307-
165	04.686 BOLT; BRKT POWER ASSIST CLUTCH(S2T) 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1307-
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98174-523-2	01	1	1307-
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (D)	8-98180-912-3	01	1	1307-
169	04.930 PIPE; VAC,BOOSTER SIDE (E)	8-98180-913-2	01	1	1307-
169	04.930 PIPE; VAC,BOOSTER SIDE (C)	8-98181-501-3	01	1	1307-
169	04.930 PIPE; VAC,BOOSTER SIDE EXC. POWER ASSIST CLUTCH(S2T) (B)	8-98180-910-2	01	1	1307-
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T)	8-98169-731-1	01	1	1307-
202	04.686 SEAL POWER ASSIST CLUTCH(S2T) 08.845 (A)	8-97856-616-0	02	1	1307-
202	04.686 SEAL EXC. POWER ASSIST CLUTCH(S2T) (B)	8-98201-038-0	01	1	1307-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T)	8-94104-021-0	01	1	1307-
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	05	1	1307-
236	04.930 BOLT; PIPE POWER ASSIST CLUTCH(S2T) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1307-
236	04.930 BOLT; PIPE 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1307-
236	04.930 BOLT; PIPE EXC. POWER ASSIST CLUTCH(S2T) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1307-

169 75 108 33 106 33 33 235 72 12 66 116 66 66 116 66 66 116 169 75 169 66 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE 04.128 L=213.5	8-98000-506-1	01	1	1307-
33	04.930 CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) (A) ID=10 H=40	8-94462-219-0	02	1	1307-
33	04.930 CLIP; VAC PIPE 03.162 (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	1307-
33	04.930 CLIP; VAC PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	03	1	1307-
33	04.930 CLIP; VAC PIPE 03.162 (C) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35	8-98153-939-1	03	1	1307-
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1307-
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1307-
72	04.931 HOSE; VAC,VAC PUMP TO PIPE	8-98201-857-1	01	1	1307-
75	04.930 NUT; CLIP,VAC HOSE 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1307-
75	04.930 NUT; CLIP,VAC HOSE 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1307-
106	04.930 CLIP; PIPE ID=10 H=40	8-94462-219-0	02	1	1307-
108	04.931 GROMMET; PIPE 02.343 ID=17	8-94128-319-2	01	1	1307-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98174-560-0	01	1	1307-
116	04.931 HOSE; VAC,M/VAC 08.962 (C) L=140 SERVICED BY L=3000	0-04740-300-0	01	1	1307-
116	04.931 HOSE; VAC,M/VAC (D) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1307-
116	04.931 HOSE; VAC,M/VAC (B)	8-98178-956-0	01	1	1307-
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98174-523-2	01	1	1307-
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (D)	8-98180-912-3	01	1	1307-
169	04.930 PIPE; VAC,BOOSTER SIDE (E)	8-98180-913-2	01	1	1307-
169	04.930 PIPE; VAC,BOOSTER SIDE (C)	8-98181-501-3	01	1	1307-
169	04.930 PIPE; VAC,BOOSTER SIDE EXC. POWER ASSIST CLUTCH(S2T) (B)	8-98180-910-2	01	1	1307-
235	04.931 RUBBER; SUPPORT,PIPE 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1307-

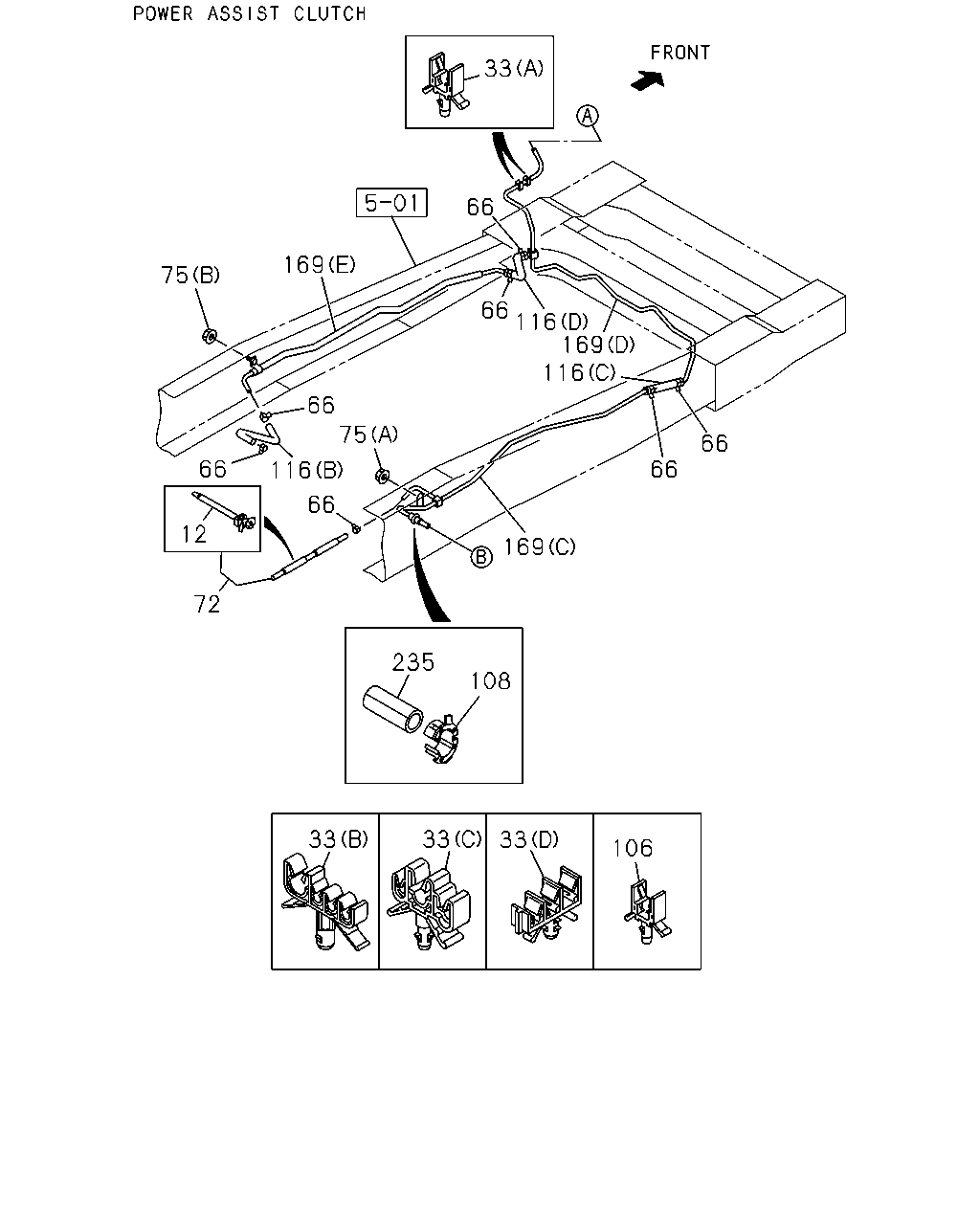

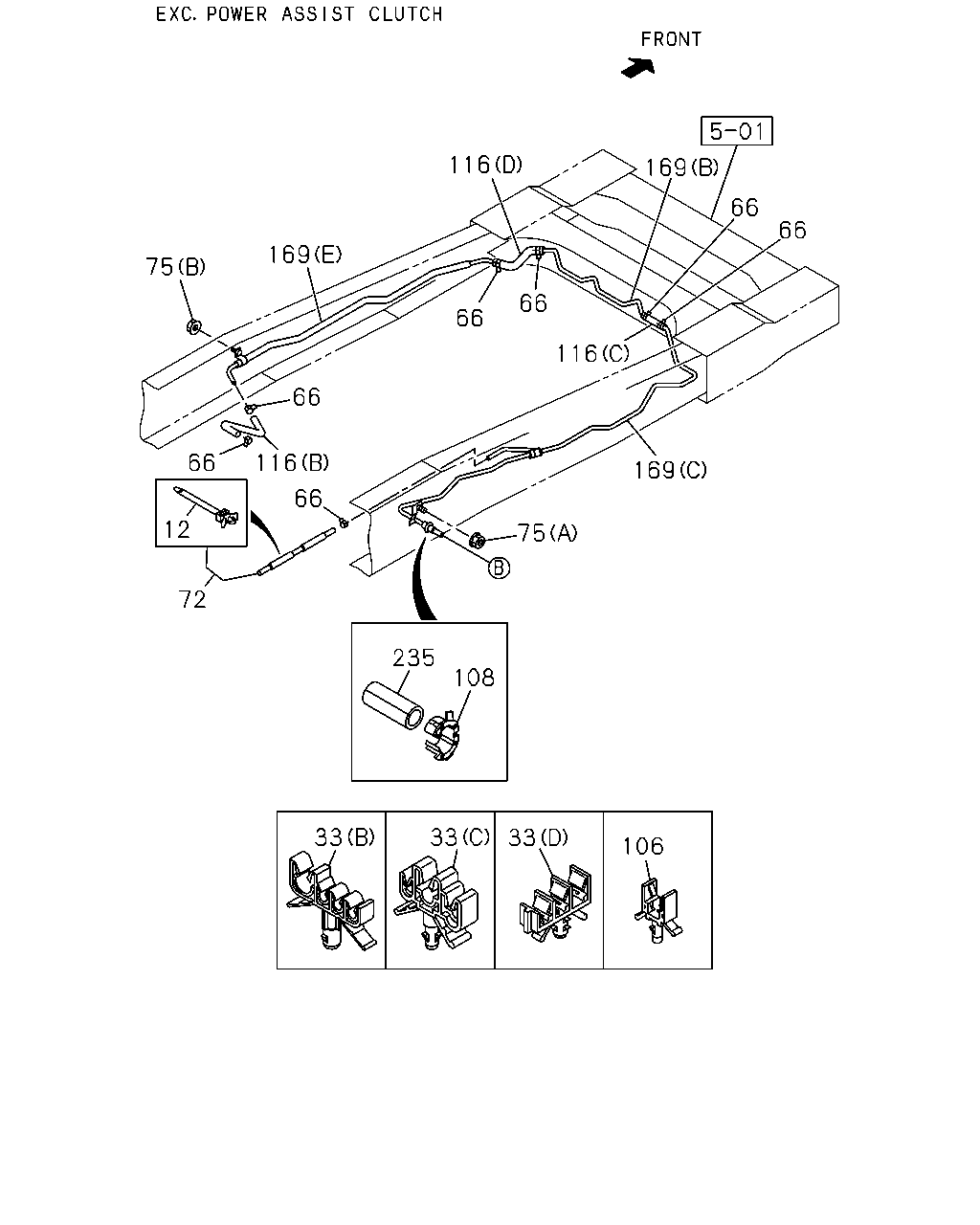

75 66 169 66 66 116 169 116 66 66 33 169 75 66 66 116 12 72 235 108 106 33 33 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE 04.128 L=213.5	8-98000-506-1	01	1	1307-
33	04.930 CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) (A) ID=10 H=40	8-94462-219-0	02	1	1307-
33	04.930 CLIP; VAC PIPE 03.162 (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	1307-
33	04.930 CLIP; VAC PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	03	1	1307-
33	04.930 CLIP; VAC PIPE 03.162 (C) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35	8-98153-939-1	03	1	1307-
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1307-
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1307-
72	04.931 HOSE; VAC,VAC PUMP TO PIPE	8-98201-857-1	01	1	1307-
75	04.930 NUT; CLIP,VAC HOSE 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1307-
75	04.930 NUT; CLIP,VAC HOSE 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1307-
106	04.930 CLIP; PIPE ID=10 H=40	8-94462-219-0	02	1	1307-
108	04.931 GROMMET; PIPE 02.343 ID=17	8-94128-319-2	01	1	1307-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98174-560-0	01	1	1307-
116	04.931 HOSE; VAC,M/VAC 08.962 (C) L=140 SERVICED BY L=3000	0-04740-300-0	01	1	1307-
116	04.931 HOSE; VAC,M/VAC (D) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1307-
116	04.931 HOSE; VAC,M/VAC (B)	8-98178-956-0	01	1	1307-
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98174-523-2	01	1	1307-
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (D)	8-98180-912-3	01	1	1307-
169	04.930 PIPE; VAC,BOOSTER SIDE (E)	8-98180-913-2	01	1	1307-
169	04.930 PIPE; VAC,BOOSTER SIDE (C)	8-98181-501-3	01	1	1307-
169	04.930 PIPE; VAC,BOOSTER SIDE EXC. POWER ASSIST CLUTCH(S2T) (B)	8-98180-910-2	01	1	1307-
235	04.931 RUBBER; SUPPORT,PIPE 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1307-

158 236 44 136 78 136 136 78 136 44 136 78 136 136 136 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	04.930 PIPE; VAC,MAG VLV (A)	8-98034-281-1	01	1	1307-
44	04.930 PIPE; VAC,MAG VLV (B)	8-98181-403-3	01	1	1307-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98081-681-2	01	1	1307-
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (B) L=240 SERVICED BY L=3000	0-08258-300-0	01	1	1307-
78	04.931 HOSE; VAC,PIPE TO PIPE (D)	8-98181-404-0	01	1	1307-
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98189-106-0	01	1	1307-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98179-179-1	01	1	1307-
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	02	1	1307-
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	06	1	1307-
158	04.681 CLIP; HOSE 02.559 ID=14-20	8-97061-603-0	01	1	1307-
236	04.930 BOLT; PIPE POWER ASSIST CLUTCH(S2T) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1307-
236	04.930 BOLT; PIPE 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1307-
236	04.930 BOLT; PIPE EXC. POWER ASSIST CLUTCH(S2T) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1307-
