Isuzu WW
▶
TRUCKS
▶
NQR
▶
51390 - NQR A/BRAKE MIDEAST
▶
3 - Brakes, Brake System
▶

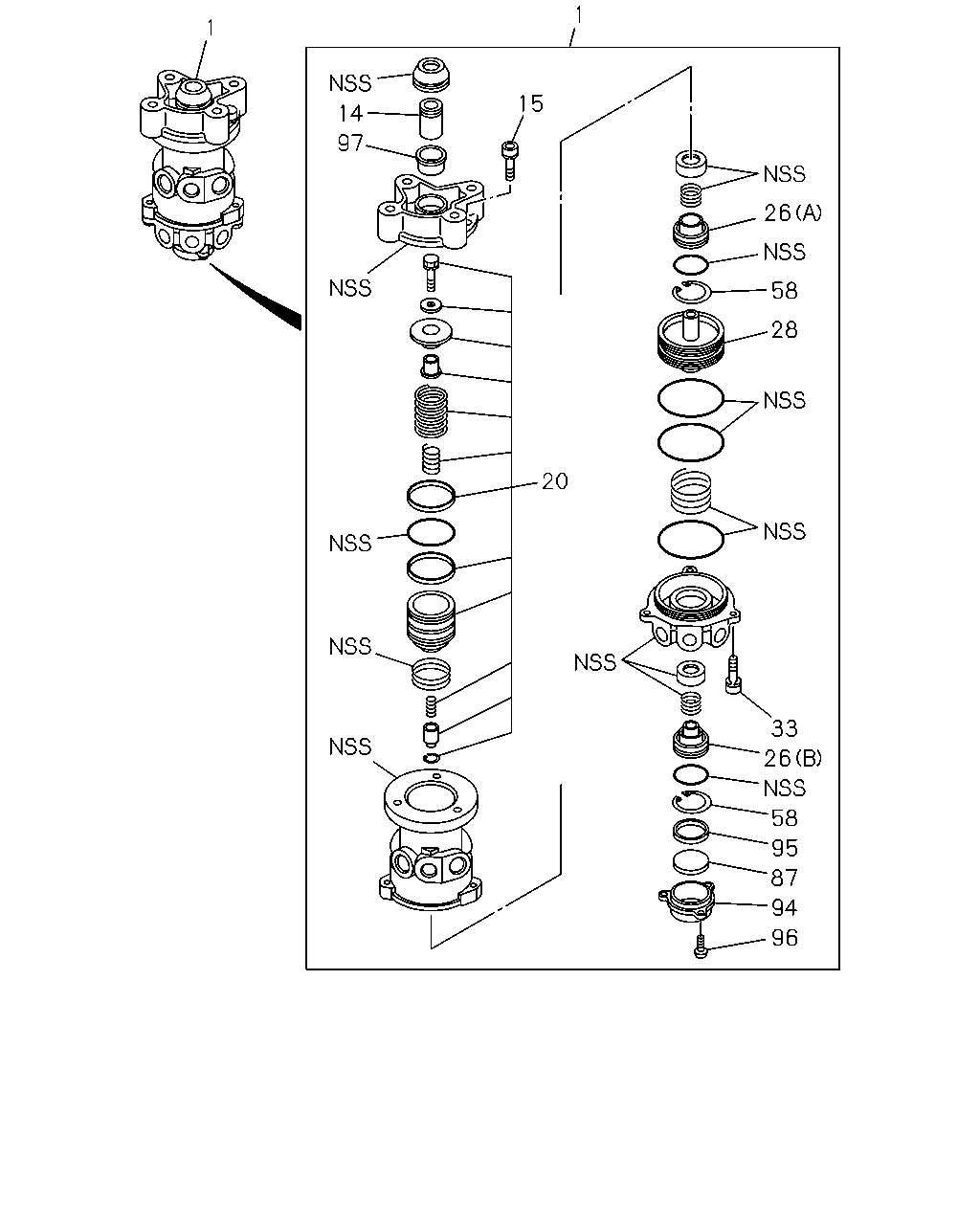

3-34 - BRAKE VALVE; AIR
▶
3-34 — BRAKE VALVE; AIR
(#125053) — 16 parça
◀
[334A] REPAIR KIT(NO.2) (1 parça)
[334A] COMPONENT (14 parça)
[334A] REPAIR KIT(NO.1) (1 parça)
▶
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
04.640 REPAIR KIT; SPRING,BRK VLV
8-98187-065-0
01
1
1307-
26
58
28
33
26
58
95
87
94
96
20
15
1
14
97
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.640 VALVE; BRK
8-98171-420-0
01
1
1307-
14
04.640 PLUNGER; BRK VLV
8-98173-014-0
01
1
1307-
15
04.640 BOLT; PLATE,BRK VLV
8-98173-038-0
03
1
1307-
20
04.640 PISTON; UPR,BRK VLV
8-98173-002-0
01
1
1307-
26
04.640 RETAINER; VLV,BRK VLV
(A)
8-98172-989-0
01
1
1307-
26
04.640 RETAINER; VLV,BRK VLV
(B)
8-98172-998-0
01
1
1307-
28
04.640 PISTON; LWR,BRK VLV
8-98172-997-0
01
1
1307-
33
04.640 BOLT; BODY,BRK VLV
8-98173-034-0
03
1
1307-
58
04.640 RING; RET,EXH,BRK VLV
8-98172-994-0
02
1
1307-
87
04.640 SILENCER; VALVE
8-98173-000-0
01
1
1307-
94
04.640 BODY; SILENCER
8-98172-999-0
01
1
1307-
95
04.640 COVER; SILENCER
8-98173-001-0
01
1
1307-
96
04.640 SCREW
8-98173-035-0
03
1
1307-
97
04.640 BUSHING
8-98173-013-0
01
1
1307-
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
04.640 REPAIR KIT; RUBBER,BRK VLV
8-98187-064-0
01
1
1307-
