3-77 — BRAKE PIPING; AIR,REAR (#12505) — 188 parça

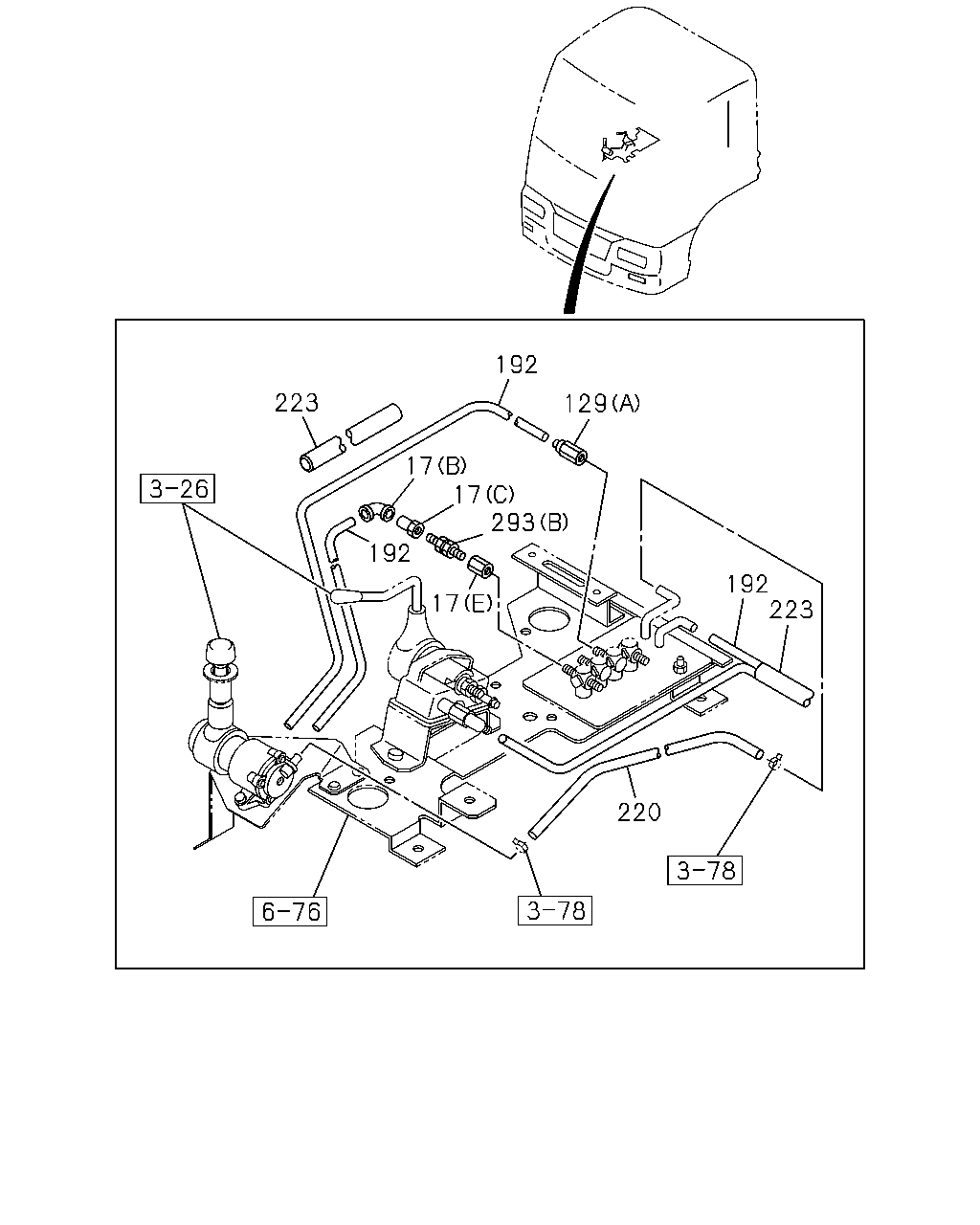

192 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-0301
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0105-0504
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0105-0504
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0105-0504
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0105-0504
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0302-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0505-
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0505-
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0505-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0505-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	0302-0512
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0105-0504
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0105-0504
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0105-0504
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	0105-0504
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0505-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0505-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	0505-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0505-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0601-

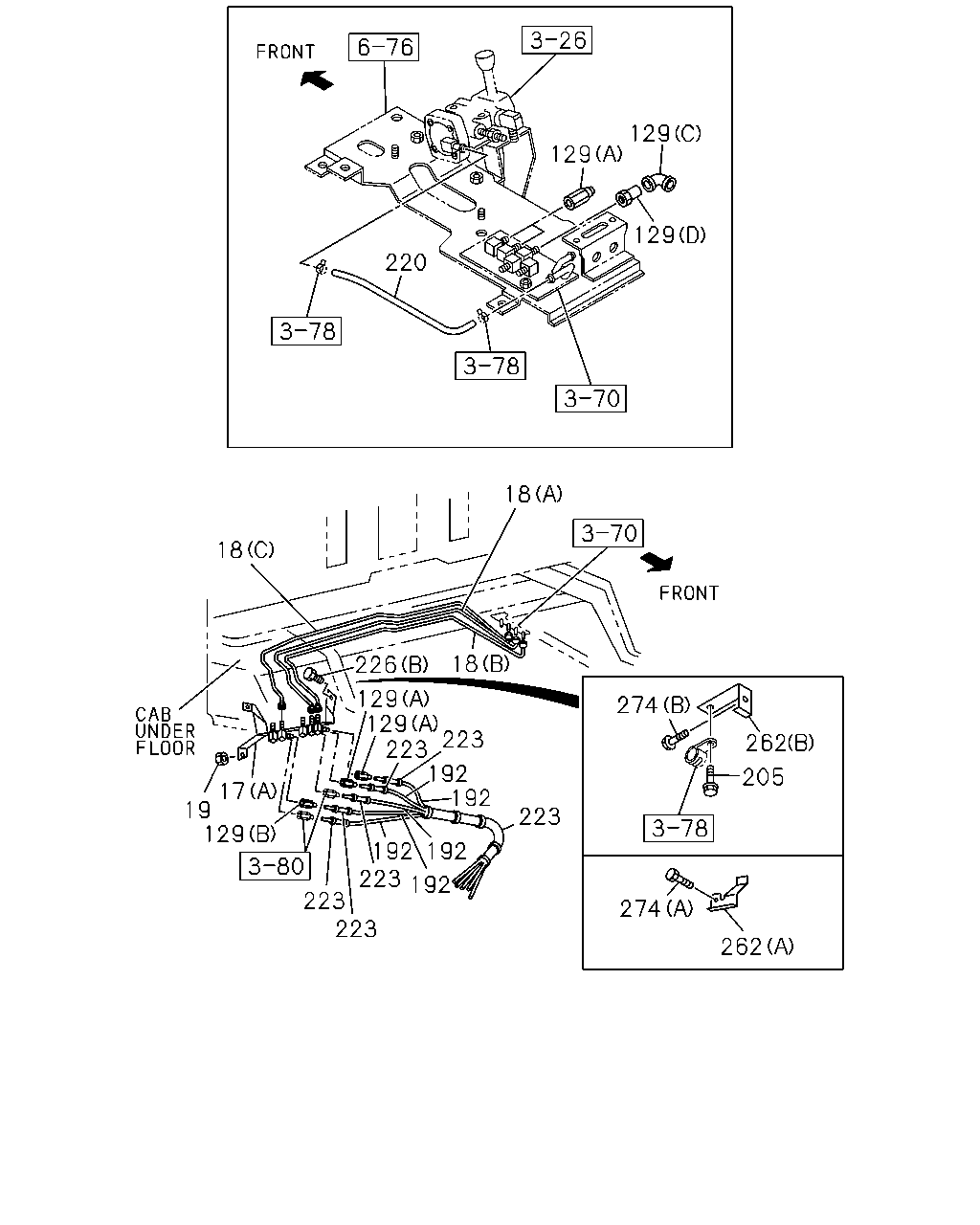

192 223 129 17 17 293 192 192 223 17 220

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	UNION; AIR PIPE (A)	1-47470-453-2	01	1	0105-0111
17	UNION; AIR PIPE (A)	1-47470-668-0	01	1	0112-0301
17	UNION; AIR PIPE (E) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	0302-
17	UNION; AIR PIPE (B) DIN12 ID=15.4 ELBOW	1-09661-079-1	01	1	0302-
17	UNION; AIR PIPE (C)	1-09661-083-0	01	1	0302-
17	UNION; AIR PIPE (D)	1-47470-678-0	01	1	0302-
129	CONNECTOR; NYLON TUBE (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0302-0309
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	0105-0111
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0112-
129	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-
129	CONNECTOR; NYLON TUBE (C) DIN12 ID=15.4 ELBOW	1-09661-079-1	01	1	0105-0301
129	CONNECTOR; NYLON TUBE (D)	1-09661-083-0	01	1	0105-0301
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-0301
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0105-0504
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0105-0504
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0105-0504
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0105-0504
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0302-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0505-
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0505-
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0505-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0505-
220	HOSE; VINYL,EXH,PARKING BRK VLV L=480 SERVICED BY L=10000	9-09914-701-0	01	1	0105-0105
220	HOSE; VINYL,EXH,PARKING BRK VLV L=650 SERVICED BY L=10000	9-09914-701-0	01	1	0106-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	0302-0512
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0105-0504
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0105-0504
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0105-0504
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	0105-0504
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0505-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0505-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	0505-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0505-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0601-
293	VALVE; CHECK (A)	1-48320-013-2	01	1	0310-
293	VALVE; CHECK (A)	1-48320-013-1	01	1	0105-0309
293	VALVE; CHECK (B)	1-48410-479-1	01	1	0302-

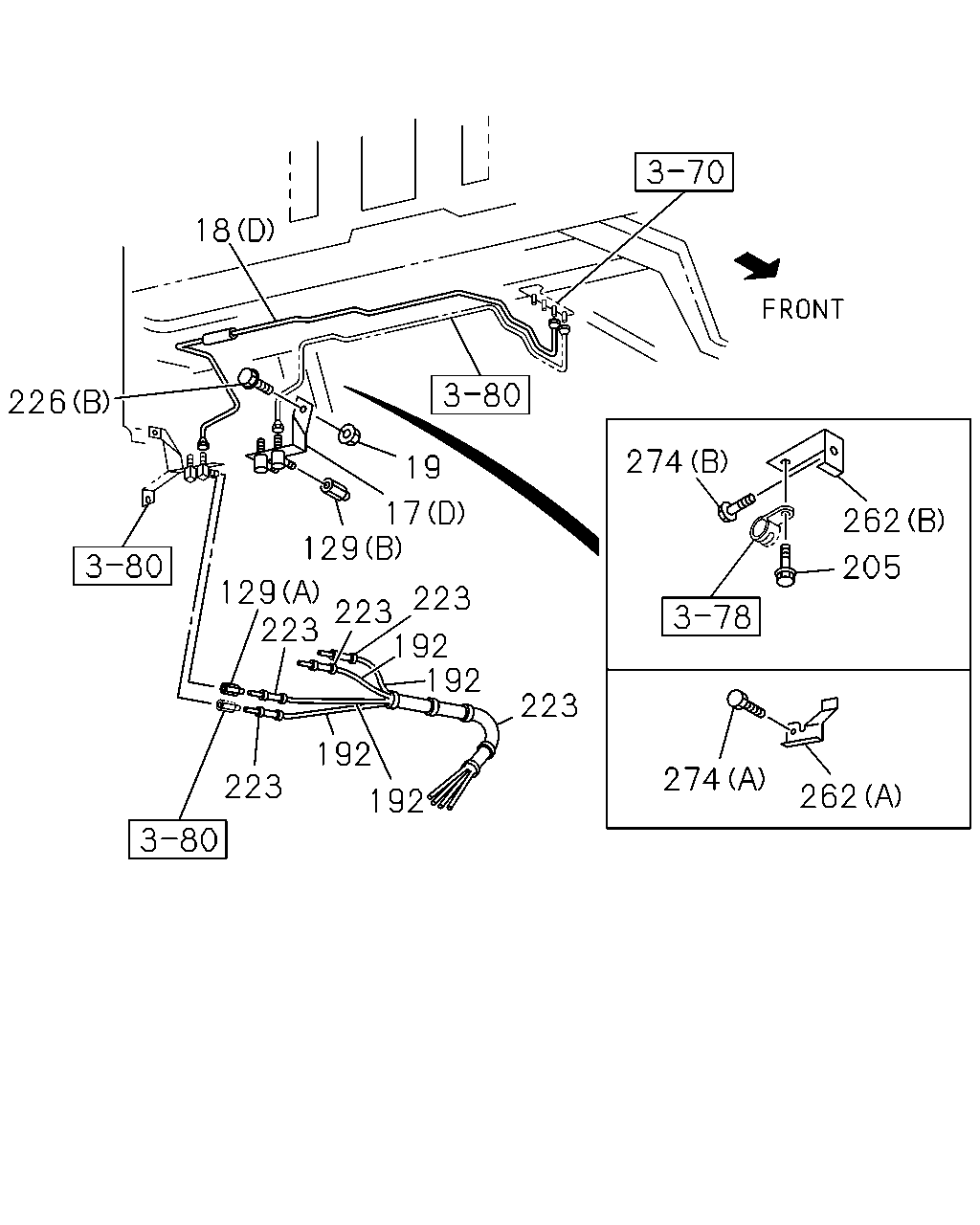

18 226 274 19 17 129 262 205 129 223 223 192 192 223 223 192 274 223 262 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	UNION; AIR PIPE (A)	1-47470-453-2	01	1	0105-0111
17	UNION; AIR PIPE (A)	1-47470-668-0	01	1	0112-0301
17	UNION; AIR PIPE (E) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	0302-
17	UNION; AIR PIPE (B) DIN12 ID=15.4 ELBOW	1-09661-079-1	01	1	0302-
17	UNION; AIR PIPE (C)	1-09661-083-0	01	1	0302-
17	UNION; AIR PIPE (D)	1-47470-678-0	01	1	0302-
18	PIPE; AIR,UNION TO UNION (A) L=1800	1-49121-052-0	01	1	0105-0301
18	PIPE; AIR,UNION TO UNION BAGGAGE BOX CAB RR SIDE<TBM> (D) L=1937	1-49122-060-1	01	1	0302-
18	PIPE; AIR,UNION TO UNION (B) L=1854	1-49121-053-0	01	1	0105-0111
18	PIPE; AIR,UNION TO UNION (C) L=1982	1-49121-055-1	01	1	0105-0301
18	PIPE; AIR,UNION TO UNION EXC. BAGGAGE BOX CAB RR SIDE<TBM> (D) L=1845	1-49122-059-1	01	1	0302-
19	NUT; PIPE UNION M8	9-09110-408-0	01	1	0105-0512
19	NUT; PIPE UNION M8	0-91110-508-0	01	1	0601-
129	CONNECTOR; NYLON TUBE (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0302-0309
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	0105-0111
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0112-
129	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-
129	CONNECTOR; NYLON TUBE (C) DIN12 ID=15.4 ELBOW	1-09661-079-1	01	1	0105-0301
129	CONNECTOR; NYLON TUBE (D)	1-09661-083-0	01	1	0105-0301
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-0301
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0105-0504
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0105-0504
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0105-0504
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0105-0504
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0302-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0505-
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0505-
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0505-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0505-
205	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	02	1	0105-0512
205	BOLT; TUBE CLIP M8X16 FLANGE	0-28050-816-0	02	1	0601-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	0302-0512
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0105-0504
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0105-0504
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0105-0504
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	0105-0504
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0505-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0505-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	0505-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0505-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0601-
226	BOLT; UNION (A) M8X20 FLANGE	0-28080-820-0	01	1	0105-0512
226	BOLT; UNION (A) M8X20 FLANGE	0-28050-820-0	01	1	0601-
226	BOLT; UNION (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0105-0301
226	BOLT; UNION (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0302-
262	BRACKET (B)	1-79996-143-0	01	1	0105-
262	BRACKET (A)	1-79996-144-0	01	1	0105-
274	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0105-0512
274	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-
274	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0105-

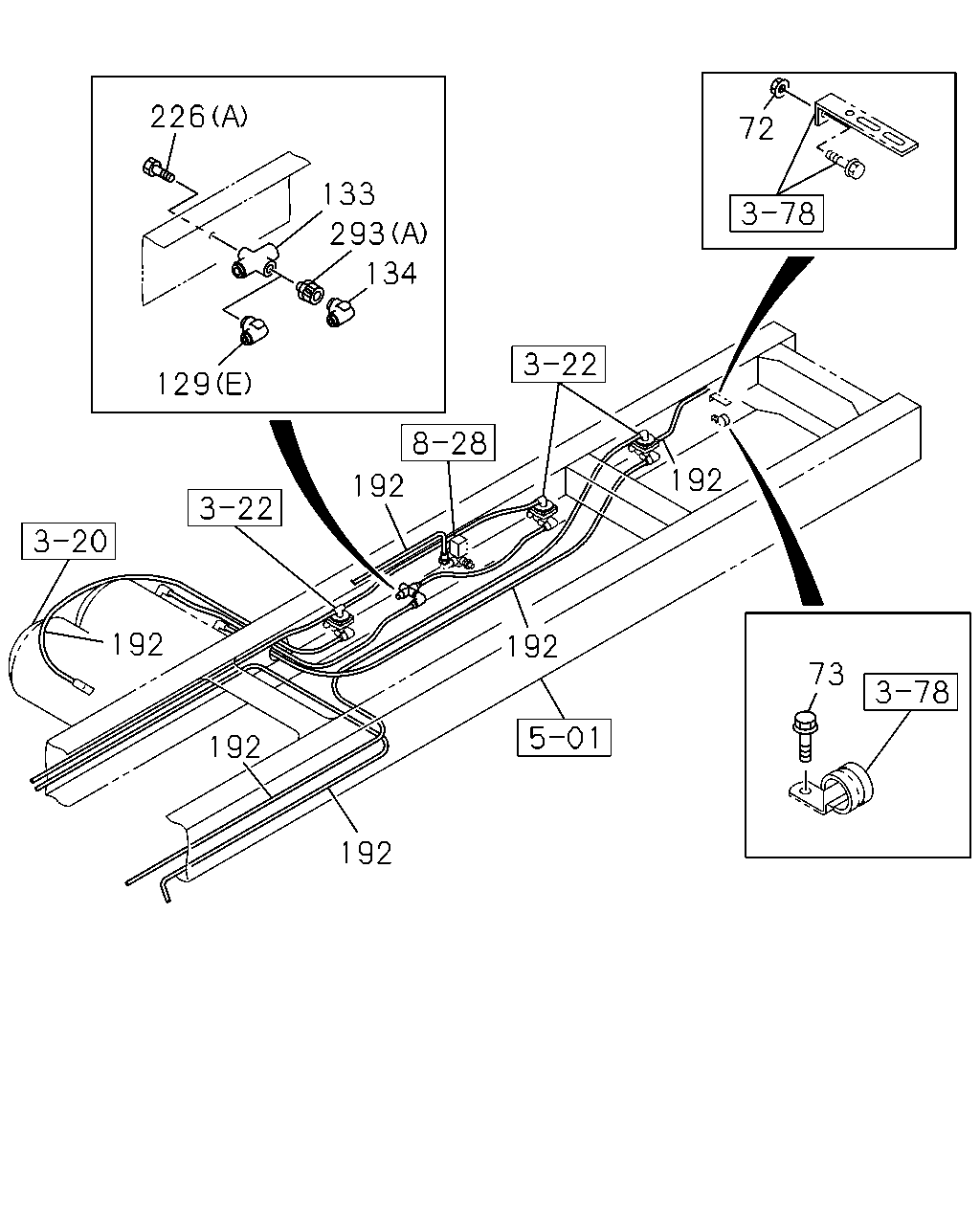

226 72 133 293 134 129 192 192 192 192 73 192 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
72	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0105-0602
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
73	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	04	1	0105-0512
73	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	04	1	0601-
129	CONNECTOR; NYLON TUBE (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0302-0309
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	0105-0111
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0112-
129	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-
129	CONNECTOR; NYLON TUBE (C) DIN12 ID=15.4 ELBOW	1-09661-079-1	01	1	0105-0301
129	CONNECTOR; NYLON TUBE (D)	1-09661-083-0	01	1	0105-0301
133	UNION; NIPPLE DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0105-
134	CONNECTOR DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-0301
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0105-0504
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0105-0504
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0105-0504
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0105-0504
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0302-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0505-
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0505-
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0505-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0505-
226	BOLT; UNION (A) M8X20 FLANGE	0-28080-820-0	01	1	0105-0512
226	BOLT; UNION (A) M8X20 FLANGE	0-28050-820-0	01	1	0601-
226	BOLT; UNION (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0105-0301
226	BOLT; UNION (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0302-
293	VALVE; CHECK (A)	1-48320-013-2	01	1	0310-
293	VALVE; CHECK (A)	1-48320-013-1	01	1	0105-0309
293	VALVE; CHECK (B)	1-48410-479-1	01	1	0302-

129 220 18 18 226 18 129 129 223 223 192 192 274 262 205 17 19 129 223 192 223 192 192 223 223 274 262 129 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	UNION; AIR PIPE (A)	1-47470-453-2	01	1	0105-0111
17	UNION; AIR PIPE (A)	1-47470-668-0	01	1	0112-0301
17	UNION; AIR PIPE (E) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	0302-
17	UNION; AIR PIPE (B) DIN12 ID=15.4 ELBOW	1-09661-079-1	01	1	0302-
17	UNION; AIR PIPE (C)	1-09661-083-0	01	1	0302-
17	UNION; AIR PIPE (D)	1-47470-678-0	01	1	0302-
18	PIPE; AIR,UNION TO UNION (A) L=1800	1-49121-052-0	01	1	0105-0301
18	PIPE; AIR,UNION TO UNION BAGGAGE BOX CAB RR SIDE<TBM> (D) L=1937	1-49122-060-1	01	1	0302-
18	PIPE; AIR,UNION TO UNION (B) L=1854	1-49121-053-0	01	1	0105-0111
18	PIPE; AIR,UNION TO UNION (C) L=1982	1-49121-055-1	01	1	0105-0301
18	PIPE; AIR,UNION TO UNION EXC. BAGGAGE BOX CAB RR SIDE<TBM> (D) L=1845	1-49122-059-1	01	1	0302-
19	NUT; PIPE UNION M8	9-09110-408-0	01	1	0105-0512
19	NUT; PIPE UNION M8	0-91110-508-0	01	1	0601-
129	CONNECTOR; NYLON TUBE (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0302-0309
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	0105-0111
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0112-
129	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-
129	CONNECTOR; NYLON TUBE (C) DIN12 ID=15.4 ELBOW	1-09661-079-1	01	1	0105-0301
129	CONNECTOR; NYLON TUBE (D)	1-09661-083-0	01	1	0105-0301
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-0301
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0105-0504
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0105-0504
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0105-0504
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0105-0504
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0302-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0505-
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0505-
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0505-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0505-
205	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	02	1	0105-0512
205	BOLT; TUBE CLIP M8X16 FLANGE	0-28050-816-0	02	1	0601-
220	HOSE; VINYL,EXH,PARKING BRK VLV L=480 SERVICED BY L=10000	9-09914-701-0	01	1	0105-0105
220	HOSE; VINYL,EXH,PARKING BRK VLV L=650 SERVICED BY L=10000	9-09914-701-0	01	1	0106-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	0302-0512
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0105-0504
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0105-0504
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0105-0504
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	0105-0504
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0505-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0505-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	0505-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0505-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0601-
226	BOLT; UNION (A) M8X20 FLANGE	0-28080-820-0	01	1	0105-0512
226	BOLT; UNION (A) M8X20 FLANGE	0-28050-820-0	01	1	0601-
226	BOLT; UNION (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0105-0301
226	BOLT; UNION (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0302-
262	BRACKET (B)	1-79996-143-0	01	1	0105-
262	BRACKET (A)	1-79996-144-0	01	1	0105-
274	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0105-0512
274	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-
274	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0105-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
