3-70 — BRAKE PIPING; AIR,AIR MASTER (#12503) — 182 parça

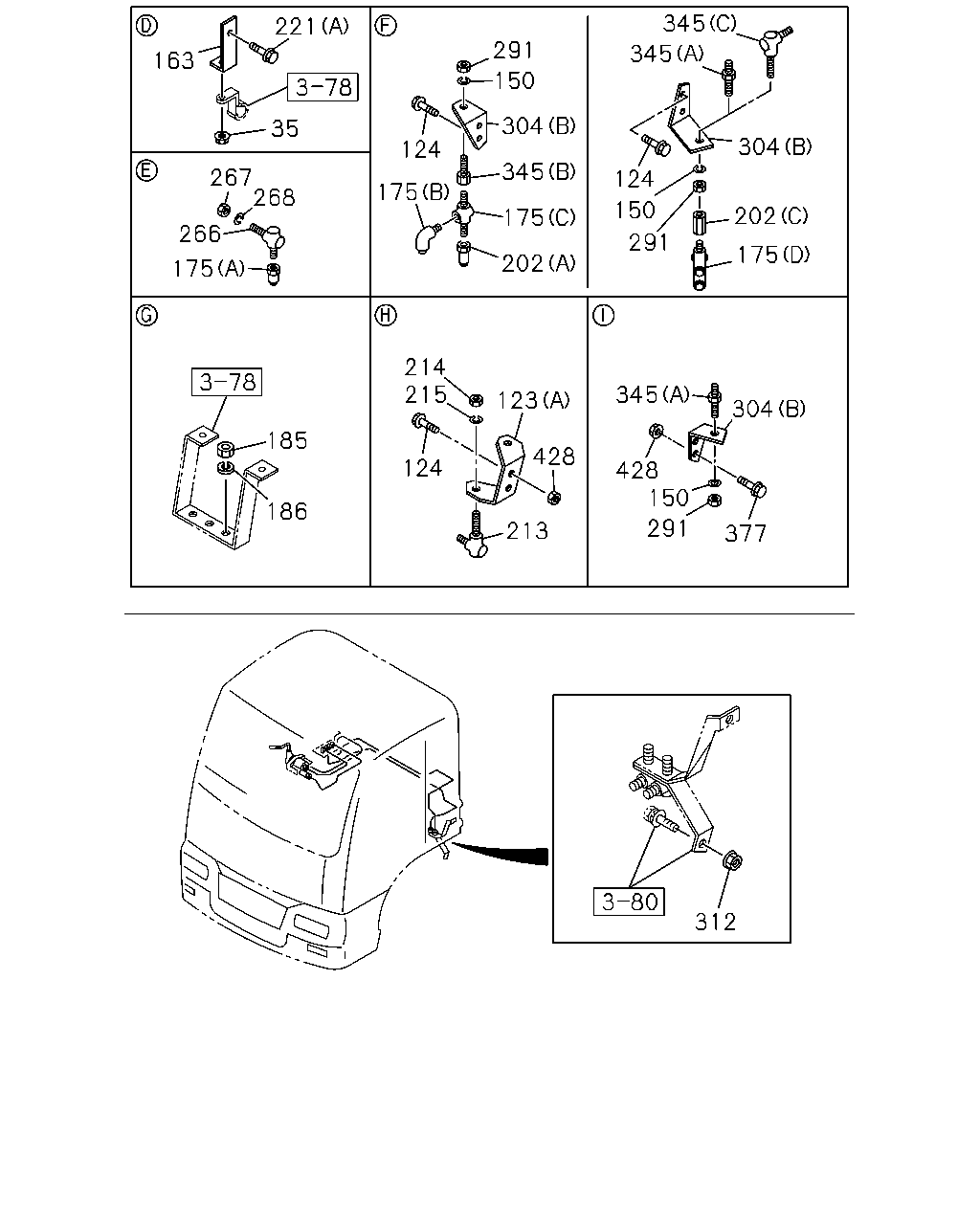

çizim 19603
345 221 291 345 163 150 304 35 304 124 345 267 268 124 175 150 202 266 175 291 175 202 175 214 215 345 123 304 185 428 124 428 150 186 291 213 377 312
BalonParca AdiParca NoAdetTipApplied Date
35 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0105-0602
35 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
123 BRACKET; UNION
(A) 		1-47477-045-0 01 1 0105-
123 BRACKET; UNION
EXC. FULL FLOATING CAB(W16) (B) 		1-53458-741-2 01 1 0105-
124 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512
124 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
124 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 02 1 0105-0512
124 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 0601-
150 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 02 1 0105-
163 BRACKET; AIR PIPE 1-34656-009-0 01 1 0105-
175 CONNECTOR; AIR PIPE
(C) 		1-09650-070-3 01 1 0105-0112
175 CONNECTOR; AIR PIPE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0105-
175 CONNECTOR; AIR PIPE
(B) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0105-0112
175 CONNECTOR; AIR PIPE
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0201-
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 0105-0301
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 0105-0301
202 ADAPTER
EXC. FULL FLOATING CAB(W16) (D) M12 & RC1/4 STRAIGHT 		1-09660-885-0 02 1 0302-
202 ADAPTER
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0105-0105
202 ADAPTER
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0105-0105
202 ADAPTER
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0106-0112
202 ADAPTER
(C) M12 & RC3/8 STRAIGHT 		1-09660-879-0 01 1 0201-
202 ADAPTER
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0106-0301
202 ADAPTER
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0302-
213 UNION; AIR PIPE
FULL FLOATING CAB(W16) M12 3WAY 		9-09228-906-1 01 1 0105-
213 UNION; AIR PIPE
EXC. FULL FLOATING CAB(W16) M12 ELBOW 		9-09225-206-1 01 1 0105-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0105-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		9-09150-512-0 01 1 0105-
221 BOLT; BRKT
(A) M8X35 FLANGE 		0-28680-835-0 01 1 0105-0512
221 BOLT; BRKT
(A) M8X35 FLANGE 		0-28650-835-0 01 1 0601-
221 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE 		0-28681-035-0 02 1 0105-0512
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE 		0-28651-035-0 02 1 0601-
266 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 01 1 0105-
267 NUT; UNION
M12 		9-09840-280-0 01 1 0105-
268 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 01 1 0105-
291 NUT; UNION
M12 		9-09840-280-0 02 1 0105-
304 BRACKET; UNION
(B) 		1-47476-556-0 02 1 0105-
304 BRACKET; UNION
(A) 		1-71117-211-0 01 1 0105-
312 NUT; UNION
M8 		9-09110-408-0 01 1 0302-0512
312 NUT; UNION
M8 		0-91110-508-0 01 1 0601-
345 UNION; AIR PIPE
(B) 		1-09654-280-1 01 1 0105-0112
345 UNION; AIR PIPE
(C) M12 2WAY 		1-09654-257-1 01 1 0201-0406
345 UNION; AIR PIPE
(A) M12 L=66.5 		9-09223-306-1 01 1 0105-0406
345 UNION; AIR PIPE
(A) M12 L=66.5 		9-09223-306-1 02 1 0407-
377 BOLT; BRKT FIX
M8X35 FLANGE 		0-28680-835-0 02 1 0105-0512
377 BOLT; BRKT FIX
M8X35 FLANGE 		0-28650-835-0 02 1 0601-
428 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0105-0602
428 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0105-0602
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-

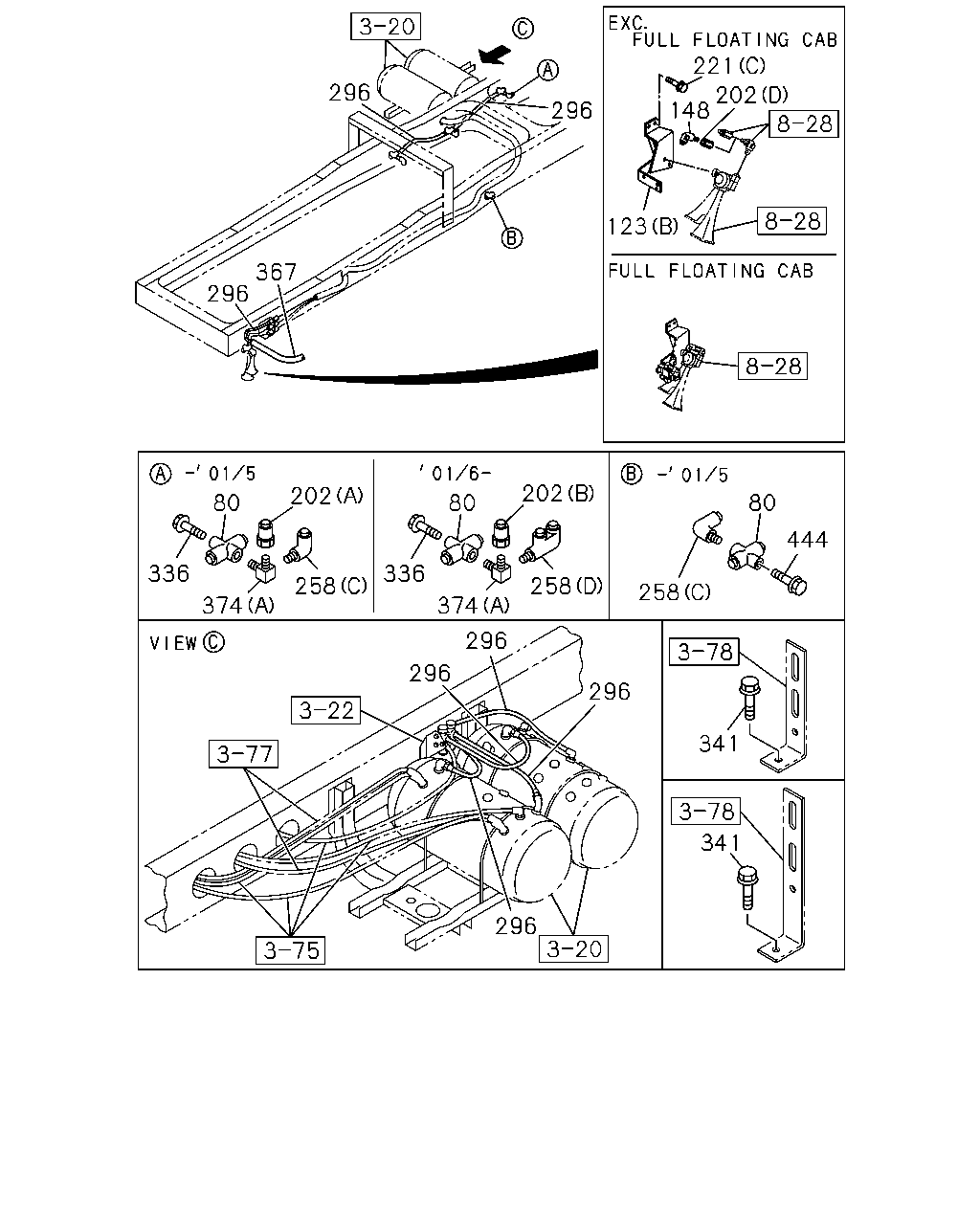

çizim 75500
221 296 202 148 296 123 367 296 202 202 80 80 80 444 336 336 258 258 258 374 374 296 296 296 341 341 296
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0105-0105
80 UNION; 3 WAY
DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0105-0105
80 UNION; 3 WAY
DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0106-0301
80 UNION; 3 WAY
DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0302-
123 BRACKET; UNION
(A) 		1-47477-045-0 01 1 0105-
123 BRACKET; UNION
EXC. FULL FLOATING CAB(W16) (B) 		1-53458-741-2 01 1 0105-
148 CONNECTOR; UNION
EXC. FULL FLOATING CAB(W16) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0302-
202 ADAPTER
EXC. FULL FLOATING CAB(W16) (D) M12 & RC1/4 STRAIGHT 		1-09660-885-0 02 1 0302-
202 ADAPTER
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0105-0105
202 ADAPTER
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0105-0105
202 ADAPTER
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0106-0112
202 ADAPTER
(C) M12 & RC3/8 STRAIGHT 		1-09660-879-0 01 1 0201-
202 ADAPTER
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0106-0301
202 ADAPTER
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0302-
221 BOLT; BRKT
(A) M8X35 FLANGE 		0-28680-835-0 01 1 0105-0512
221 BOLT; BRKT
(A) M8X35 FLANGE 		0-28650-835-0 01 1 0601-
221 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE 		0-28681-035-0 02 1 0105-0512
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE 		0-28651-035-0 02 1 0601-
258 CONNECTOR; NYLON TUBE
(A) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0105-0302
258 CONNECTOR; NYLON TUBE
(A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303-
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0105-
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-0105
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-0105
258 CONNECTOR; NYLON TUBE
(D) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0106-0301
258 CONNECTOR; NYLON TUBE
(D) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0302-
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 01 1 0105-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0105-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-0301
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0105-0301
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0302-
336 BOLT; PIPE UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0105-0512
336 BOLT; PIPE UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0601-
341 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512
341 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0105-0301
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0105-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 0105-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0302-
374 CONNECTOR
(A) M16 PT3/8X2 3WAY 		1-09656-418-2 01 1 0105-0301
374 CONNECTOR
(A) M16 PT3/8X2 3WAY 		1-09656-418-2 01 1 0302-0404
374 CONNECTOR
(A) M16 PT3/8X2 3WAY 		1-09656-556-1 01 1 0405-
374 CONNECTOR
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0105-0310
444 BOLT; UNION
M8X25 FLANGE 		0-28080-825-0 01 1 0105-0512
444 BOLT; UNION
M8X25 FLANGE 		0-28050-825-0 01 1 0601-

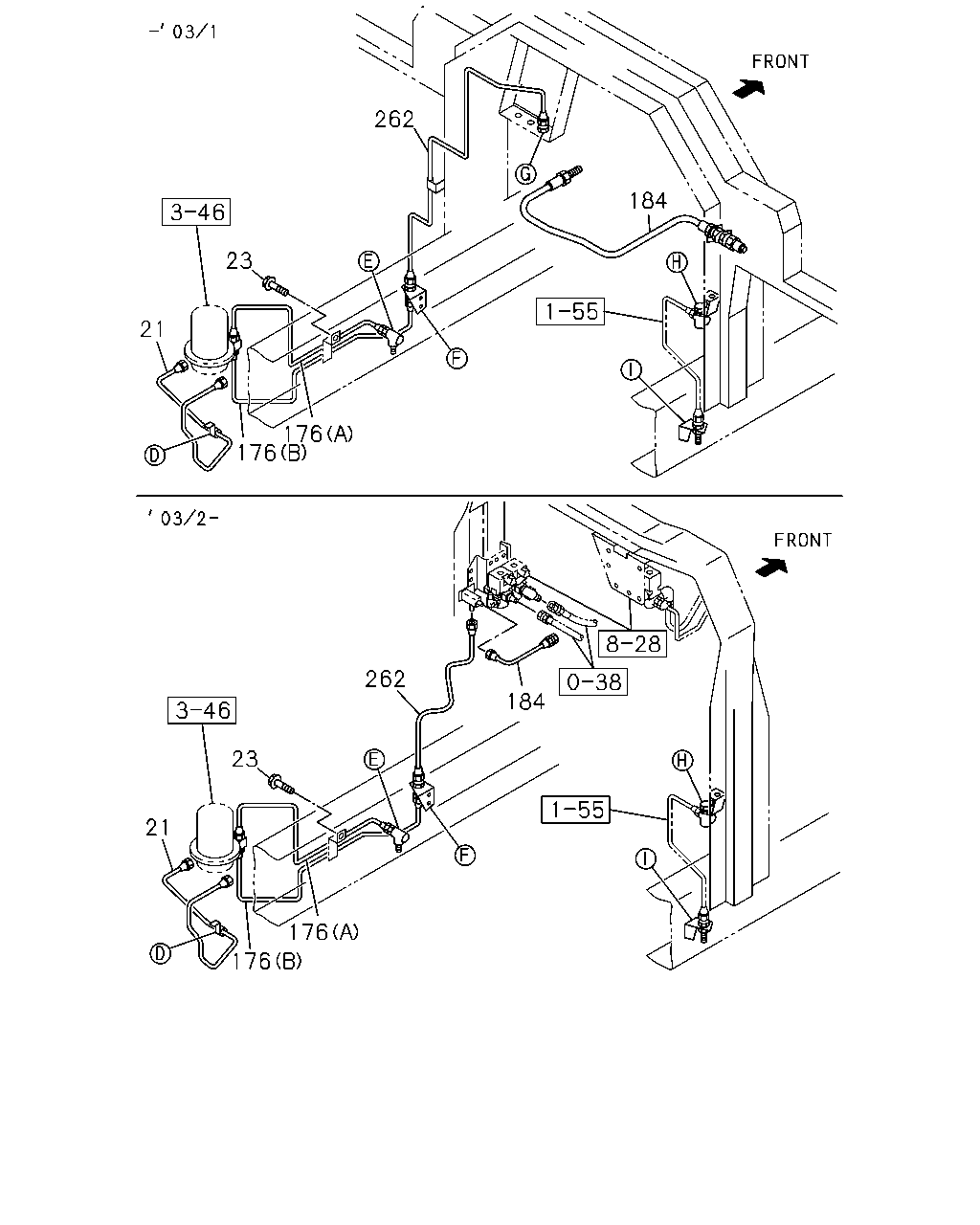

çizim 78369
262 184 23 21 176 176 262 184 23 21 176 176
BalonParca AdiParca NoAdetTipApplied Date
21 PIPE; AIR,UNION TO AIR DRYER 1-49122-866-0 01 1 0105-0110
21 PIPE; AIR,UNION TO AIR DRYER 1-49123-375-0 01 1 0111-0302
21 PIPE; AIR,UNION TO AIR DRYER 1-49124-042-0 01 1 0303-
23 BOLT; BRKT,AIR PIPE
M8X35 FLANGE 		0-28680-835-0 01 1 0105-0512
23 BOLT; BRKT,AIR PIPE
M8X35 FLANGE 		0-28650-835-0 01 1 0601-
176 PIPE; AIR,AIR DRYER TO UNION
(B) 		1-49123-083-0 01 1 0105-
176 PIPE; AIR,AIR DRYER TO UNION
(A) 		1-49123-084-0 01 1 0105-
184 HOSE; FLEX,AIR GOV
OD=12.7 L=450 		1-09363-631-0 01 1 0105-0301
184 HOSE; FLEX,AIR GOV
L=390 		1-09363-616-0 01 1 0302-
262 PIPE; AIR,UNION TO FLEX 1-49123-026-0 01 1 0105-0112
262 PIPE; AIR,UNION TO FLEX 1-49123-422-0 01 1 0201-0202
262 PIPE; AIR,UNION TO FLEX 1-49123-507-0 01 1 0203-0301
262 PIPE; AIR,UNION TO FLEX 1-49123-639-0 01 1 0302-

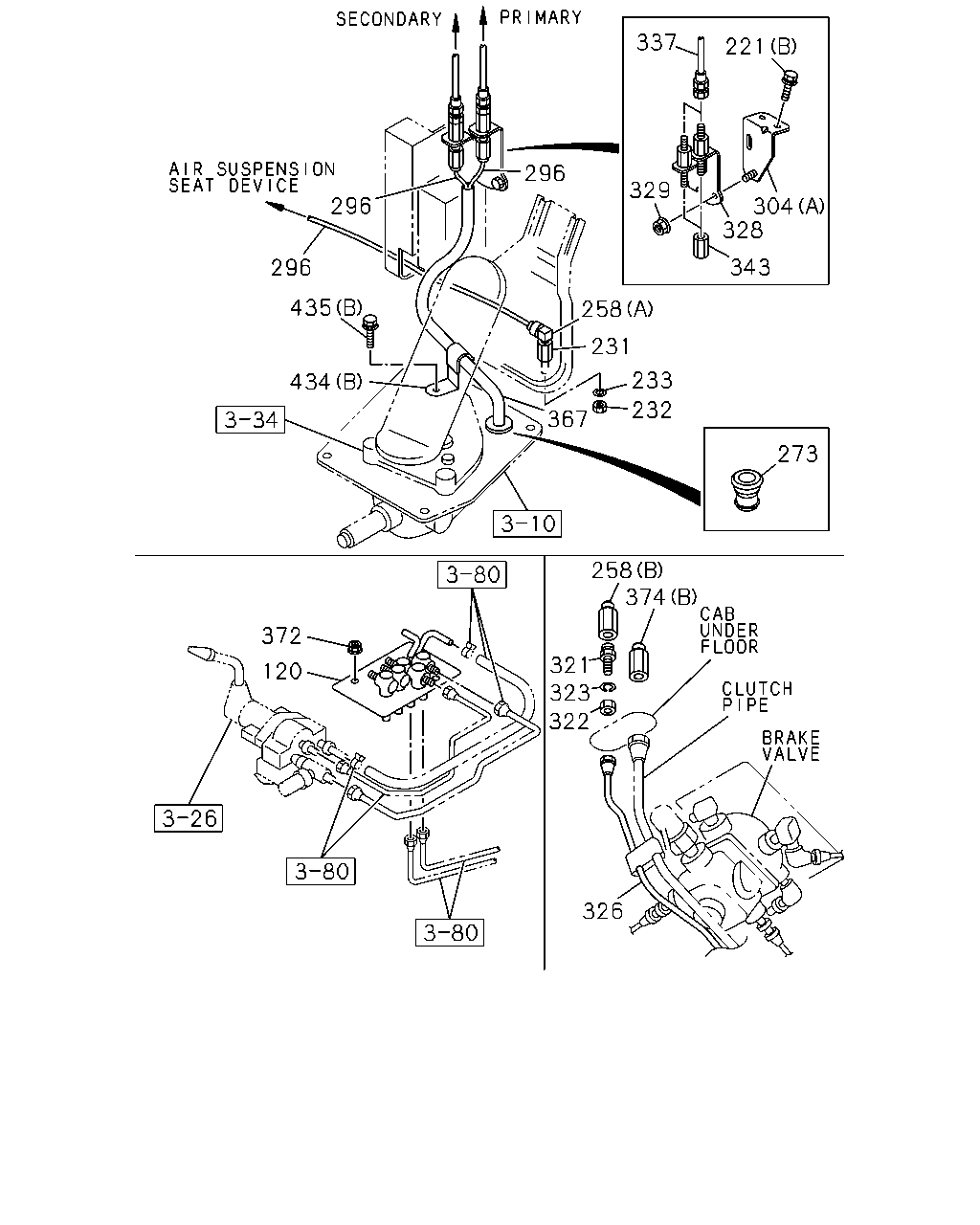

çizim 78851
337 221 296 329 296 304 328 343 296 435 258 231 233 434 232 367 273 258 374 372 321 323 120 322 326
BalonParca AdiParca NoAdetTipApplied Date
120 CONNECTOR; AIR PIPE 1-47470-402-3 01 1 0105-0111
120 CONNECTOR; AIR PIPE 1-47470-667-0 01 1 0112-0301
120 CONNECTOR; AIR PIPE 1-47470-677-0 01 1 0302-
221 BOLT; BRKT
(A) M8X35 FLANGE 		0-28680-835-0 01 1 0105-0512
221 BOLT; BRKT
(A) M8X35 FLANGE 		0-28650-835-0 01 1 0601-
221 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE 		0-28681-035-0 02 1 0105-0512
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE 		0-28651-035-0 02 1 0601-
231 UNION; AIR PIPE 1-09656-713-2 01 1 0105-
232 NUT; UNION,AIR PIPE
M10 H=8 		1-09400-029-0 01 1 0105-
233 WASHER; LK,UNION,AIR PIPE
ID=10.2 		9-09150-510-0 01 1 0105-
258 CONNECTOR; NYLON TUBE
(A) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0105-0302
258 CONNECTOR; NYLON TUBE
(A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303-
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0105-
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-0105
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-0105
258 CONNECTOR; NYLON TUBE
(D) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0106-0301
258 CONNECTOR; NYLON TUBE
(D) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0302-
273 GROMMET 1-09332-135-0 01 1 0105-
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 01 1 0105-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0105-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-0301
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0105-0301
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0302-
304 BRACKET; UNION
(B) 		1-47476-556-0 02 1 0105-
304 BRACKET; UNION
(A) 		1-71117-211-0 01 1 0105-
321 JOINT; FLEX HOSE 1-09656-738-0 01 1 0105-
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 0105-
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 0105-
326 PIPE; AIR,FLEX HOSE
L=529 		1-47494-216-3 01 1 0105-
328 UNION; AIR PIPE 1-47470-442-0 01 1 0105-
329 NUT; UNION,AIR PIPE
M6 FLANGE 		0-91150-106-0 01 1 0105-0602
329 NUT; UNION,AIR PIPE
M6 FLANGE 		0-91180-106-0 01 1 0603-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=520 		0-07210-520-0 02 1 0105-
343 UNION; NYLON TUBE 1-09660-796-1 02 1 0105-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0105-0301
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0105-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 0105-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0302-
372 NUT
M8 FLANGE 		0-91150-108-0 02 1 0105-0602
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603-
374 CONNECTOR
(A) M16 PT3/8X2 3WAY 		1-09656-418-2 01 1 0105-0301
374 CONNECTOR
(A) M16 PT3/8X2 3WAY 		1-09656-418-2 01 1 0302-0404
374 CONNECTOR
(A) M16 PT3/8X2 3WAY 		1-09656-556-1 01 1 0405-
374 CONNECTOR
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0105-0310
434 CLIP
(A) ID=25 H=30 L=35 		1-09700-875-0 02 1 0105-
434 CLIP
(B) ID=17 		8-94449-734-1 01 1 0105-
435 BOLT; CLIP
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512
435 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
435 BOLT; CLIP
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0105-

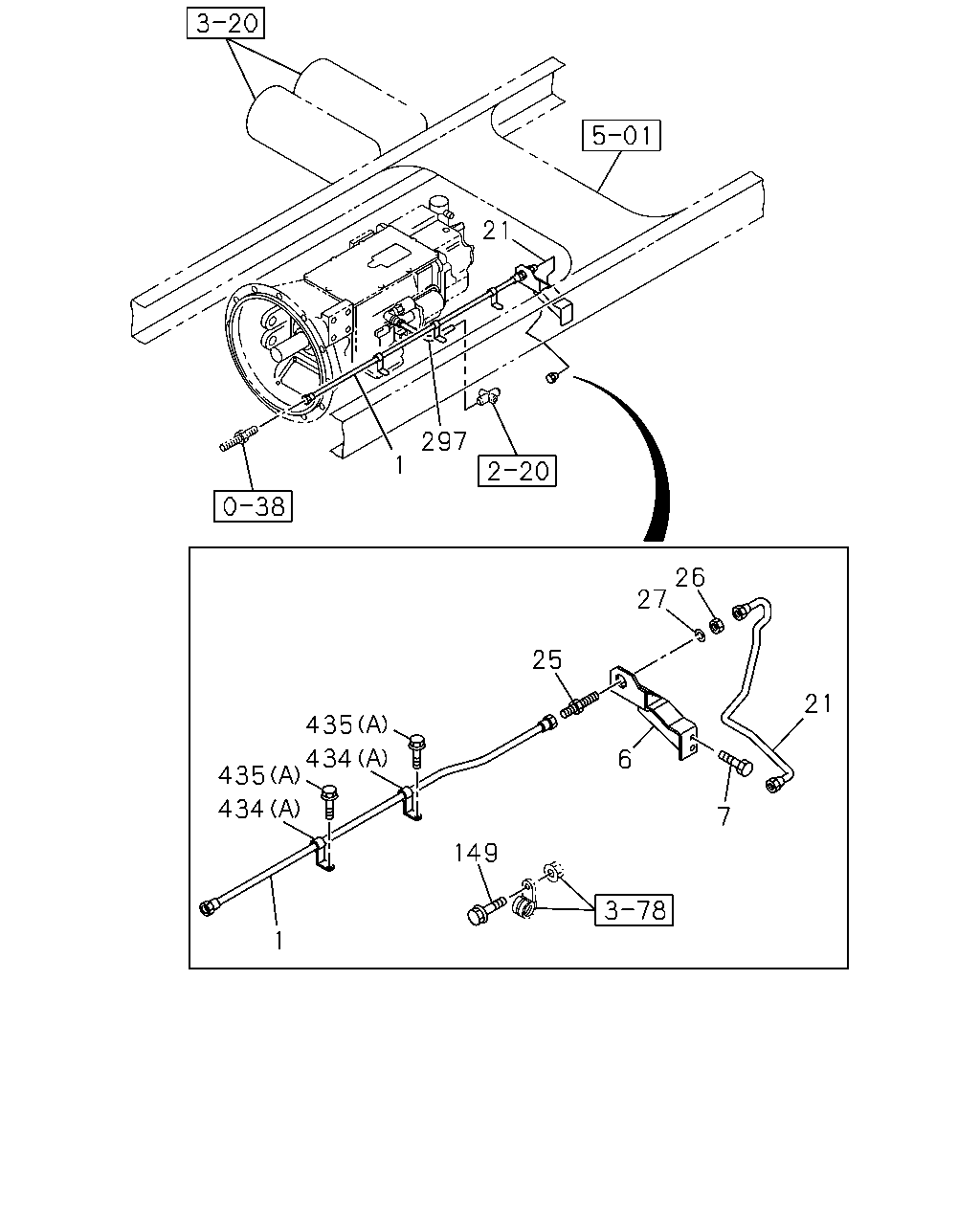

çizim 81218
21 297 1 26 27 25 21 435 434 6 435 434 7 149 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=1050 		1-09363-789-0 01 1 0105-
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-719-1 01 1 0105-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
21 PIPE; AIR,UNION TO AIR DRYER 1-49122-866-0 01 1 0105-0110
21 PIPE; AIR,UNION TO AIR DRYER 1-49123-375-0 01 1 0111-0302
21 PIPE; AIR,UNION TO AIR DRYER 1-49124-042-0 01 1 0303-
25 VALVE; CHECK 1-48320-042-1 01 1 0105-0410
25 VALVE; CHECK 1-48320-057-0 01 1 0411-
26 NUT; CHECK VLV
M20 		9-99111-420-0 01 1 0105-0512
26 NUT; CHECK VLV
M20 		0-91111-520-0 01 1 0601-
27 WASHER; LK,CHECK VLV
ID=20.2 		9-09150-520-0 01 1 0105-
149 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0106-0512
149 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-0301
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0302-
434 CLIP
(A) ID=25 H=30 L=35 		1-09700-875-0 02 1 0105-
434 CLIP
(B) ID=17 		8-94449-734-1 01 1 0105-
435 BOLT; CLIP
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512
435 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
435 BOLT; CLIP
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
