◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51390 - NQR A/BRAKE MIDEAST ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-55 - EXHAUST BRAKE VALVE AND CONTROL CYLINDER ▶
1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#125028) — 12 parça

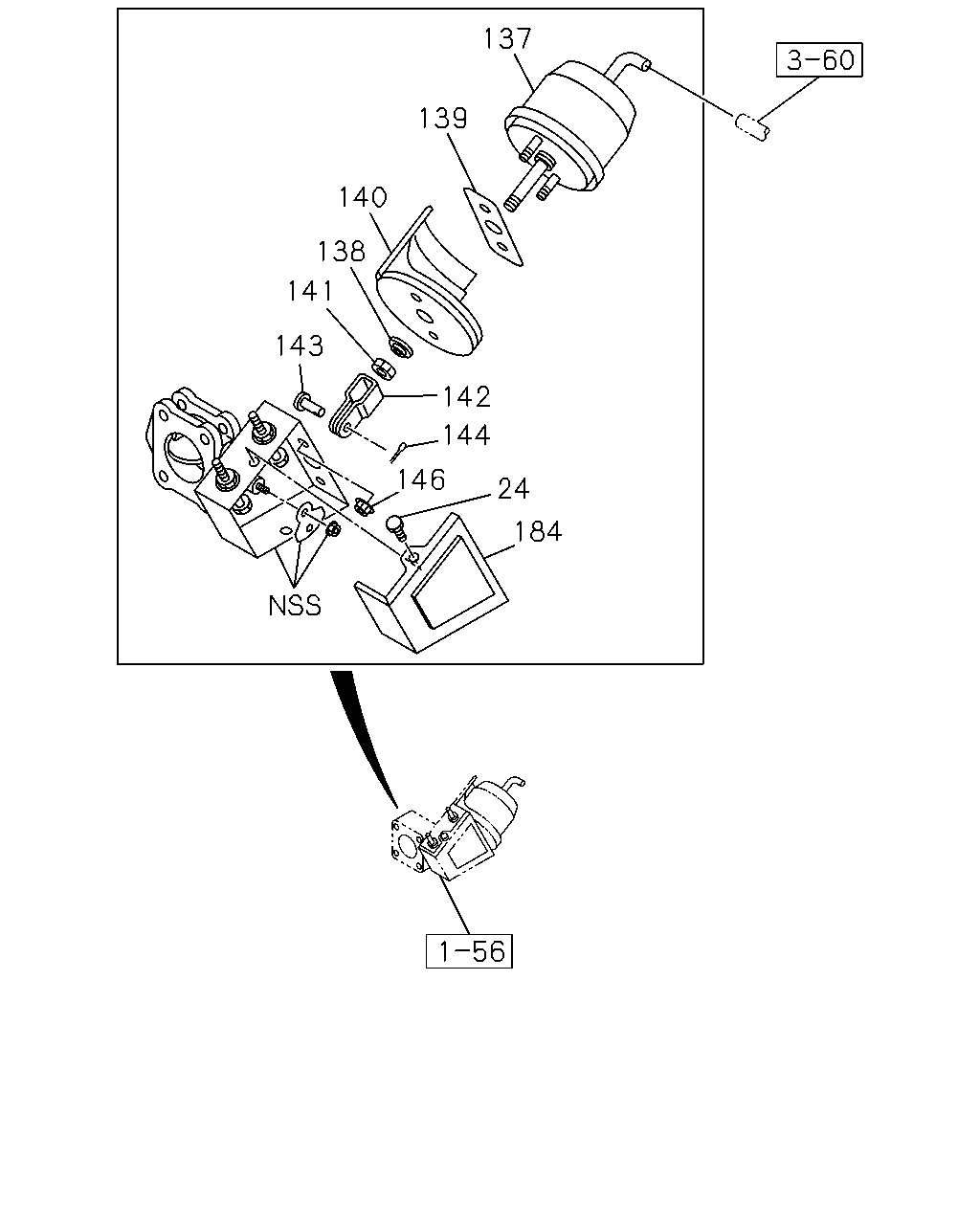

çizim 362812
184 24 146 144 142 143 141 138 140 139 137
BalonParca AdiParca NoAdetTipApplied Date
24 03.634 BOLT; COVER
03.444 		8-97065-029-0 02 1 1307-
137 03.634 CHAMBER; POWER 8-98070-470-0 01 1 1307-
138 03.634 BEARING; EXH BRK VLV 5-22189-004-0 01 1 1307-
139 03.634 GASKET; EXH BRK VLV 8-94328-234-0 01 1 1307-
140 03.634 INSULATOR; EXH BRK VLV 8-97173-333-0 01 1 1307-
141 03.636 NUT; CLEVIS,EXH BRK VLV
05.122 		8-94311-428-0 01 1 1307-
142 03.636 CLEVIS; EXH BRK VLV 8-97177-311-0 01 1 1307-
143 03.636 PIN; EXH BRK VLV 8-94311-452-0 01 1 1307-
144 03.636 PIN; SPLIT,EXH BRK VLV 8-97029-428-0 01 1 1307-
146 03.634 NUT; EXH BRK VLV
01.062 M8 FLANGE 		0-91180-108-0 02 1 1307-
184 03.634 COVER; BRKT 8-98070-514-0 01 1 1307-

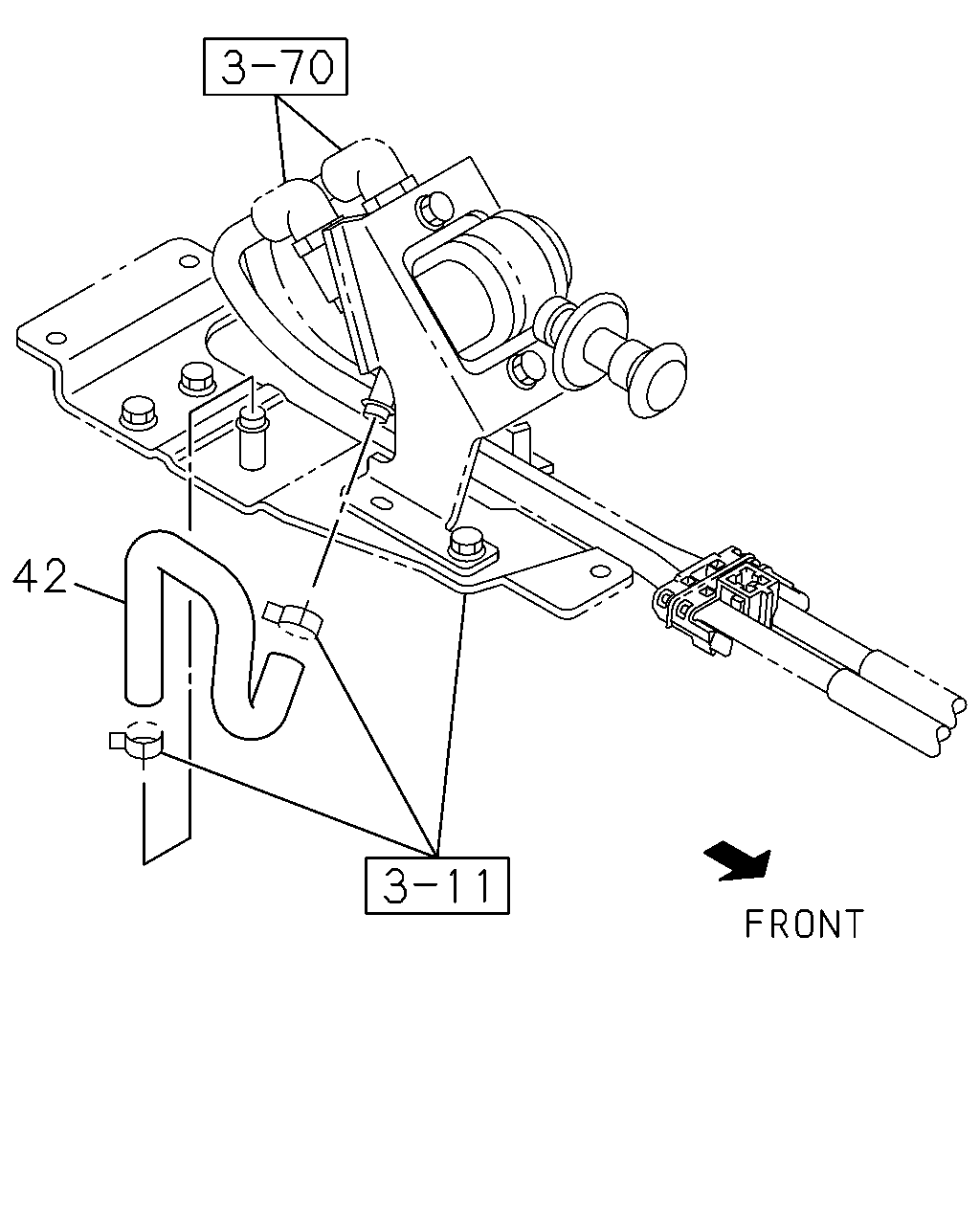

çizim 366994
42
BalonParca AdiParca NoAdetTipApplied Date
42 03.634 HOSE; FLEX,EXH BRK 8-98169-679-1 01 1 1307-
