Isuzu WW
▶
TRUCKS
▶
NQR
▶
51390 - NQR A/BRAKE MIDEAST
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#125020) — 32 parça
◀

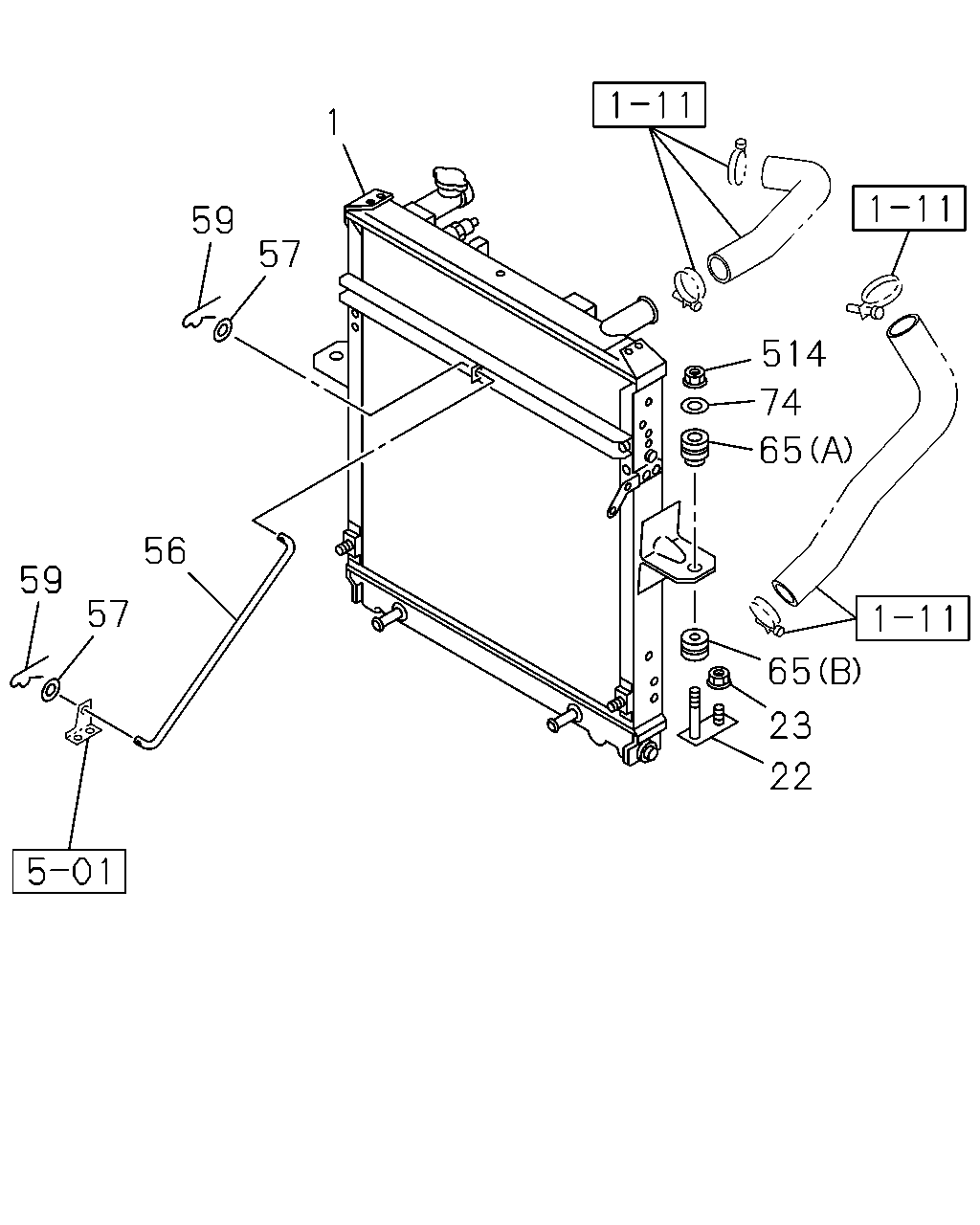

[110A] NO.1 (11 parça)

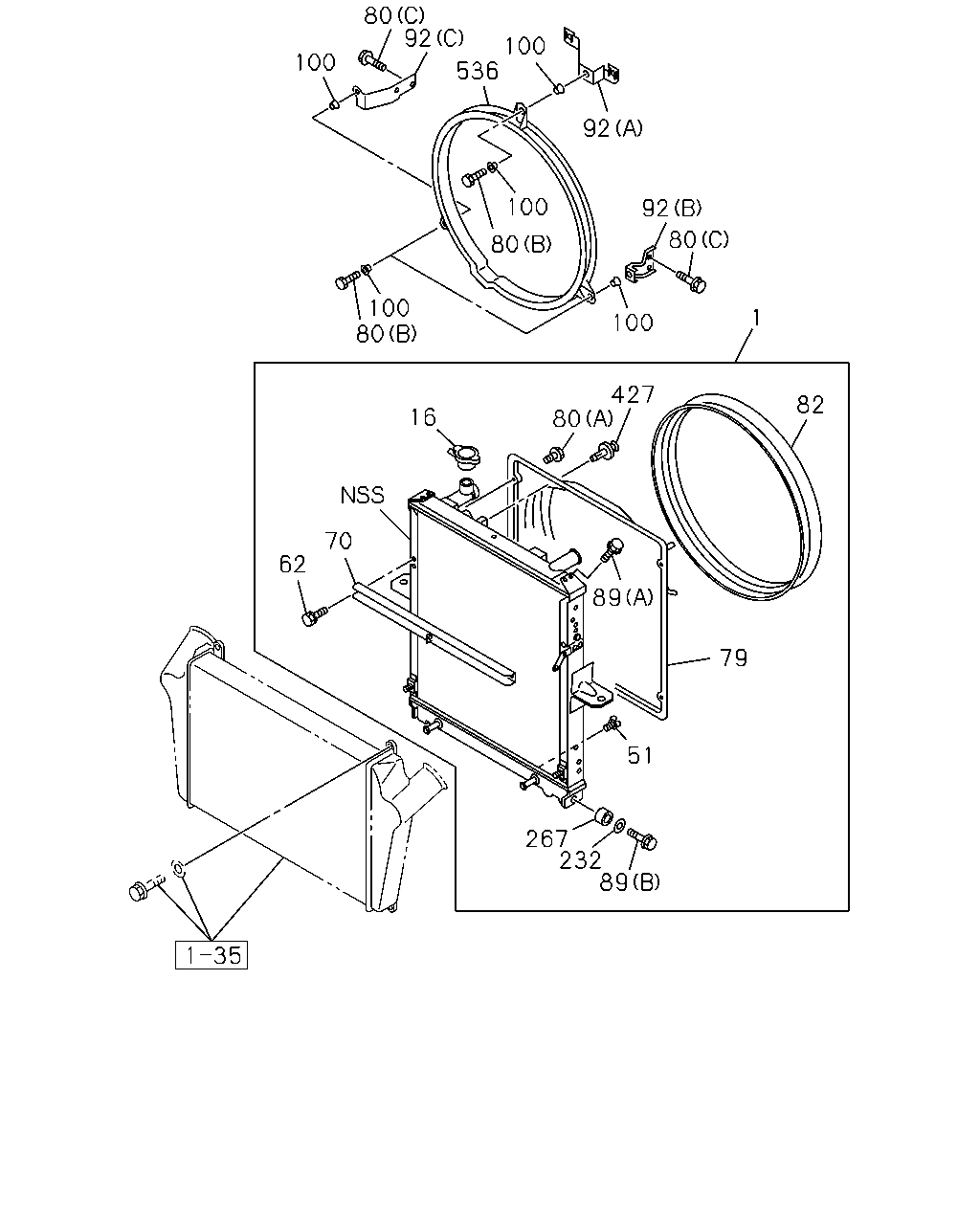

[110A] NO.2 (21 parça)
▶
22
23
65
65
74
514
57
59
56
57
59
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
01.219 RADIATOR ASM
8-98096-249-0
01
1
1307-1410
1
01.219 RADIATOR ASM
8-98259-948-0
01
1
1411-
22
01.270 BRACKET; RAD MTG
01.277
8-97330-527-1
02
1
1307-
23
01.271 NUT; RAD MTG
01.062 M8 FLANGE
0-91180-108-0
02
1
1307-
56
01.270 STAY; RAD
8-98049-051-0
01
1
1307-
57
01.271 WASHER; PL,STAY
17.198 ID=10.5
0-91610-510-0
02
1
1307-
59
01.271 PIN; SNAP,STAY
L=32.6
8-97359-052-0
02
1
1307-
65
01.271 INSULATOR; RAD
01.270 (A)
8-94249-346-0
02
1
1307-
65
01.271 INSULATOR; RAD
01.270 (B)
8-94249-347-0
02
1
1307-
74
01.270 WASHER; PL,CUSHION RUBBER
ID=8.5 OD=36
8-97359-049-1
02
1
1307-
514
01.276 NUT; RAD
01.062 M8 FLANGE
0-91180-108-0
02
1
1307-
89
232
267
51
62
70
16
80
427
89
79
82
1
100
80
100
80
100
100
80
92
536
100
92
92
80
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
01.219 RADIATOR ASM
8-98096-249-0
01
1
1307-1410
1
01.219 RADIATOR ASM
8-98259-948-0
01
1
1411-
16
01.203 CAP; RAD
8-98096-226-0
01
1
1307-
51
08.951 PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1307-
62
01.271 BOLT; STAY
02.343 M8X12 FLANGE
0-28050-812-0
02
1
1307-
70
01.271 STAY; RAD
8-98018-941-0
01
1
1307-
79
01.277 GUIDE; FAN,RAD
8-98006-477-0
01
1
1307-
80
01.277 BOLT; FAN GUIDE
03.417 (C) M10X20 FLANGE
0-28151-020-0
04
1
1307-
80
01.277 BOLT; FAN GUIDE
03.403 (B) M8X30 FLANGE
0-28650-830-0
03
1
1307-
80
01.277 BOLT; FAN GUIDE
(A) M6X16
1-21559-481-0
04
1
1307-
82
01.277 COVER; FAN,RAD
8-98006-478-0
01
1
1307-
89
01.277 BOLT
02.343 (A) M8X12 FLANGE
0-28050-812-0
02
1
1307-
89
01.277 BOLT
01.271 (B) M8X25 W/PL WASHER
1-21469-153-0
02
1
1307-
92
01.277 BRACKET; FAN GUIDE
(A)
8-97382-827-2
01
1
1307-
92
01.277 BRACKET; FAN GUIDE
(B)
8-97386-233-0
01
1
1307-
92
01.277 BRACKET; FAN GUIDE
(C)
8-98032-526-0
01
1
1307-
100
01.277 RUBBER; MTG
1-09337-027-0
06
1
1307-
232
01.540 COLLAR; DIST,CUSHION RUBBER
1-87410-723-0
02
1
1307-
267
01.277 RUBBER; CUSHION
1-21467-023-0
02
1
1307-
427
01.240 CLIP; FAN GUIDE
01.277
1-09470-009-0
01
1
1307-
536
01.020 SHROUD; FAN
01.277
8-97350-995-0
01
1
1307-
