51390 - NQR A/BRAKE MIDEAST
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#125013) — 36 parça
◀

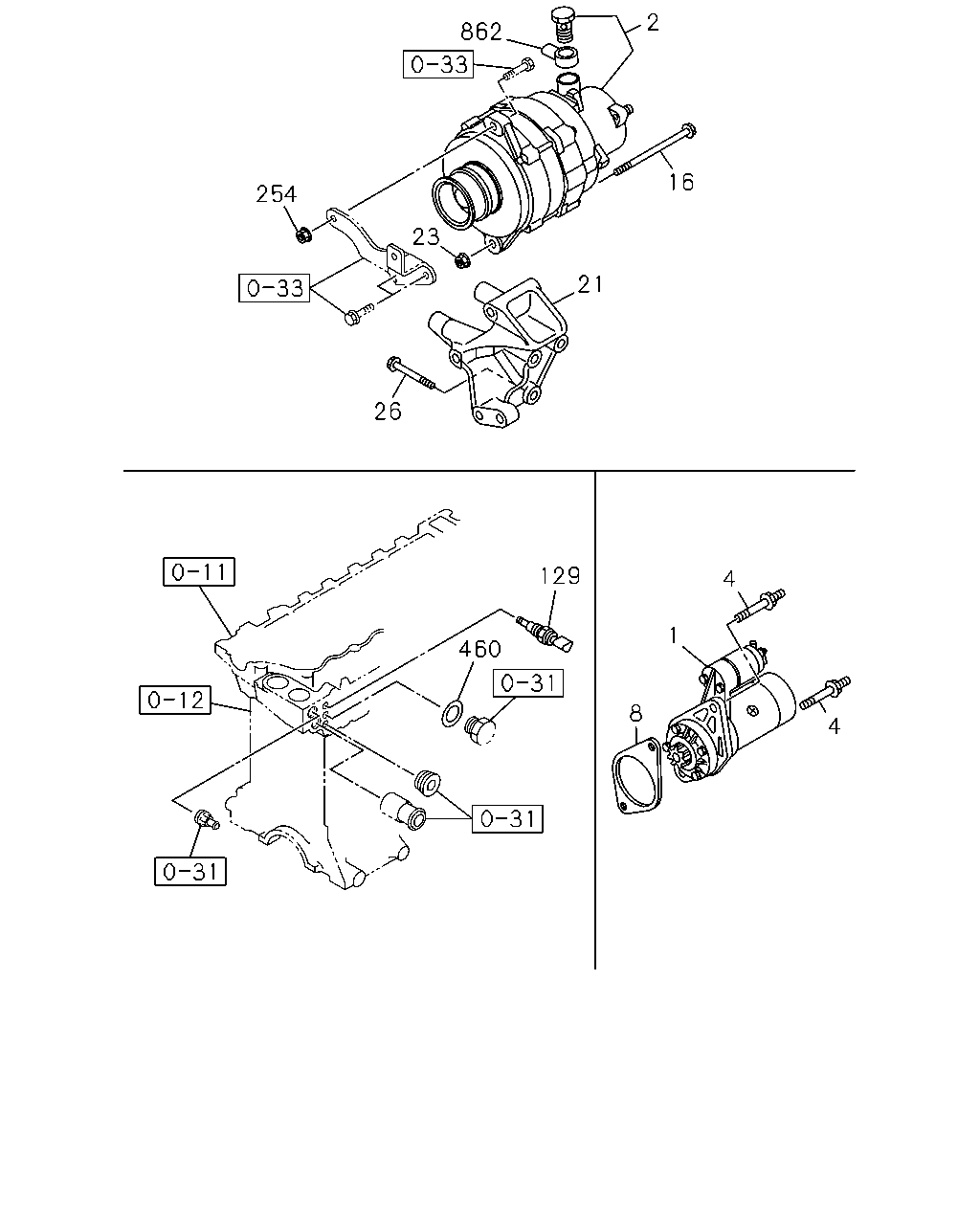

[060A] STARTER,GENERATOR AND OTHER PARTS (14 parça)
[060A] RELAY (3 parça)

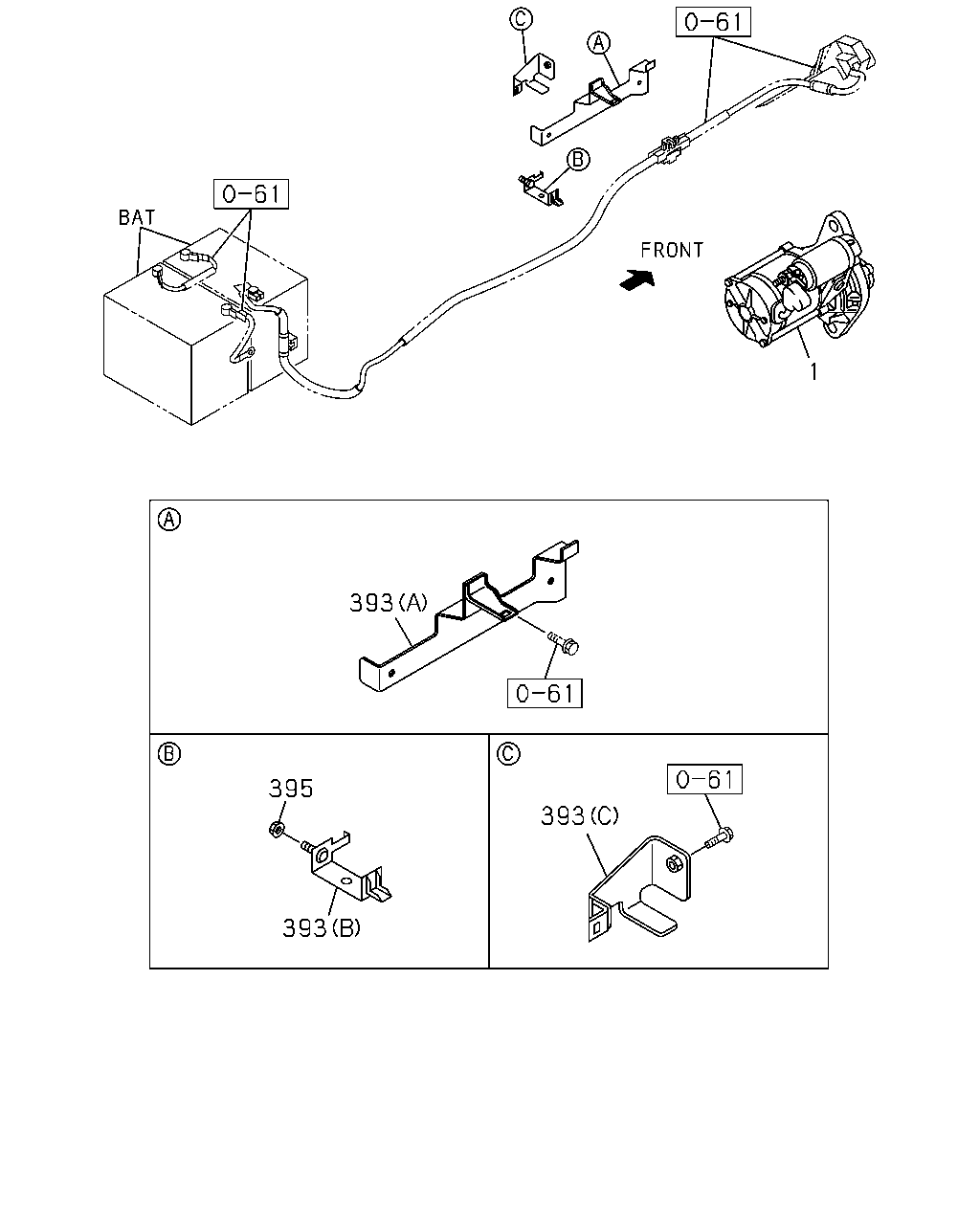

[060A] BATTERY CABLE BRACKET (7 parça)

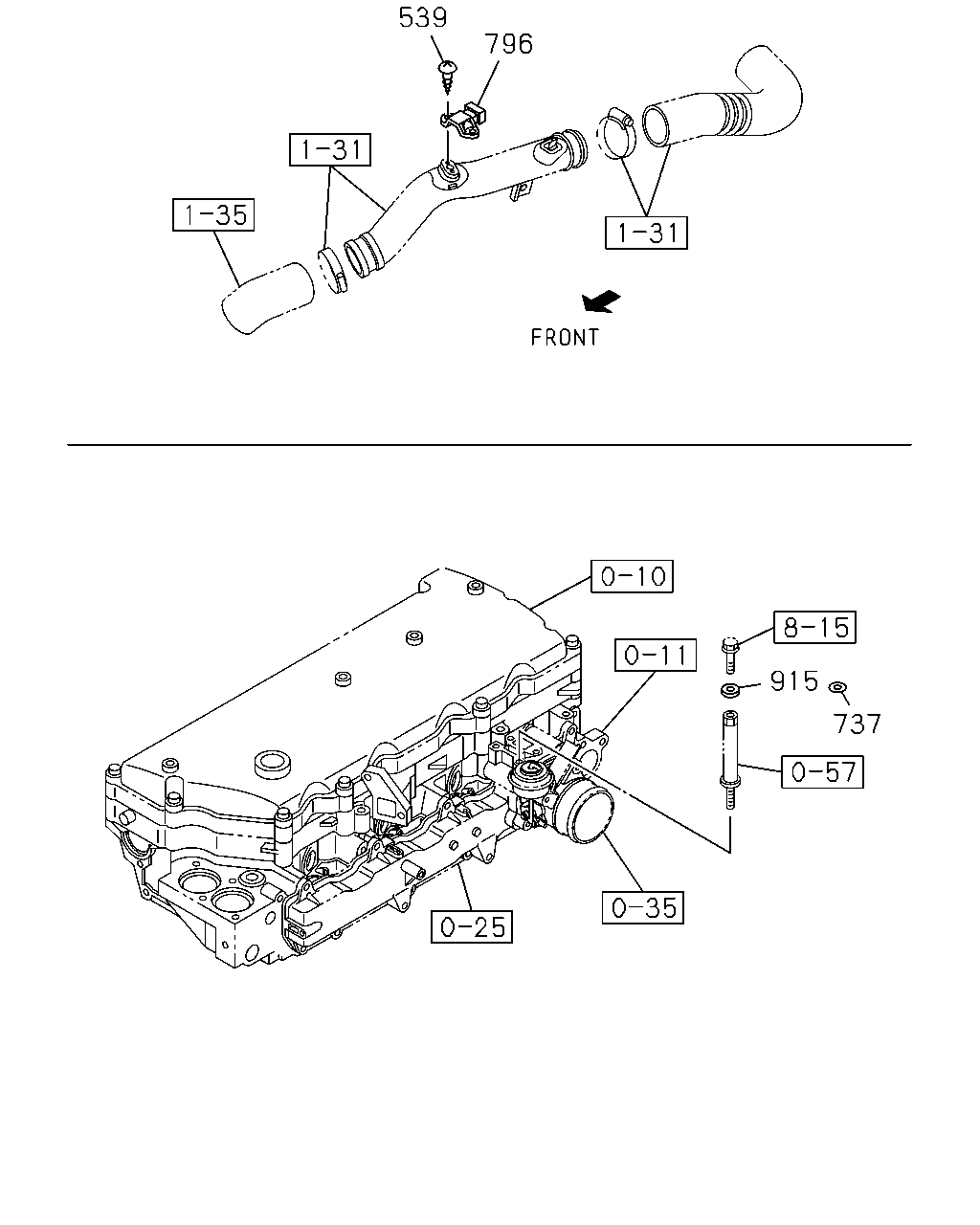

[060A] SENSOR AND OTHER PARTS (4 parça)

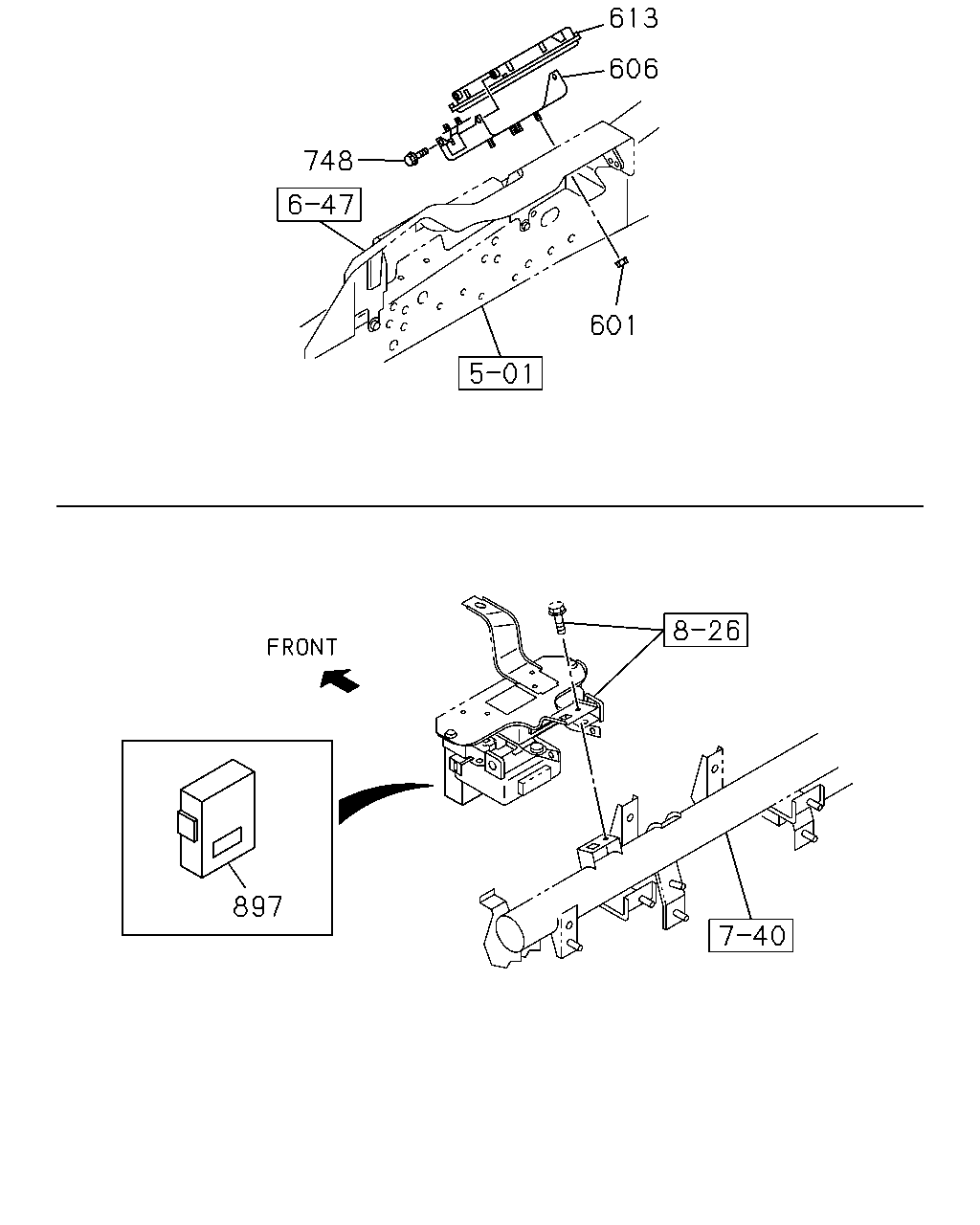

[060A] ENG CONTROL UNIT AND DRM (8 parça)
▶
862
2
16
21
23
26
254
129
4
1
8
4
460
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI
8-98222-018-1
01
1
1307-
2
02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A
8-98180-874-0
01
1
1307-
2
02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A
8-98180-875-0
01
1
1307-
4
02.042 BOLT; STARTER
M10X15,M14X75 L=103
8-97212-602-0
02
1
1307-
8
02.042 SPACER; STARTER
8-97350-947-0
01
1
1307-
16
02.277 BOLT; GEN
M10X120 FLANGE
0-28056-012-0
01
1
1307-
21
02.277 BRACKET; GEN
8-98176-241-1
01
1
1307-
23
02.277 NUT; GEN
04.085 M10 FLANGE
0-91180-210-0
01
1
1307-
26
02.277 BOLT; GEN BRKT
01.062 M10X90 FLANGE
0-28151-090-0
03
1
1307-
129
01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI
8-98023-883-0
01
1
1307-1503
129
01.150 SENSOR; GLOW PLUG,THERMO
NISHIDA
8-98260-257-0
01
1
1504-
254
02.277 NUT; GEN BRKT
01.540 M8 FLANGE
0-91180-208-0
01
1
1307-
460
02.363 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 04.868 ID=16.2
1-09630-086-0
01
1
1307-
862
02.313 CONNECTOR; GEN
8-97351-626-0
01
1
1307-
10
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
02.100 RELAY; STARTER
24V 50A
8-97264-947-0
01
1
1307-
46
02.510 RELAY; GLOW PLUG
24V 50A
8-97173-947-0
01
1
1307-1501
46
02.510 RELAY; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> 24V 50A
8-97173-947-0
01
1
1502-
1
393
393
393
395
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI
8-98222-018-1
01
1
1307-
393
02.343 BRACKET; HARNESS TO BODY
FUEL TANK 140 LITTER<N19> 02.483 (B)
8-98018-251-1
04
1
1307-
393
02.343 BRACKET; HARNESS TO BODY
(A)
8-98041-946-1
01
1
1307-
393
02.343 BRACKET; HARNESS TO BODY
EXC. FUEL TANK 140 LITTER<N19> 02.483 (B)
8-98018-251-1
03
1
1307-
393
02.343 BRACKET; HARNESS TO BODY
EXC. BATTERY 115E41L<8MA> (C)
8-98123-872-0
01
1
1307-
395
02.343 NUT; BRKT FIX
FUEL TANK 140 LITTER<N19> 01.062 M8 FLANGE
0-91180-108-0
04
1
1307-
395
02.343 NUT; BRKT FIX
EXC. FUEL TANK 140 LITTER<N19> 01.062 M8 FLANGE
0-91180-108-0
03
1
1307-
737
915
796
539
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
539
02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
1307-
737
03.901 WASHER; PL
00.413 ID=6.4
0-91610-606-0
01
1
1307-
796
01.150 SENSOR; MAP
8-98009-418-0
01
1
1307-
915
02.500 SPACER; HARNESS
03.275 ID=9 OD=18 T=5
9-14149-173-0
01
1
1307-
897
601
748
606
613
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
601
03.670 NUT; UNIT
04.115 M6 W/DISHED WASHER
8-98029-921-0
04
1
1307-
606
03.680 BRACKET; CONT UNIT
8-98004-751-1
01
1
1307-1402
606
03.680 BRACKET; CONT UNIT
8-98114-583-2
01
1
1403-
613
03.670 CONTROL UNIT; ENG
GLOW SYSTEM DELETE<7RK>
8-98299-047-0
01
1
1502-
613
03.670 CONTROL UNIT; ENG
8-98229-602-0
01
1
1307-1501
613
03.670 CONTROL UNIT; ENG
EXC. GLOW SYSTEM DELETE<7RK>
8-98229-602-0
01
1
1502-
748
02.500 BOLT; CONT UNIT
03.162 M6X12 FLANGE
0-28050-612-0
03
1
1307-
897
02.510 DRM
8-98082-814-6
01
1
1307-
