Isuzu WW
▶
TRUCKS
▶
NQR
▶
51390 - NQR A/BRAKE MIDEAST
▶
0 - Engine, Emission, Engine Electrical
▶
0-42 - FUEL PUMP AND PIPE
▶

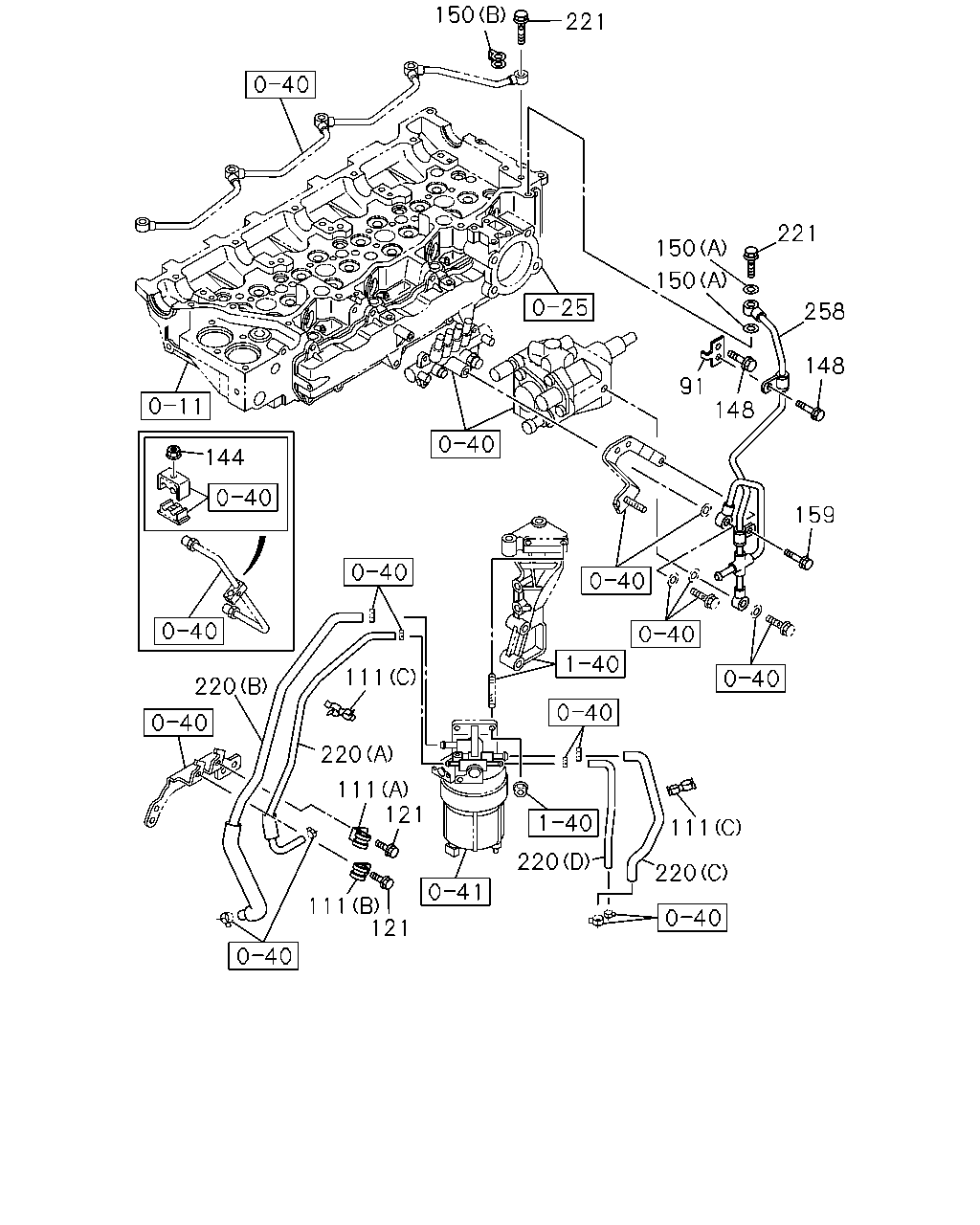

0-42 — FUEL PUMP AND PIPE
(#125007) — 16 parça
121
111
121
111
220
220
111
220
220
111
221
150
150
221
258
148
91
148
159
144
150
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
91
03.162 BRACKET; FUEL PIPE TO INL MANIF
8-98033-979-0
01
1
1307-
111
03.162 CLIP; FUEL PIPE
03.342 (A) ID=16 H=25 L=25
1-09701-162-0
01
1
1307-
111
03.162 CLIP; FUEL PIPE
(B) ID=19 L=24
1-09701-259-0
01
1
1307-
111
03.162 CLIP; FUEL PIPE
02.589 (C) ID=13 & 16.5
8-94169-028-0
03
1
1307-
121
03.162 BOLT; CLIP
09.242 M6X16 FLANGE
0-28050-616-0
02
1
1307-
144
03.162 NUT; CLIP
01.062 M6 FLANGE
0-91180-106-0
01
1
1307-
148
03.162 BOLT; BRKT
M6X12 FLANGE
0-28050-612-0
02
1
1307-
150
03.162 GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.531 (A) ID=10.2 OD=15.2
1-09630-083-0
02
1
1307-
150
03.162 GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=17
8-98079-755-0
01
1
1307-
159
03.162 BOLT; CLIP
09.242 M6X16 FLANGE
0-28050-616-0
01
1
1307-
220
03.163 HOSE; FUEL
(C)
8-98172-555-2
01
1
1307-
220
03.163 HOSE; FUEL
(D)
8-98172-557-1
01
1
1307-
220
03.163 HOSE; FUEL
(A)
8-98172-558-0
01
1
1307-
220
03.163 HOSE; FUEL
(B)
8-98172-559-1
01
1
1307-
221
03.163 BOLT; FUEL PIPE
01.531 M10X21 FLANGE
8-94396-711-0
02
1
1307-
258
03.163 PIPE ASM; FUEL,LEAK OFF
8-98055-815-1
01
1
1307-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
