◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51390 - NQR A/BRAKE MIDEAST ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶
0-41 — FUEL FILTER AND BRACKET (#125006) — 22 parça

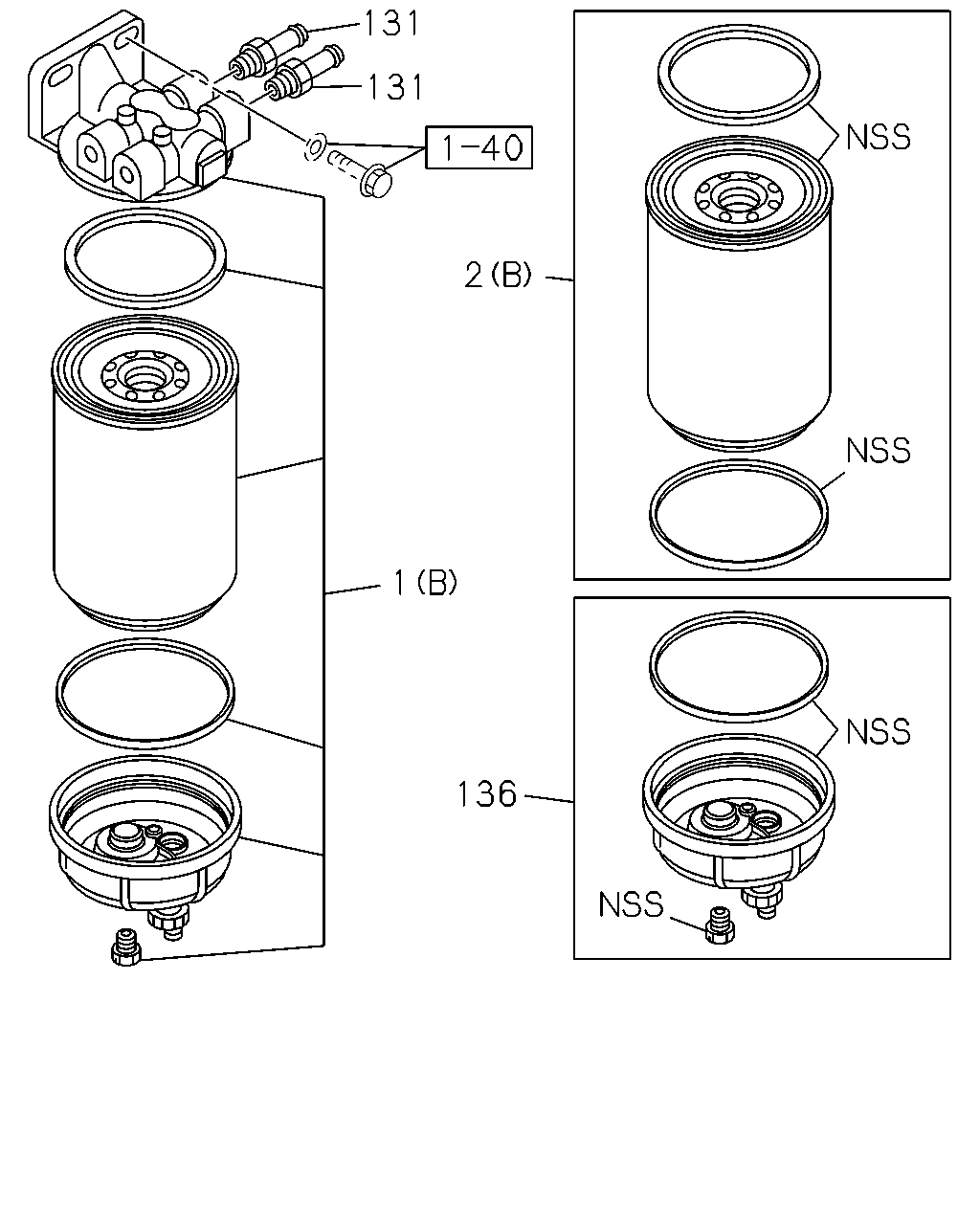

çizim 362003
131 131 2 1 136
BalonParca AdiParca NoAdetTipApplied Date
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1307-
1 03.890 FILTER ASM; FUEL
(B) 		8-98095-980-1 01 1 1307-
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1307-
2 03.890 ELEMENT KIT; FUEL FILTER
(B) 		8-98095-983-0 01 1 1307-
2 03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-0 01 1 1307-
131 03.890 PIPE; FILTER
NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1307-
136 03.890 CAP KIT; FUEL FILTER 8-98096-004-0 01 1 1307-1408
136 03.890 CAP KIT; FUEL FILTER 8-98279-324-0 01 1 1409-

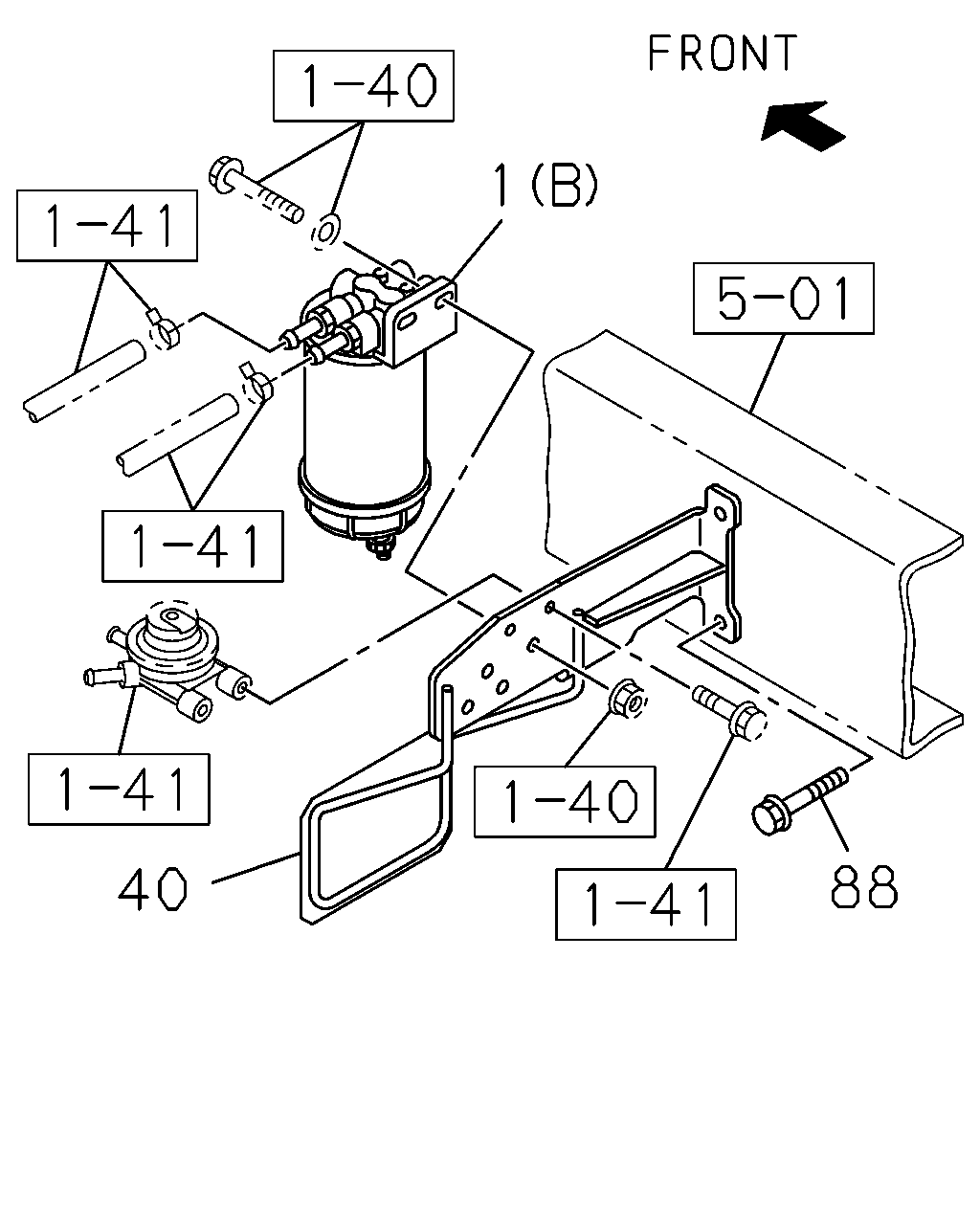

çizim 362338
40 88 1
BalonParca AdiParca NoAdetTipApplied Date
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1307-
1 03.890 FILTER ASM; FUEL
(B) 		8-98095-980-1 01 1 1307-
40 03.890 BRACKET; FUEL FILTER 8-98107-354-3 01 1 1307-
88 03.895 BOLT; BRKT,FUEL FILTER
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1307-

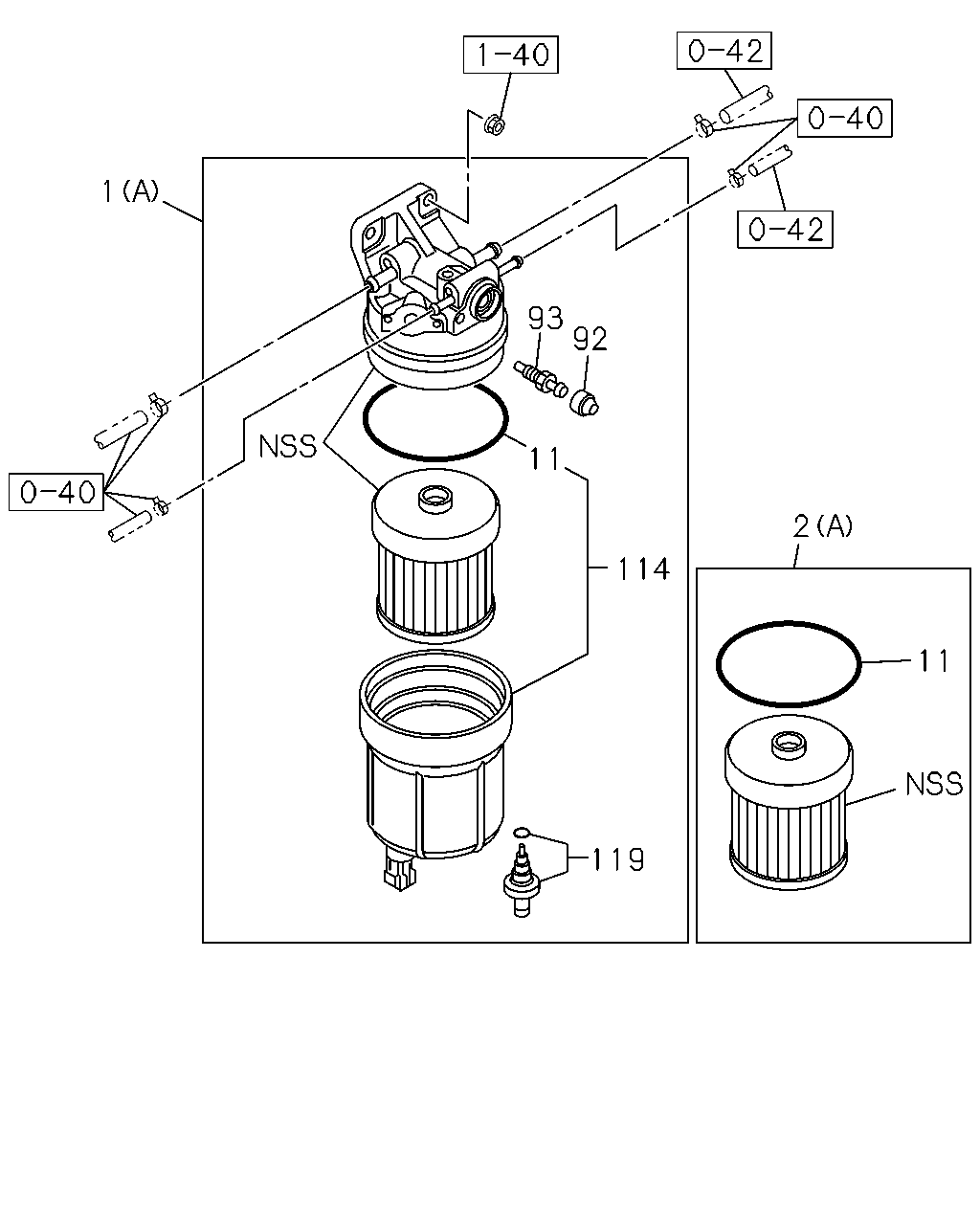

çizim 366061
1 93 11 114 119 92 2 11
BalonParca AdiParca NoAdetTipApplied Date
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1307-
1 03.890 FILTER ASM; FUEL
(B) 		8-98095-980-1 01 1 1307-
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1307-
2 03.890 ELEMENT KIT; FUEL FILTER
(B) 		8-98095-983-0 01 1 1307-
2 03.890 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-0 01 1 1307-
11 03.890 GASKET; CASE TO BODY,FUEL FILTER 8-98203-600-0 01 1 1307-
92 03.417 CAP; FUEL FILTER 8-98034-314-0 01 1 1307-
93 03.890 CONNECTOR; FUEL FILTER
M8X10 		8-98034-312-0 01 1 1307-
114 03.890 CASE ASM; FUEL FILTER 8-98039-987-1 01 1 1307-
119 03.890 PLUG; DRAIN,FUEL FILTER 8-98037-095-0 01 1 1307-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
